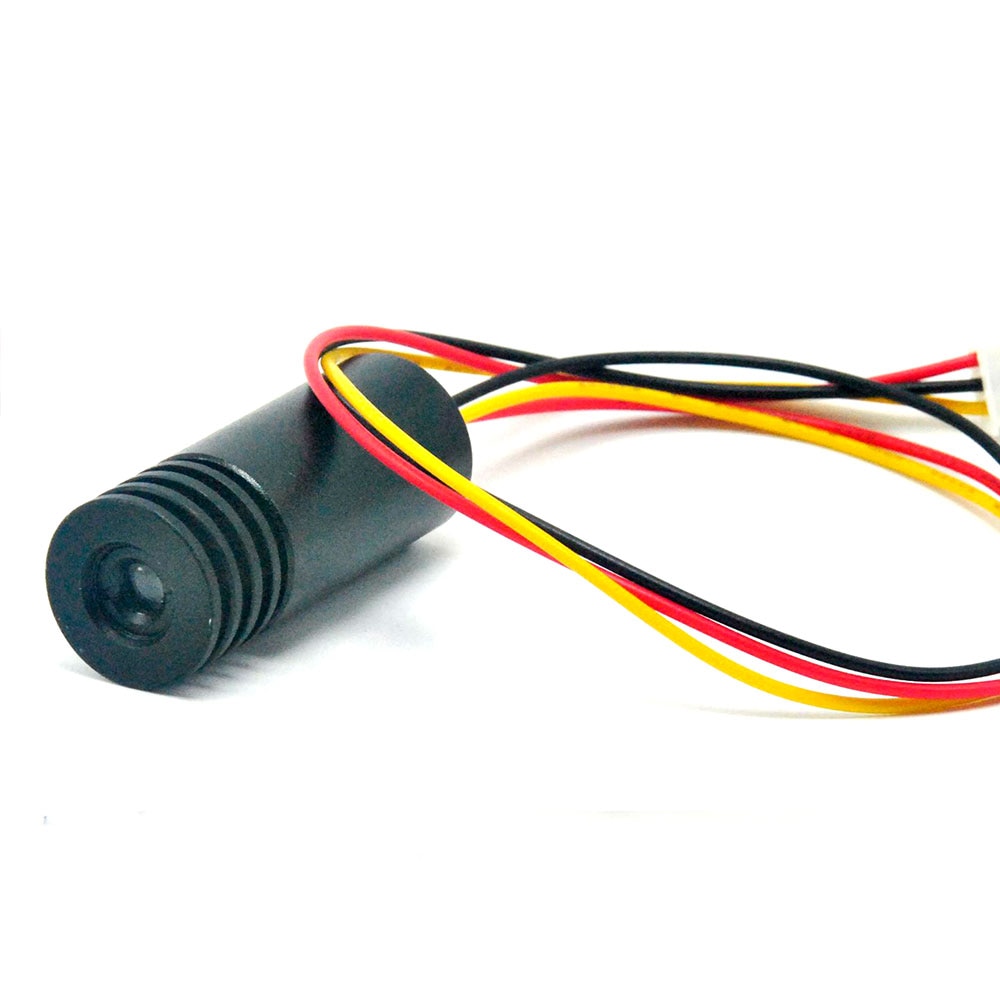

18x45mm 30mW 850nm Infrared IR Dot Laser DIode Module w Driver TTL 0-15KHZ

$71.97

99 in stock

SKU: 4000318352624 Category:

Description

  • Brand Name: Jolooyo
  • Style: Mini
  • Model Number: 850MD-30-1845
  • Power: 30MW
  • Item Type: Stage Lighting Effect
  • Occasion: Home Entertainment
  • Voltage: 5V

18x45mm 30mW 850nm Infrared IR Dot Laser DIode Module w Driver TTL 0-15KHZ

Parameter:
Wavelength:850nm
Output Power:30mw
Working Voltage:DC5V
Working Temperature:+15 ℃~+35 ℃
Laser Shape:Dot(rectangular to oval)
Focusable:yes
Material:Metal
TTL frequency:0-15KHz
TTL modulation Voltage:0-5V Off low, high open, normal status open
Dimension:18X45mm



Detail:

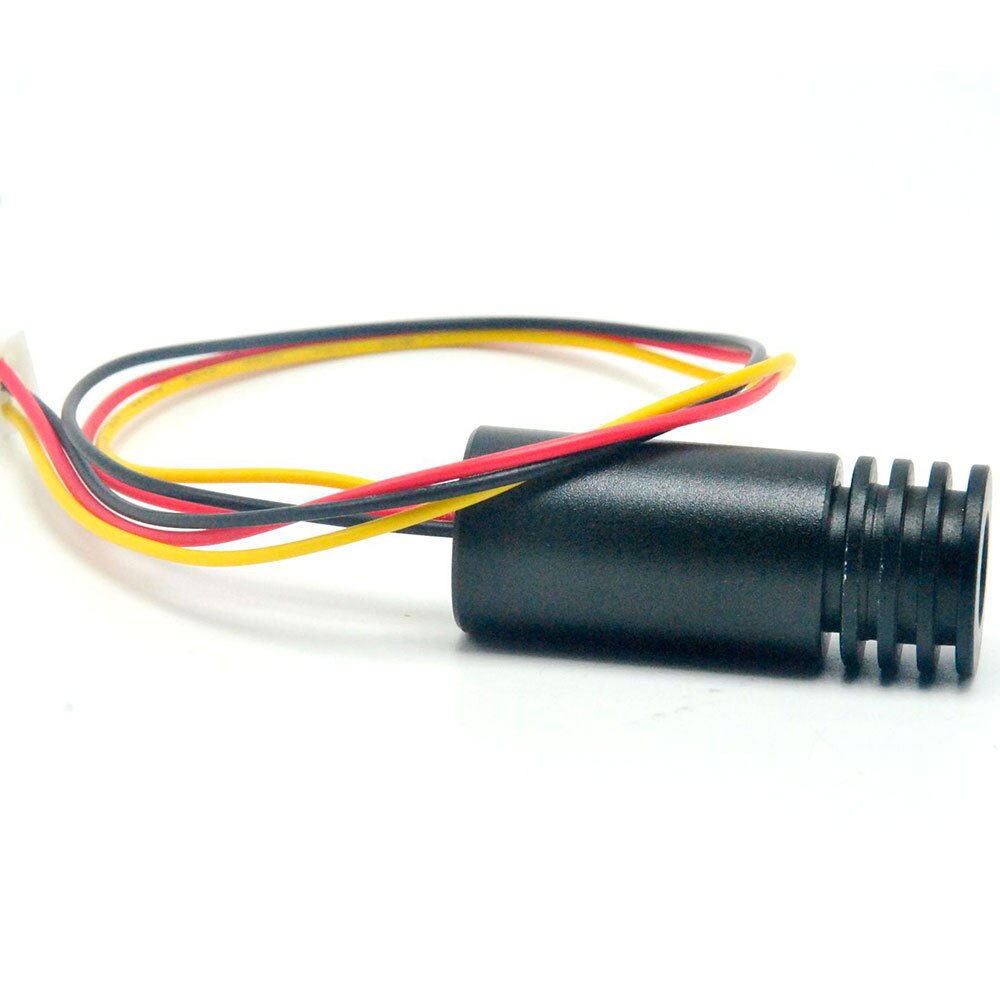

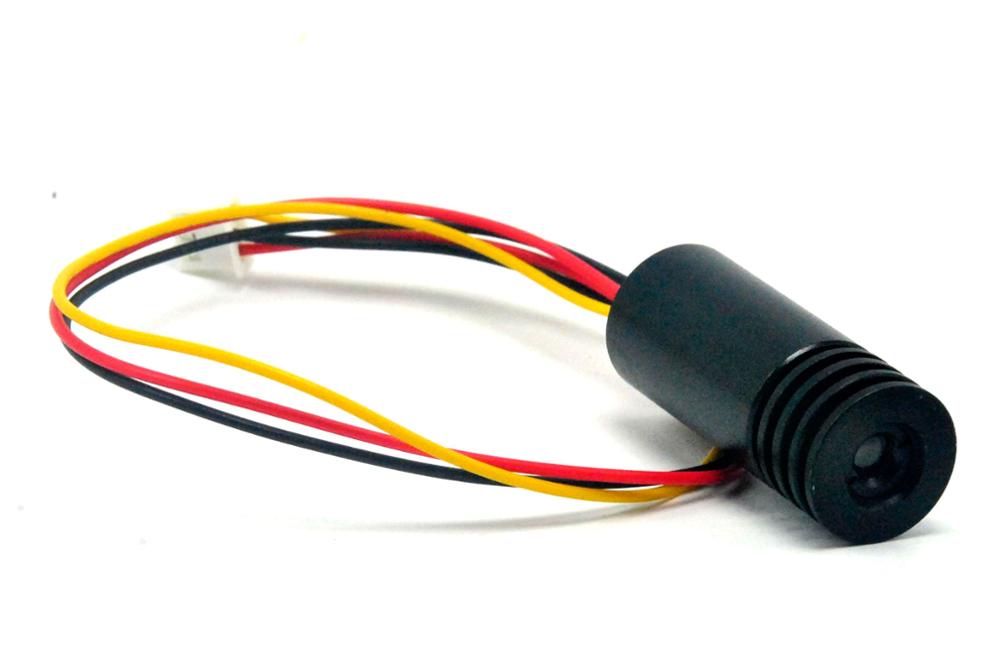

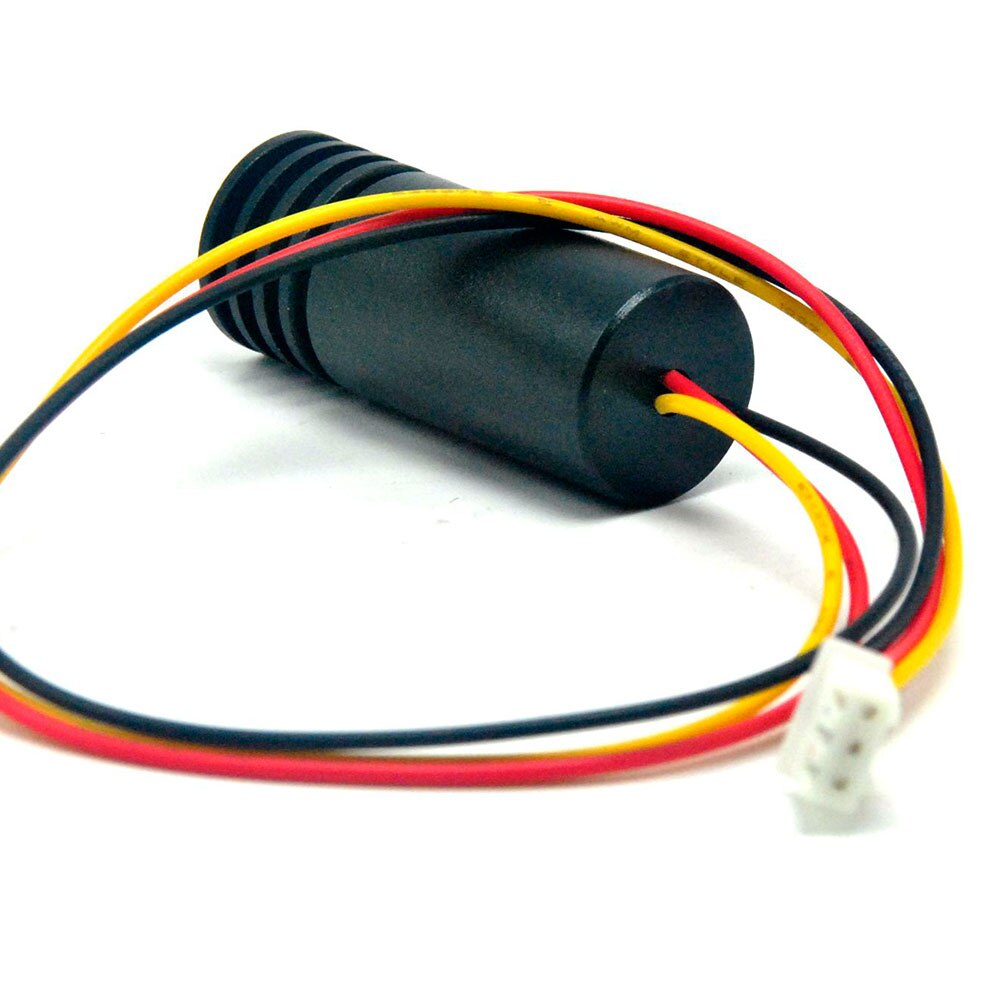

Three-wire input, the red line is positive, black line is negative, TTL signal yellow line is positive, If you only connect its black wire and red wire, the laser would not work, you also need to connect its yellow wire (TTL+ ) to 5v+.
This is a 850nm IR Infrared Laser. It can not be seen by the naked eye. Please use a Night Observation Device, for example, a phone with Infrared function. Thanks!

Package:
1pc 850nm 30mW Infrared IR Laser Dot Module w/TTL 0-15KHz

980MD-30-1845-TTL_5
