Description

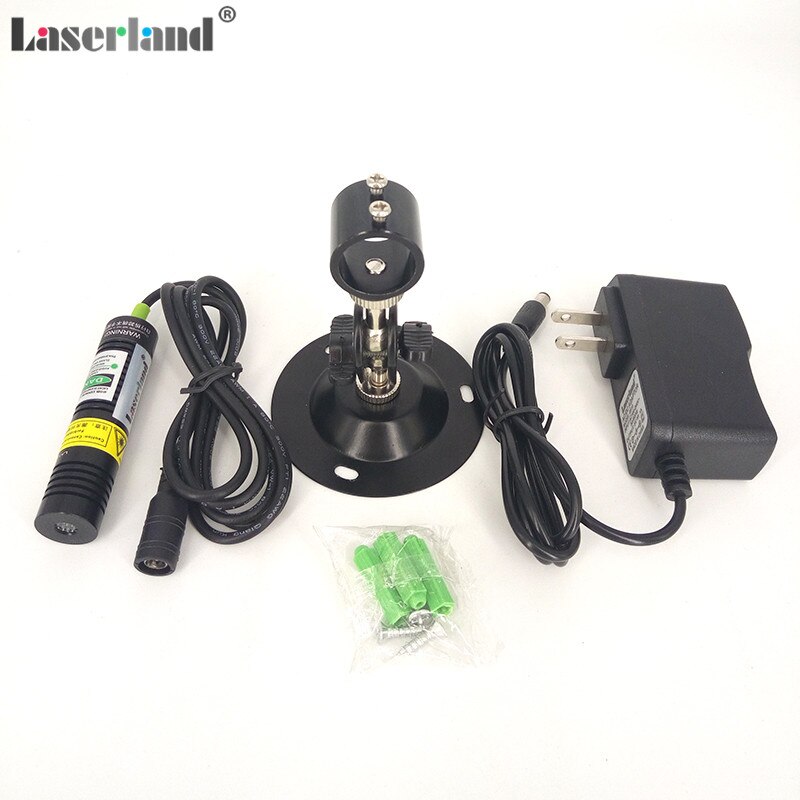

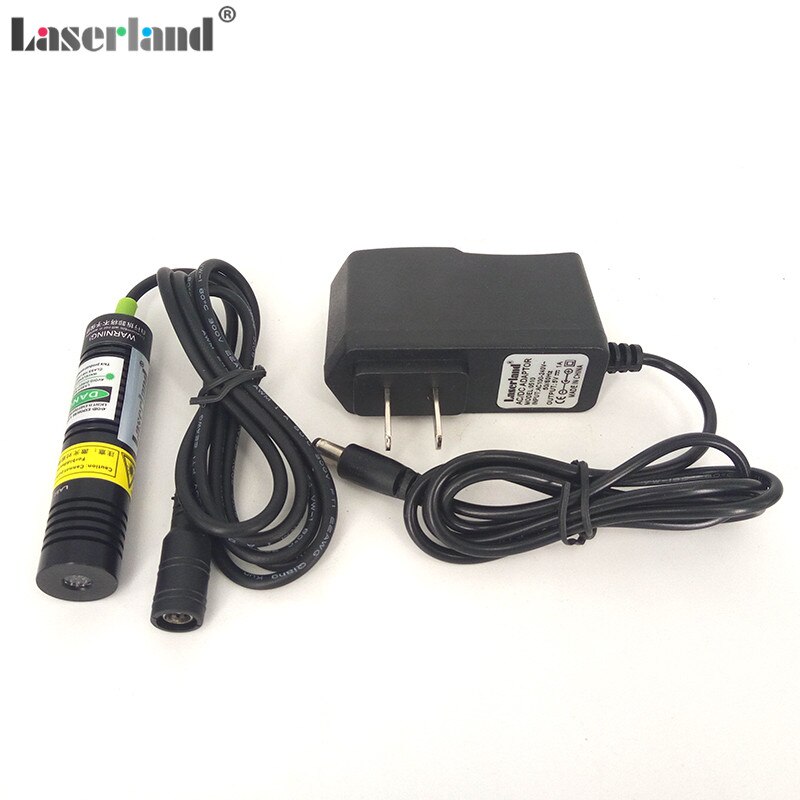

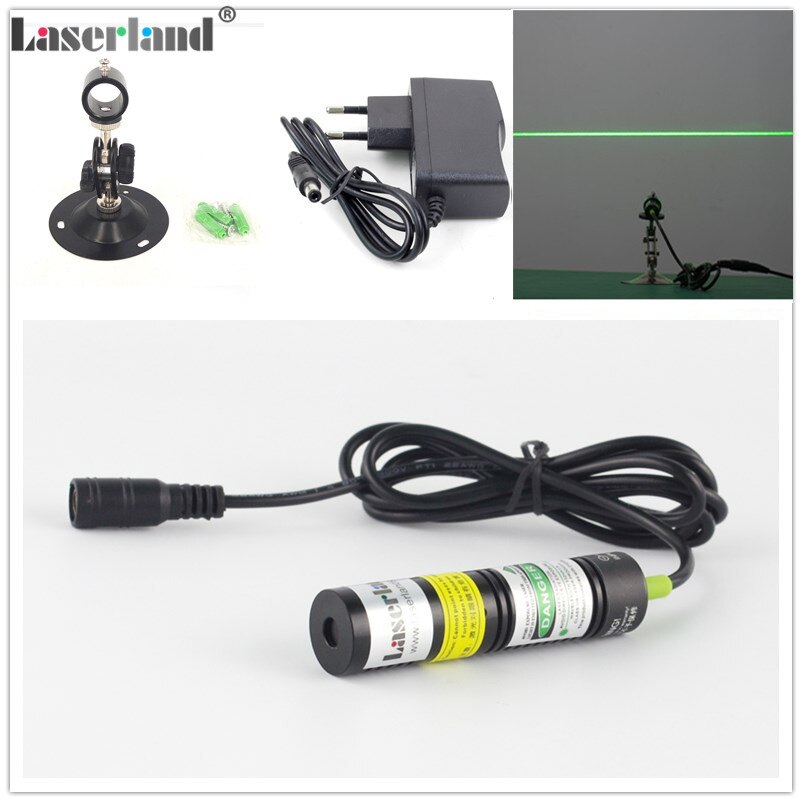

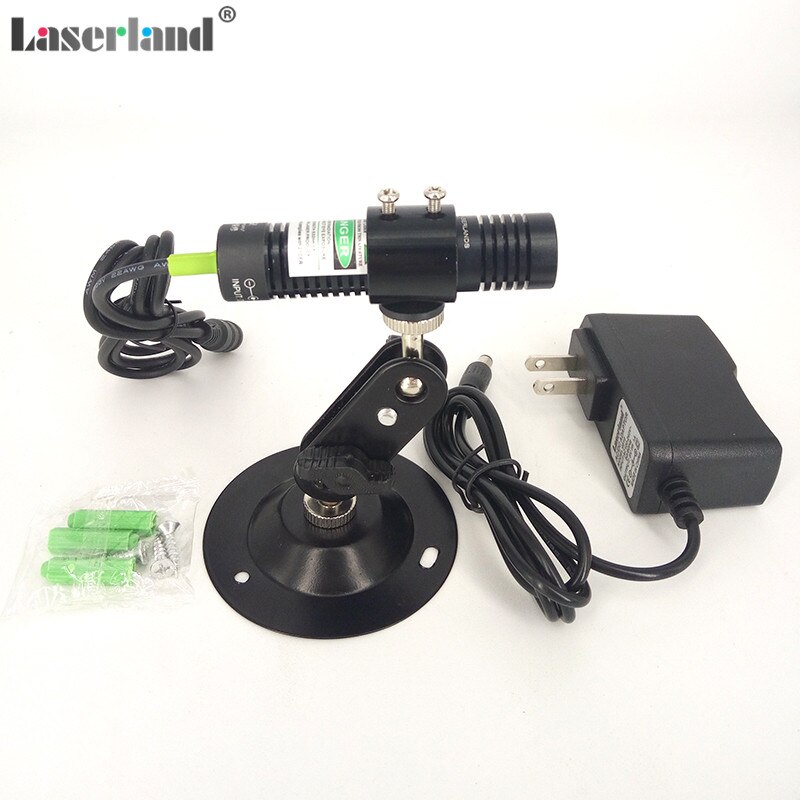

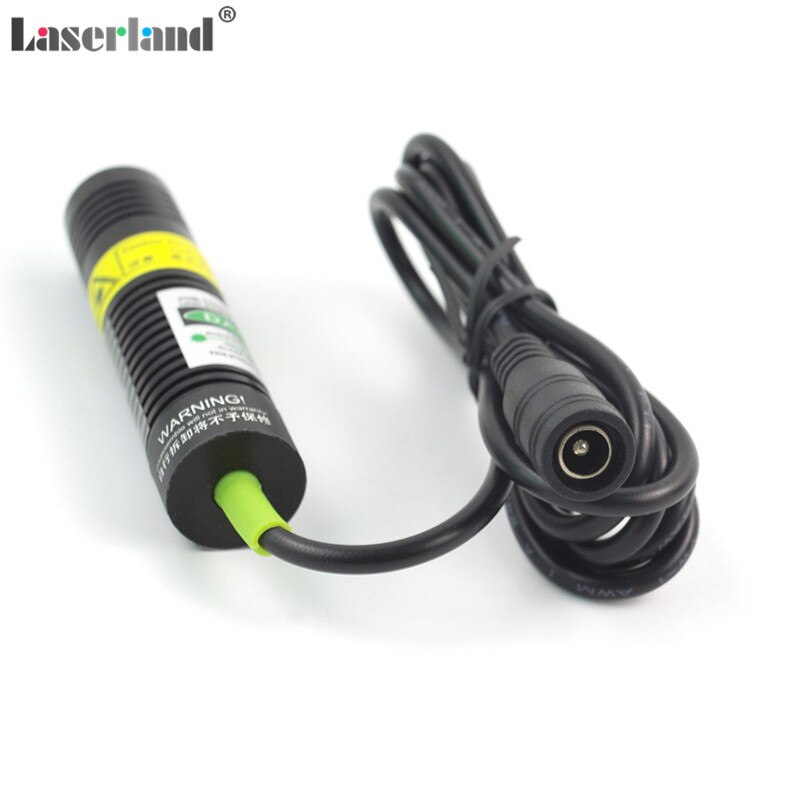

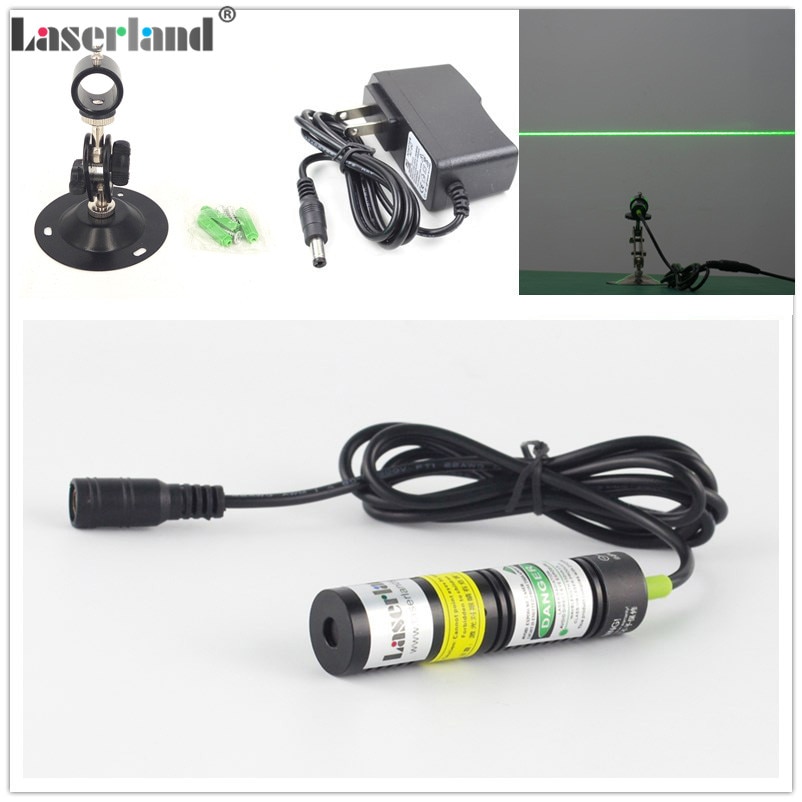

1875 532nm 10mW 20mW 30mW 50mW Line Green Laser Module Locator w/ AC-DC Adapter + Mount for Wood Fabric Cutting Cutter
532nm 10mW 20mw 30mw 50mw Line Green Laser Module Locator for Cutter
with Adapter and Mount
Feature:
Well made, and stable performance
18mm diameter, 17mm length, big size cylinder housing, longer coutinuous working time than thinner one
Housing made of Aluminum alloy , light and strong
AC-DC universal adapter for easy usage
Mount for holding the laser
We have EU and US standard plug and will send the plug according the the buyer's address.
Specifications:
wavelength 532nm
output 10mW 20mw 30mw 50mw for option
shape: dot (tem00), line, cross for option
lens: k9 glass lens
divergence 0.1-2mrad
bent rate 1mm 5m
working voltage DC 5v
class iiib
working temperature 10-35
storage temperature -40-80
line diameter: 1mm at 1 meter
Duty cycle: 3 hours on, 5 minutes off
size18mm×75mm
Package: 1 modules, 1 adapters +1 mounts
