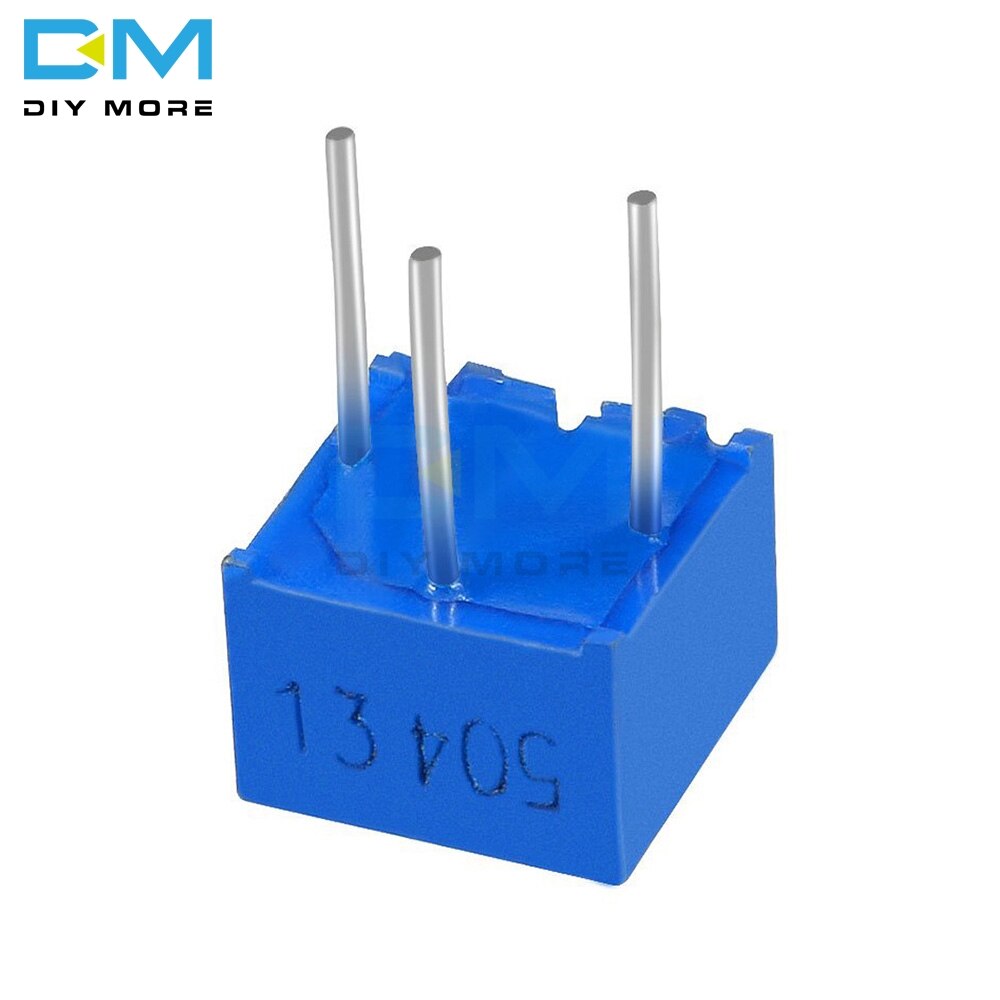

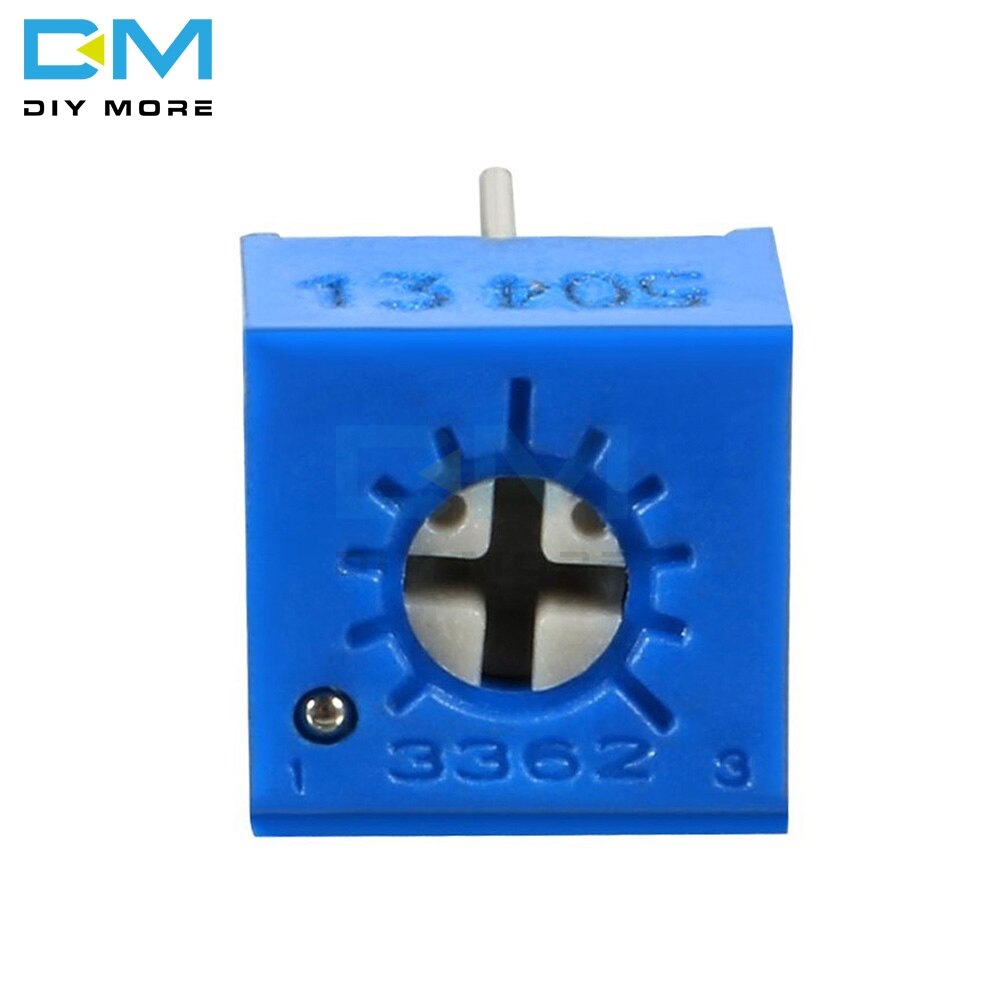

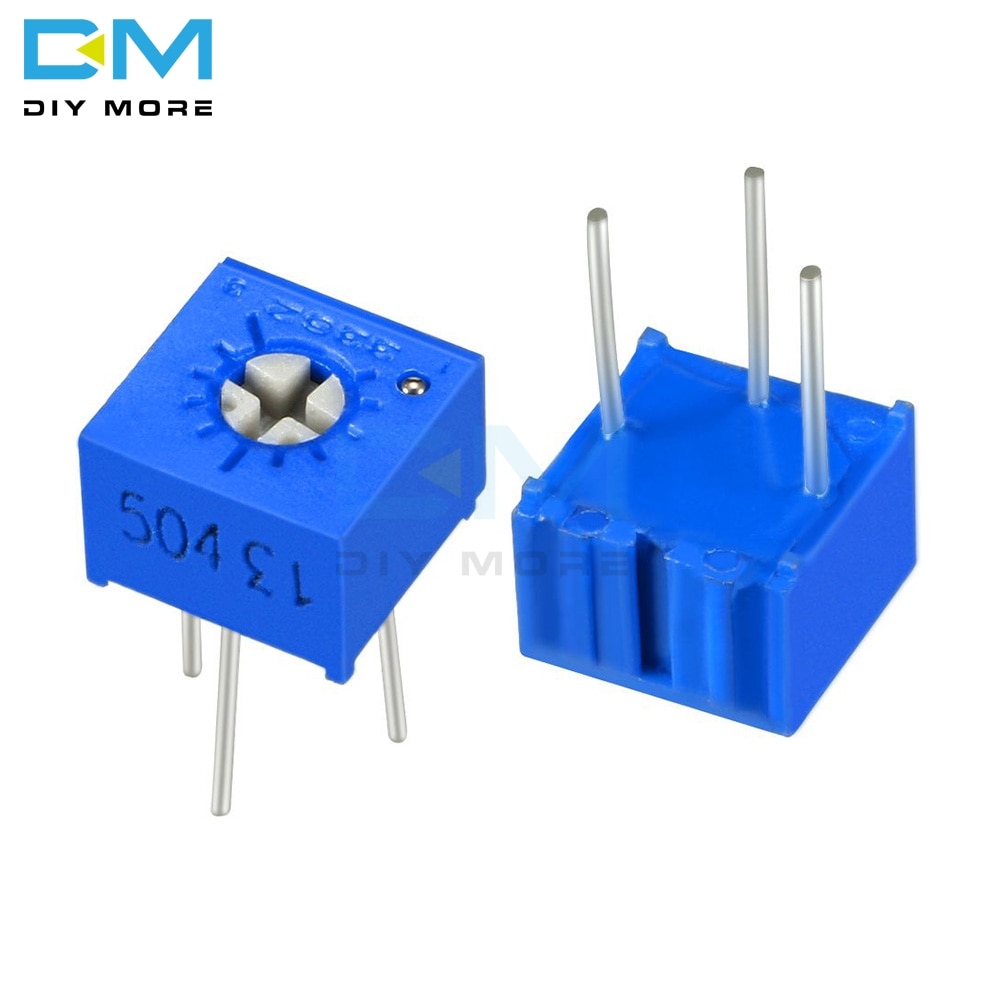

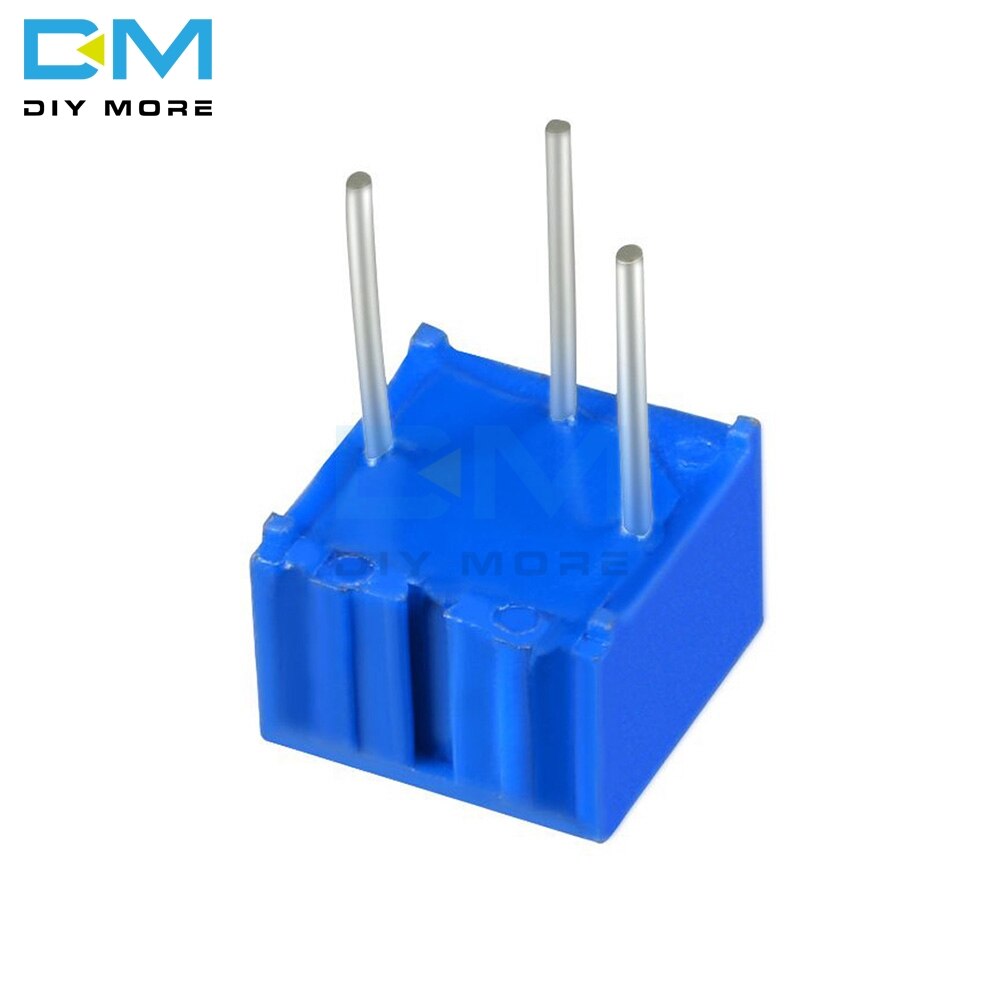

10PCS 3362P Trimmer Potentiometer Variable Resistor 100R 200R 500R 1K 2K 5K 10K 20K 50K 100K 200K 500K 1M Ohm Cermet Trimpot

$0.83$1.02

SKU: 4000132789182 Category:

Description

  • Brand Name: diymore
  • Condition: New
  • Origin: CN(Origin)
  • Resistance Tolerance: 10%
  • Technology: Cermet
  • Type: Trimming Potentiometer
  • Operating Temperature: 3362P-101
  • is_customized: Yes
  • Size: 3pin
  • Max. Operating Voltage: 315V
  • Model Number: 3362 3362P
  • Rated Power: 1/2W


Specification:
Model: 3362P
Power Rating: 315 volts max, 5W at 70°C, 0W at 125°C
Temperature Coefficient: ±250ppm/°C
Tolerance: ±10%
PIN Number: 3

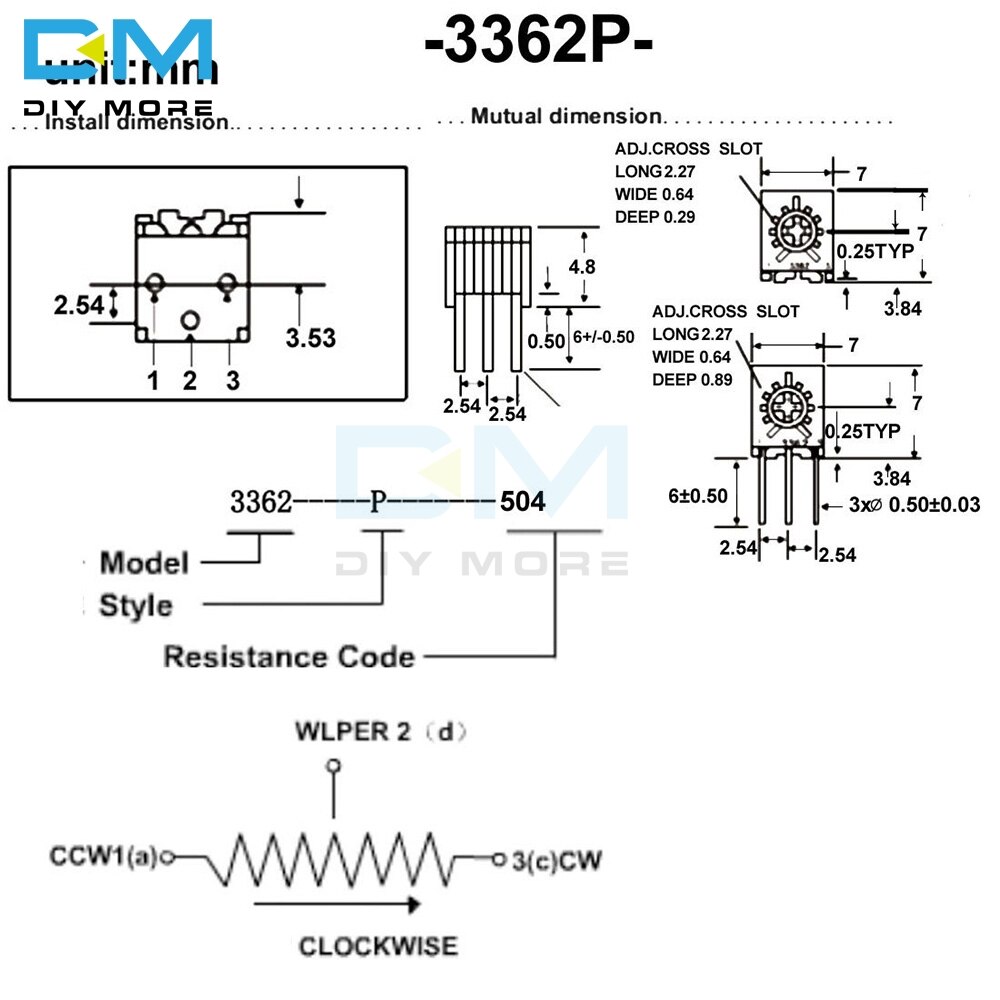

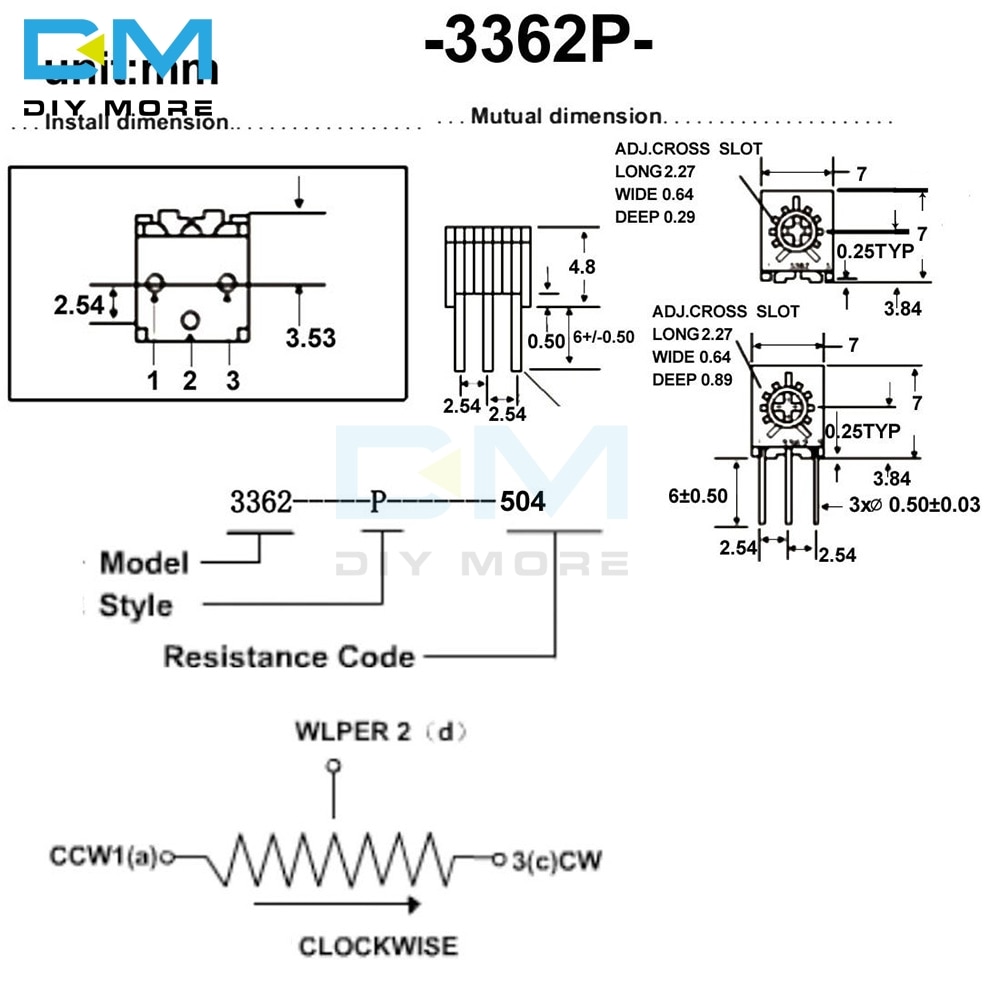

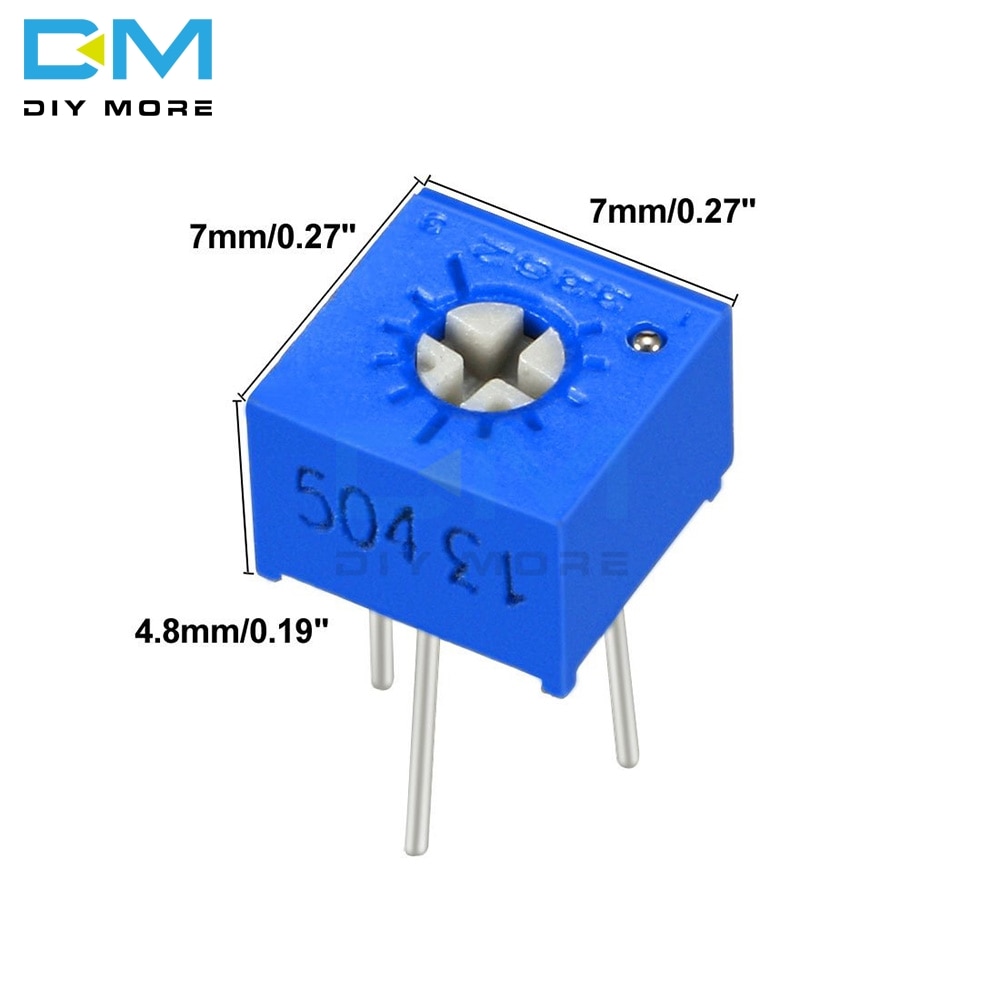

Size: 0.27 x 0.27 x 0.19 inch/7 x 7 x 4.8mm
Rotational Life: 200 cycles
Style:Top Adjustment, linear change
Mounting Type: Through Hole(DIP)
Material: Cermet,durable and sturdy
Application: Apply for PCB or DIY

Resistance Value:
3362P-101 100 Ohm
3362P-102 1K Ohm
3362P-103 10K Ohm
3362P-104 100K Ohm
3362P-105 1M Ohm
3362P-201 200 Ohm
3362P-202 2K Ohm
3362P-203 20K Ohm
3362P-204 200K Ohm
3362P-501 500 Ohm
3362P-502 5K Ohm
3362P-503 50K Ohm
3362P-504 500K Ohm
