10 Values 3296W Multi-turn Trimmer Potentiometer Variable Resistance 500R 1K 2K 5K 10K 20K 50K 100K 200K 1M Ohm Assortment Kit

$4.27

955 in stock

SKU: 1005001441534350 Category:

Description

  • Brand Name: diymore
  • Condition: New
  • Origin: CN(Origin)
  • Resistance Tolerance: ±10%
  • Technology: Ceramic Composition
  • Type: Trimming Potentiometer
  • Operating Temperature: ±100ppm/°C
  • is_customized: Yes
  • Max. Operating Voltage: 500V
  • Model Number: 3296W
  • Rated Power: 1/2W

10 Values 3296W Multi-turn Trimmer Potentiometer Variable Resistance 500R 1K 2K 5K 10K 20K 50K 100K 200K 1M Ohm Assortment Kit

Feature:
High-quality 3296W multi-turn trimmer potentiometer classification kit.
Used in devices with low resistance or printed circuit boards.

Specification:

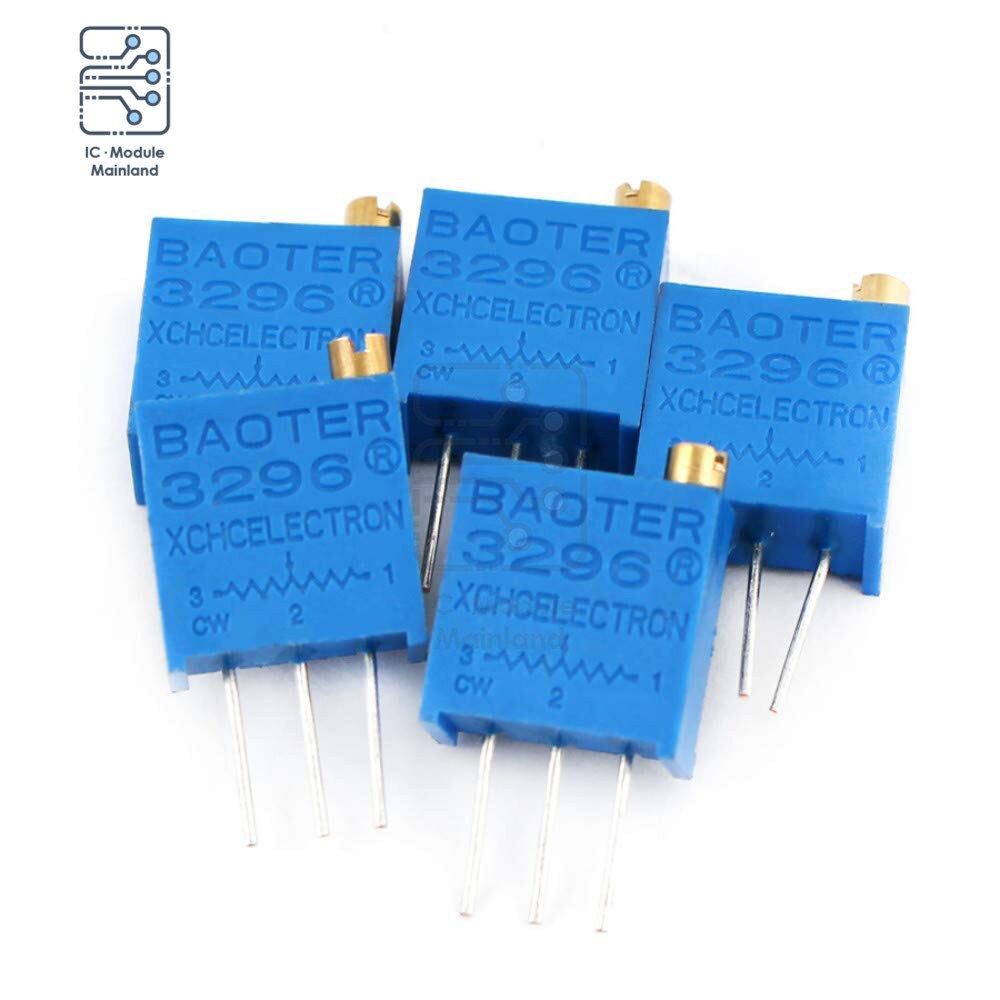

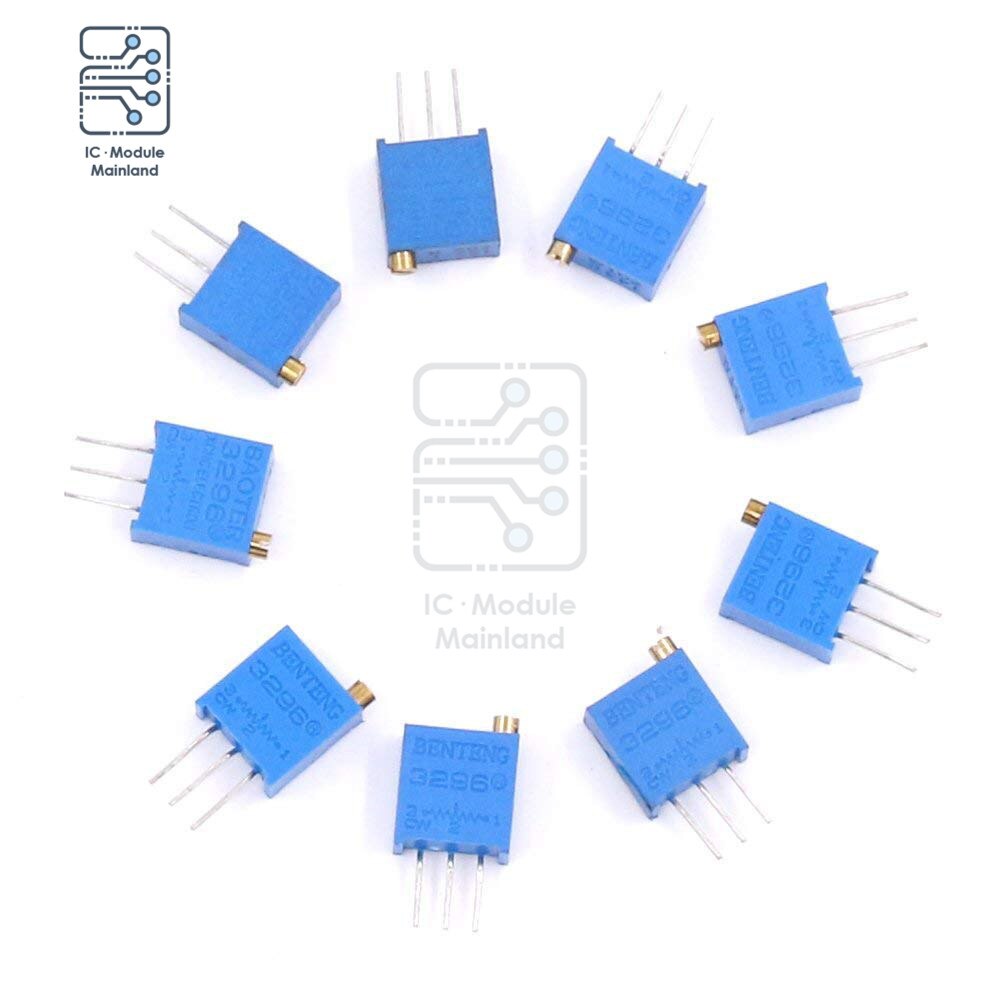

Model: 3296W
Withstand Voltage: 500V
Rated Power: 1/2W
Resistance Value: 500Ω (501), 1KΩ (102), 2KΩ (202), 5KΩ (502), 10KΩ (103), 20KΩ (203), 50KΩ (503),  100KΩ (104), 200KΩ (204), 1MΩ (105)
Tolerance: ±10%
Adjustment Type: Top Adjustment
Mounting Type: Through Hole (DIP)
Turn Number: 25
Resistance Change Type: Linear
Temperature Coefficient: ±100ppm/°C
Resistive Material: Cermet
Color: Blue

Package Included:

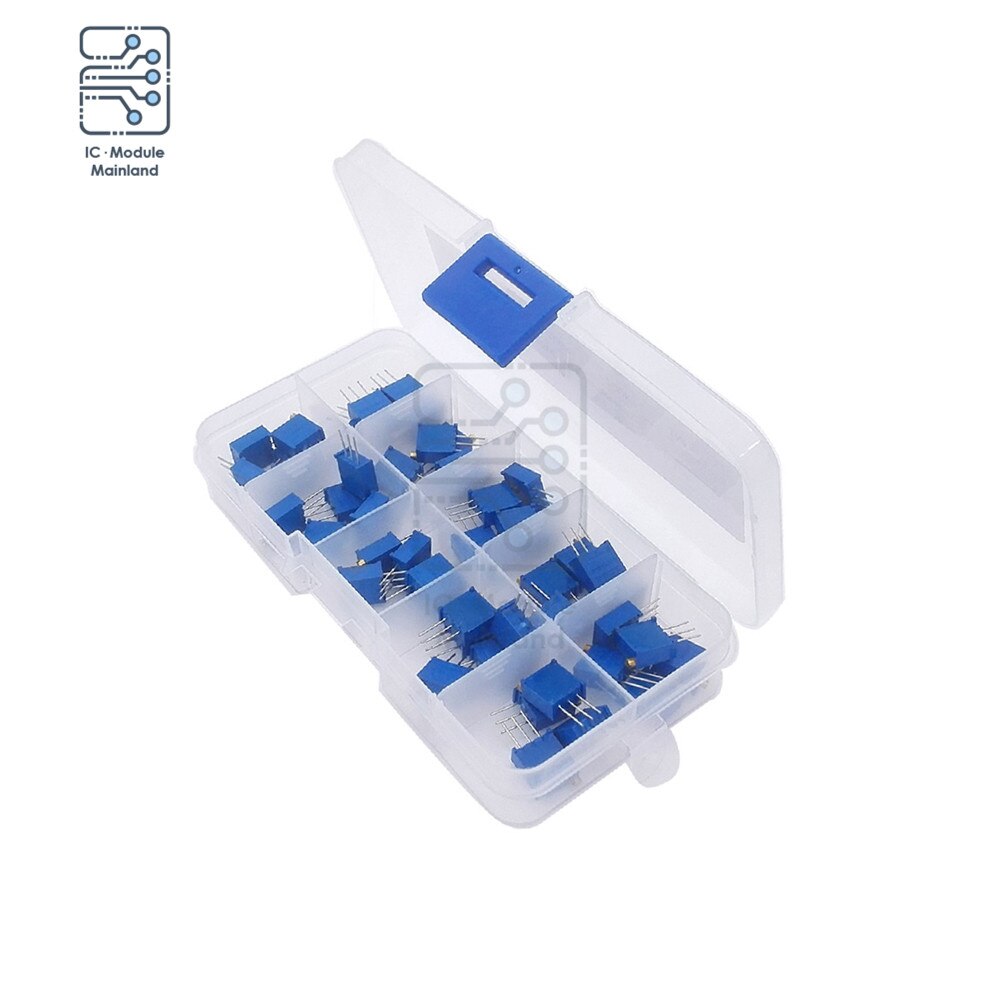

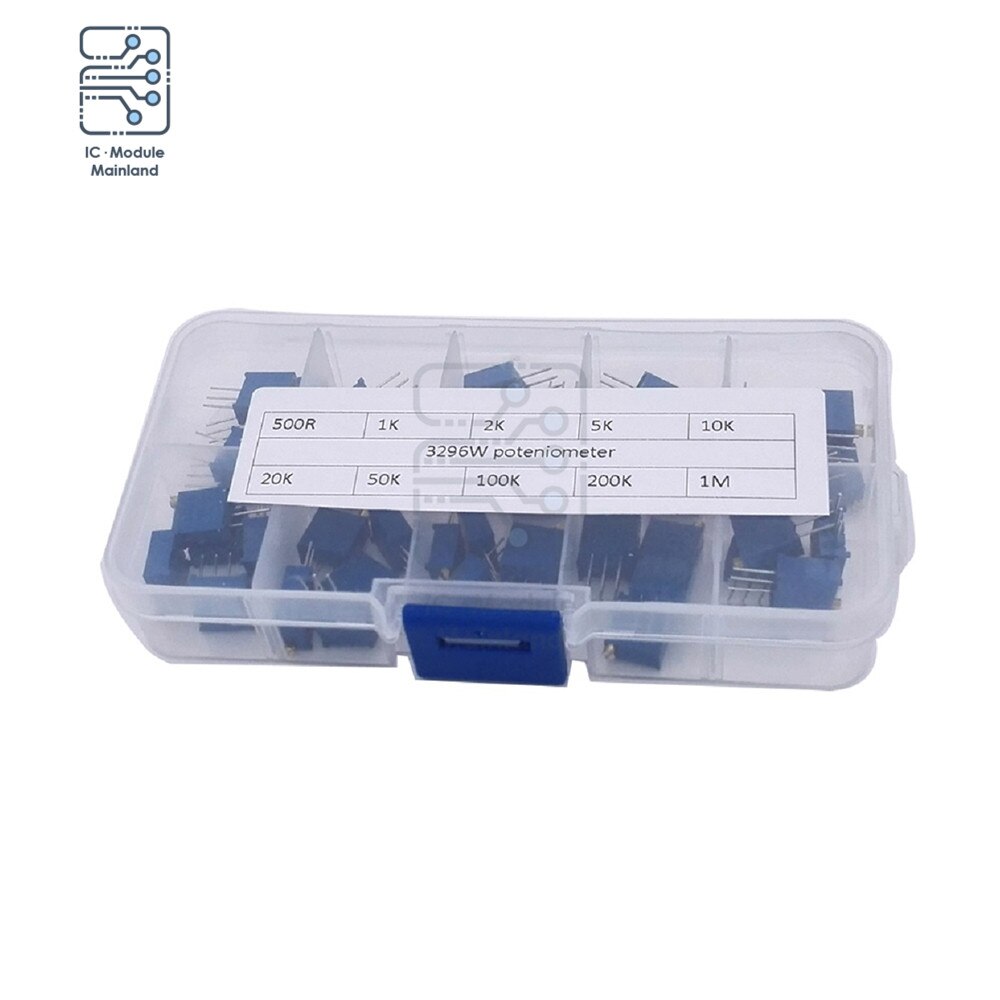

50 * 3296W Trimming Potentiometer 10 Values
