ZBAITU FF80 Upgraded Laser Module Head with Cover,Metal Nozzle, Built-in Air Assist, CNC Laser Cutting Engraving Module, 10W

  • Home
  • ZBAITU FF80 Upgraded Laser Module Head with Cover,Metal Nozzle, Built-in Air Assist, CNC Laser Cutting Engraving Module, 10W
Sale!

ZBAITU FF80 Upgraded Laser Module Head with Cover,Metal Nozzle, Built-in Air Assist, CNC Laser Cutting Engraving Module, 10W

$33.00$479.60

SKU: 1005004078092683 Category:

Description

  • Certification: CE
  • Certification: FCC
  • Certification: RoHS
  • Origin: CN(Origin)
  • Model Number: FF80-EAIR
ZBAITU FF80-EAIR upgraded version of dual-laser air-assisted laser module, dual-laser dual-compression spot FAC polymerization laser technology, air-assisted nozzle design, high-density laser and air-assisted air pump can easily cut 20mm thick wood, 15mm thick black acrylic, reduce yellowing side

●Cutting Thought 8mm Plywood By One Pass!!

Welcome To ZBAITU Store, Please Note:

a. Freeshipping is not means free duty from china. As we all known, import high value goods would be charged import tax in each country; AND NOT included the remote area charge too

b. Usually, we shipping out your order within 48 hours by AliExpress Standard Shipping

c. Seller’s shipping methods are shipping by express company, such as Stander Shipment/DHL/FedEx/ UPS/ TNT; Please contact us!

d. It is best to buy this product with an air pump. This product does not include air pump, please buy it yourself!



Feature:

●Can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.

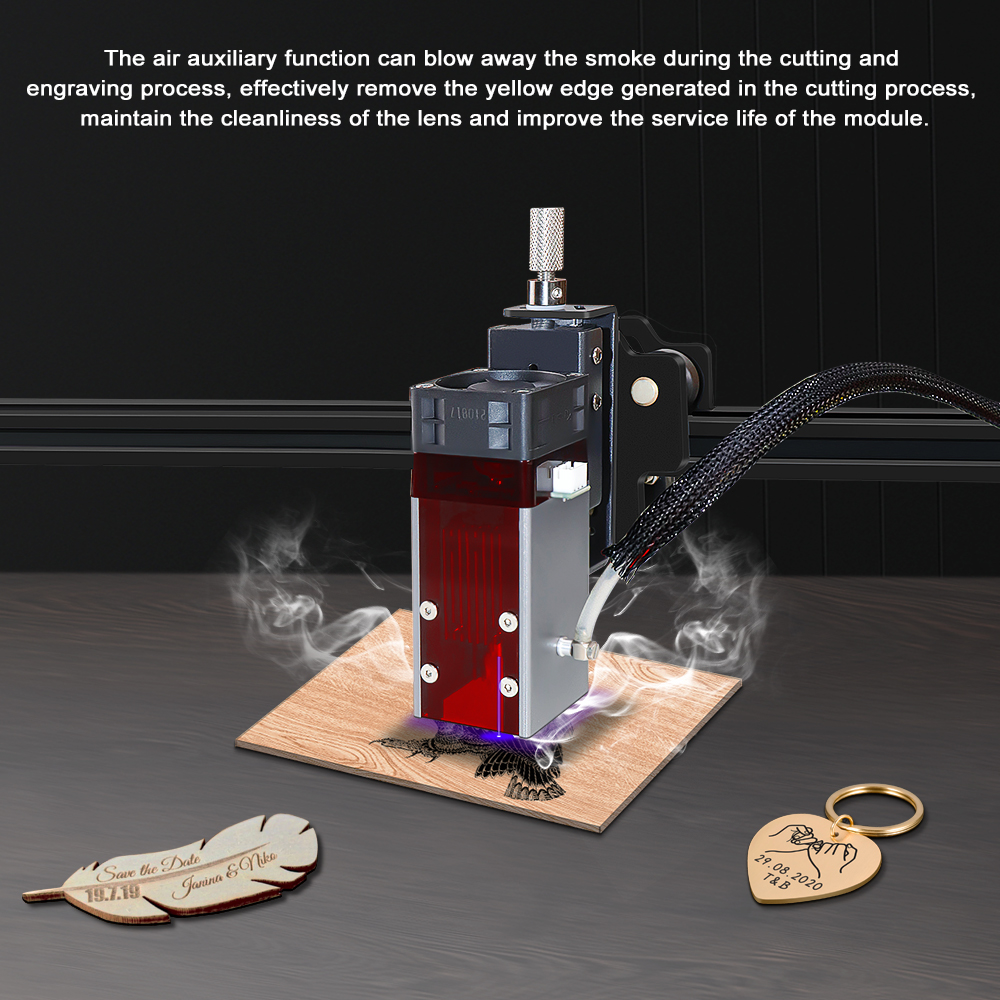

●Air assist interface design, easy to add air pump air assist, reduce engraving yellow edge

Laser protective cover: The laser is equipped with a protective cover to protect the user’s eyes, and there is no need to wear additional ●protective glasses. At the same time, it prevents pets from grabbing the laser spot.

●The module is made of aluminum, which is sturdy and durable.

●Upgrade high quality fixed focus laser, no need to focus.

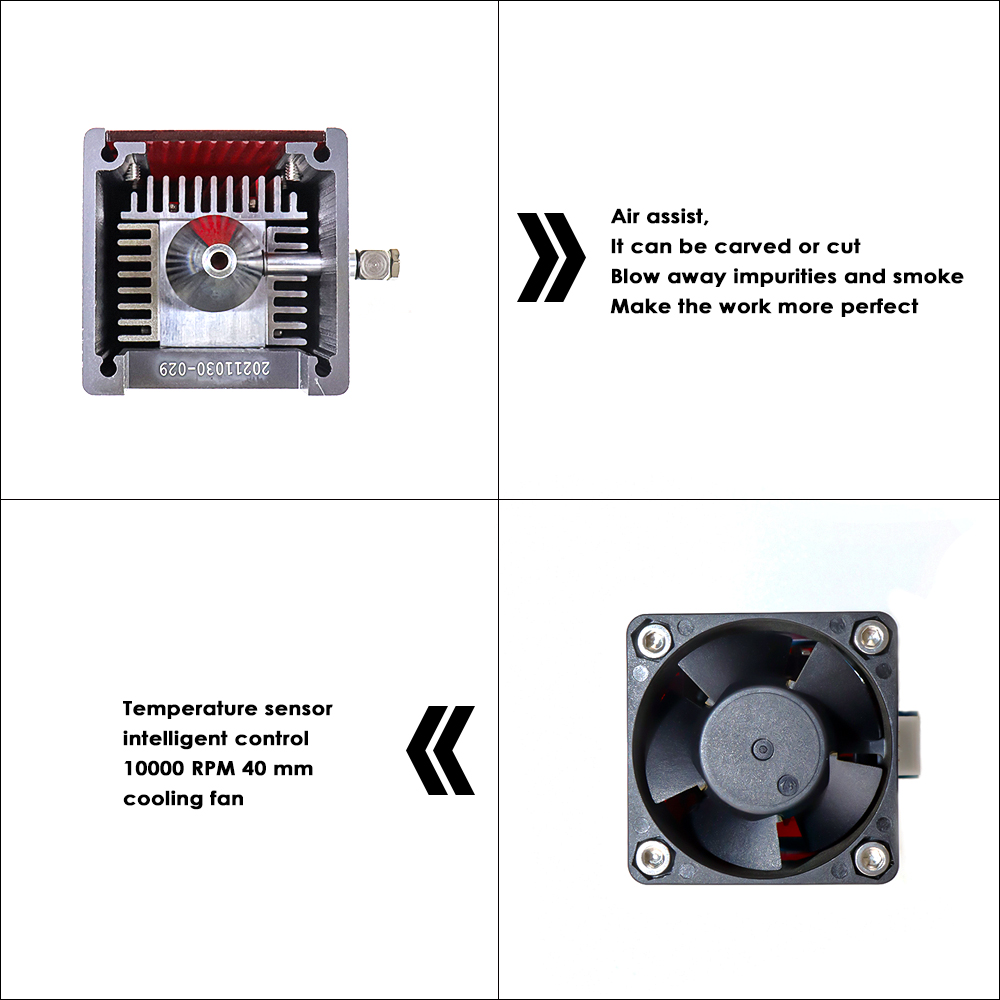

●Aviation aluminum TTL driver board with cooling fan to ensure continuous long-term work.

●Engravable materials: ceramic, stone, stainless steel, wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal, blackened utility knife.

●Cuttable materials: plywood, mdf board, cardboard, non-woven, veneer, acrylic, some thin plastic sheets.

●0.08*0.15mm double compression condenser coupling technology makes engraving more powerful and precise.

●The engraving speed is 200% faster than other 5W lasers.

●High energy can cut 8.5mm thick sheet at one time.

●The laser sintering temperature is 1100 degrees, and the engraving metal effect is better.

●The adapter board is compatible with 95% of laser engravers on the market, including Atomstack, ortur, Neje, twotree, etc.

ZBAITU FF80 EAIR Laser Parameters

Parameter

Unit

Minimum

Average

Maximum

Wavelength

nm

450

455

460

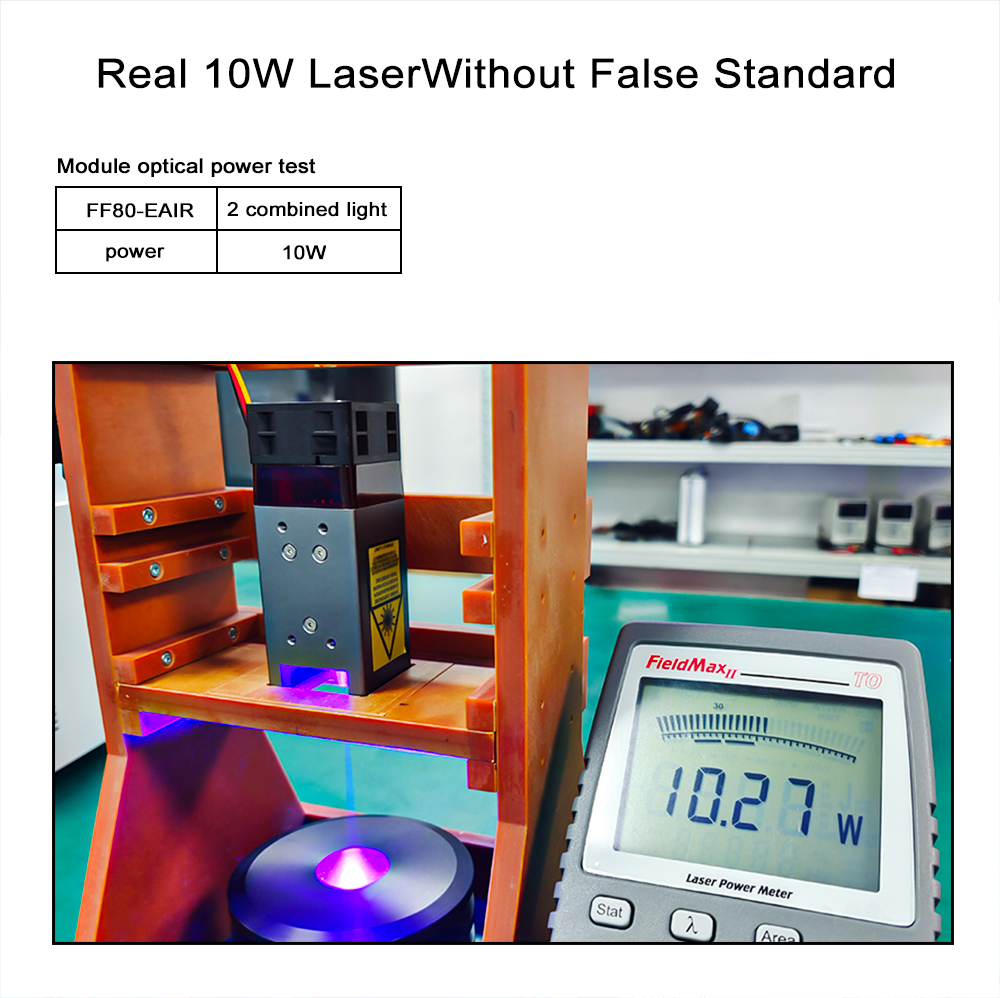

Output optical power

W

8

9

10

Focal length

mm

45

Focal spot size
(Focal length 20mm)

μm

80

90

100

Operating temperature

0

60

Storage temperature

-45

85

Input voltage (DC)

V

9

12

15

Input current (12V CW)

A

3

3.5

Adjustment method

5V PWM

Warranty period

1 year

FF80-EAIR

Items

Parameter

Items

Parameter

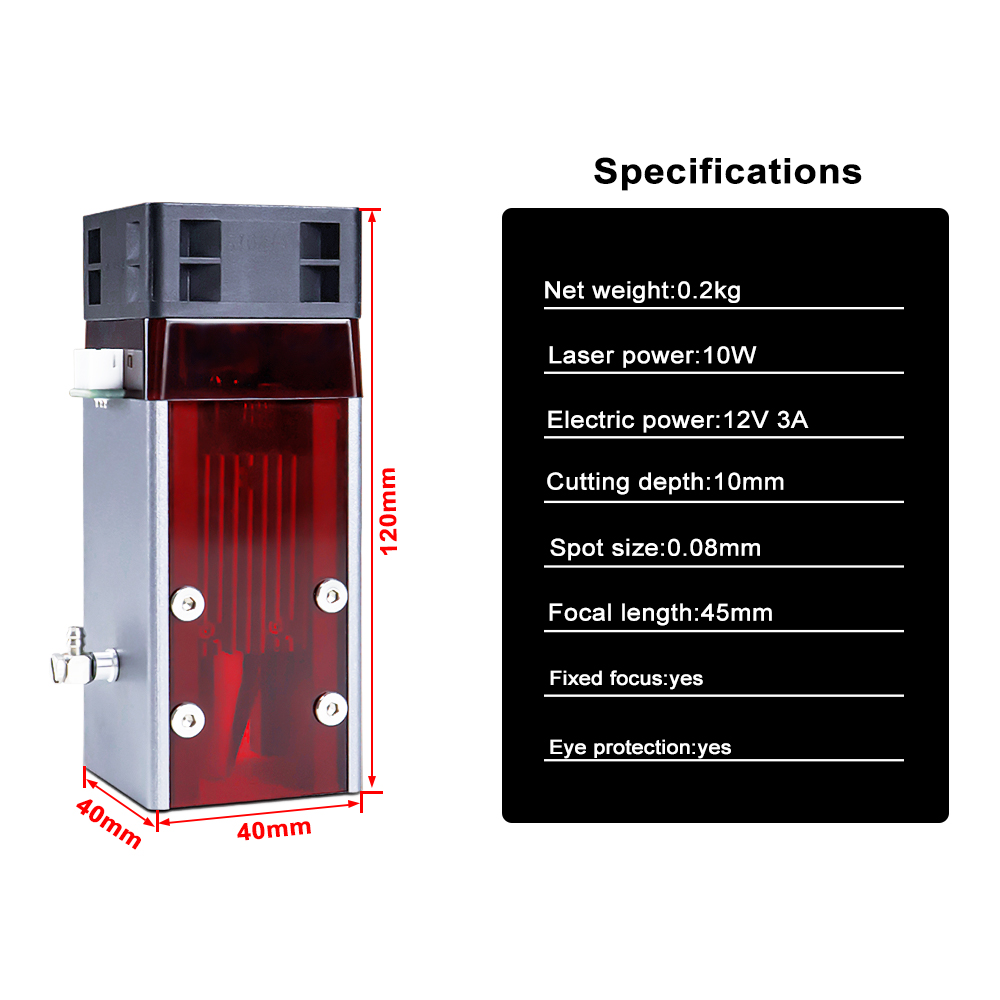

Module size

40*40*120mm

Optical Lens

φ6/glass

Circuit Board Size

40*40mm

Fan

9000rpm

Circuit Board

5V PWM

Product Material

Aluminum 6061 anode

input port

XH2.54-3pin socket

Product Net Weight

0.27kg

Package size

18*7*7mm

Package weight

0.30kg
