Description
- Brand Name: yieryi
- Certification: NONE
- Origin: CN(Origin)
- Size: 120mm x 25mm x 75mm
- Model Number: LS162A
- Weight: 0.2KG
- Type: Split Beam Spectrometers
- Measurement Range: 380nm-760nm
Yieryi Digital LS162A Transmission Meter Visible Light Measurement Tool VLT UVR IRR Tester Spectrometer for Automotive Glass

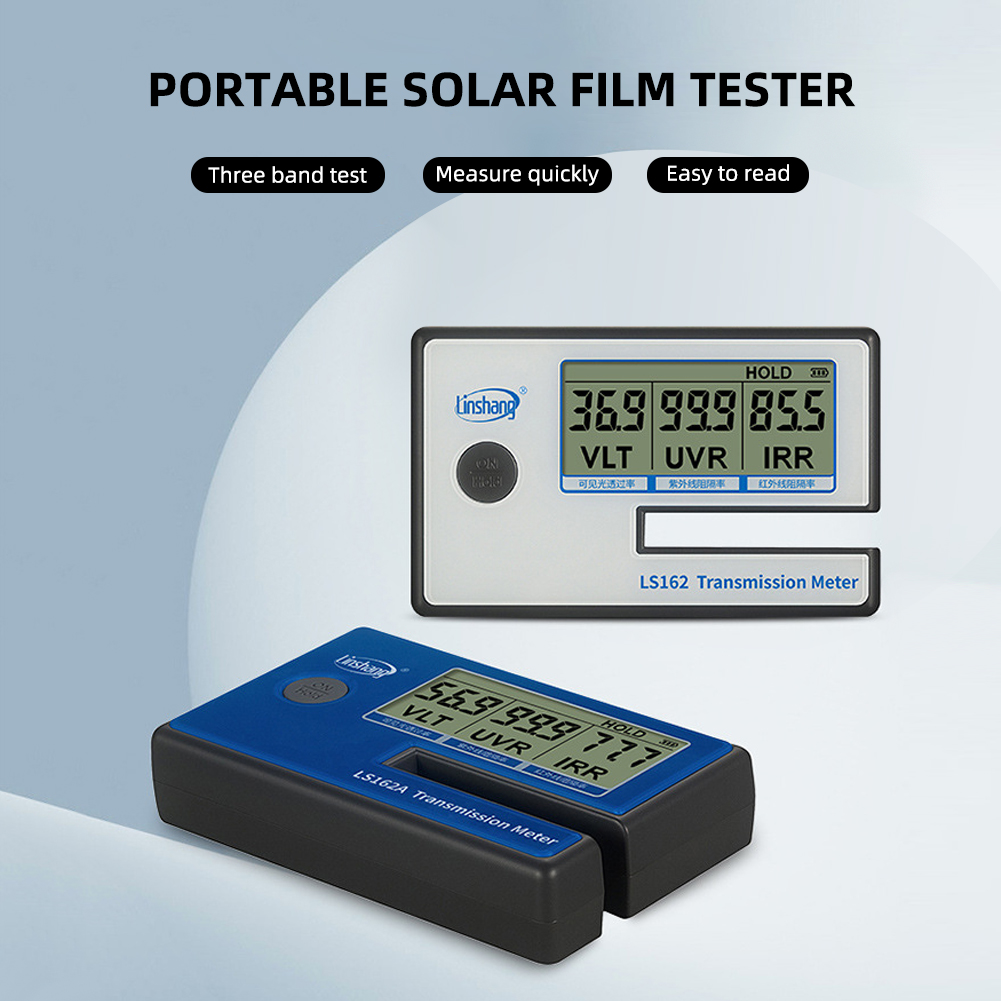

Portable solar thin film tester: Three band test (VLT UVR IRR ), high-precision measurement, measurement accuracy is better than ±2%. Simple operation, Measure quickly, Easy to read. Data lock. Chinese and English interface is carefully designed. Ultra-low power consumption, automatic shutdown after 3 minutes of inactivity. Small and portable, it can be measured indoors or outdoors, widely used in solar film, glass industry, automobile 4S shops, beauty shops, etc. It is suitable for display, production, quality inspection, inspection and other occasions. It can test optical properties of solar film, stick-film glass, PC material and window glass.
Specifications :
1. Product name: LS162A Transmission Meter
2.UV: Peak wavelength 1400nm
3.Infrared: Peak wavelength 940nm
3.Visible light: 380nm-760nm full wavelength
4. Resolution: 0.1%
5. Measurement accuracy: Better than ± 2%
6.Maximum thickness of test object: <8mm
7. Instrument weight: About 165 grams
8.Dimensions: 120mm x 25mm x 75mm
9.Power supply: 4 * AAA alkaline dry batteries (not included)

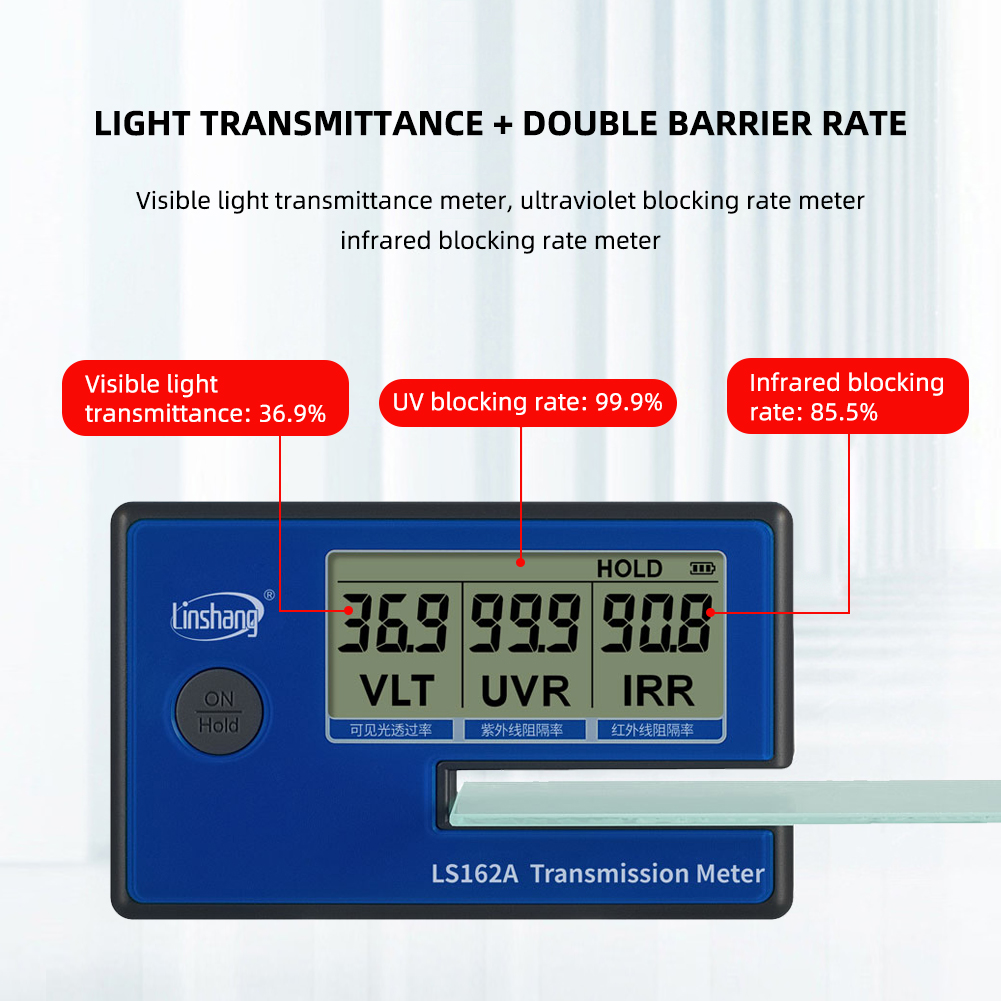

LIGHT TRANSMITTANCE + DOUBLE BARRIER RATE：
Visible light transmittance meter, ultraviolet blocking rate meter infrared blocking rate meter
Visible light transmittance: 36.9%
UV blocking rate: 99.9%
Infrared blockingrate: 85.5%

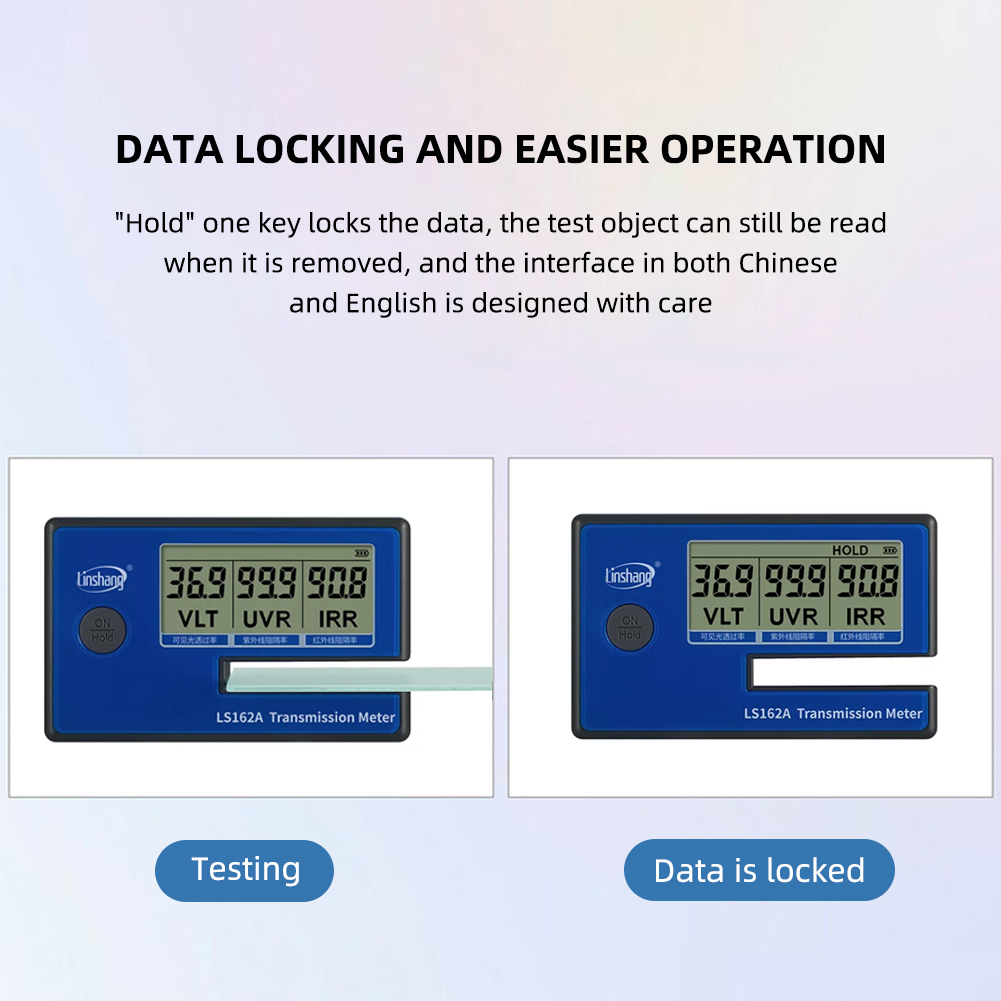

DATA LOCKING AND EASIER OPERATION：
“Hold” one key locks the data, the test object can still be read when it is removed, and the interface in both Chinese and English is designed with care

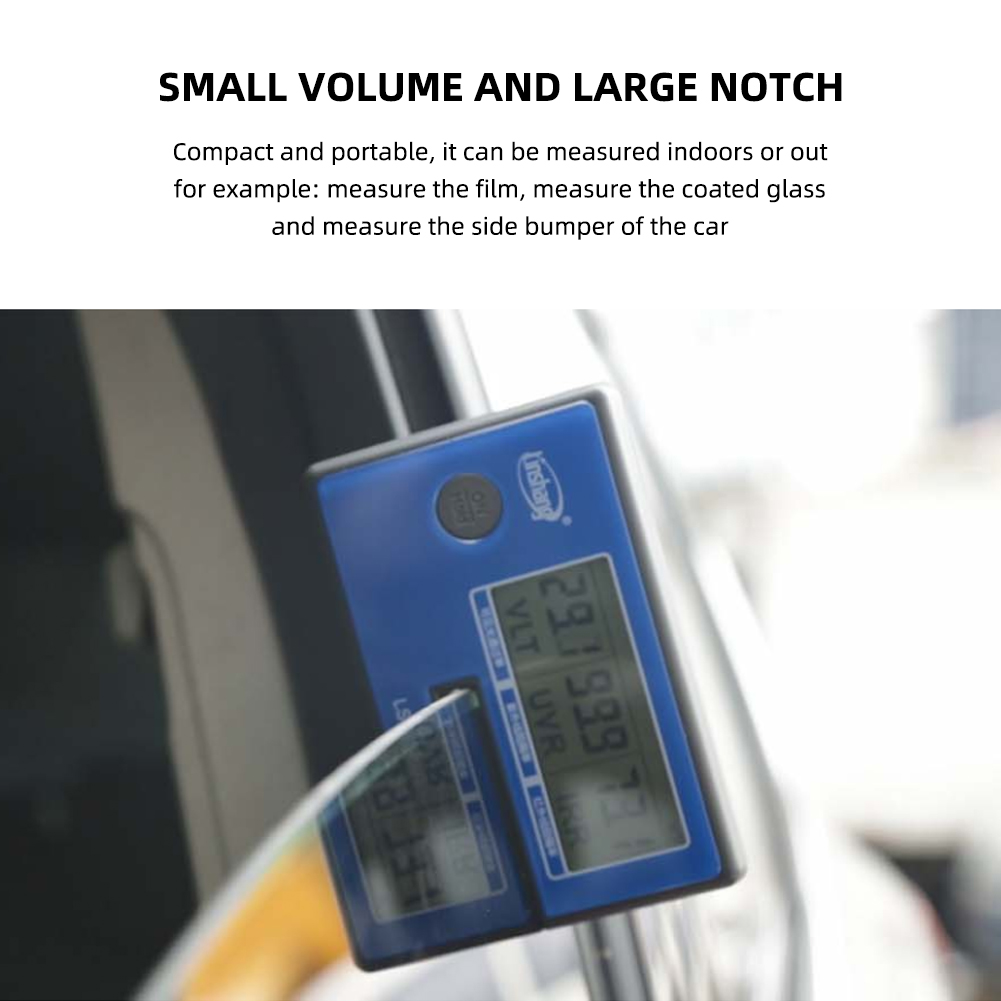

SMALL VOLUME AND LARGE NOTCH：
Compact and portable, it can be measured indoors or out for example: measure the film, measure the coated glass and measure the side bumper of the car

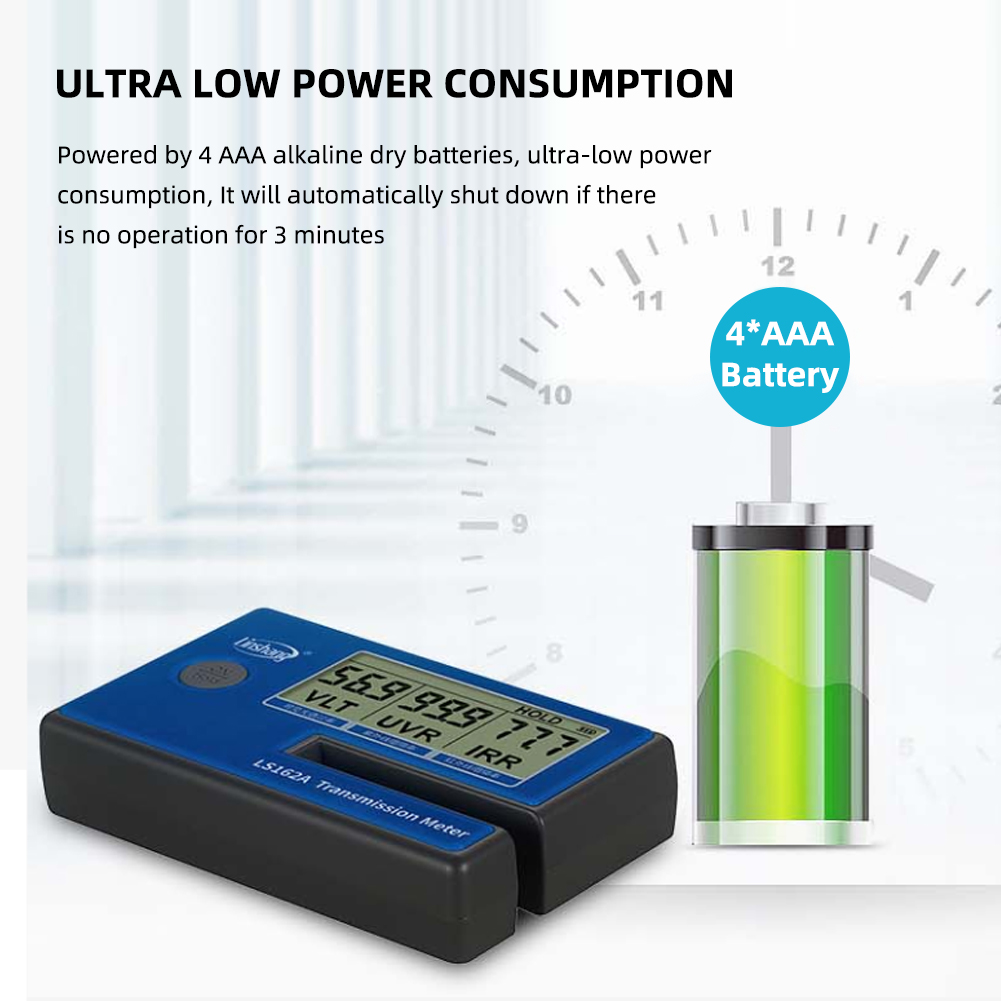

ULTRA LOW POWER CONSUMPTION:
Powered by 4 AAA alkaline dry batteries (not included), ultra-low power consumption, It will automatically shut down if there is no operation for 3 minutes
