Description
- USB Interface: No
- Page Flapper: No
- Function: for scientific research
- Wireless: Yes
- Model Number: XPL-RGB150
- Control Distance: 500m
- Brand Name: XPL
- Light Color: RGB
- Type: laser module
- Quality: High-end
- Warranty: 1 year
- Use temperature: 0-40degree
ATTENTION :
1. DANGER! Don’t shine the beam to eyes!
2. Becauful the operating voltage! It will destroy the LD when the voltage is higher. Specification
|
Technical Specs Name: |
XPL-RGB150 |
|
Wavelength: |
635nm+532nm+450nm |
|
Min power: |
50mw +50mw +50mw |
|
Arctic series class: |
Class 3 |
|
Beam Diameter: |
<Dia3.0mm |
|
Beam divergence: |
<1.2mrad |
|
Stability(at 25 ℃ ) |
<10% |
|
Preheating time (at 25 ℃ ) |
<10s |
|
Best working temperature |
25 ℃ |
|
Operating temperature |
0-40 ℃ |
|
Temperature control |
Air-cooled |
|
Color of shell: |
Black |
|

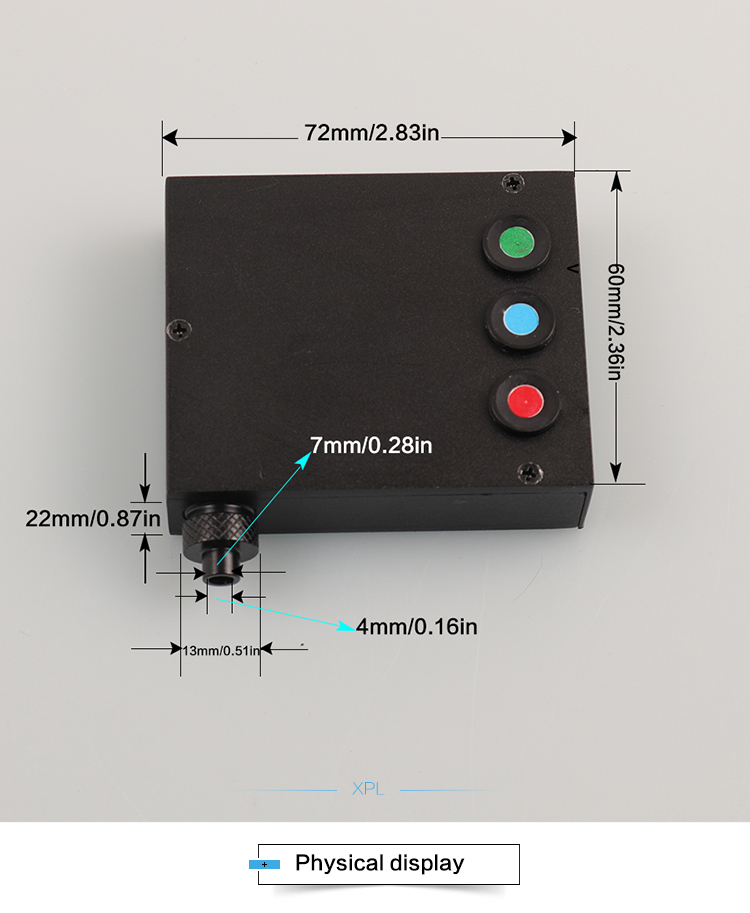

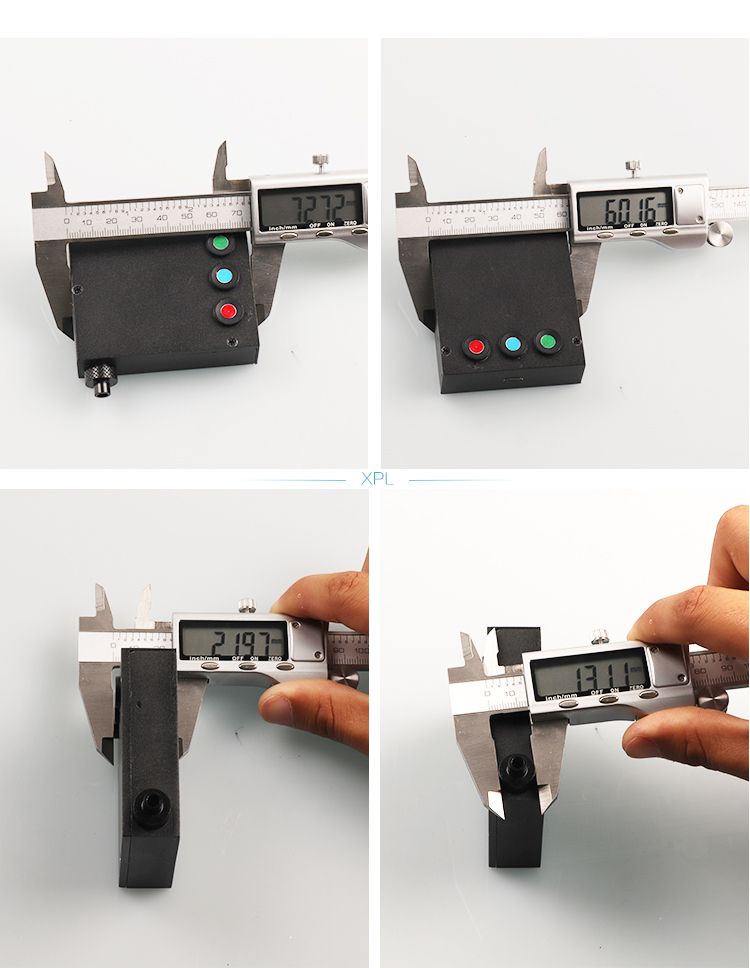

Size: |
72mmx60mmx22mm |
|

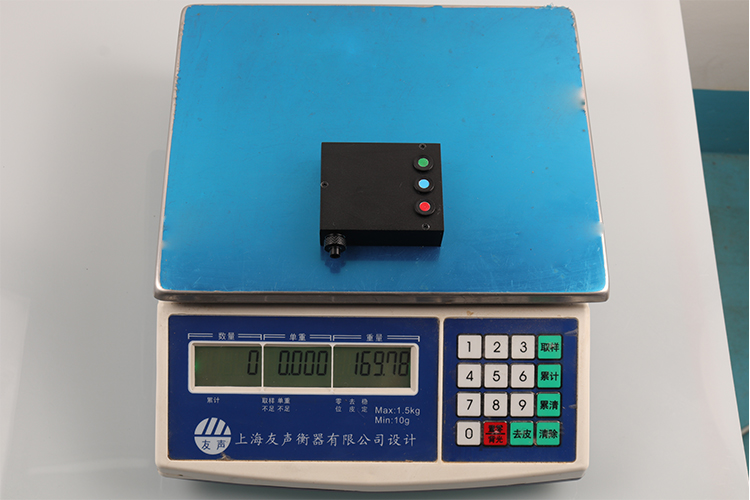

Weight: |
170g |
|

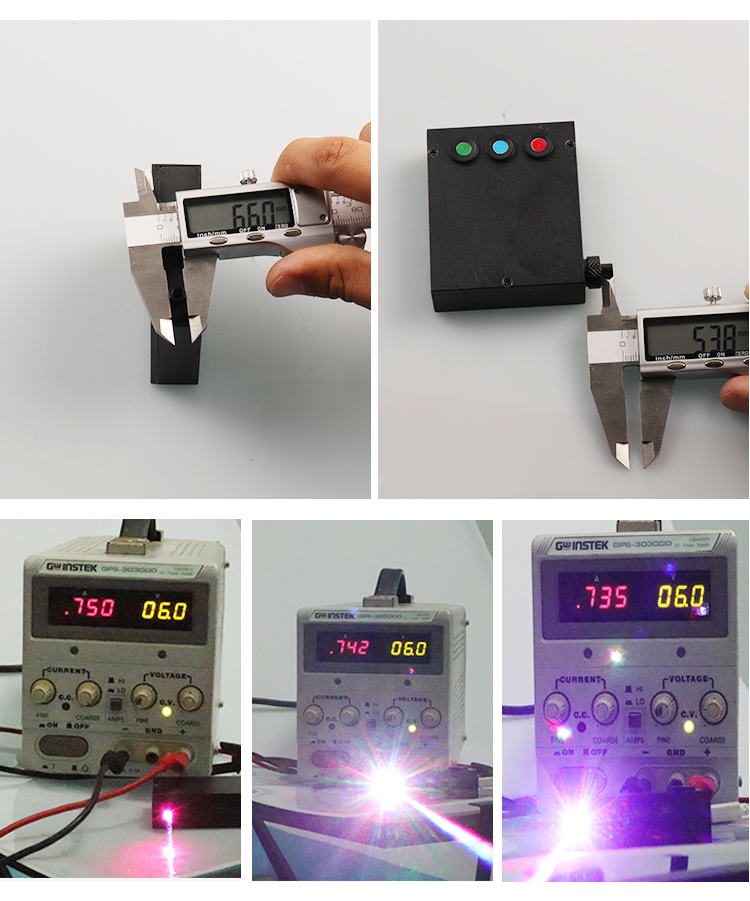

Power consumption: |
6.0V @ <0.75A |
|
Power supply: |
DC6.0V |
|
Continuous expected lifetime: |
>5,000 hours |
|
Warranty: |
1 Year (LD died is not included) |
