Description

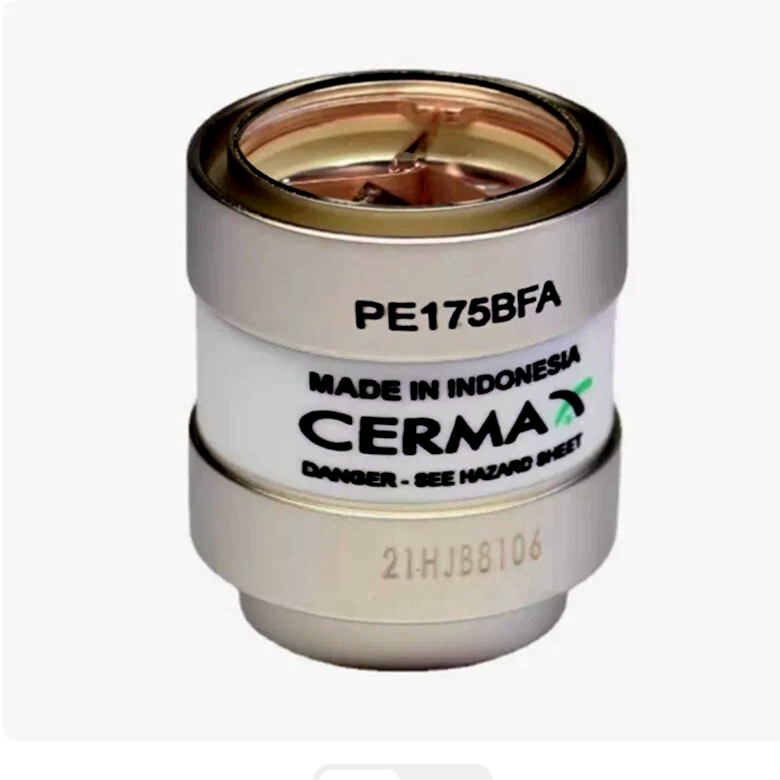

The 175 Watt Xenon lamp is well suited for designs that do not require the high intensity associated with its 300 Watt sibling. Featuring the same robust design synonymous with the Cermax family, this lamp provides a broad spectral output and the ability for the user to tune its output with catalog filters to match their desired spectral requirements.

Reflector Type: Parabolic
Body Type: Ceramic
Total Visible Output: 2200 Lumens
Power – Nominal: 175 Watts
Power – Range: 150-200 Watts
Current – Nominal: 14 Amps (DC)
Current – Range: 12-16 Amps (DC)
Ignition Voltage: 23-35 kilovolts (system dependent)
Operating Voltage – Nominal: 12.5 Volts (DC)
Operating Voltage – Range: 11-14 Volts (DC)
Lifetime: 1000 hours typical
Temperature: 150 °C (maximum)
Radiant Output: 25 Watts
UV Output (<390 nm): 1.2 Watts
IR Output (>770 nm): 14 Watts
