Description
VFD Inverter 1.5KW / 2.2KW frequency inverter ZW-BT1 3P 220V Output Frequency Converter Variable Frequency Drive
- Type: AC-AC
- Certification: CE
- Certification: RoHS
- Size: 196*131*108mm
- Model Number: ZW-BT1
- Output Frequency: 0.1-400HZ
- Output Type: Triple
- Weight: 1.2kg
- is_customized: Yes
- Output Current: 8A/12A/20A
- Output Voltage: 220v 3-phases
- Input Voltage: 220v single
ZW-BT1 1500W 2200W Frequency Converter or Inverter
Input 220v single-phase
Output 220v 3-phases
Notice:it is Unable to connect the excitation motor, can damage the inverter, can only connect asynchronous motor,
Like Hand-held Electric Drill, chainsaw and other motor is mostly excitation motor
Popular Selling Point:
1.This model of ZW-BT1 has 4-20ma, 0-5V analog Input or Output Function
2.Support Pump Motor,In our product Russian and English Paper Instuction there will be find how to set Pump motor Parameter

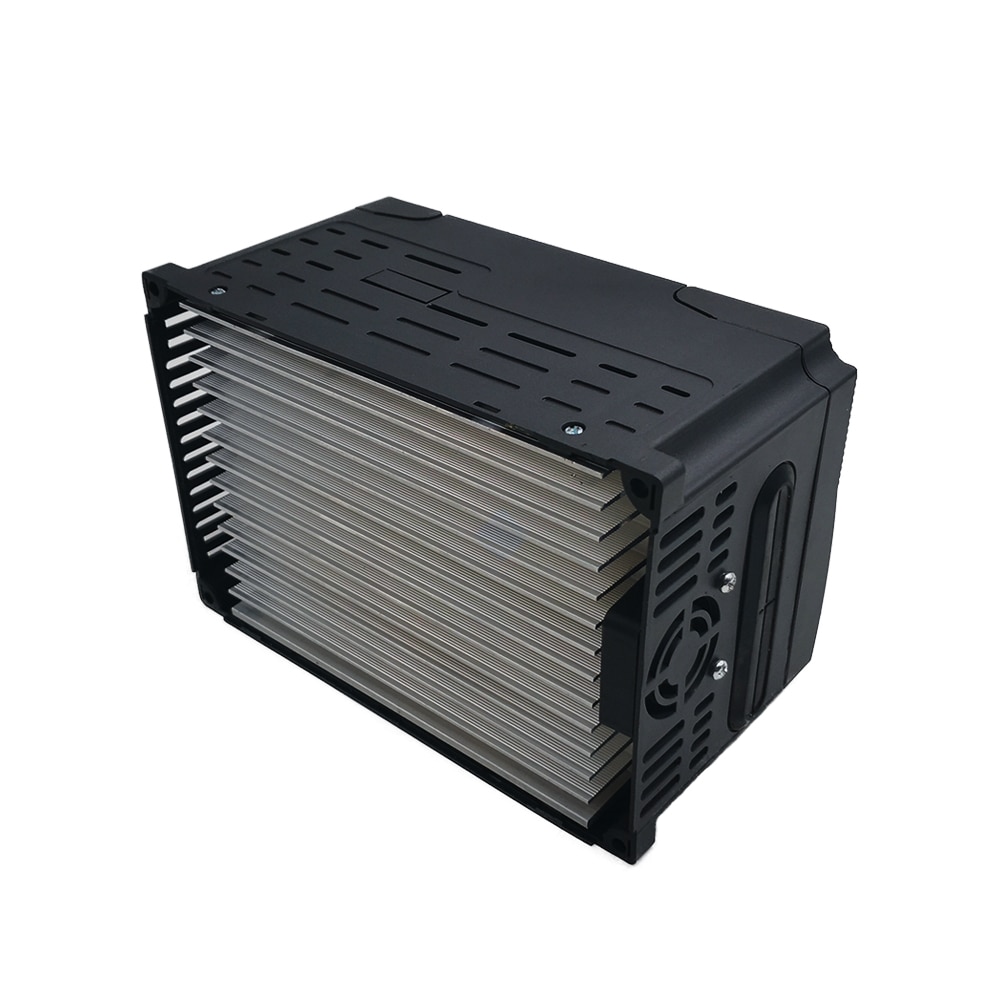

3. This Frequency Inverter CPU is coming from Japan Brand core;Thermal detect Resistance inside the Cpu core,So there is no need install Cooling Radiator In our this model of inverter
4 Support Spindle Motor;you can set 01-03,01-04,01-05 all set to 400Hz,Default is 50Hz
Set 01-15=6 Carrier Frequency set High level parameter
5 Support Replay Output(inside Relay)
