Description
- Brand Name: MLHJ
- Origin: CN(Origin)
- Certification: CE
- Model Number: UB500
- Place of Origin: Zhejiang, China
- Brand Name: WINSTON
- Usage: Ultrasonic distance sensor
- Theory: Ultrasonic distance sensor
- Output: Analog SENSOR
- Brand: Ultrasonic distance sensor
- Application: Detection
- Type: Waterproof
- Product name: Ultrasonic Sensor
- Material: brass,nickel-plated
- Certificate: CE
- Color: SILVER
- Capacity: 100
- Warranty: 12 Months
- Protection grade: IP67

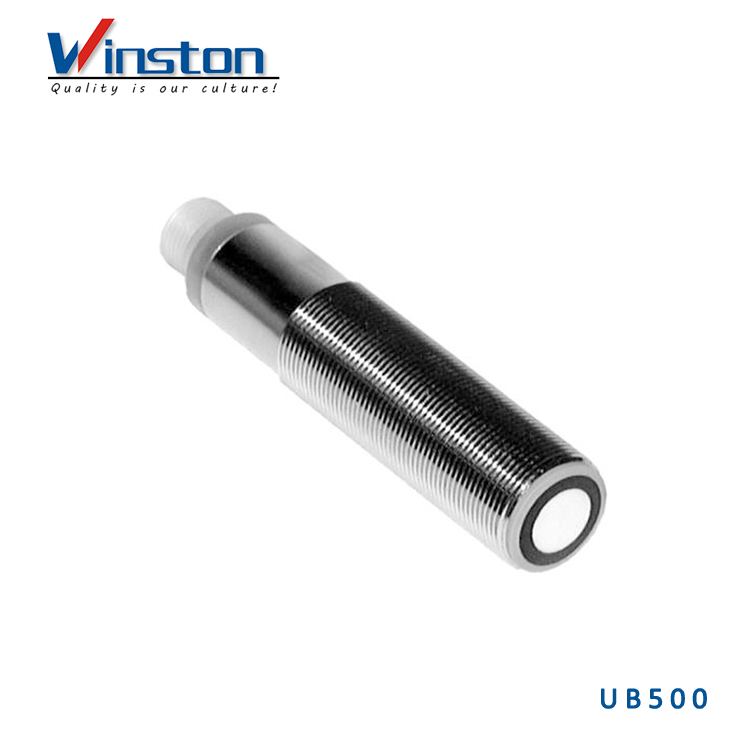

UB500 Analog Output 0 – 10V DC IP67 Ultrasonic distance sensor

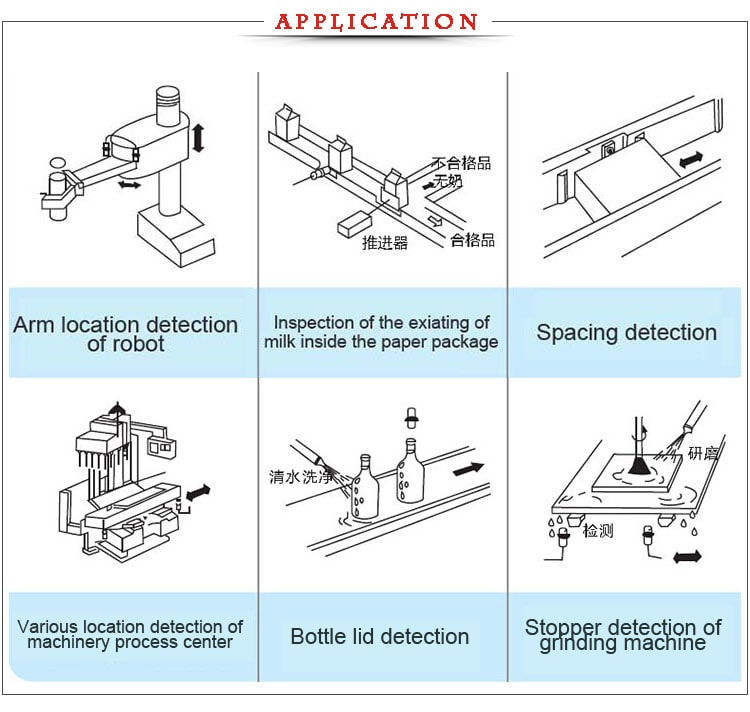

Application
Technical data
| UB500-18GM-U-V1 | ||||||||
| Technical data | ||||||||
| Sensing distance | 30…500mm | |||||||
| Adjustment range | 50…500mm | |||||||
| Unusable area | 0…30mm | |||||||
| Standard target plate | 100mm×100mm | |||||||
| Transducer frequency | About 380kHz | |||||||
| Response delay | About 50ms | |||||||
| Indicators/Operating means | ||||||||
| LED blue | Power on | |||||||
| LED yellow |
indication of the switching state Flashing: program function object detected |
|||||||
| LED red |
permanently red: Error Red,flashing: program function,object not detected |
|||||||
| Electrical specifications | ||||||||
| Operating voltage UB | 10…30VDC,ripple10%ss | |||||||
| No-load supply current | ≤45mA | |||||||
| Output | ||||||||
| Output type | 1 analogue output 0…10V | |||||||
| Resolution | 0.11mm at max.sensing range | |||||||
| Deviation of the characteristic curve | ±1% of full-scale value | |||||||
| Repeat accuracy | ±0.1% of full-scale value | |||||||
| Load impedance | >1k Ohm | |||||||
| Temperature influence | ±1.5% of full-scale value | |||||||
| Mechanical specifications | ||||||||
| Protection grade | IP67 | |||||||
| Connection | connector(M12×1),4-pin | |||||||
| Material Housing | brass,nickel-plated | |||||||
| Transducer |
epoxy resin/hollow glass sphere mixture; foam polyurethane,cover PBT |
|||||||

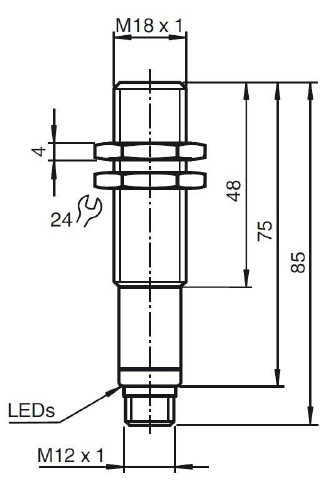

Dimension

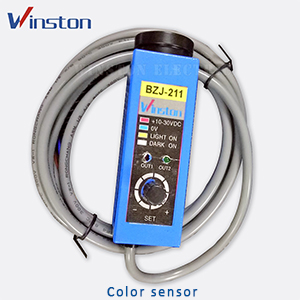

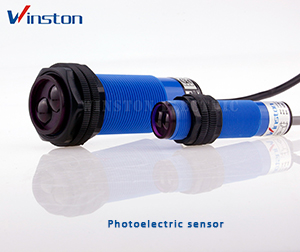

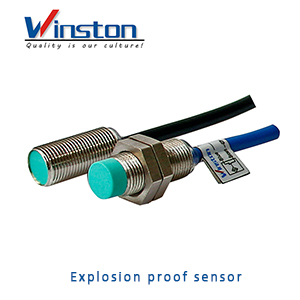

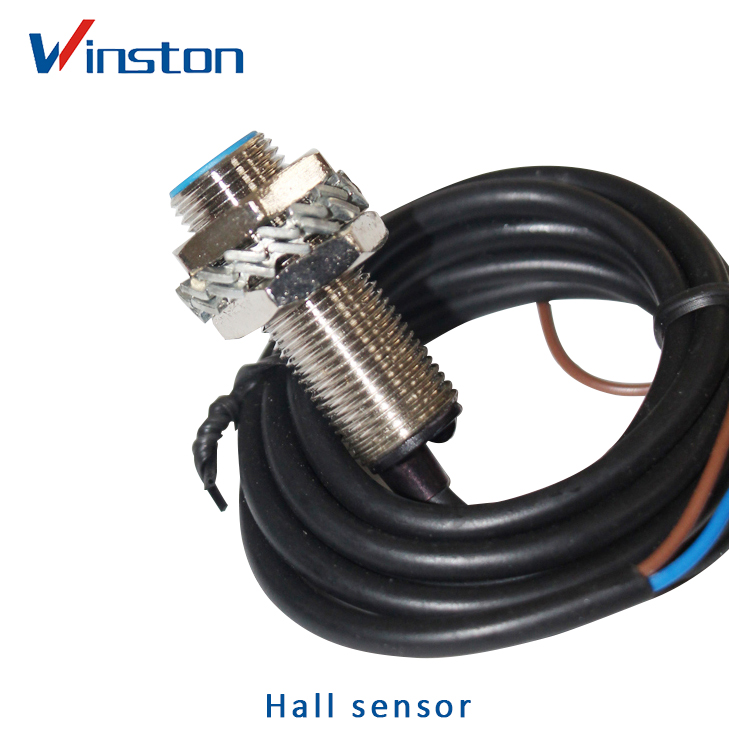

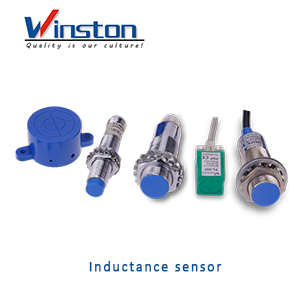

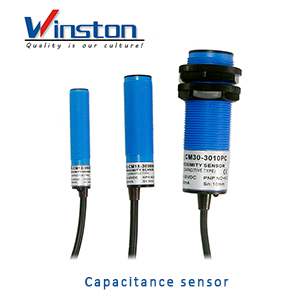

Other products
 |
 |
 |
 |
 |
 |
