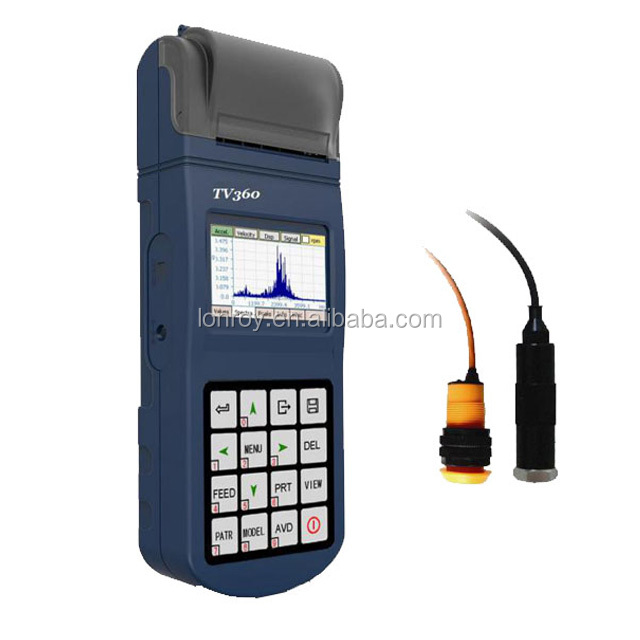

TV360 Portable Vibration Meters/Vibration meter



Description:

Piezoelectric acceleration sensor is used to convert vibration signal into electric signal.Through the processing and analysis of the input signal, the peak acceleration, RMS value of velocity (root mean square value), displacement peak – peak or real-time spectrum of vibration measurement are obtained.This product is suitable for conventional vibration measurement, especially vibration measurement in reciprocating machines. It can not only measure the acceleration, speed or displacement of vibration, but also make simple fault diagnosis and print output.

The technical performance of TV360 conforms to the vibration standard of sinusoidal excitation method (GB13823.3).It is widely used in machinery manufacturing, electric power, metallurgy, vehicles and other fields.



TV360 Portable Vibration Meters/Vibration meter

Functional Features:

 1.Displays the full Chinese display, the menu combines the shortcut key operation, simple and convenient.320×240 true color ultra-clear TFT LCD display, one screen display rich content and easy to read value.

2.Vibration measurement can measure the Peak value of acceleration, the effective value of velocity (RMS) and the Peak value of displacement (peak-peak).At the same time, the dynamic measurement bar chart is displayed in real time.

3.Speed measurement can be equipped with photoelectric sensor to directly measure rotor speed.

4.Data storage capacity storage.It can store a total of 8,000 sets of measurement data and 100 sets of spectrum graphs at 100 measurement points (80 sets of measurement data and one spectrum graph per point).

5.The alarm output can set the upper limit warning value and alarm value in advance and give the corresponding alarm indication when the measured value exceeds the warning value or alarm value.

6.The data analysis has the function of spectral measurement, which can carry out the detailed analysis of the whole frequency range of the saved spectrum graph, and then complete the fault diagnosis.

7.Data communication miniUSB interface, can be equipped with special data management analysis software to connect to the upper computer.

8.The battery is built with high performance lithium battery, and equipped with ultra-low power consumption control circuit, with longer working and standby time.

9.Printing output built-in embedded thermosensitive printing machine core, can print measurement data and spectrum map at any time anywhere.Make it easy for users to record key data in real time.



TV360 Portable Vibration Meters/Vibration meter

Technical Parameters:

Vibration measurement range	Acceleration:0.1 m/s2 ~ 392.0 m/s2(Peak)(Standard configuration :0.1mm/s2-205.6mm/s2) Rate:0.1 mm/s ~ 800.0 mm/s(Valid values)(Standard configuration :0.1mm/s-400.0mm/s) A move:0.001 mm ~ 18.1 mm(Peak)(Standard configuration :0.001mm/s-9.0mm) Equipped with full sensitivity probe: wide measuring range, high sensitivity probe and low sensitivity probe function.
Frequency range	10Hz ~ 200Hz 10Hz ~ 500Hz 10Hz ~ 1kHz 10Hz ~ 10kHz
Allowable vibration measurement error	±5%
Analysis frequency interval	0.25Hz
Speed measurement range	30 ~ 300000 rpm(5 ~ 5kHz)
Permissible error in speed measurement	±(0.05% + 1)
Speed measurement distance	0.15 ~ 1m
Temperature range	0℃~40℃
Humidity range	≤80%RH
display	TFT Color LCD screen,320 × 240pixel
Storage capacity	8,000 data sets and 100 spectral images (100 measurement points)
Upper computer software	Optional
communication	Mini USB
external dimension	212 × 80 × 35
print function	Embedded thermal printer, on – call
battery life	The 1500mAh high performance lithium-ion rechargeable battery lasts 50 hours
Machine weight	320g



Standard Configuration:

Name	Qty
TV360 vibrometer host	1pcs
import220V/50Hz, export9V/1000mA power adapter	1pcs(Configure one of them according to user requirements)
import110V/50Hz, export9V/1000mA power adapter
Vibration sensorTYSV-01	1pcs
Magnetic suction seat(Contains 2 connection bolts)	1pcs
Instructions and random documents	1 set
Product packing box	1 set





TV360 Portable Vibration Meters/Vibration meter

Choose Accessories:

Name	Qty
Laser speed sensor	1pcs
Data analysis software	1set
probe	1pcs
