Description
- Brand Name: KAIWEETS
- DIY Supplies: ELECTRICAL
- Origin: CN(Origin)
- AC Voltage: 6V/60V/600V±(0.8%reading 3)
- Operating Mode: Smart/Manual
- Display Type: Digital Display
- DC Voltage: 600mV/6V/60V/600V±(0.5%reading 3)
- Model Number: ST600Y
- AC Current: 600mA/6A/10A±(1.2%reading 3)
- Measuring Resistance Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ±(1.5%reading 10)
- Certification: CE
- Certification: EAC
- Certification: RoHS
- DC Current: 600mA/6A/10A±(1.2%reading 3)
- Measuring Capacitance Range: 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF ±(5.0%reading 5)
- Dimensions: 113 x 68 x 19mm
- Weight: 0.45kg
- Display Measurements: 6000counts
- Frequency: 6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz ±(1.0%reading 3)
- Duty: 1%~99% ±(1.0%reading 3)
- Temperature Measurement: -40℃-1000℃ ±2.0%reading or ±3
- Range: Auto
- Measurement Speed: 3 times per second
- Battery: 4×1.5V AAA Batteries(included)
- Maximum Voltage: DC/AC 600V
- Maximum Current: 10A
- True-RMS yes or no: yes
- NCV test: yes
- low battery indicator: yes
- Continuity Measurement: yes
- Diode Measurement: yes
- Live test: yes
- Flashlight: yes
- alarm indicator: yes
-
SPECIFICATION
-
-
Item Weight
-
0.45 KG
-
Product Dimensions
-
113 X 68 X 19 mm
-
Batteries
-
4 AAA batteries required (included)
-
Performance Description
-
HD Color Display, True RMS
-
Safety Level/Certification
-
IEC-61010-1 CATⅢ 1000V, CAT IV 600V, double insulation
-
Usage
-
▲ Voltage tester
▲ Large range measuring tool
▲ Frequency multimeter
▲ Diode electronic tester
▲ Capacitance digital meter
▲ Ohm meter -
Upgraded Specification
-
● DC Voltage: 600mV/6V/60V/600V±(0.5%+3)
● AC Voltage: 6V/60V/600V/750V±(0.8%+5)
● DC Current: 600mA/6A/10A ±(1.2%+3)
● AC Current: 600mA/6A/10A ±(1.2%+3)
● Resistance: 600/6k/60k/600kOHM ±(1.0%+5)
● Capacitance: 6nF/60nF/600nF/6uF/60uF/600uF ±(4.0%+5); 6mF/60mF ±(5.0%+5)
● Frequency: 16Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz ±(1.0%+3)
● Duty: 1.0%-99.0% ±(1.0%+3)
● Temperature: -40~1000°C; -40-1832°F 2°C

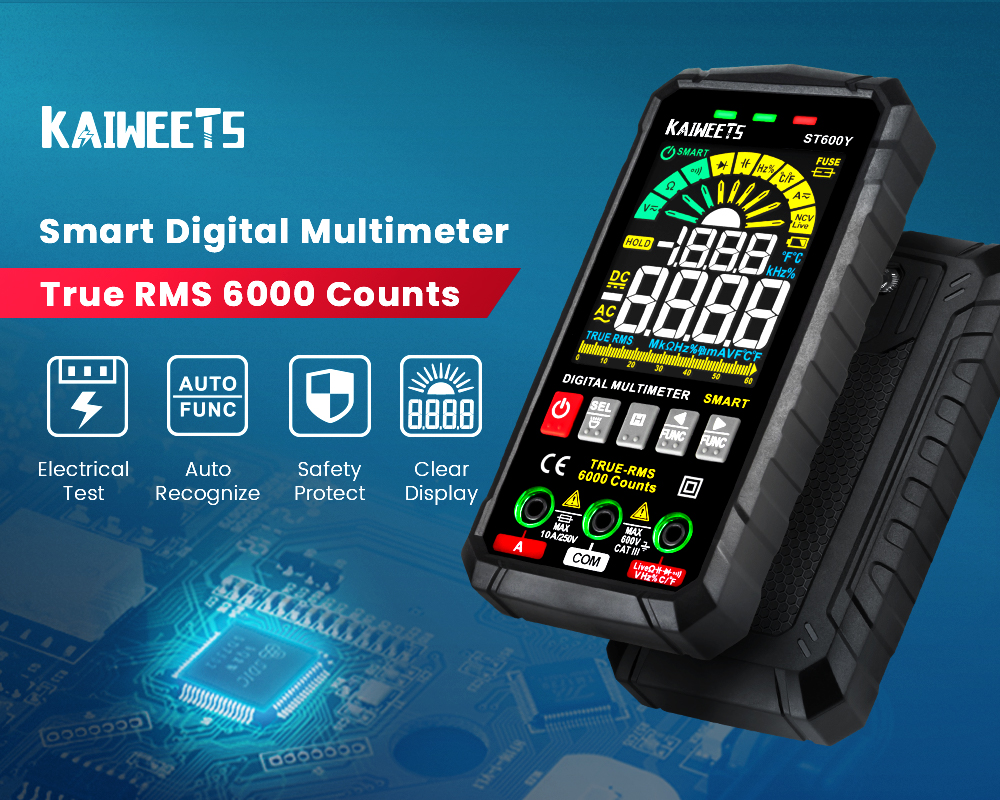

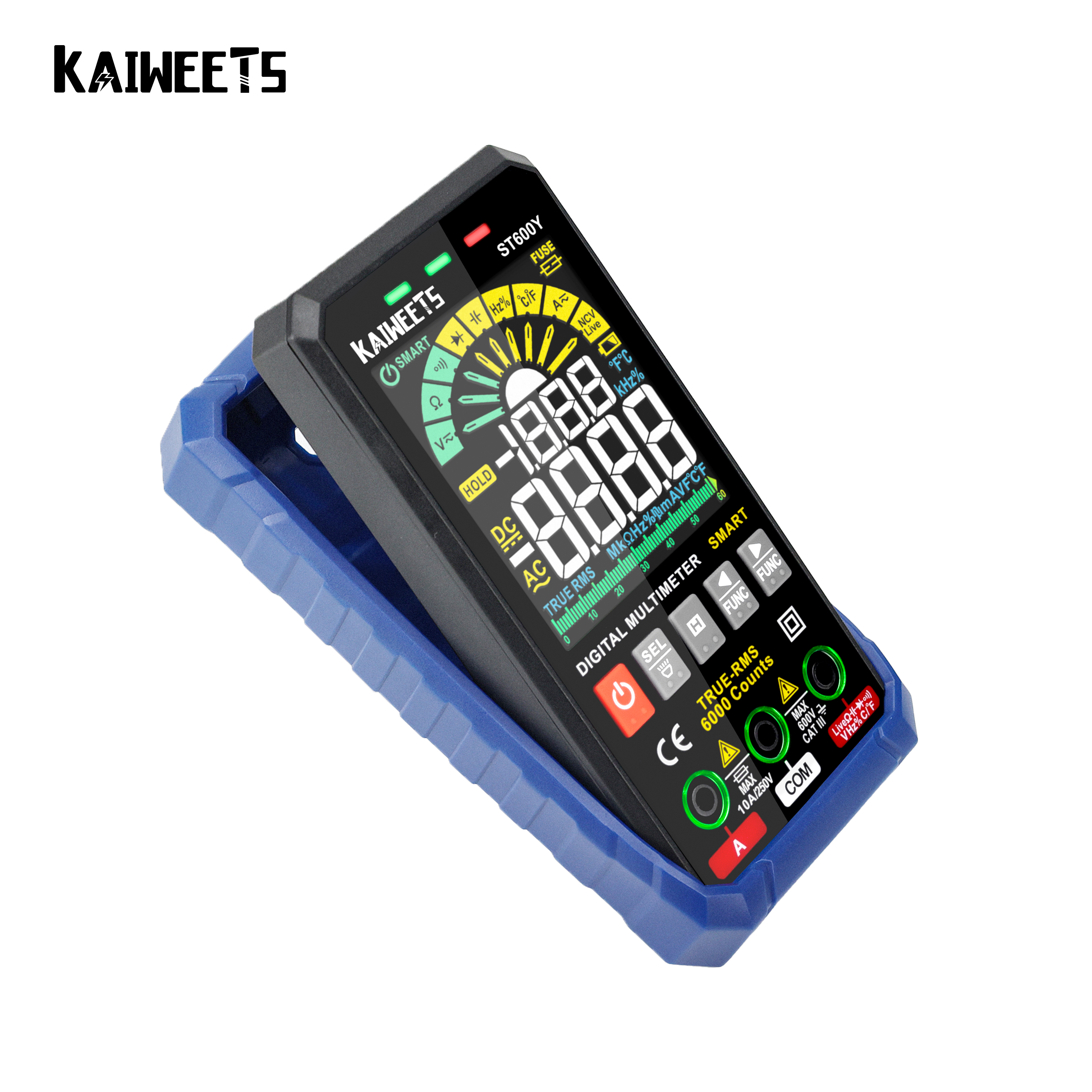

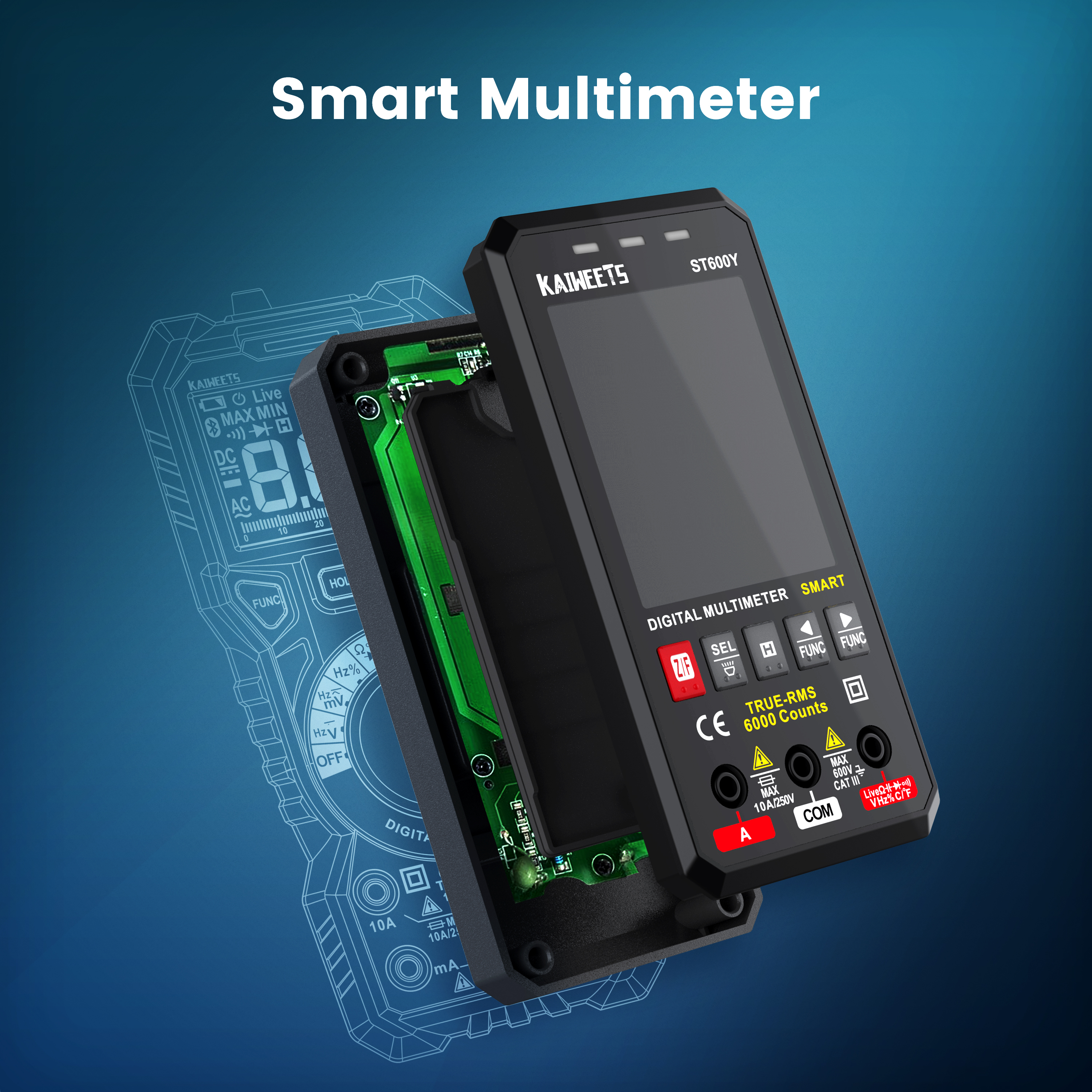

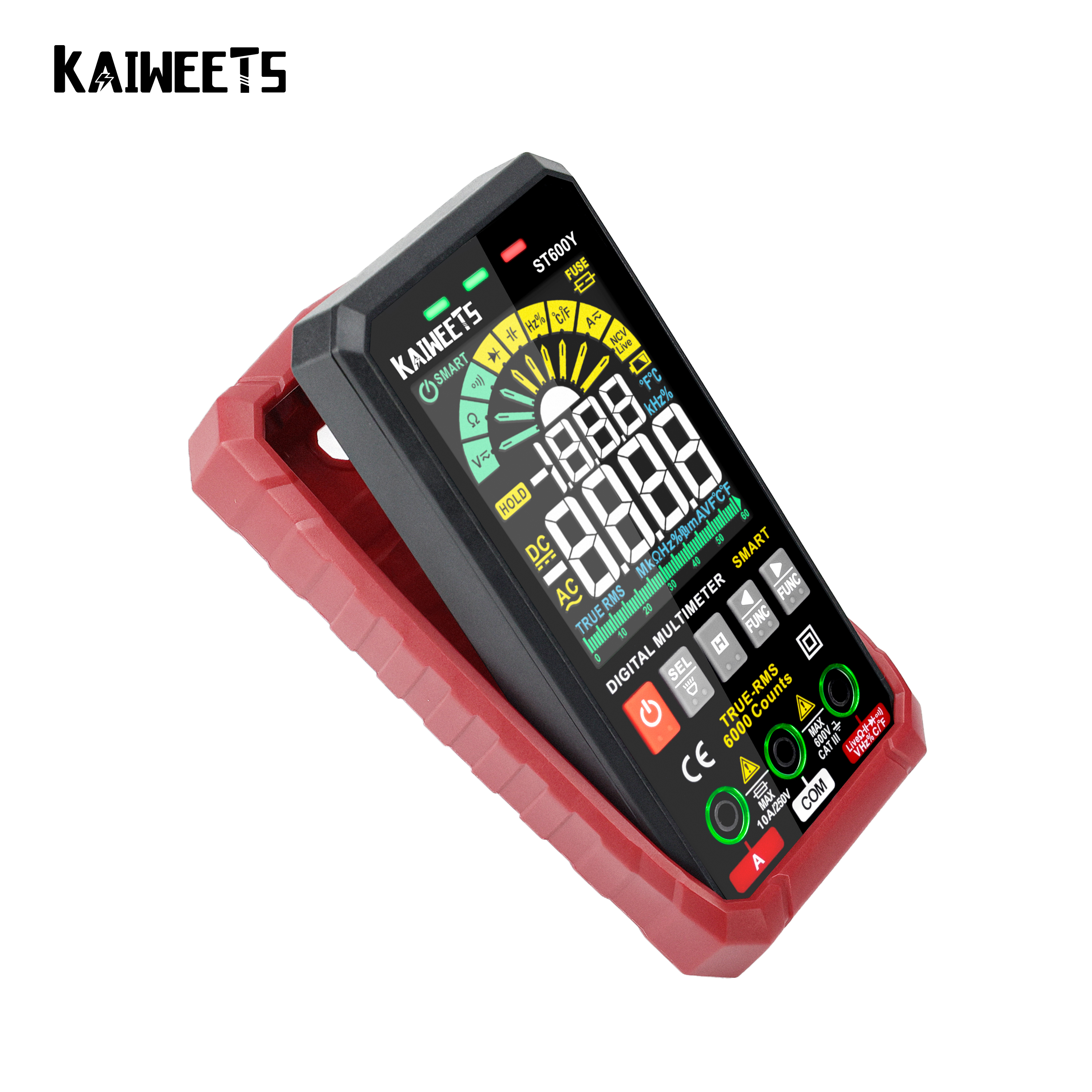

KAIWEETS ST600Y
Digital Smart Multimeter 6000 Counts True-RMS
Multiple Functions

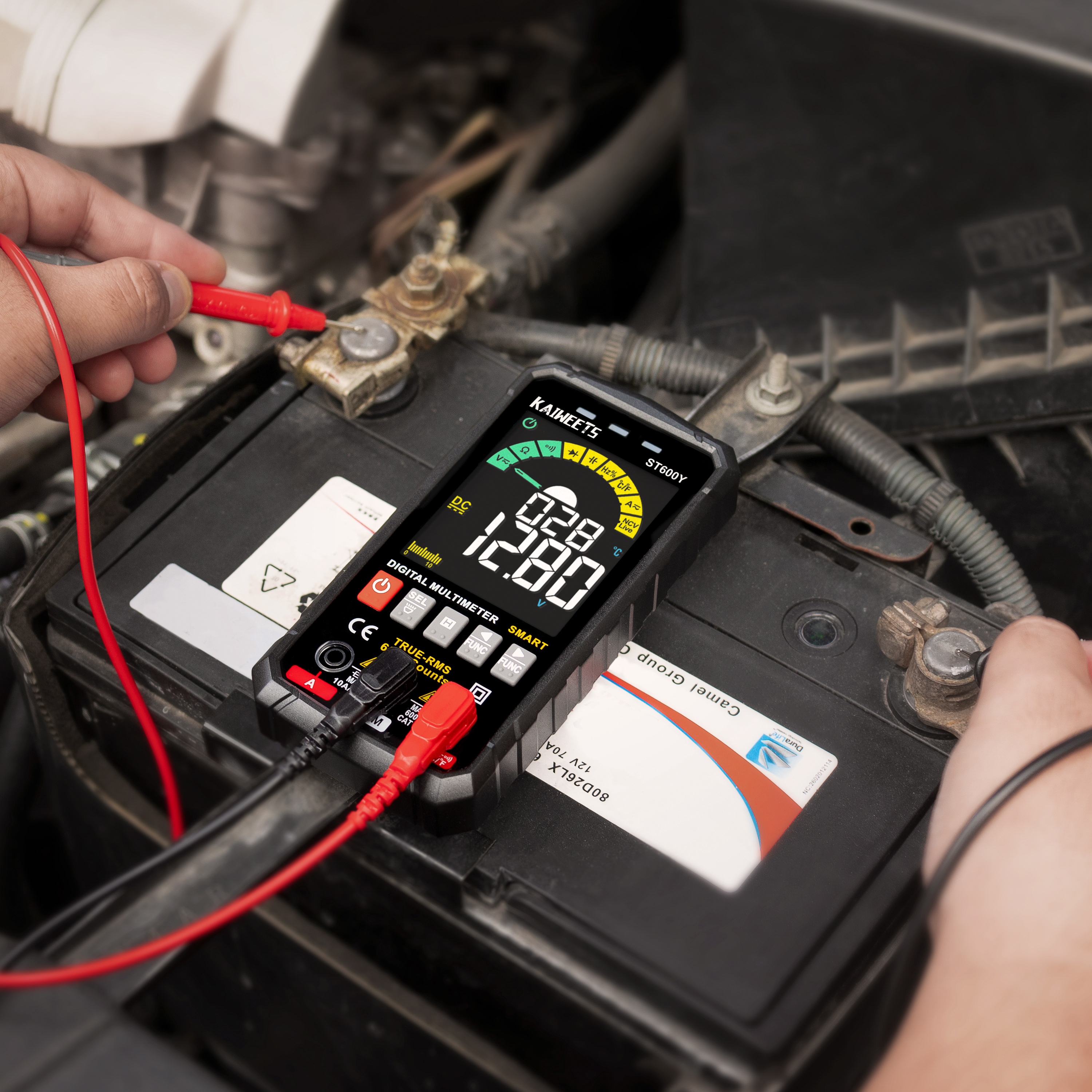

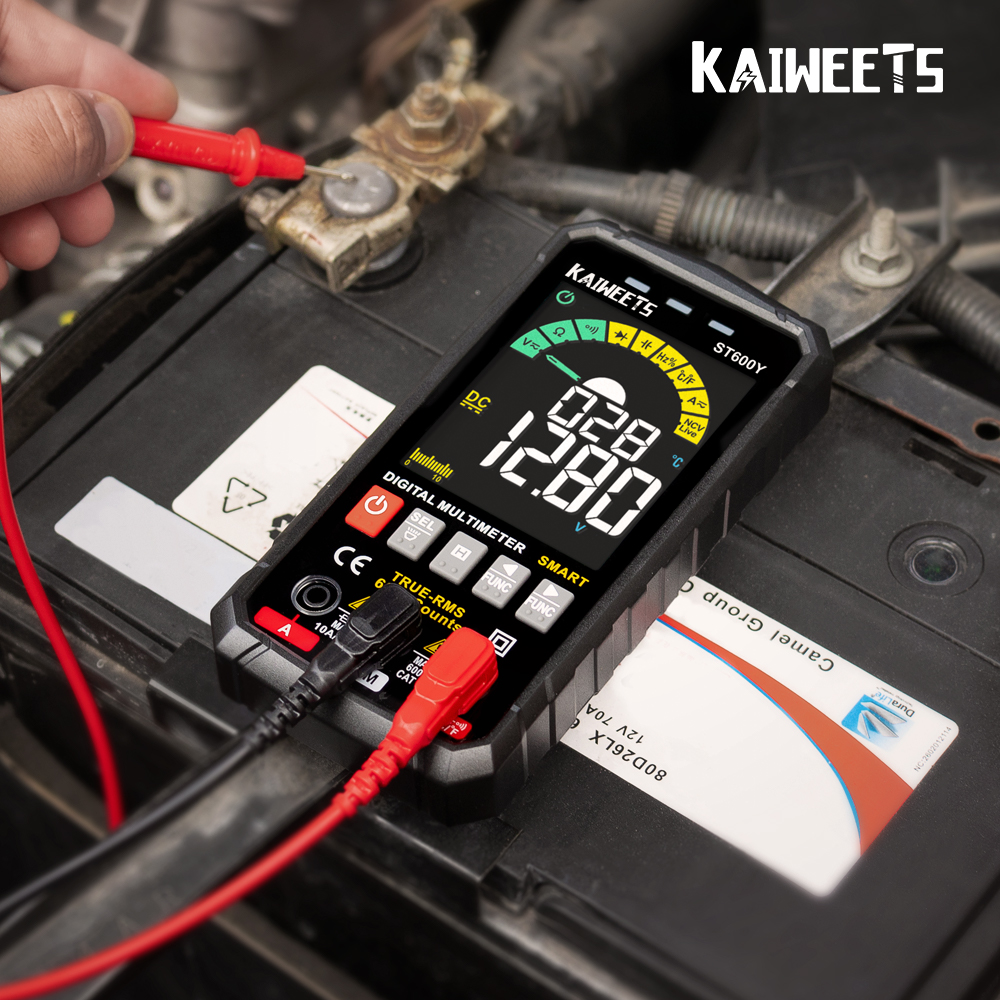

The ST600Y multimeter measures up to 600V AC/DC voltage, 10A AC/DC current, and resistance of 60M Ohms. Additionally, the tester measures temperature, capacitance, frequency, duty-cycle, wire on/off, diodes, and continuity

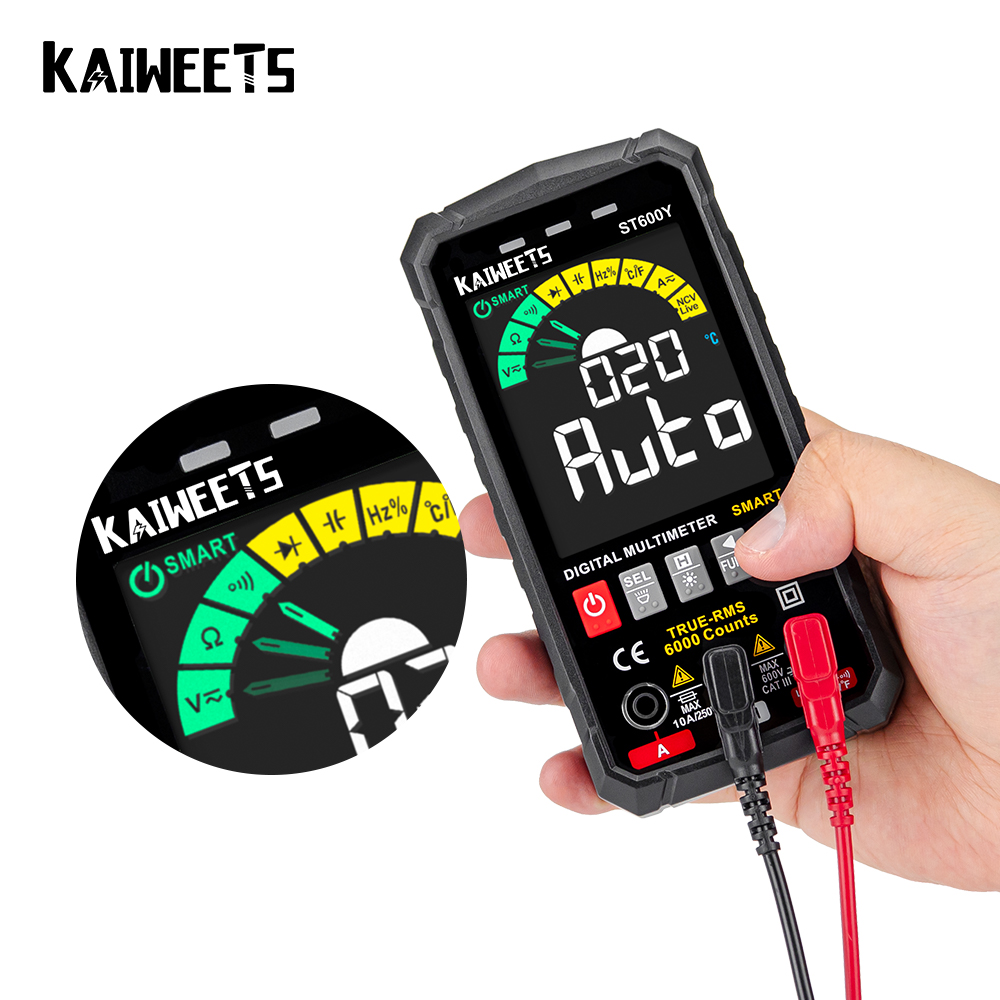

Easy Switch Between Smart Mode and Manual Mode
It has an ‘auto’ mode that enables it to automatically detect and respond to the most frequent measures, such as Volts AC or DC, resistance, or continuity. All that is required in this intelligent mode is the attachment of the probes
Upgraded & Convenient
Replace the gear knob with 2 buttons, use it like a smartphone. More convenient than a meter with only 1 function button, you can manually select the function to the left or right. The jack is on the front, so the multimeter can be placed upright.

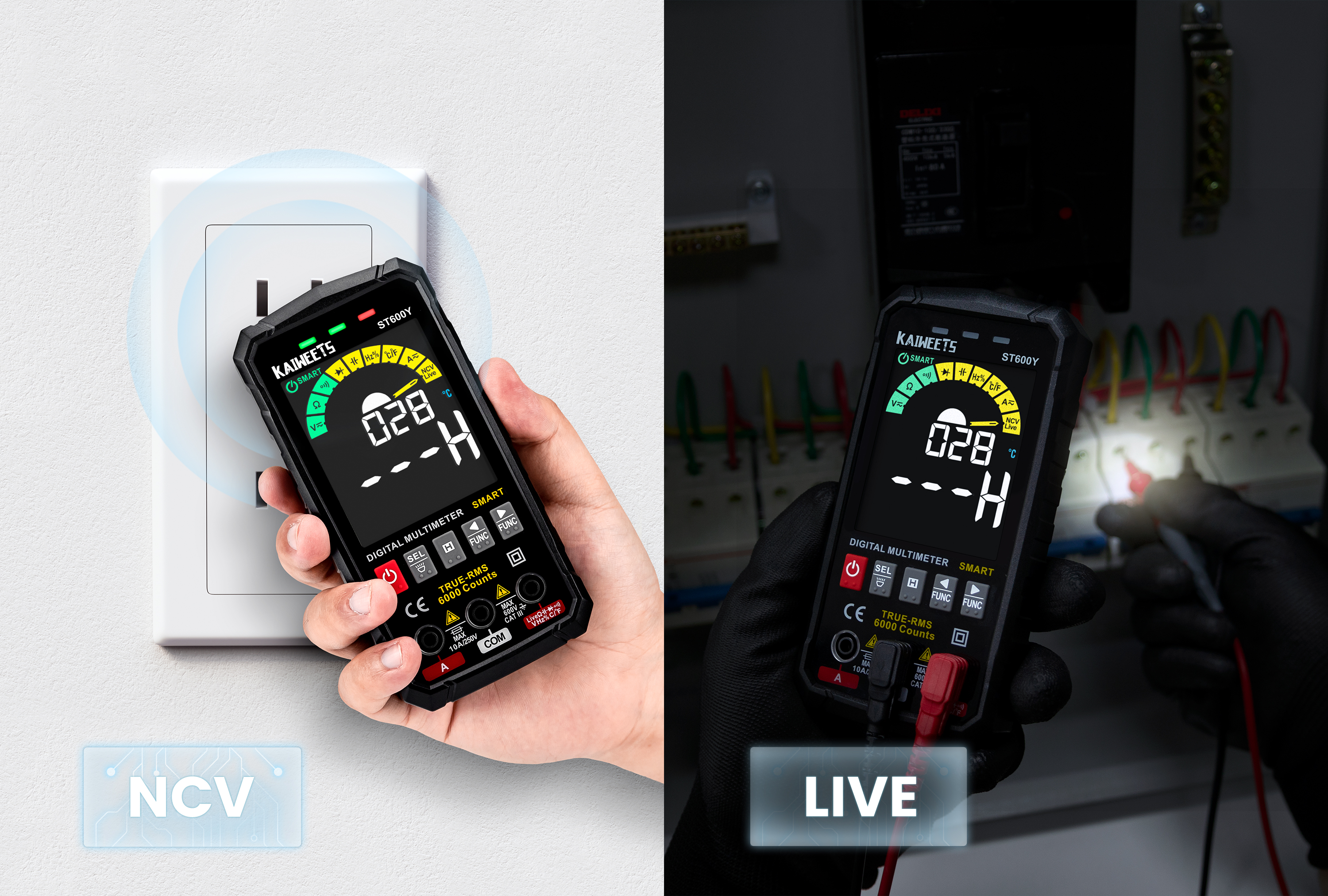

NCV Detection
When the indicator light is on, it means there is voltage. Please pay attention to your safety
Detects Live Wires
Live wire testing with the red test lead. When it detects a live wire, the clamp meter will reflect with the audio alarm.
Portable & Best Size Design
Larger display screen than other meter, ST600Y smart multimeter is designed to a portable size for easy carrying.

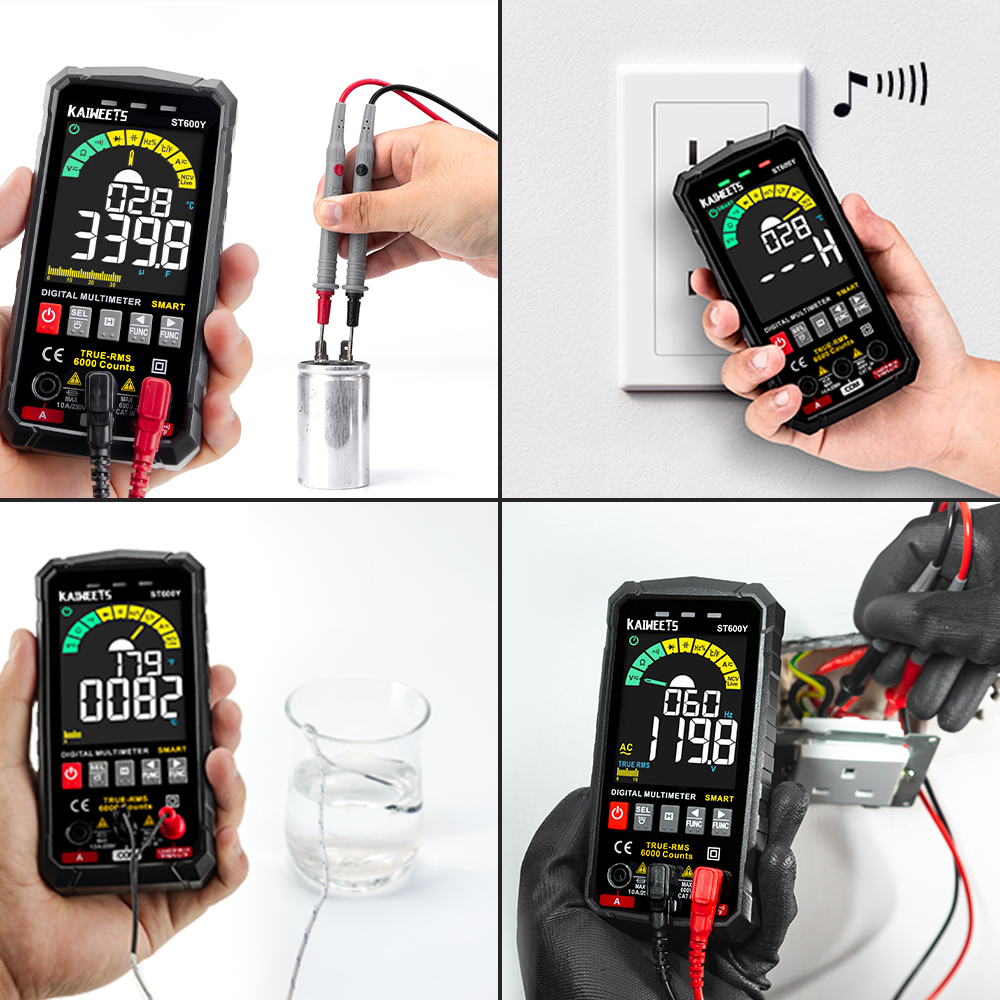

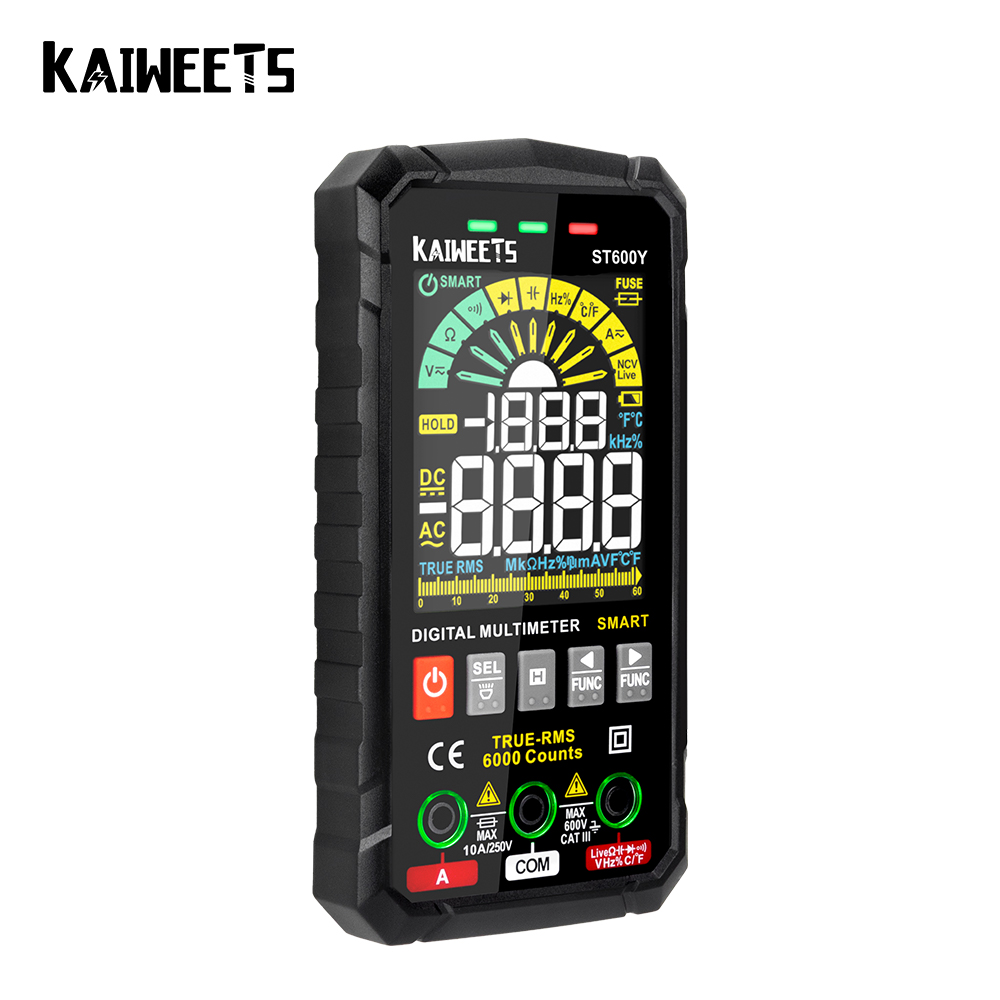

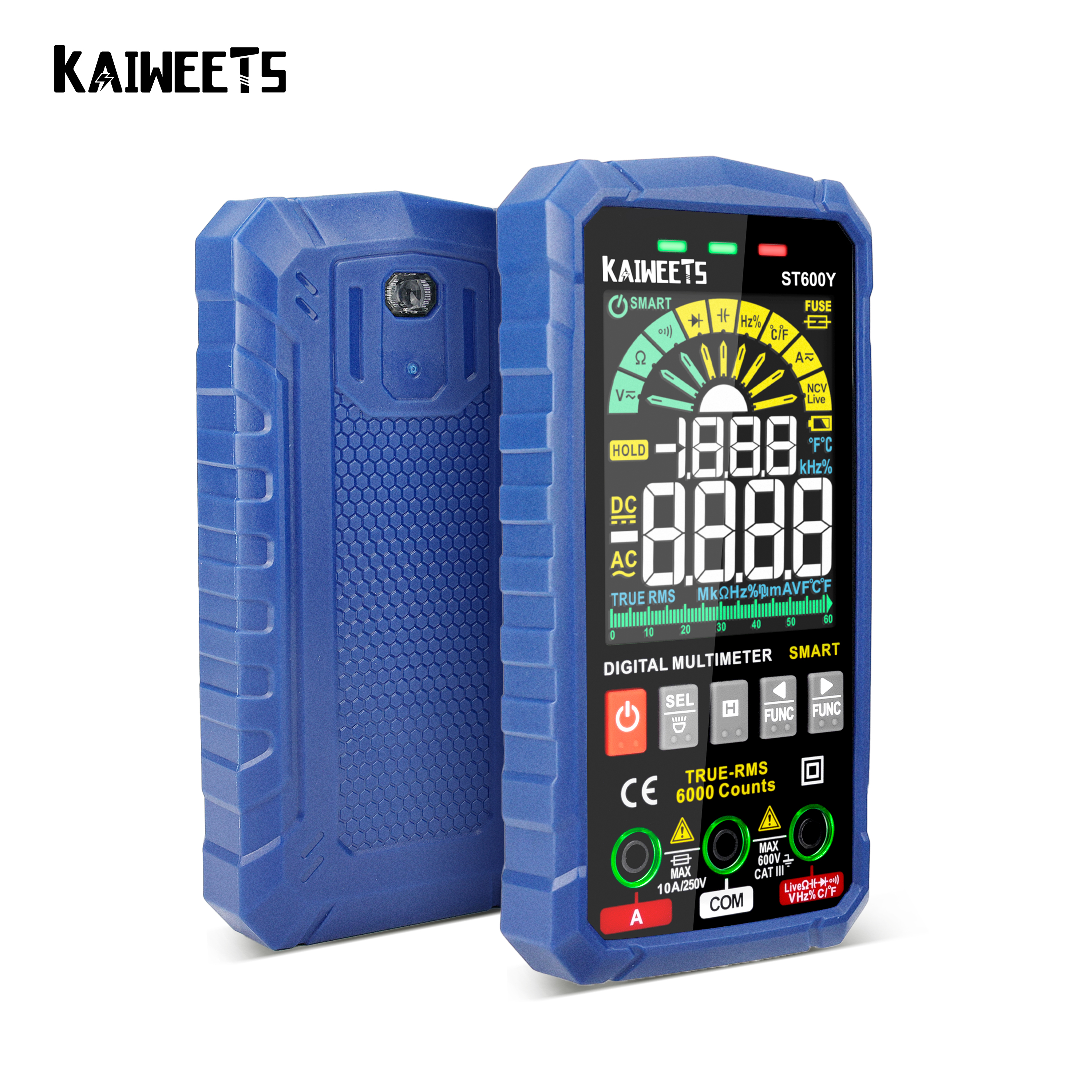

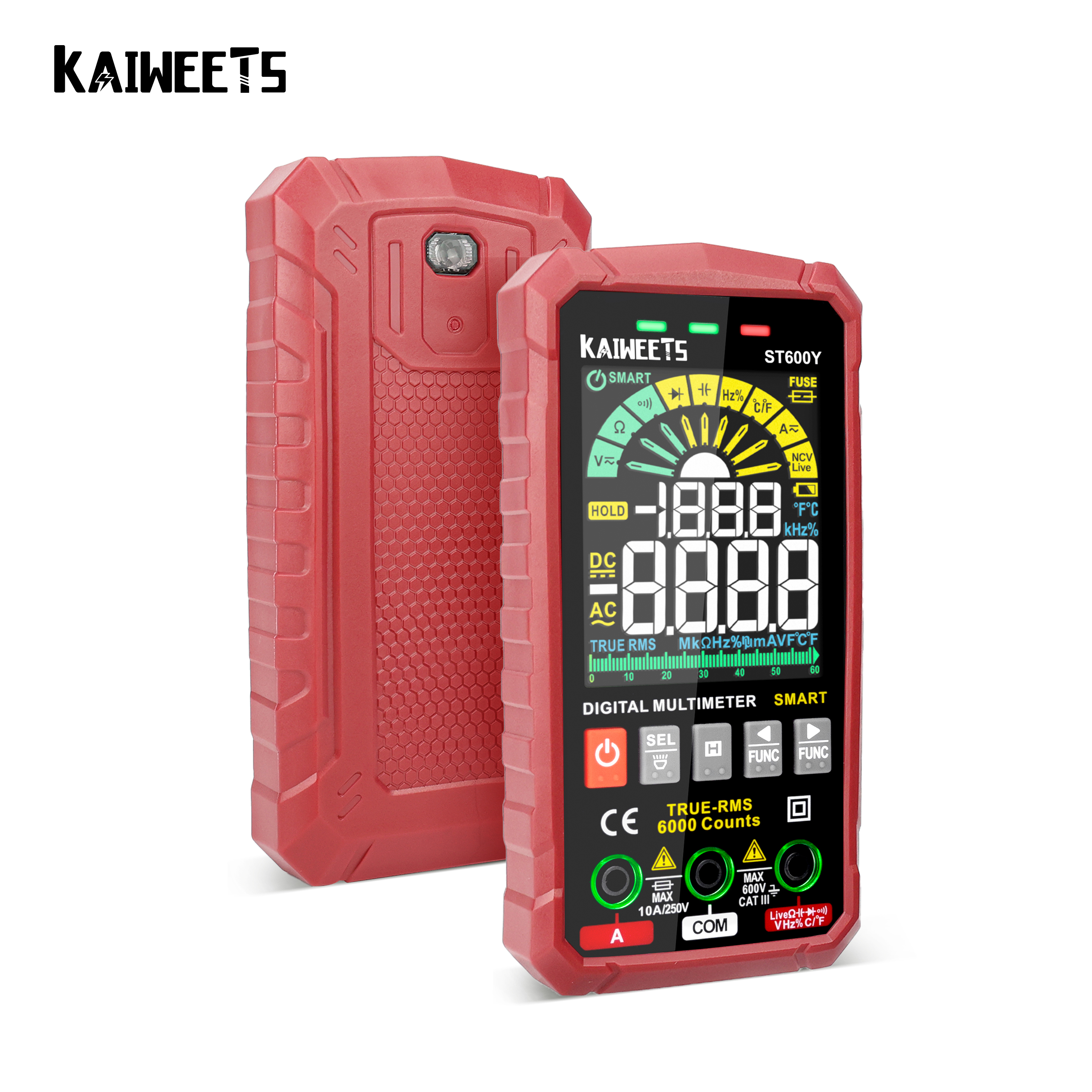

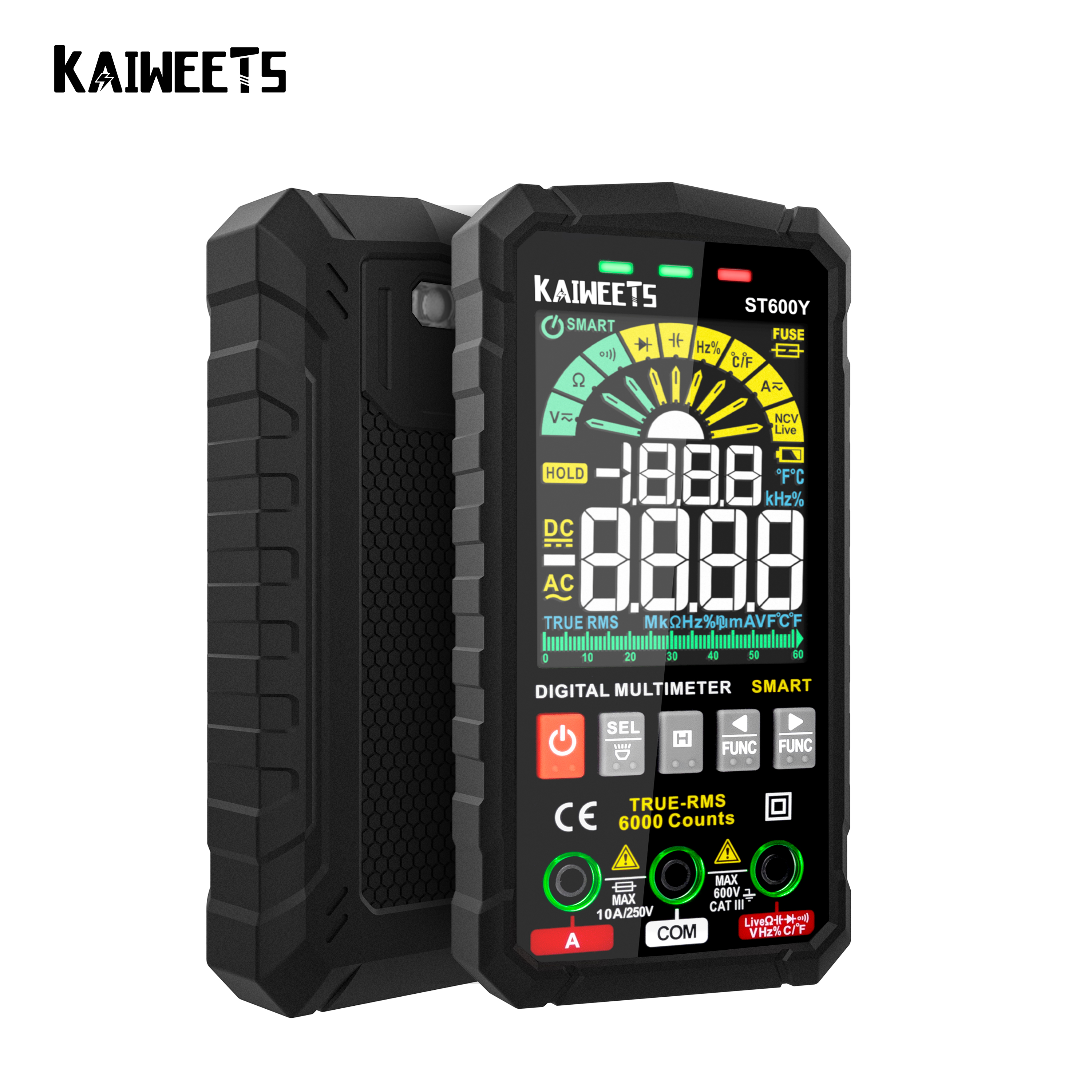

ST600Y Product Shows

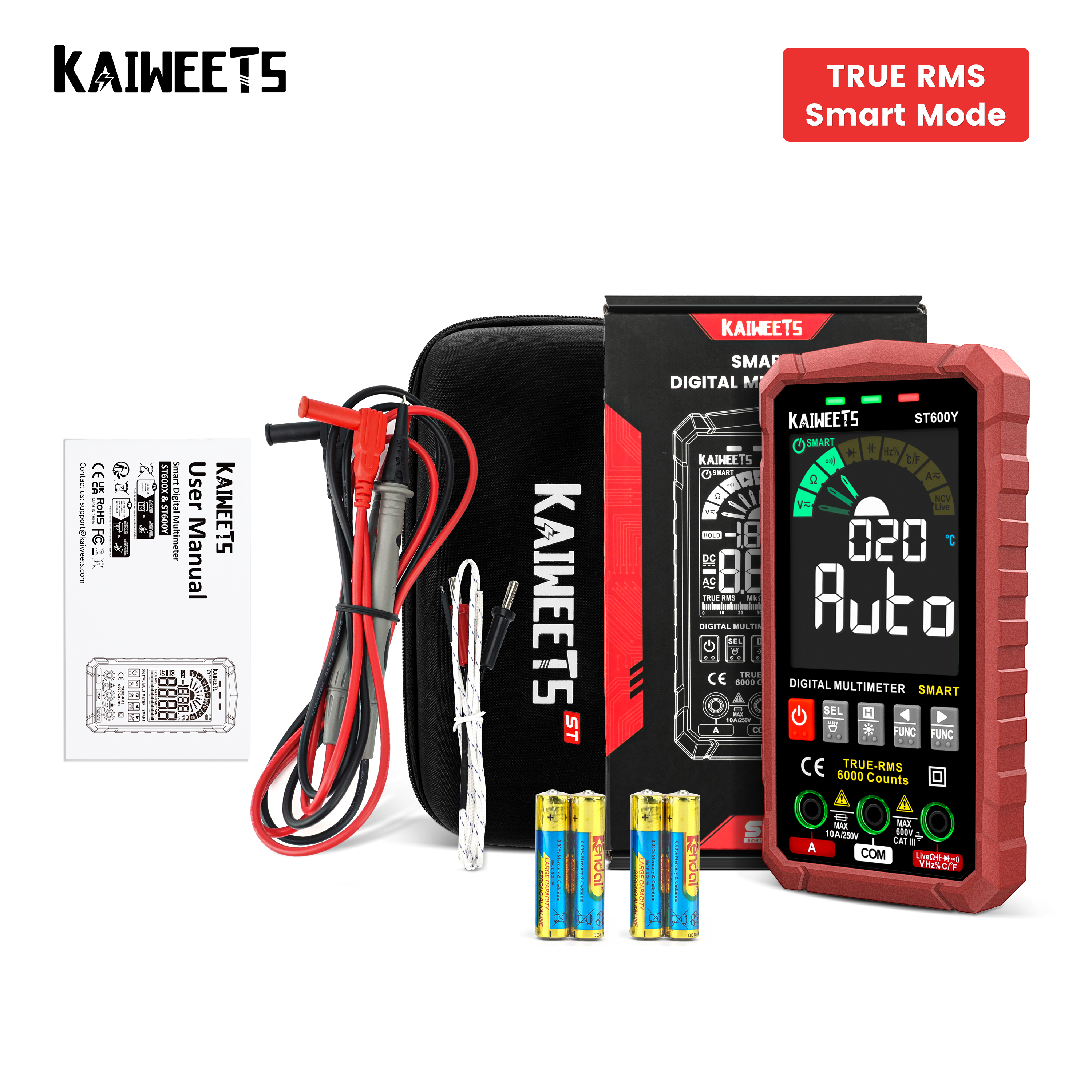

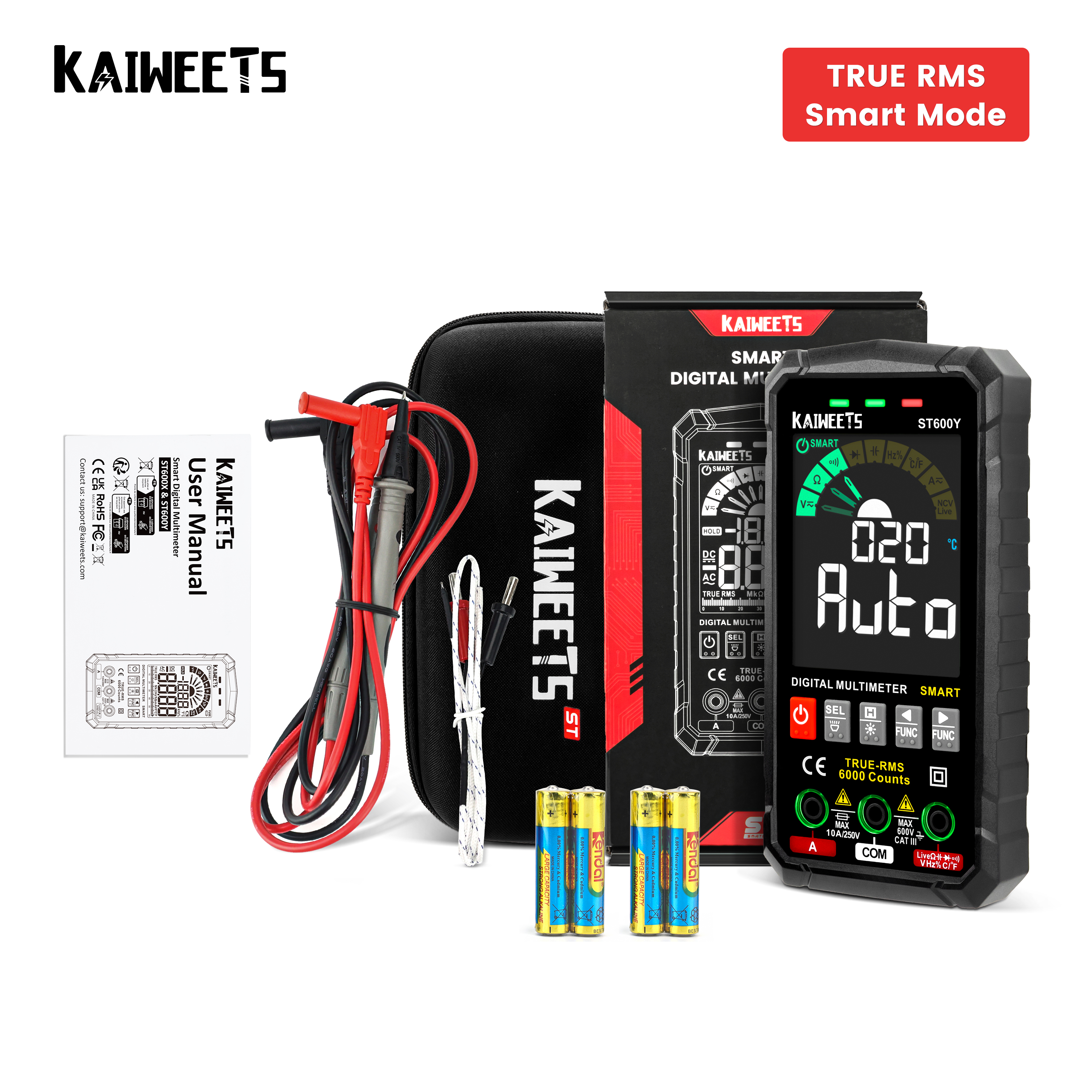

What Will You Get?
1 x ST600Y Multimeter
1 x Test Leads
4 x AAA Battery
1 x User Manual
1 x Thermocouple
1 x Multimeter Bag

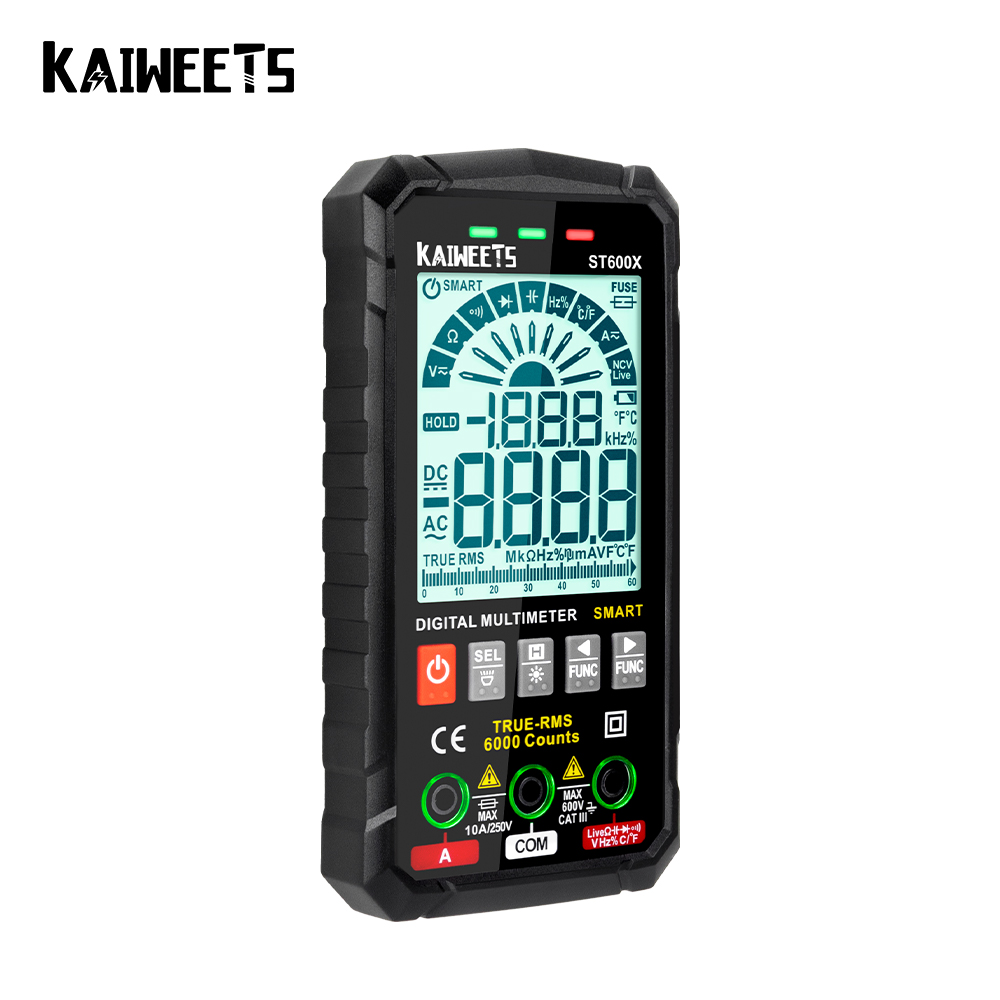

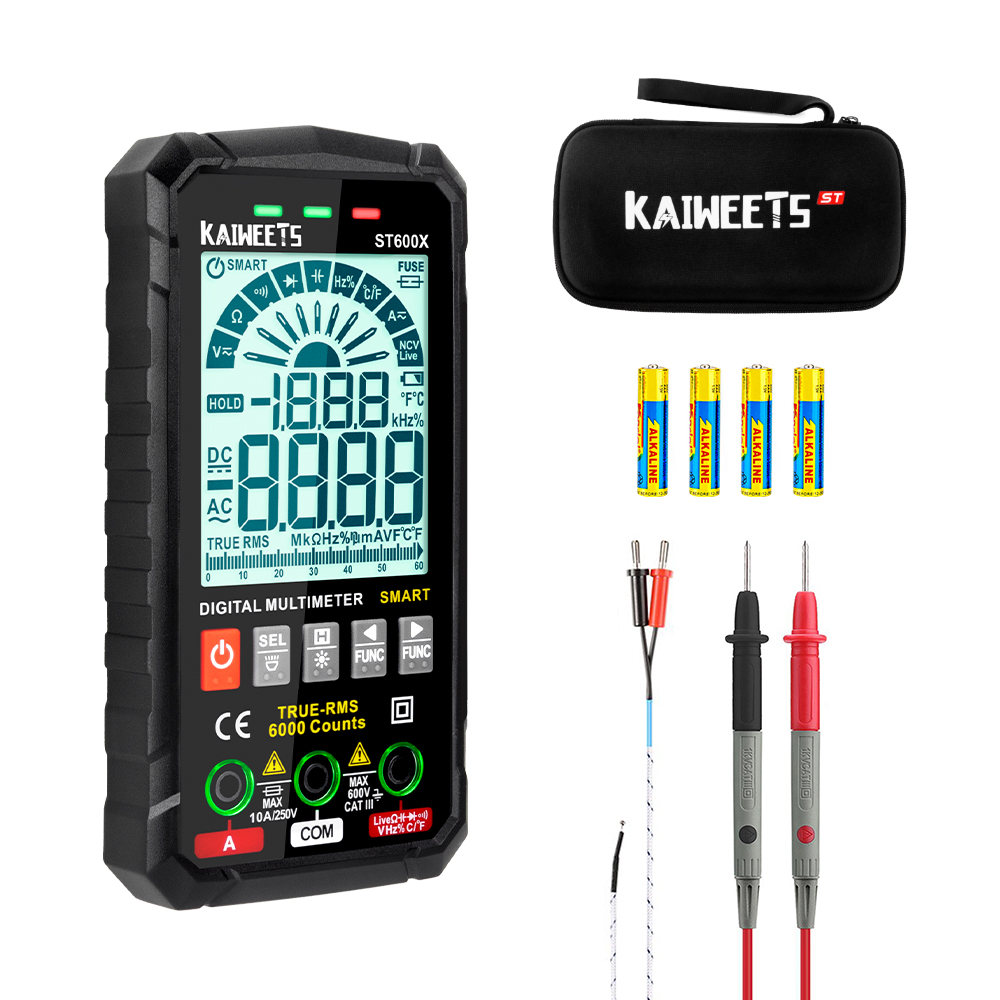

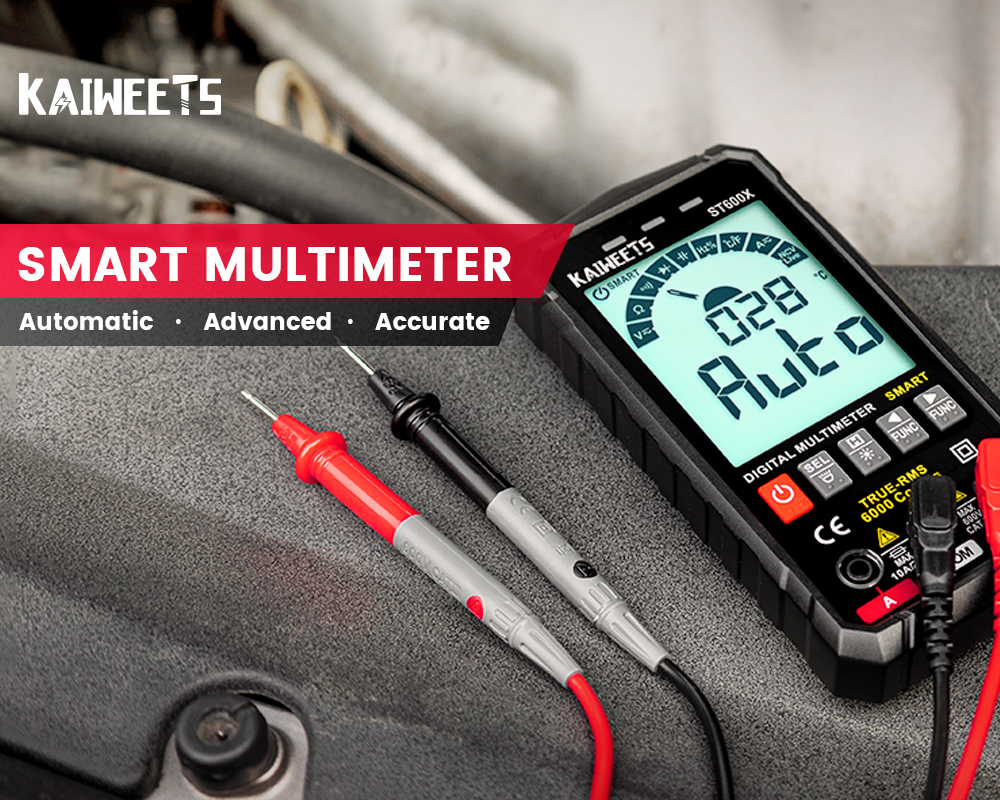

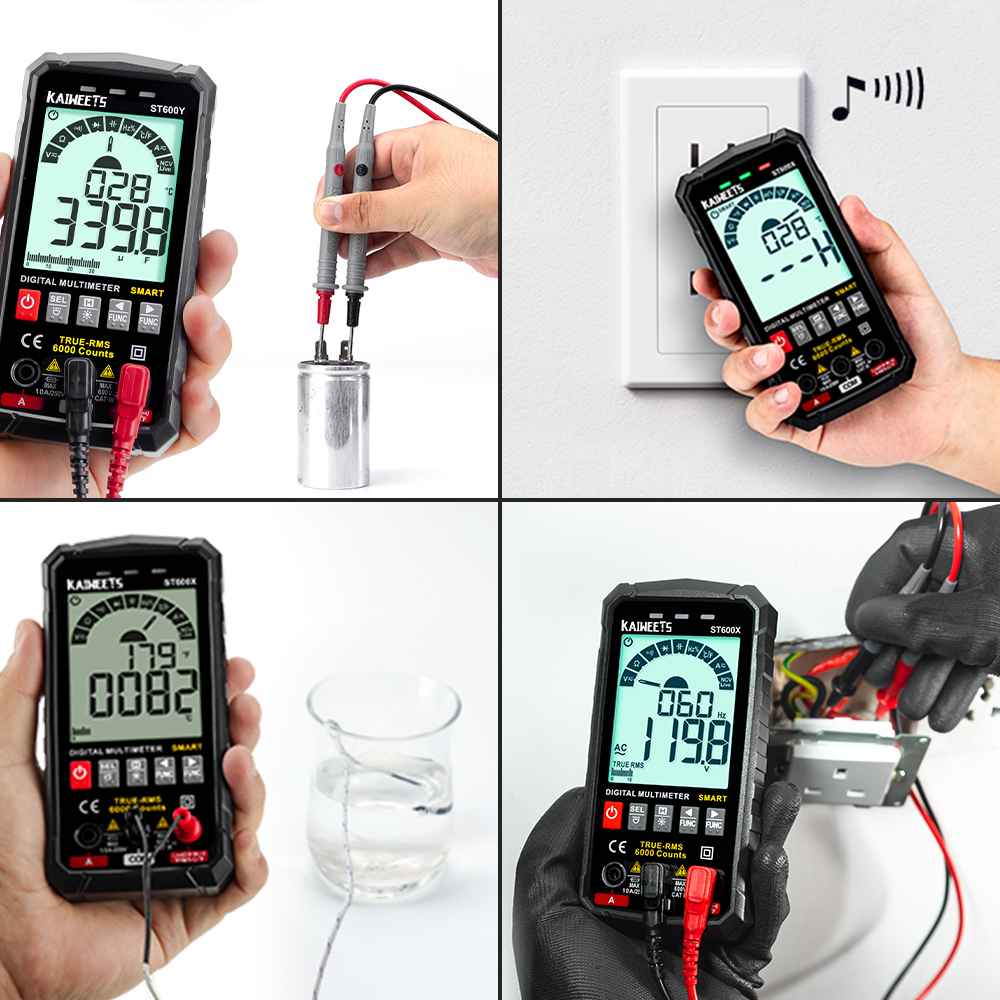

KAIWEETS ST600X
Multiple Functions

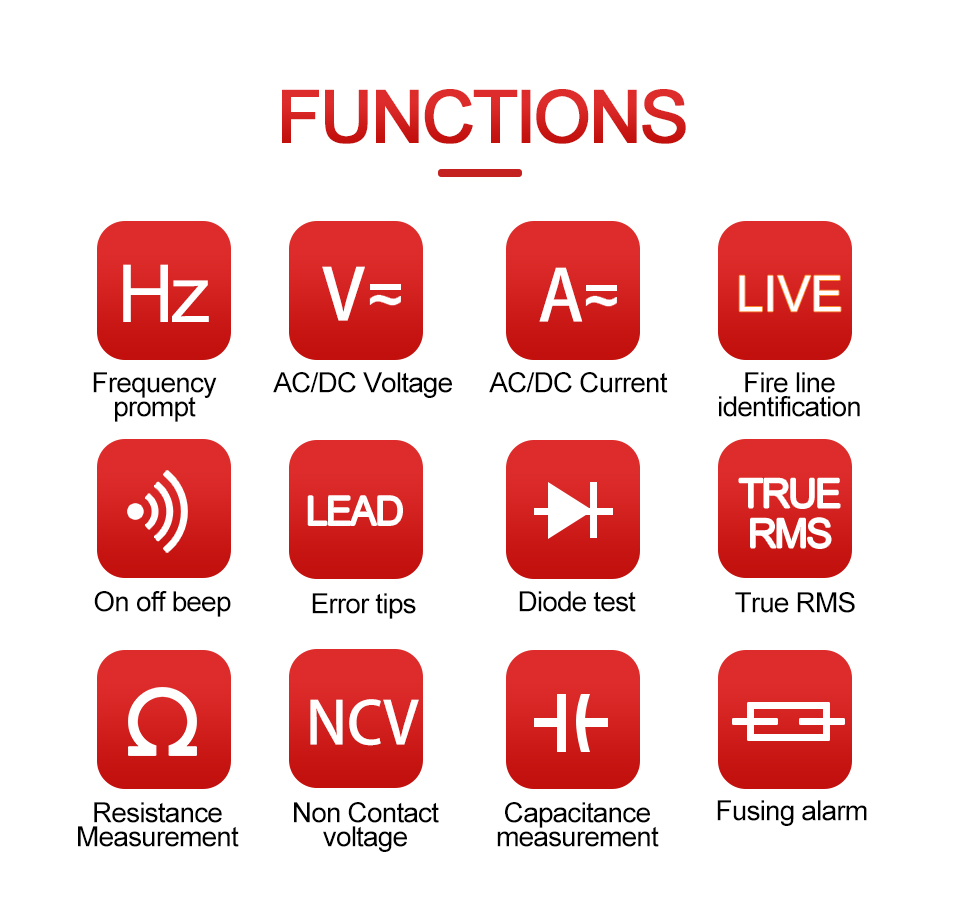

It can be used to test continuity, capacitance, frequency, duty cycle, resistance, diode, temperature, NCV, and live wire.

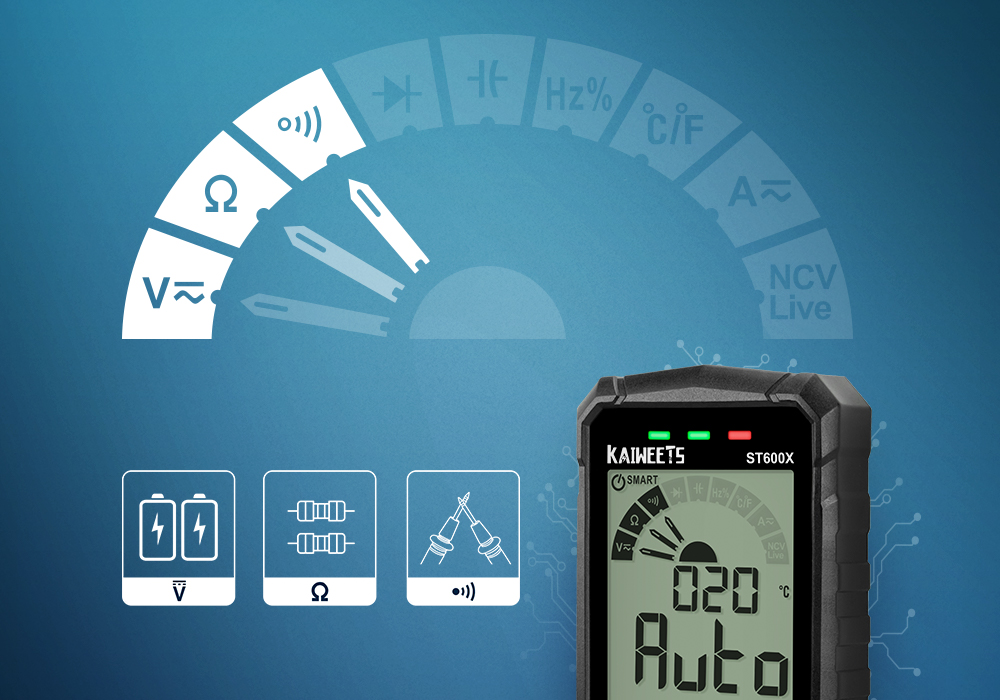

Easy Switch Between Smart Mode and Manual Mode
Press to turn on manual mode. Press and hold to switch back to SMART mode

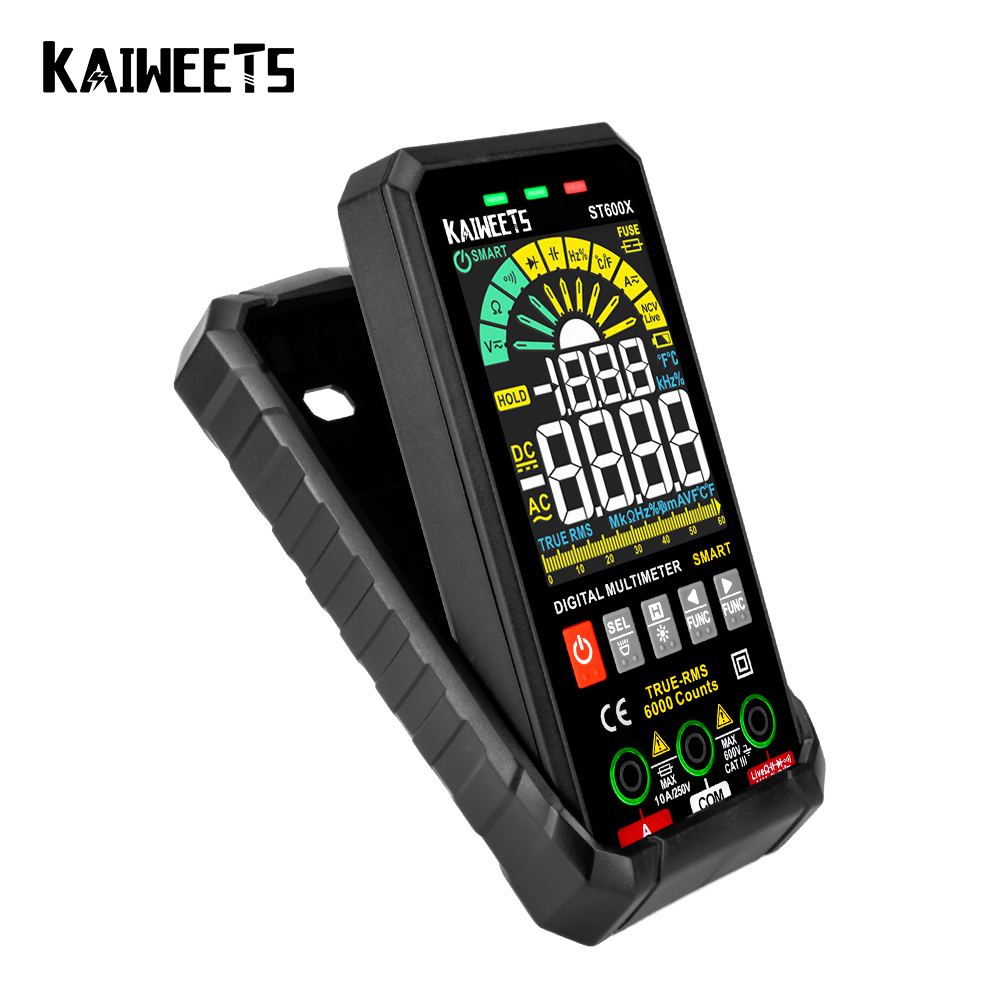

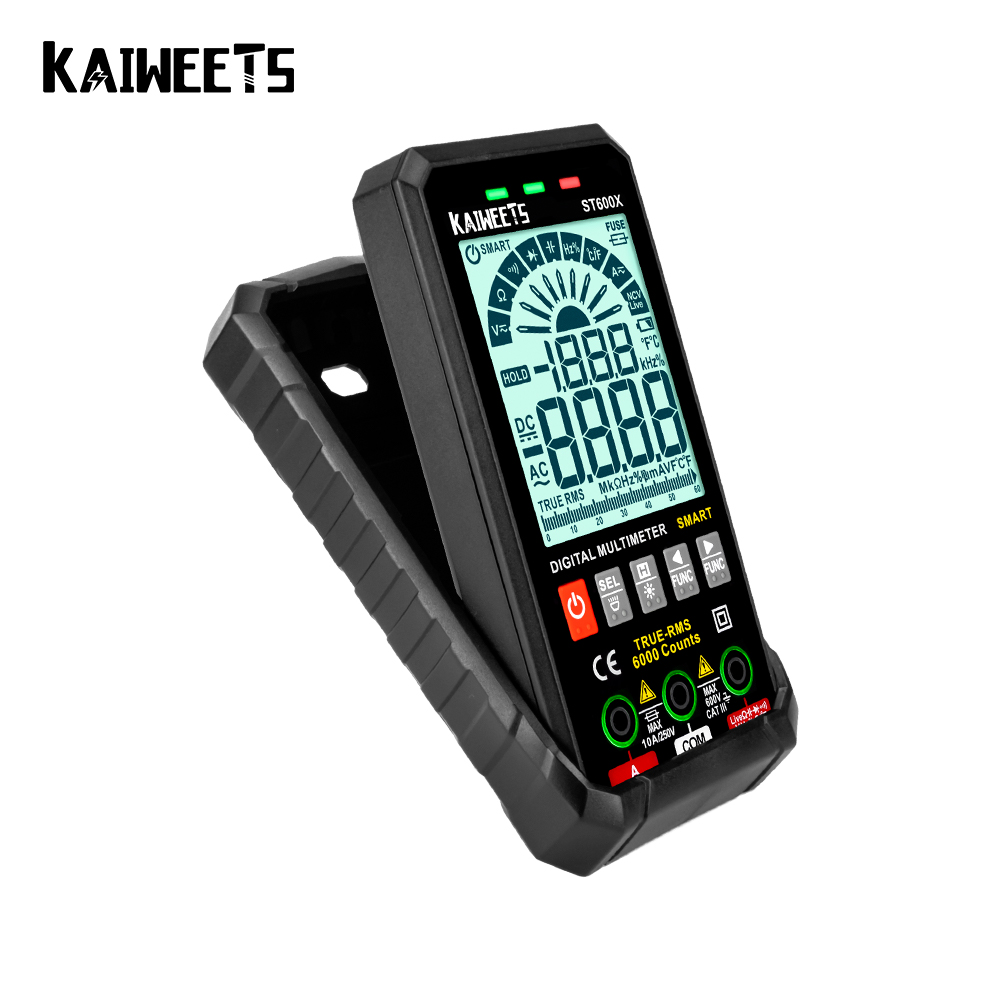

ST600X Product Shows
