Description
- Brand Name: pshinecnc
- Origin: Mainland China
- Certification: CE
- Single Pulse Energy: 90-120J
- Pulse Width: 0.1-20MS
- Focal Spot Diameter: 0.2-2mm
- Model Number: PXW
- Max. Output Power: 3000W
- Power (W): 30W
- Wavelength: 1080NM
- Rated Voltage: 220V
- Dimensions: 1040*600*1220mm
- Usage: Laser welder metal
- Is Smart Device: YES
- Product name: PSHINECNC RECI/Raycus /JPT CNC auto laser welding machine spare parts for protective
- Welding frequency: 0-50Hz
- Cooling mode: water cooling
- Welding Speed Range: 0-120mm/s
- Focal Spot Diameter: 0.2-3.0NM
- Laser Source Brand: RAYCUS/MAX/JPT/RECI
- Laser Head Brand: WSX
- Welding depth: 0.1-3.5mm
- Laser power: 1000W /1500w/2000w
- Laser Wavelength: 1080NM
Product Overview
PSHINECNC RECI/Raycus /JPT CNC auto laser welding machine spare parts for protective lenses core drill
FEATURES AT A GLANCE

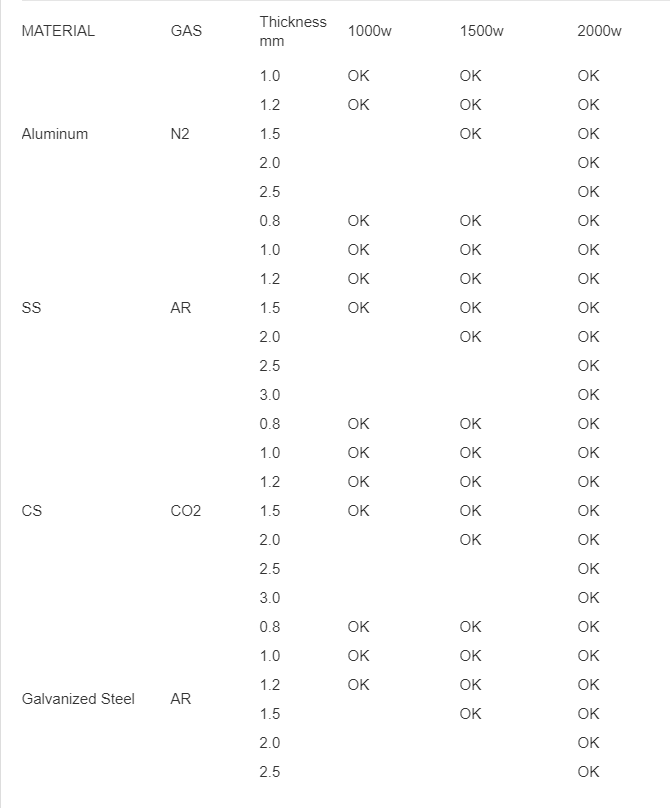

Use of welding materials
-
Aluminum alloy
-
Stainless Steel
-
Carbon Steel
-
Galvanized plate
-
Brass
-
Multiple modes freely switchable
-
2-10 times welding speed
-
Beautiful and solid weld seam
-
Zero basic can operate
PRODUCT SPECIFICATIONS
|
1
|
Laser Type
|
Fiber Laser
|
Laser Source
|
JPT/MAX/RAYCUS/RECI
|
|
2
|
Laser Power
|
1000W/1500W/2000W
|
Positioning Way
|
Red Light
|
|
3
|
Welding Depth
|
0.5-3mm
|
Cooling Way
|
Water Cooling
|
|
4
|
Laser Wavelength
|
1080nm
|
Laser Head
|
Handheld
|
|
5
|
Frequency Of Pulse
|
50~20khz
|
Welding Speed Range
|
0~120mm/s
|
|
6
|
Fiber Laser Optic Length
|
10M
|
Spot Size
|
Φ0.2-1.8mm
|
|
7
|
Power consumption
|
≤6KW
|
Output Power Tunability (%)
|
10-100%
|
|
8
|
Air pressure requirement
|
4-6Bar
|
Ambient Temperature
|
10℃~40℃
|

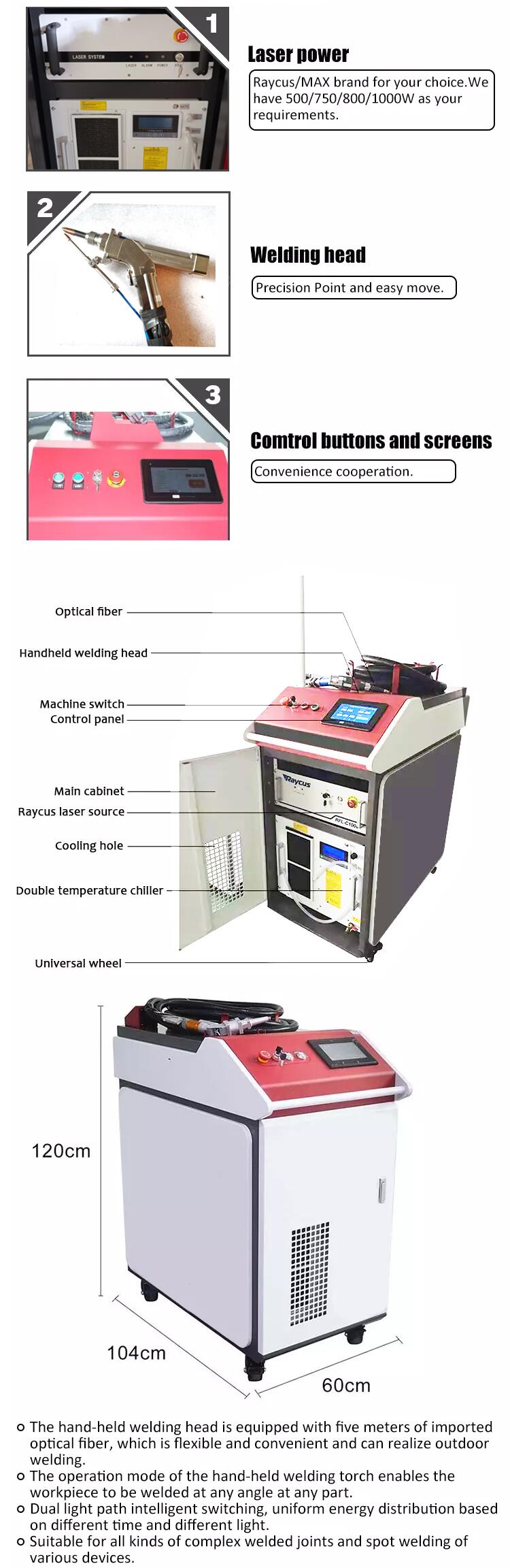

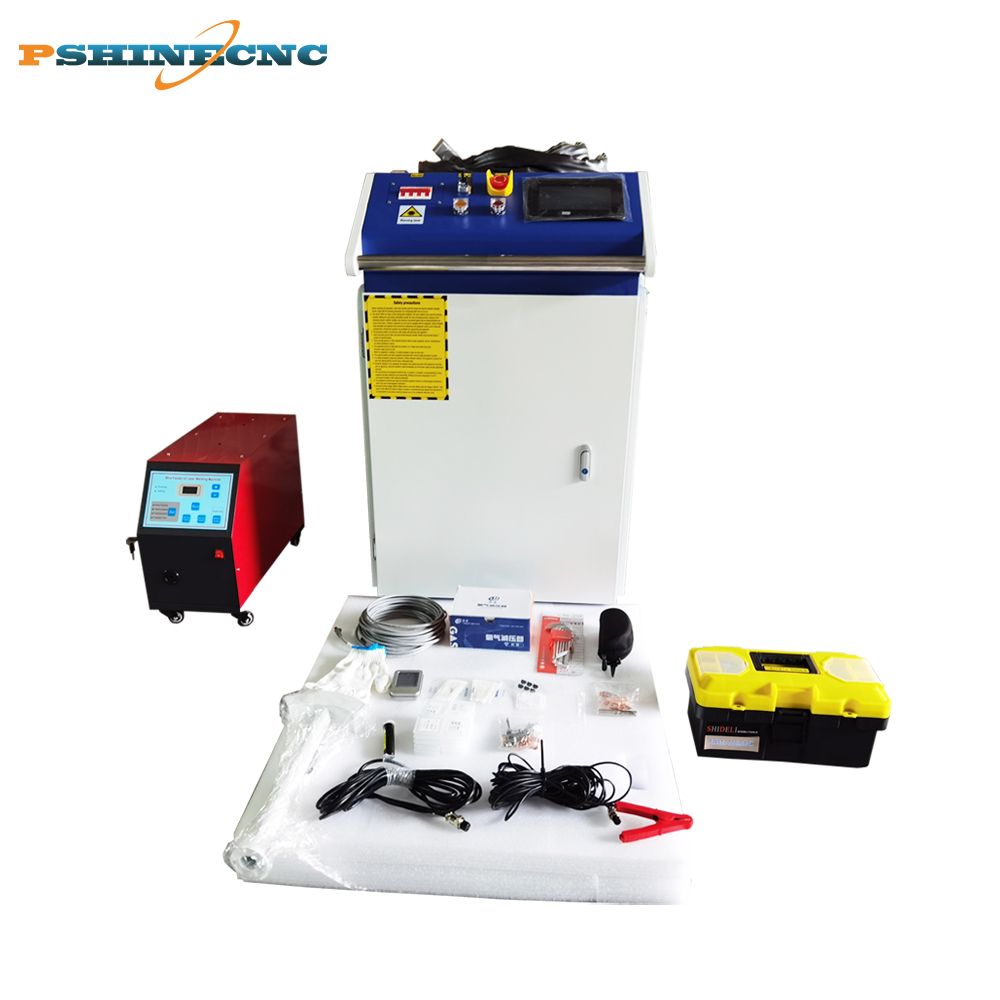

PRODUCT CONFIGURATION

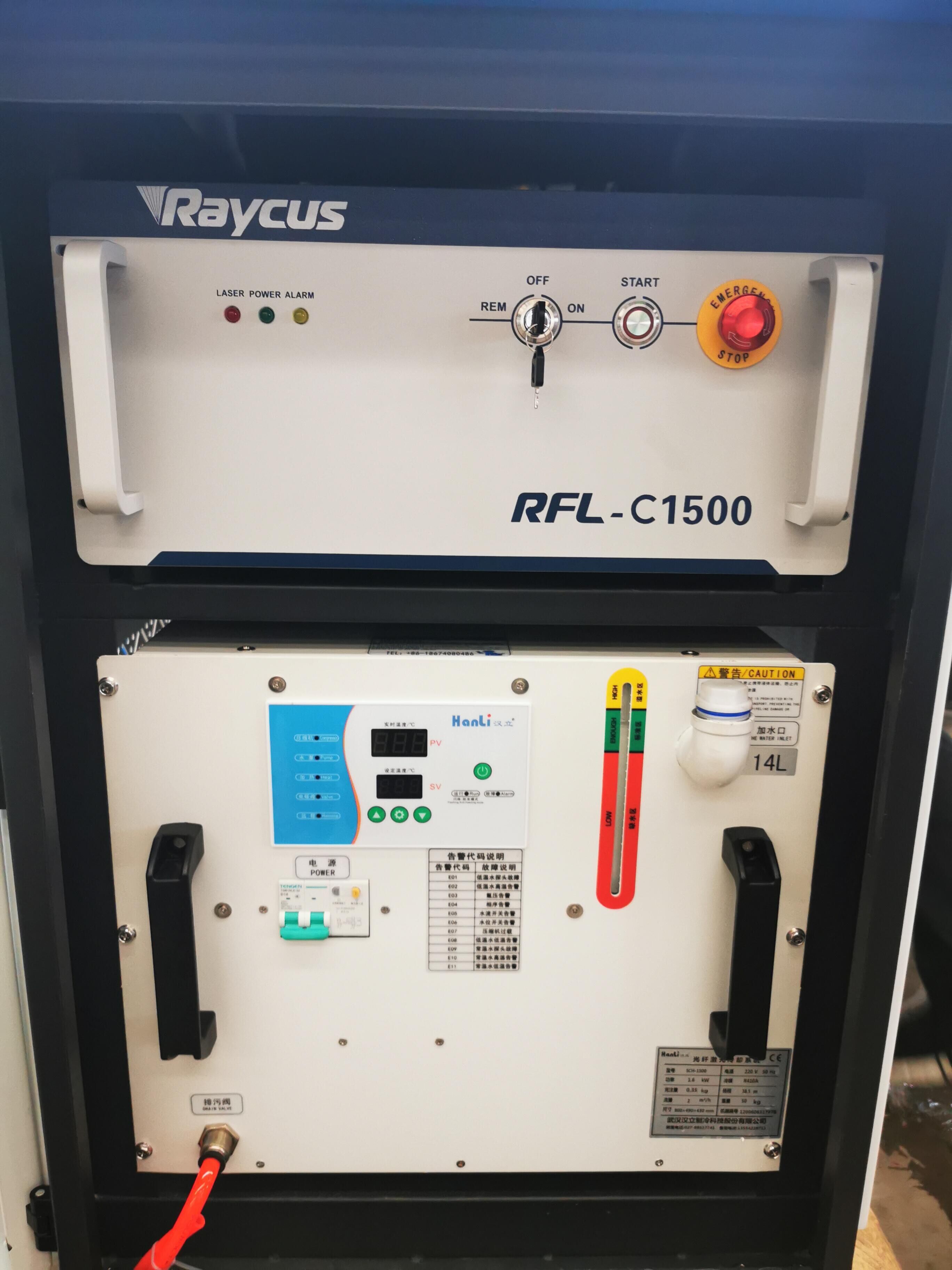

Laser Source
·100,000 hours of lifetime, free maintenance; ·High electro-optical conversion efficiency (up to 25-30%), excellent beam quality,
high energy density, and reliability, a wide modulation frequency; ·Low energy consumption, only 20%-30% of the traditional CO2 machine.

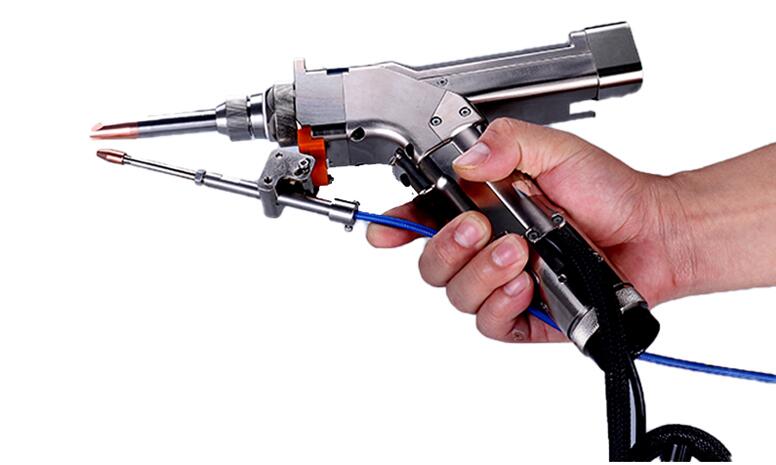

Laser Welding Head
·It is easy to use and adopts double protective layer to protect the lens. If the first lens burns, the customer will find out in time and replace it with a new one, so that the focusing lens will not burn.
Industrial Water Chiller
·Automatically adjust the temperature according to different working environment, no need to change settings parameters;
·Intelligent dual temperature dual control mode to satisfy different needs of a fiber laser device and the optics; ·Multiple alarm
protection;
·Intelligent dual temperature dual control mode to satisfy different needs of a fiber laser device and the optics; ·Multiple alarm
protection;

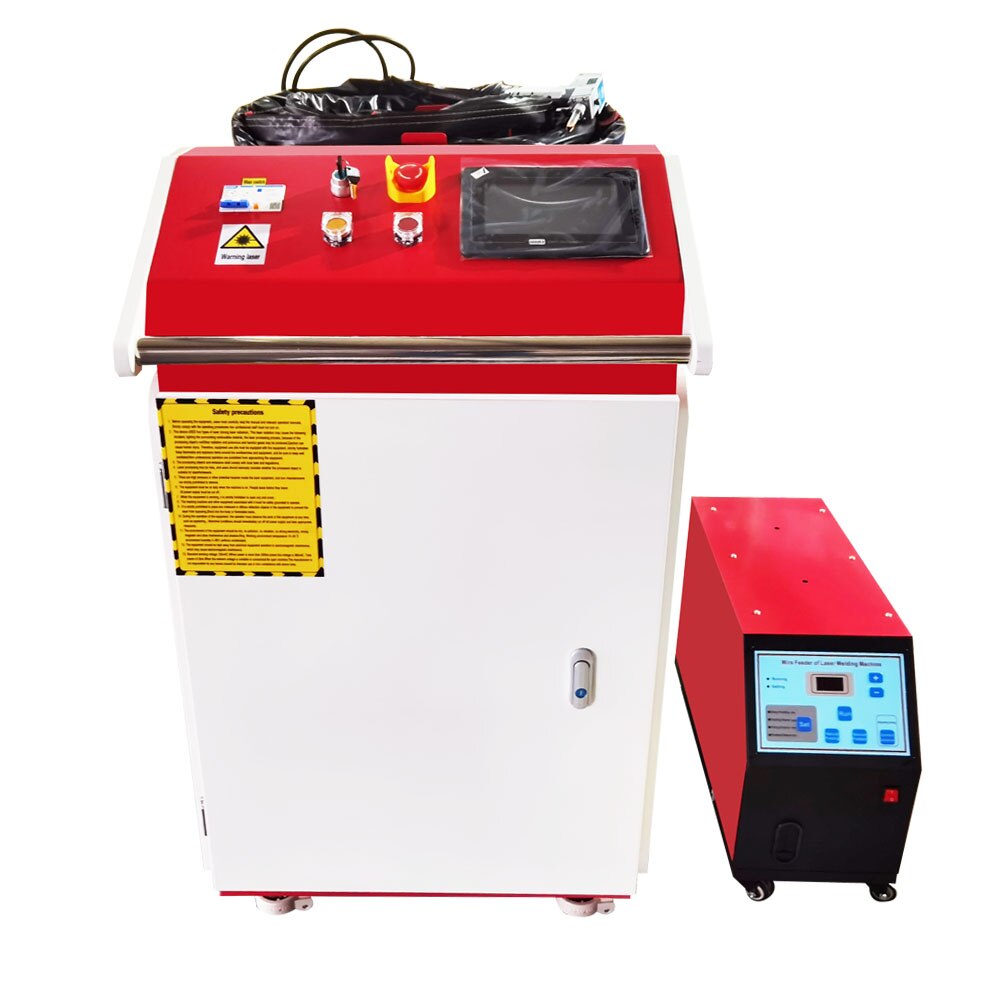

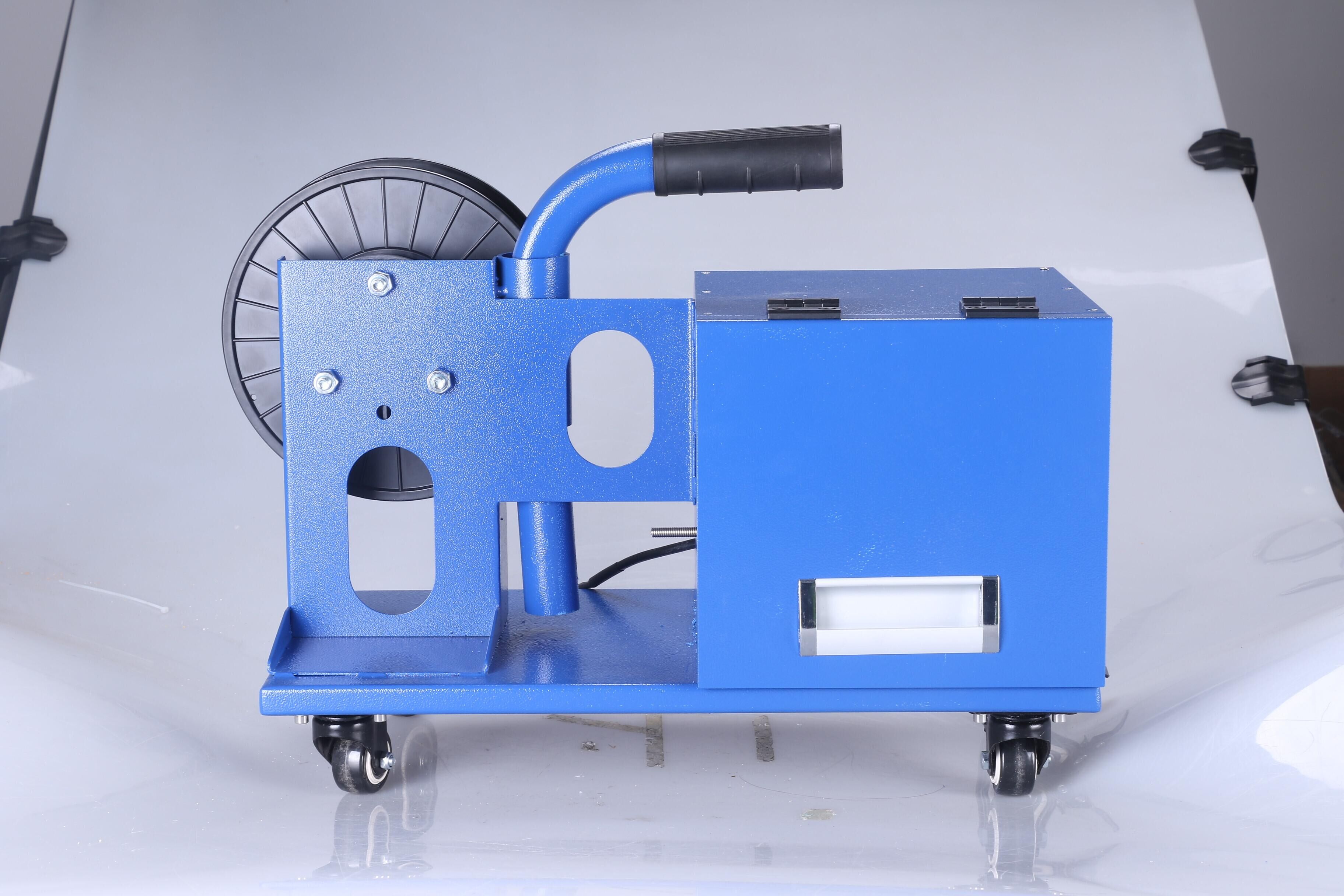

Optional(Auto Wire Feeding)
·Our welding head is a oscillating head jointly developed with the Laser Research Institute of Wuhan Huazhong University of Science and Technology. The weld is beautiful and sturdy, the quality of the welding head is stable, and the customer is easy to
operate and adjust.
operate and adjust.
Sample Display
Why choose us ?
FAQ
Q1: How to get the most suitable machine and best price
Please tell us:
1.the material you wanna handle
2.the Max size of these materials(length,width and thickness)
3.the work you wanna handle with this machine(Engraving ?Cutting ?Or others?)
Q2: Do you have the manual of machine.
Yes,we can provide manual,CD software and video to help you operate the machine expertly.
Q3: If we do not know how to use the machine,can you teach us?
Yes ,of course. We can offer you free training, and engineers available to service machinery training overseas if you would like to offer them business expenditure.
Q4.How about your after-sales service?
We offer professional and timely after-sale 24 hours online service via phone,Skype or MSN.
Q5.How about your guarantee period?
36 months for whole machine.
