Description
- Brand Name: LanYuXuan
- Certification: NONE
- Origin: CN(Origin)
- Warranty: ONE YEAR
- Certification: CE
- Customized support: OEM
- Place of Origin: China
- Brand Name: ARTBULL
- Model Number: OHSP350P
- Size: 15X10X4
- Weight: 1.5
- Focal Length: T
- Wavelength Range: 350-800nm
|

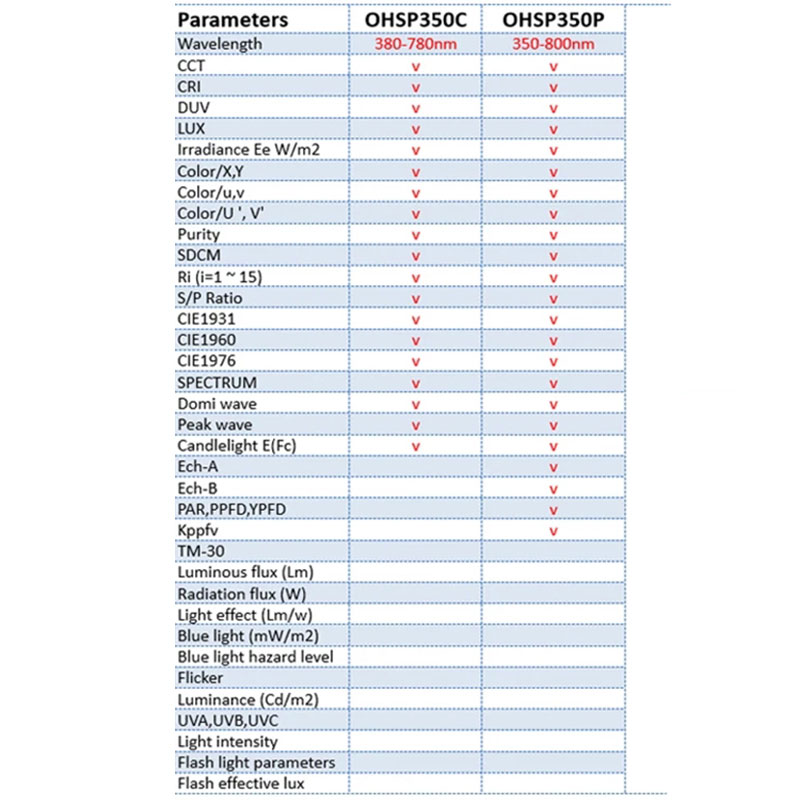

PPFD(umol/m2/s) |
YPFD(umol/m2/s) |
PAR(mW/cm2) |
|
CCT(K) |
Kppfv(umol/s/klm) |
Ech-A (mW/cm2) |
|
Ech-B (mW/cm2) |
Exposable time S |
SDCM |
|
Irradiance Ee(W/m2) |
CRI Ra |
OHSP350 basic parameters |

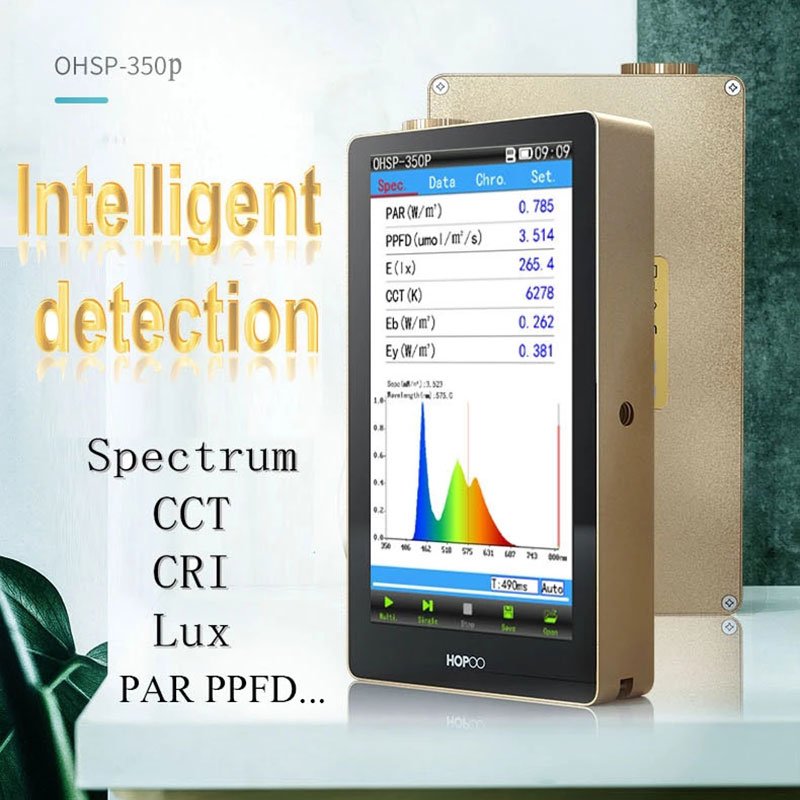

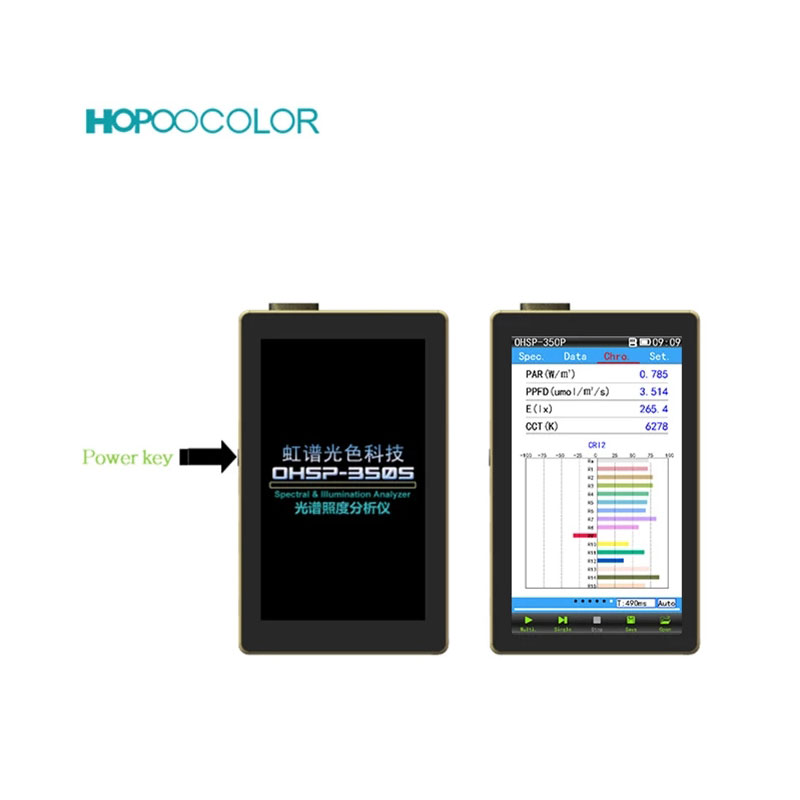

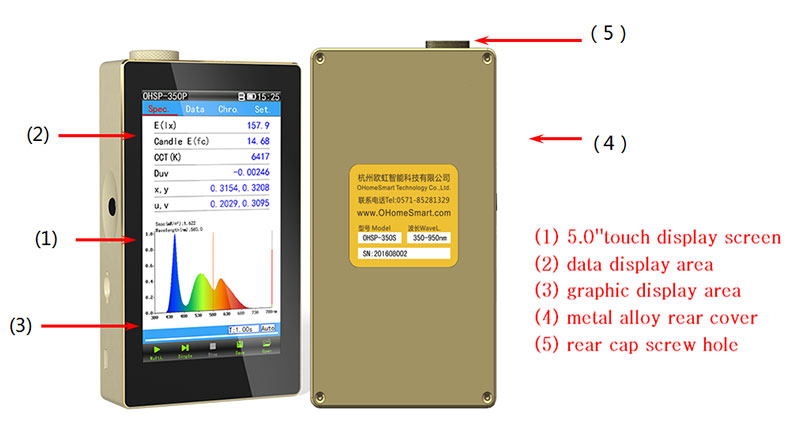

OHSP350P Spectral Irradiance Colorimeter LED Light Spectrometer

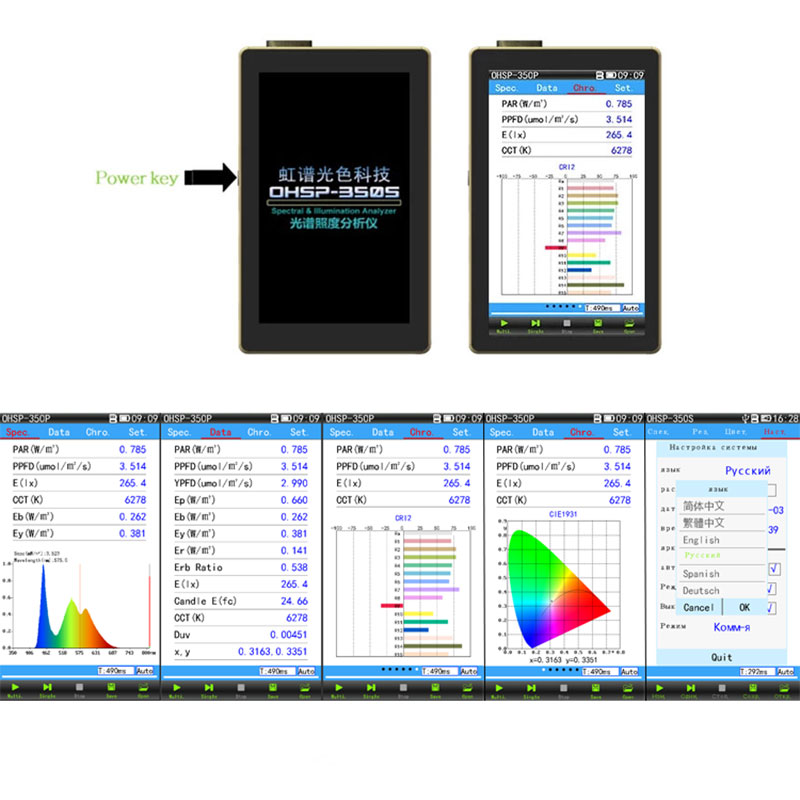

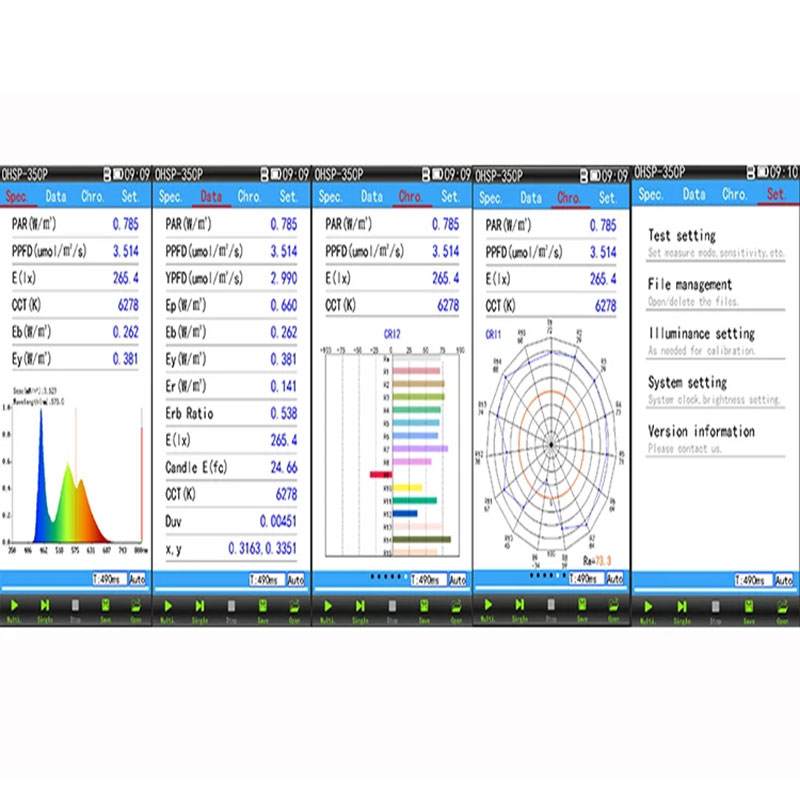

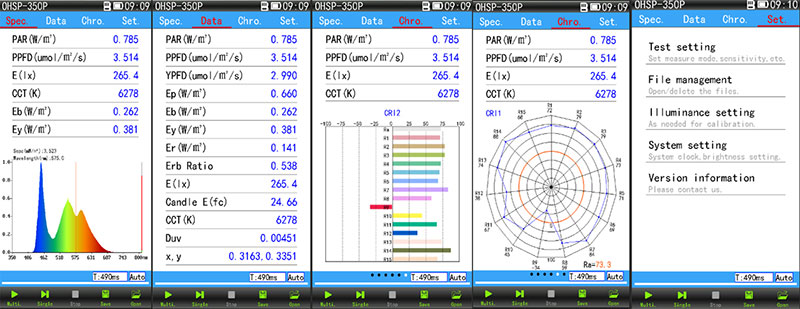

OHSP-350P plant lighting analyzer , add plant grow light parameters
PAR, PPFD, YPFD and so on.especially designed for accurat measurement
and analysis of Plant Lighting . It is widely used in light analysis,
research and communication in plant growth light.
TEST PARAMETER
|
Model |
OHSP350P Grow Light Version |
|
Wavelength range |
350nm ~800nm |
|
Light Splitting Mode |
long focal cross section |
|
Sensor |
High precision CCD |
|
Spectral Bandwidth (FWHM) |
2nm |
|
Spectral Resolution |
0.2nm X, Y repetitive ±0.0005 |
|
Wavelength Accuracy |
+ 0.5nm |
|
Frequency range |
25-1000 Hz |
|
Frequency sampling rate |
1-10KHz |
|
Integrating Time |
50μs~10000ms |
|
Chromaticity Coordinate Accuracy |
±0.0025. |
|
CCT Range |
1,000K~ 100,000K |
|
Stray Light |
≤0.3% |
|
Illuminance Range |
5lx~200klx |
