Description
- Brand Name: Jolooyo
- Certification: NONE
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Style: Mini
- Power: 0
- Model Number: DB-515-7.5V
- Voltage: 3.7V
- Occasion: Professional Stage & DJ

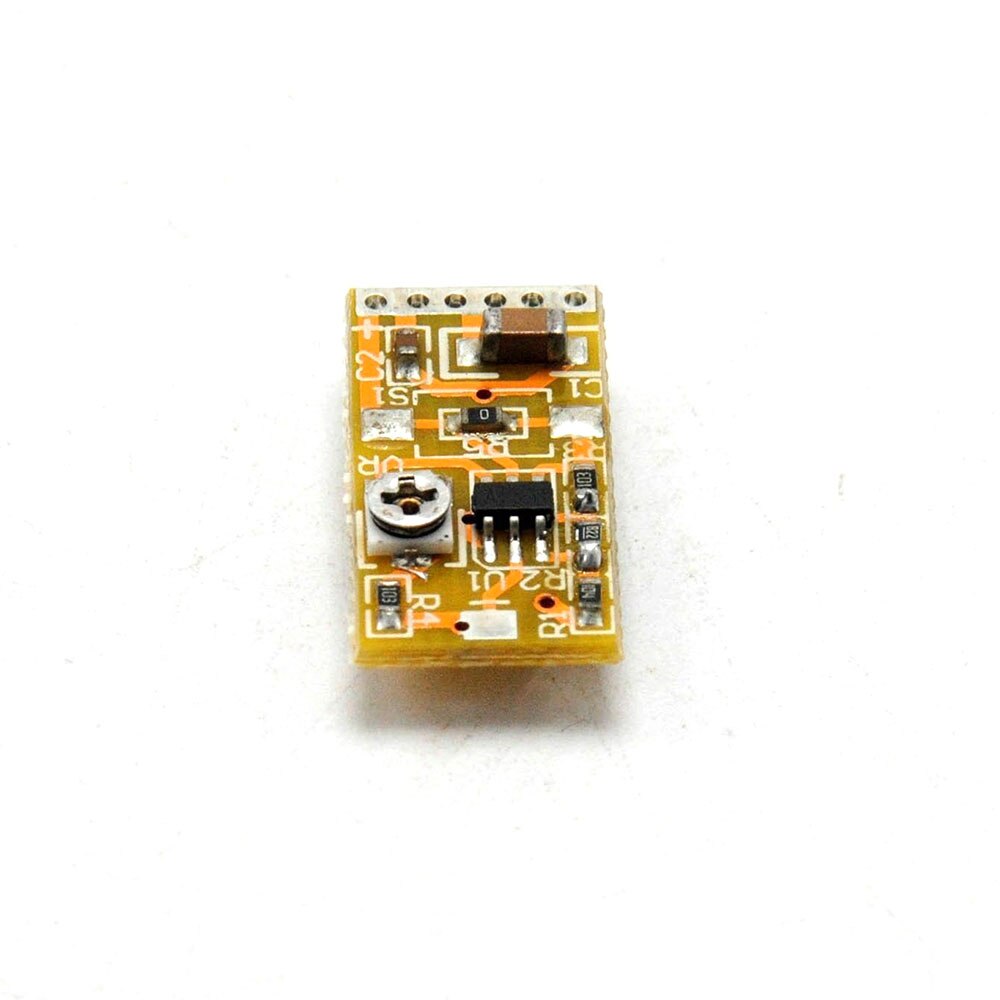

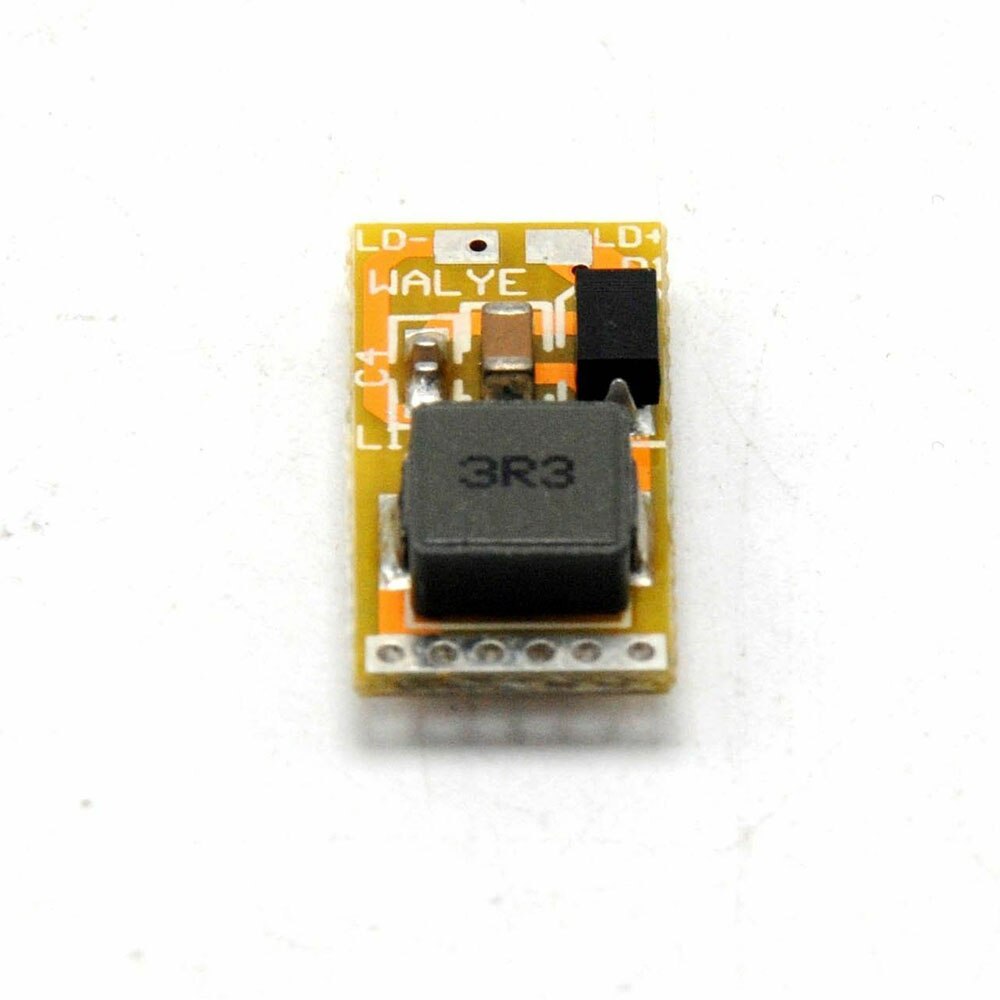

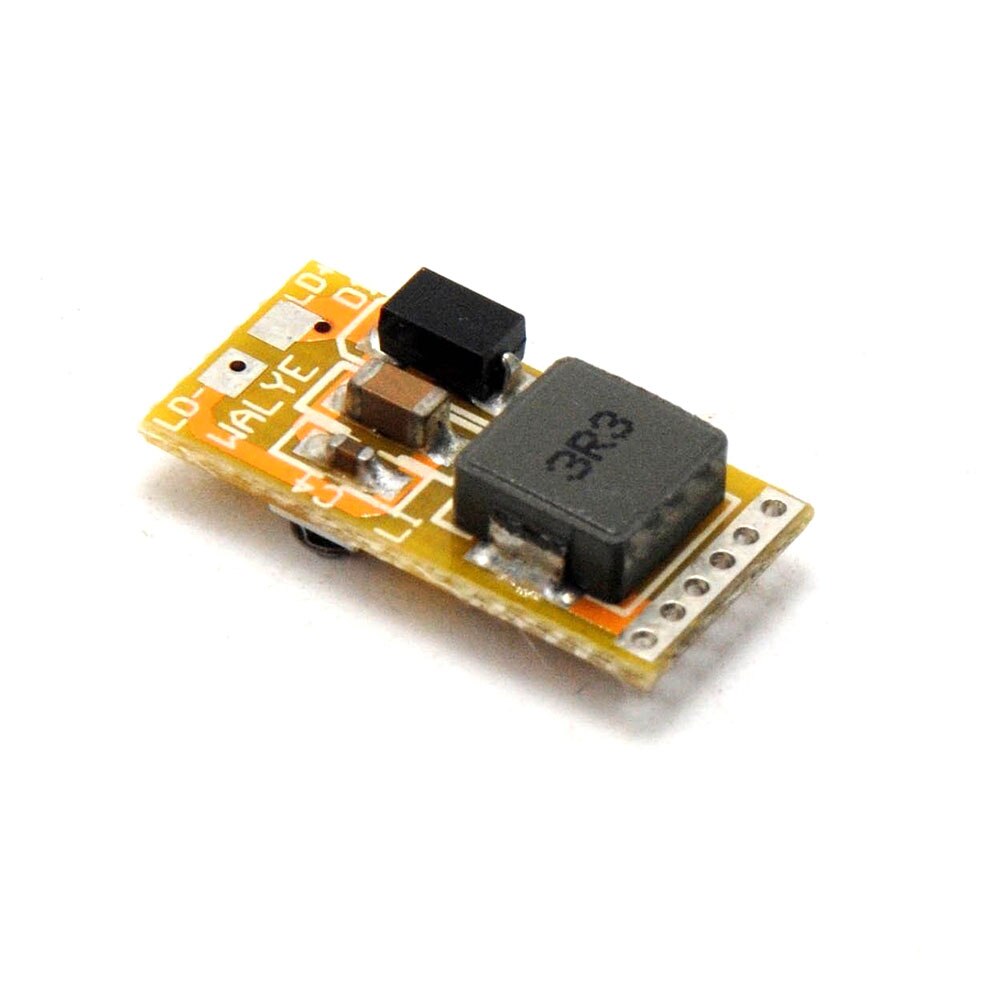

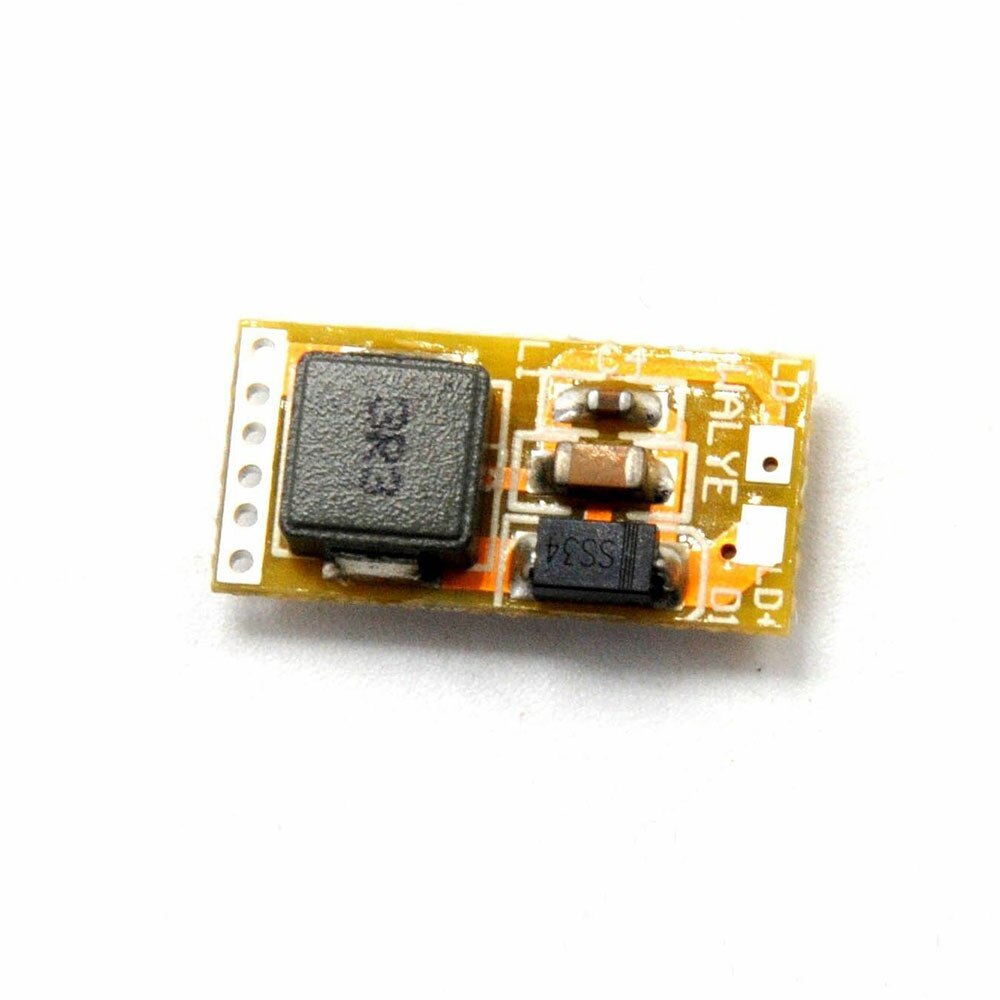

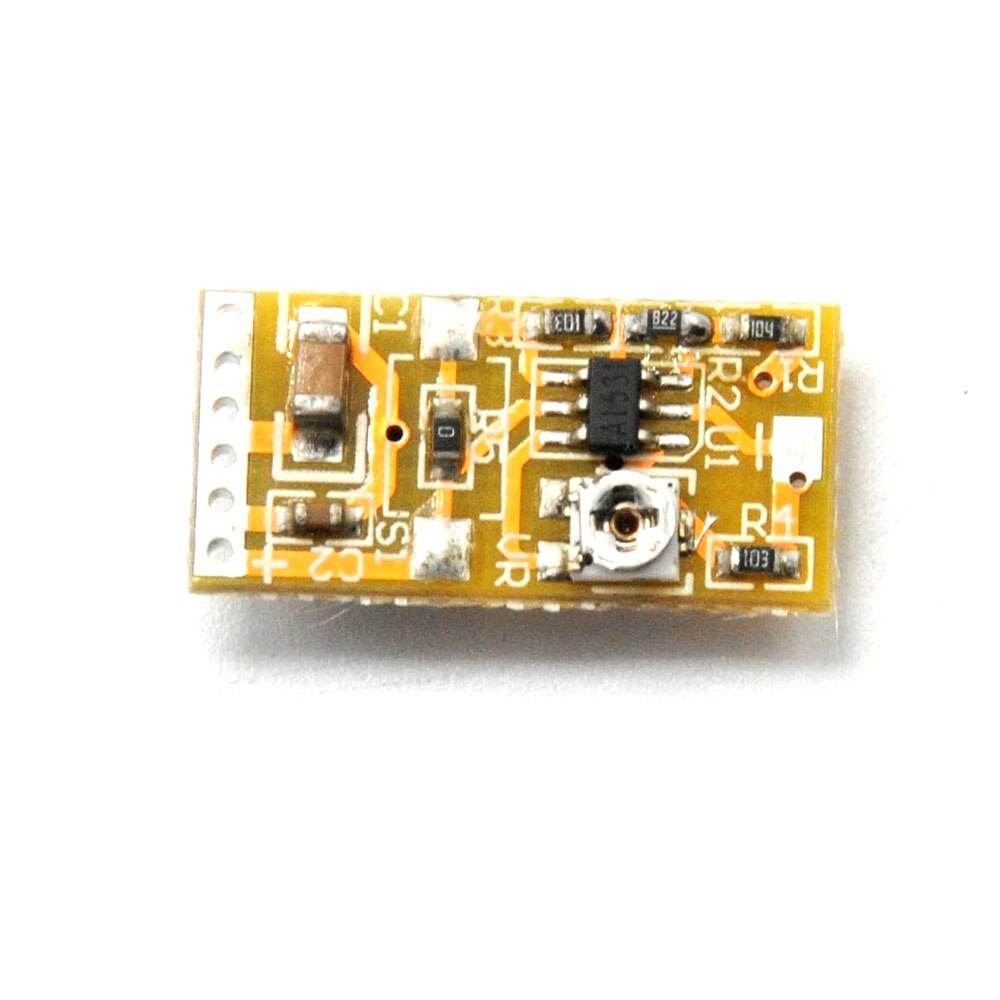

9x20mmPower Driver Board for 30mw-120mw 515nm 520nm Green Laser Diode / LED Driver Boost Circuit
Parameters
Suitable Wavelength:515nm 520nm 530nm
Input voltage: DC3.0V
Output voltage: 7.5V boost circuit
Dimensions: 9 * 20mm (W * L)
Reverse polarity protection: no reverse polarity protection
QSP protection: protection with soft start, even if you are not worried about the frequent switching power laser tube damage
Pin definition: standard positive and negative wiring board schematic
Polarity Definition: Shell negative
This is a power supply driver for 515nm 520nm 530nm 30mw-120mW laser diodes!
Widely use in industrial and LAB !
Input voltage: DC3.0V
Output voltage: 7.5V boost circuit
Dimensions: 9 * 20mm (W * L)
Reverse polarity protection: no reverse polarity protection
QSP protection: protection with soft start, even if you are not worried about the frequent switching power laser tube damage
Pin definition: standard positive and negative wiring board schematic
Polarity Definition: Shell negative
This is a power supply driver for 515nm 520nm 530nm 30mw-120mW laser diodes!
Widely use in industrial and LAB !
Package
1pcPower Driver Board for 30mw-120mw 515nm 520nm Green Laser Diode / LED Driver Boost Circuit 9x20mm
