Description
- Brand Name: YINCALI
- Certification: CE
- Origin: CN(Origin)
- Size: Main Unit: 140*70*30 mm, Probe: 125*38*38 mm
- Model Number: AT-171
- Focal Length: 1
- Weight: 130 g
- Wavelength Range: Refer Detailed description
- Type: Single Beam Spectrometers
- Measurement Range: 0 to 100% Light Transmission
- Resolution: 0.1
- Accuracy: /-2%
- Light Source: LED
- Sample Thickness: Less than 18 mm/0.7inch
- Operating Conditions: Temperature : 0~50C Humidity: below 90% RH
- Power Supply: 4*1.5v Um-4 Battery (Not include)
- Warranty: One year
Product Description
The Window Tint Meter is applicable to measure the transmittance of all kinds of transparent, translucent samples with parallel plane (such as automobile manufacturing, aerospace, glass products, plastic sheet, sheet, etc). Also can be used to determine the turbidity or clarity of liquid sample (water, drinks and so on).
Product Feature

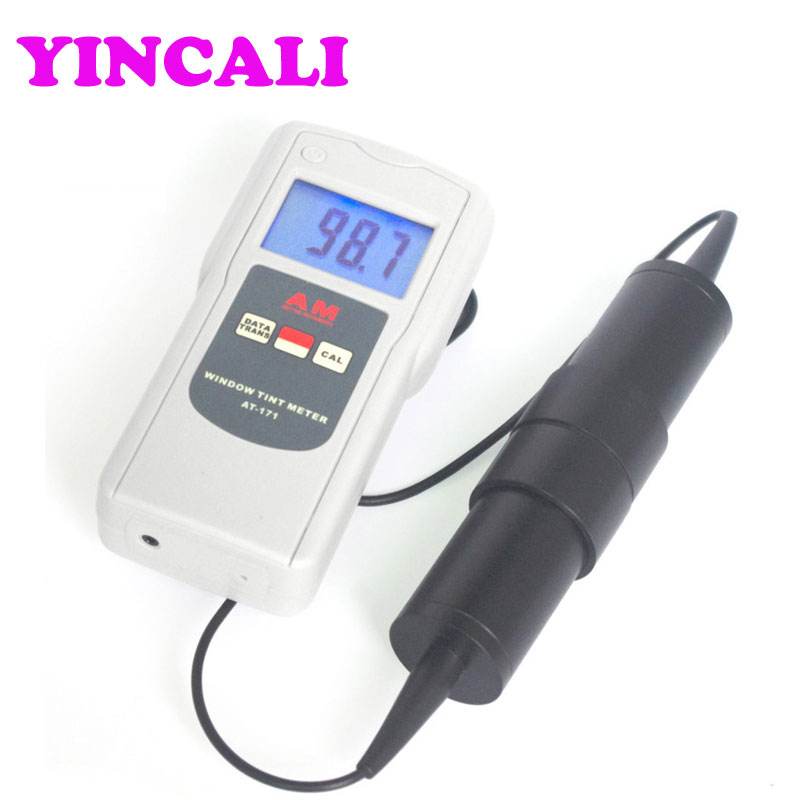

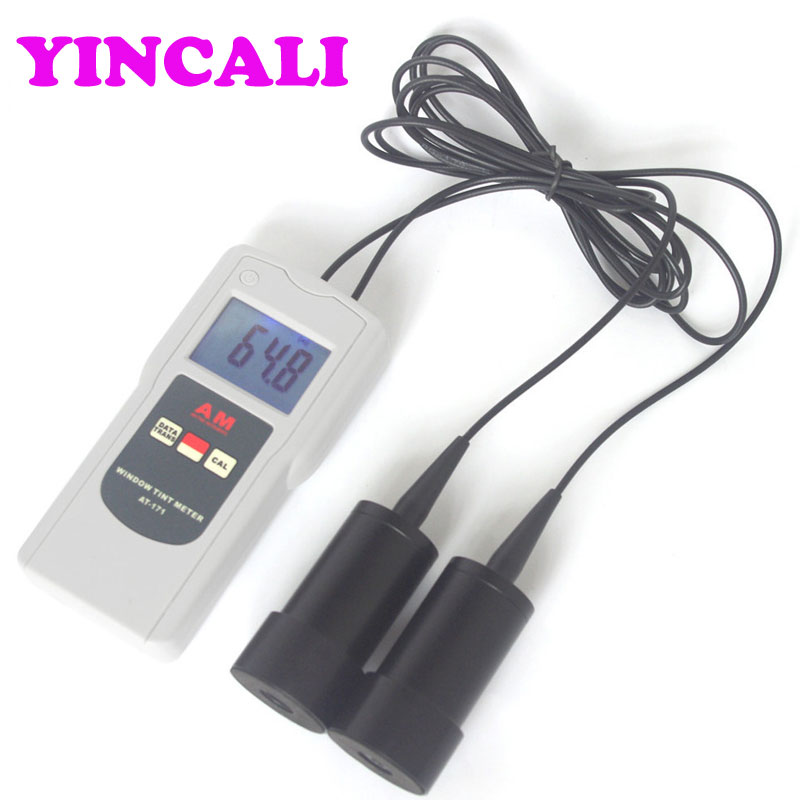

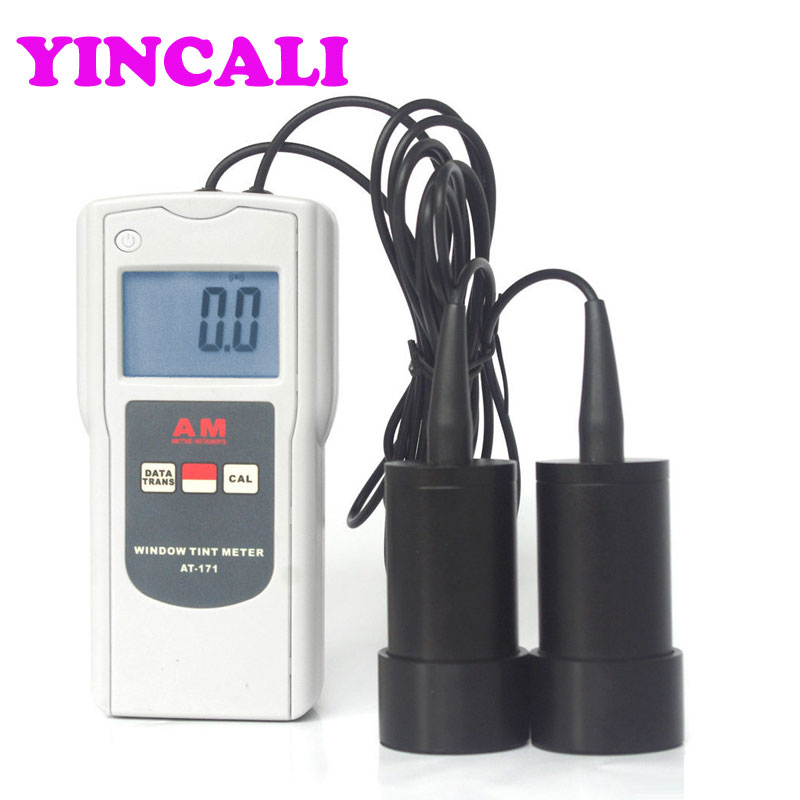

* This Window Tint Meter is a hand held device that mea- sures the amount of light that passes through a window.
* Technology is designed in accordance with GB 2410-80, ASTM D1033-61, JIS k7105-81 and other standards.
* Digital display, wide measurement range, high resolution.
* One key calibration, easy to use.
* Solid structure, exquisite, easy to carry, small volume, light weight.
* Use USB data output to connect with PC.
* Provide Bluetooth ™ data output choice
Product Parameters
|
Measuring range |
0 to 100% Light Transmission |
|
Resolution |
0.1 |
|
Accuracy |
±2% |
|
Light Source |
LED |
|
Sample Thickness |
Less than 18 mm/0.7inch |
|
Operating Conditions |
Temperature : 0~50°C |
|
Humidity: below 90% RH |
|
|
Power Supply |
4×1.5v Um-4 Battery |
|
Size |
Main Unit: 140x70x30 mm |
|
Probe: 125x38x38 mm |
|
|
Weight |
130 g(Not including batteries) |

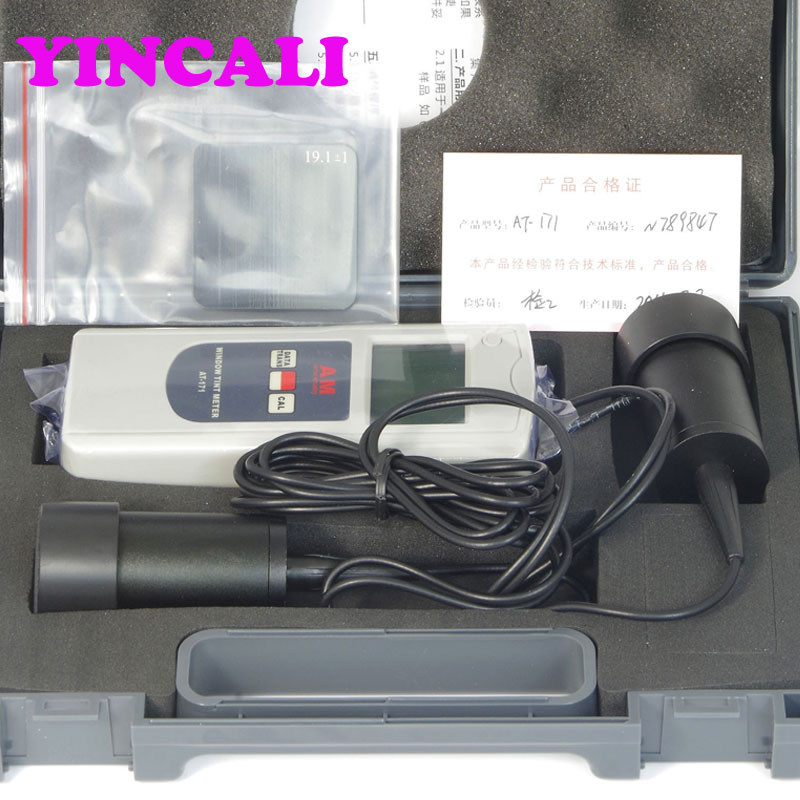

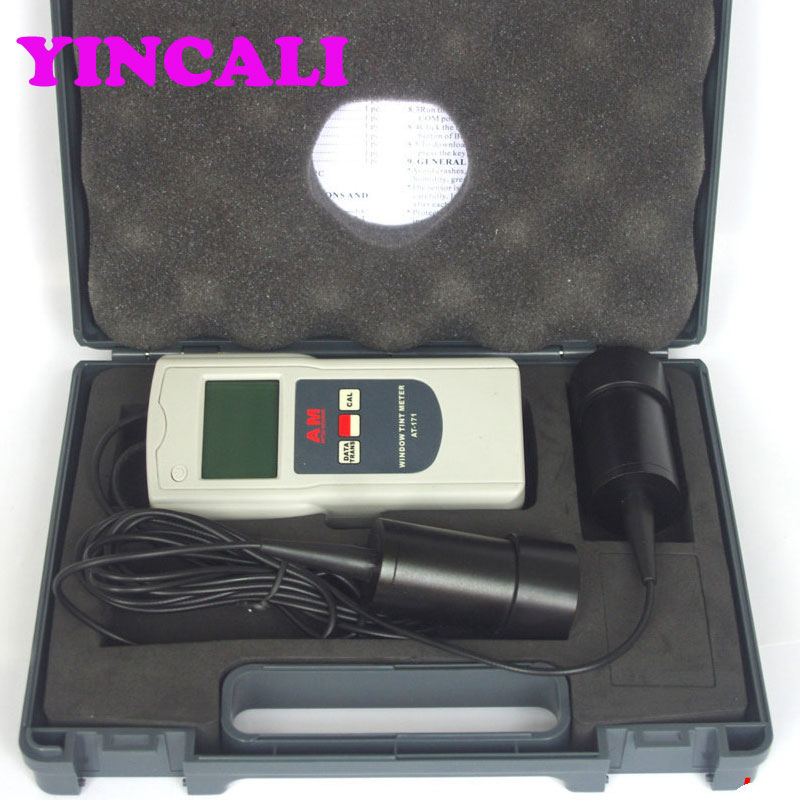

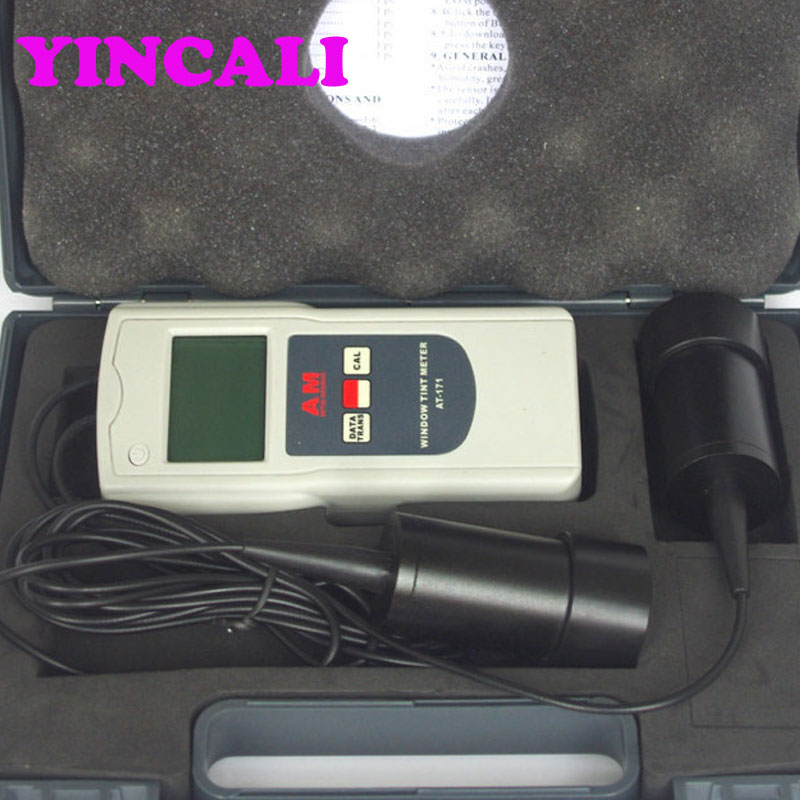

Product Accessories
|
Standard Accessories |
Main Unit |
|

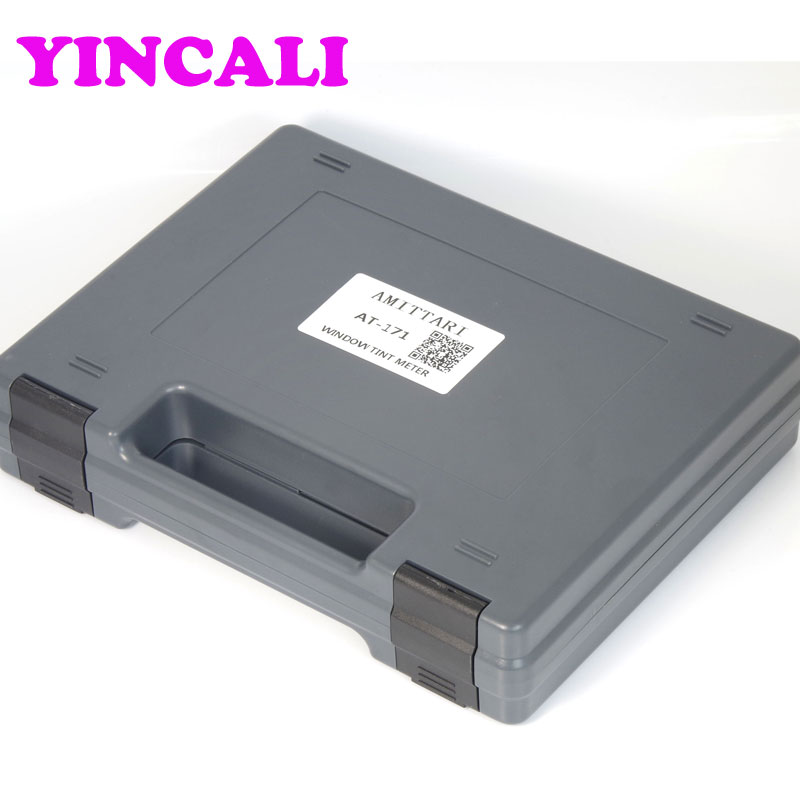

Carrying Case |
|
|
Operation Manual |
|
|
Optional Accessories |
USB Data Output |
|
Bluetooth™ Data Output |
