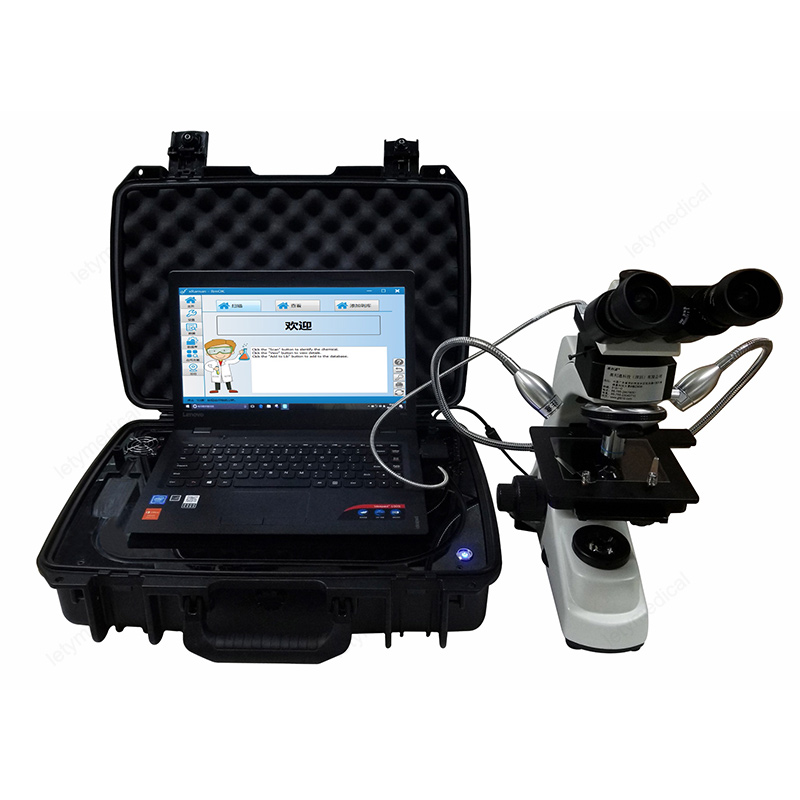

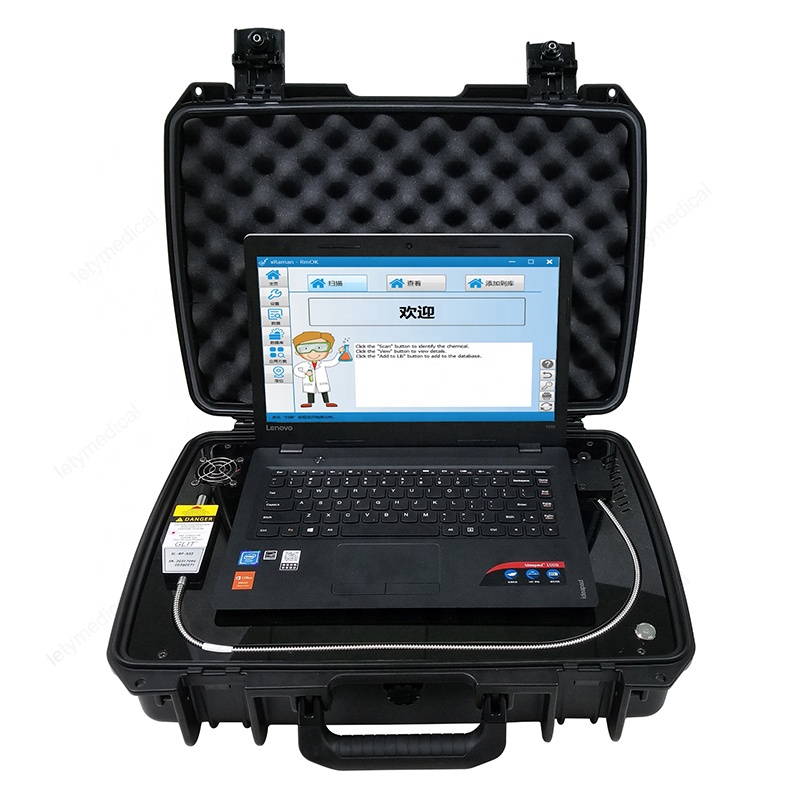

Portable Raman spectrometer 532nm Raman microscope

Model:LTL-R532

532nm excitation light, CCD photodetector, grating spectroscopy

• Features:

  532nm excitation light, CCD photodetector, grating spectroscopy

  Non-contact Raman spectroscopy measurement and analysis

  Excellent stability

  <0.1nm FWHM

  Optical probe acquires the Raman light of the substance with high excitation laser coupling efficiency and signal-to-noise ratio

  Built-in rechargeable lithium battery, can last up to 5-hours for field measurement

  Easy to carry and easy to use





• Software has functions of laser control, Raman spectroscopy, database management, analyzing substance and log (recording the experiment content in time)

  APPlications:

• Security: poisons, dangerous goods, illicit drugs, biochemical analysis

• Civil life: food, drug identification

•

  Identification of jewelry/heritage: jewelry identification, artifacts or nature , place of origin and age

•

  Medical applications: DNA, human metabolites (blood, urine, etc.) and cancer cells identification

•

  Geology: field prospecting, mineral composition qualitative analysis and inclusion studies

•

  R & D in science and technology

•

  Customization etc.

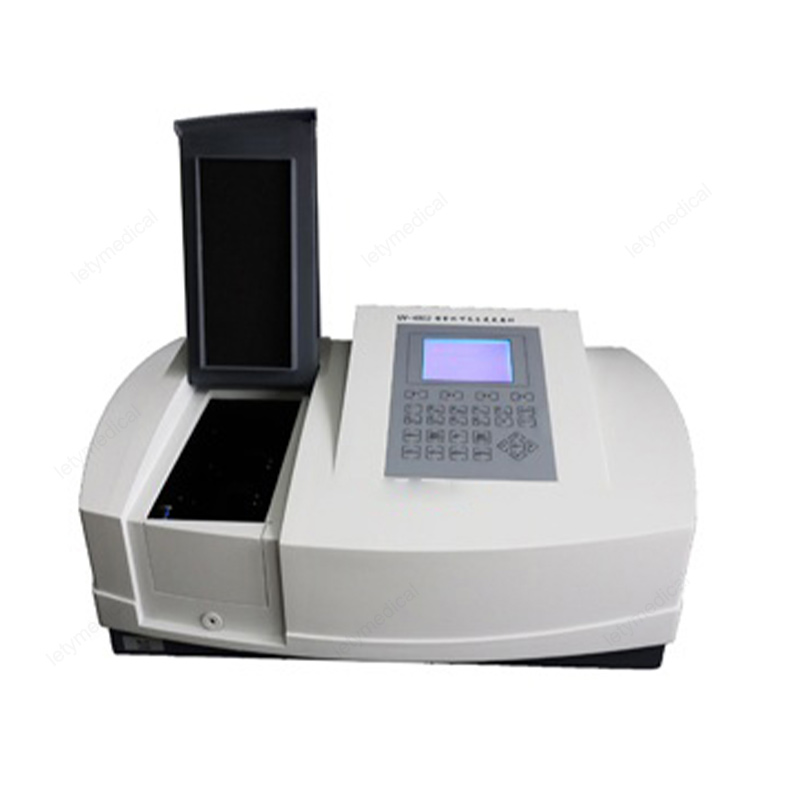

Lab Spectrophotometer Ultra-micro nucleic acid analyzer ultra-micro spectrophotometer

LTL-UV-4802

UV-4802 is a double beam design. It is a stand-alone model with 1.8nm fixed bandwidth and has all the features that SpectroQuest line offers in a stand-alone unit. The two detectors are measuring sample and reference respectively and simultaneously for optimizing measurement accuracy. It provides excellent performance for measurements in the range of 190nm to1100nm.It is suitable for pharmaceutical, biochemical and clinical lab applications as well as routine applications such as quantitative analyses, kinetics, spectrum scanning, multiple components and DNA/Protein. Optional PC download software and PC Windows® application software make this instrument versatile





Specifications

Wavelength Range :190-1100nm

Spectral Bandwidth :1.8nm

Optical System : DoubleBeam,Grating1200lines/mm

Wavelength Accuracy:±0.3nm

Wavelength Resolution: ±0.1nm

Wavelength Repeatability:≤0.1nm

Stability:±0.0005Abs@500nm

Baseline Flatness: ±0.001A

Display :Graphic LCD(320×240)dot

Power Requirements :220V-240V/50HZ,110V-120V/60HZ Switchable

Dimensions(W*D*H) :620*400*280mm

Weight :24Kg

Shipping Dimensions :720*525*370mm

Shipping Weight :28KG
