Description
- Brand Name: Oxlasers
- Certification: NONE
- Origin: CN(Origin)
- Model Number: OX5500
Laser wavelength: 445nm-450nm blue laser
Spot type: retangular dotted (adjustable)
Output power: 5.5W

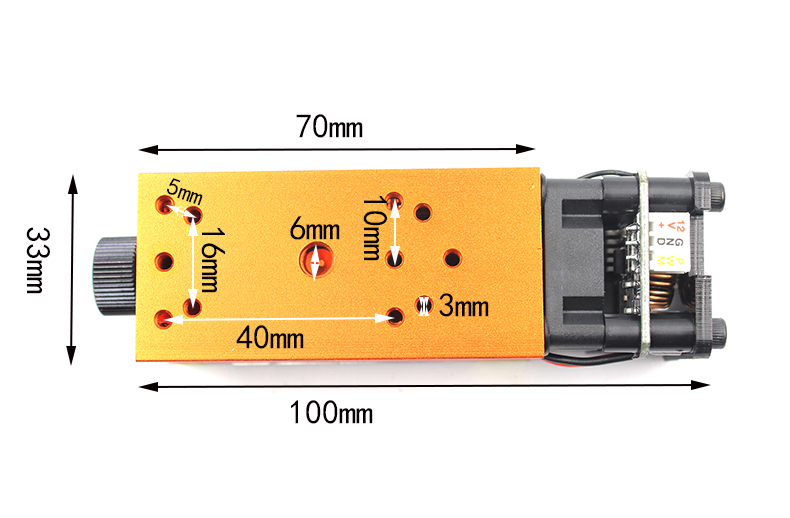

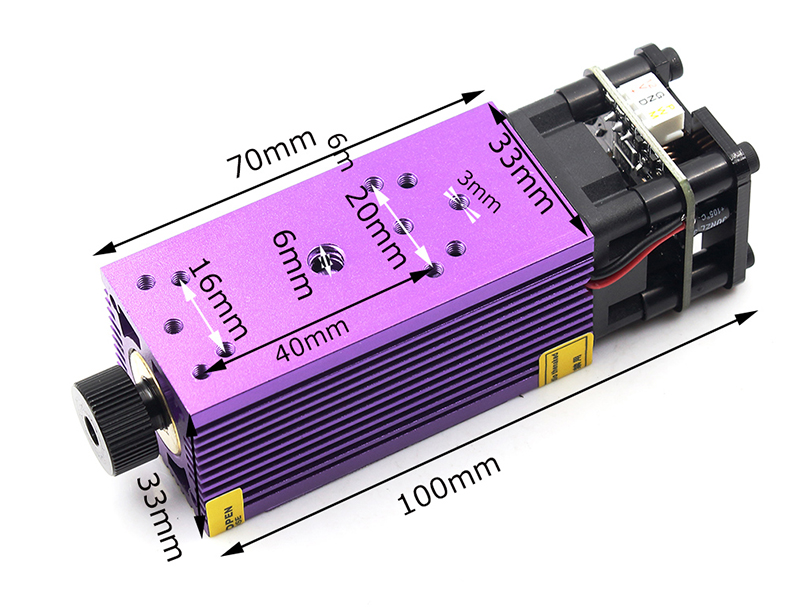

Size: 5.5W(40*70mm)
Drive mode: external ACC constant current drive
Cooling method: forced air cooling
Operating voltage: 12V DC
Control interface: 3 Pin (PWM, 12V+, GND-)
Shell material: aluminum, surface anodized
Collimator lens: optical glass coating

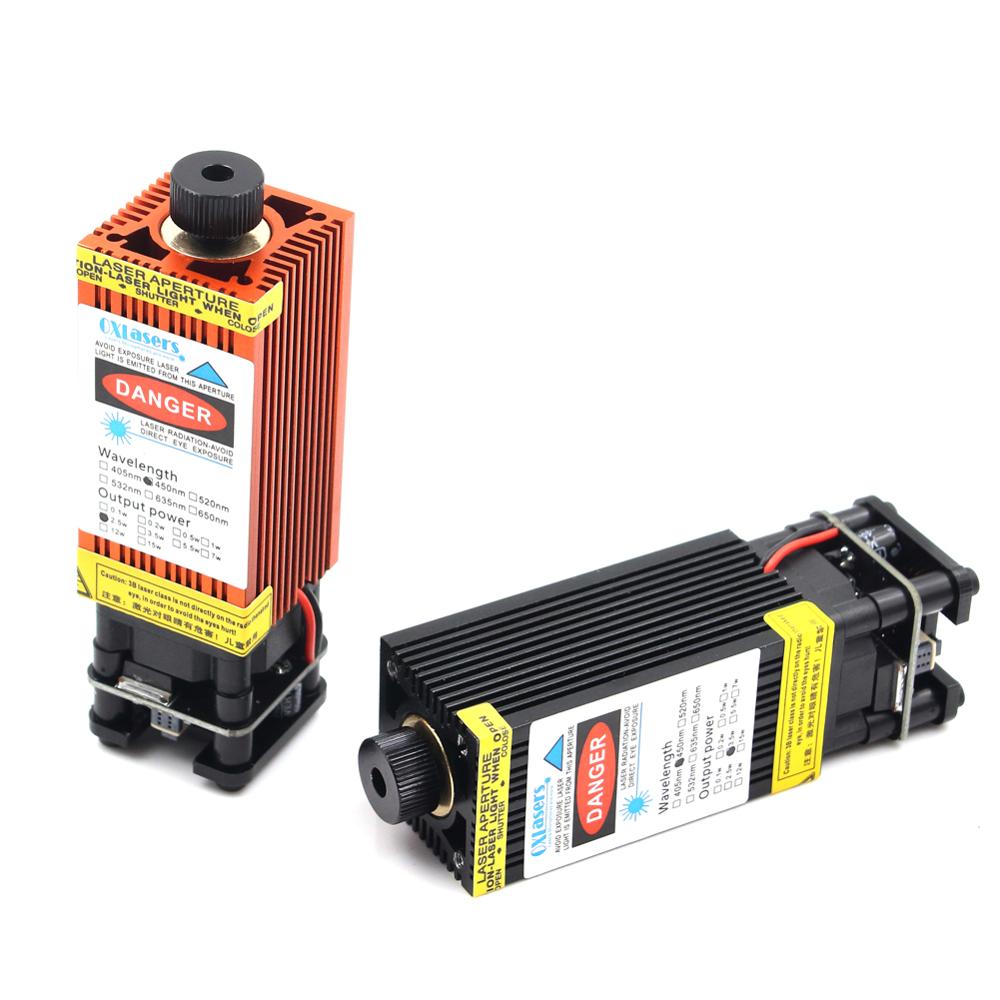

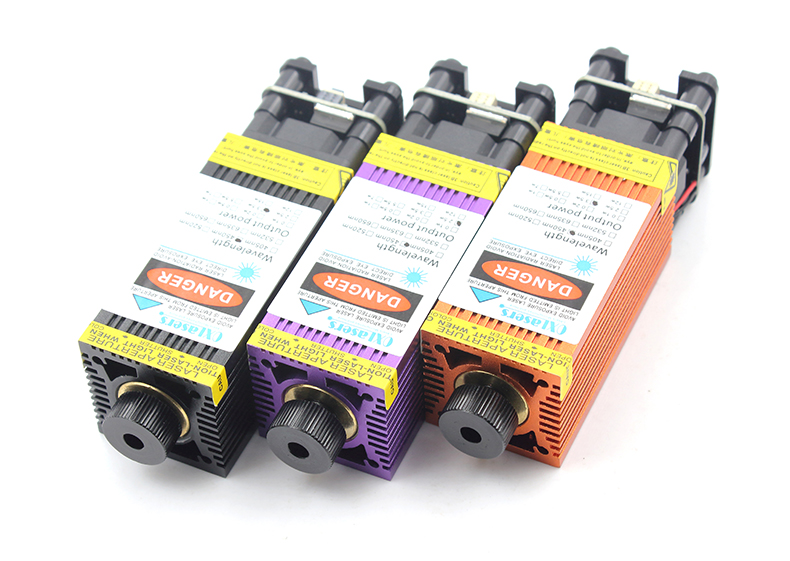

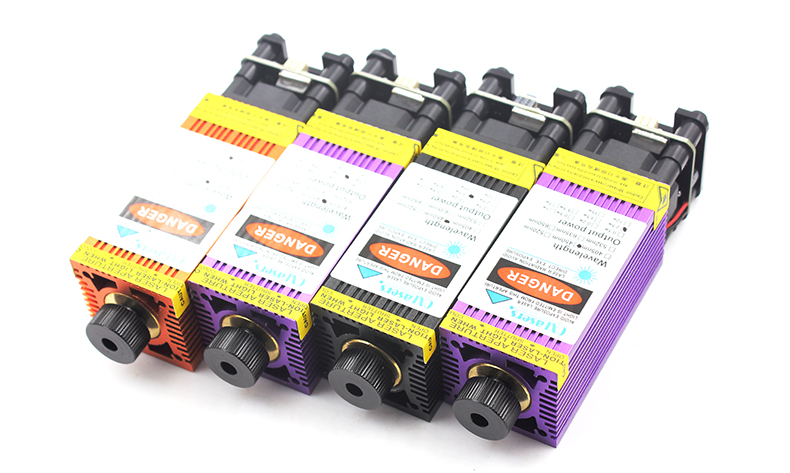

HEAT SINK COLOR: BLACK , ORANGE , PURPLE

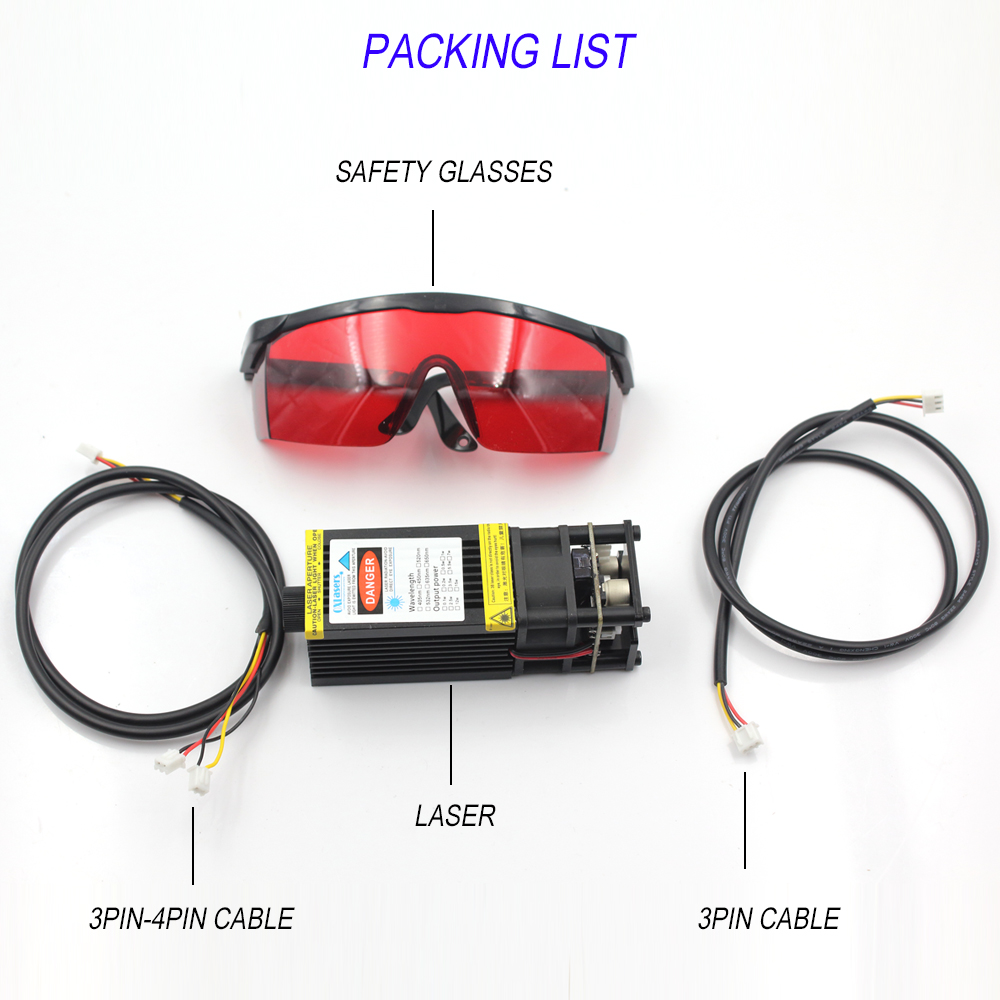

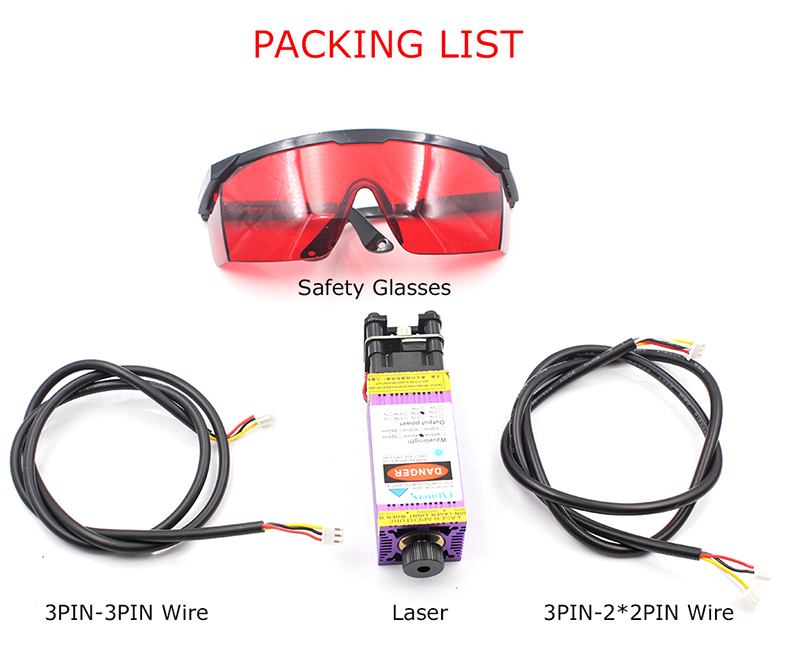

PACKING LIST:
LASER*1
3PIN CABLE*1
3PIN TO 4PIN CABLE*1
SAFETY GLASSES*1
ATTENTION: 5.5w CAN cut max 3MM PLYWOOD, with a speed of 100-150mm/Min, and cut it 2-3 PASSES!! it cant cut wood just 1 pass!
BUYER MUST READING:

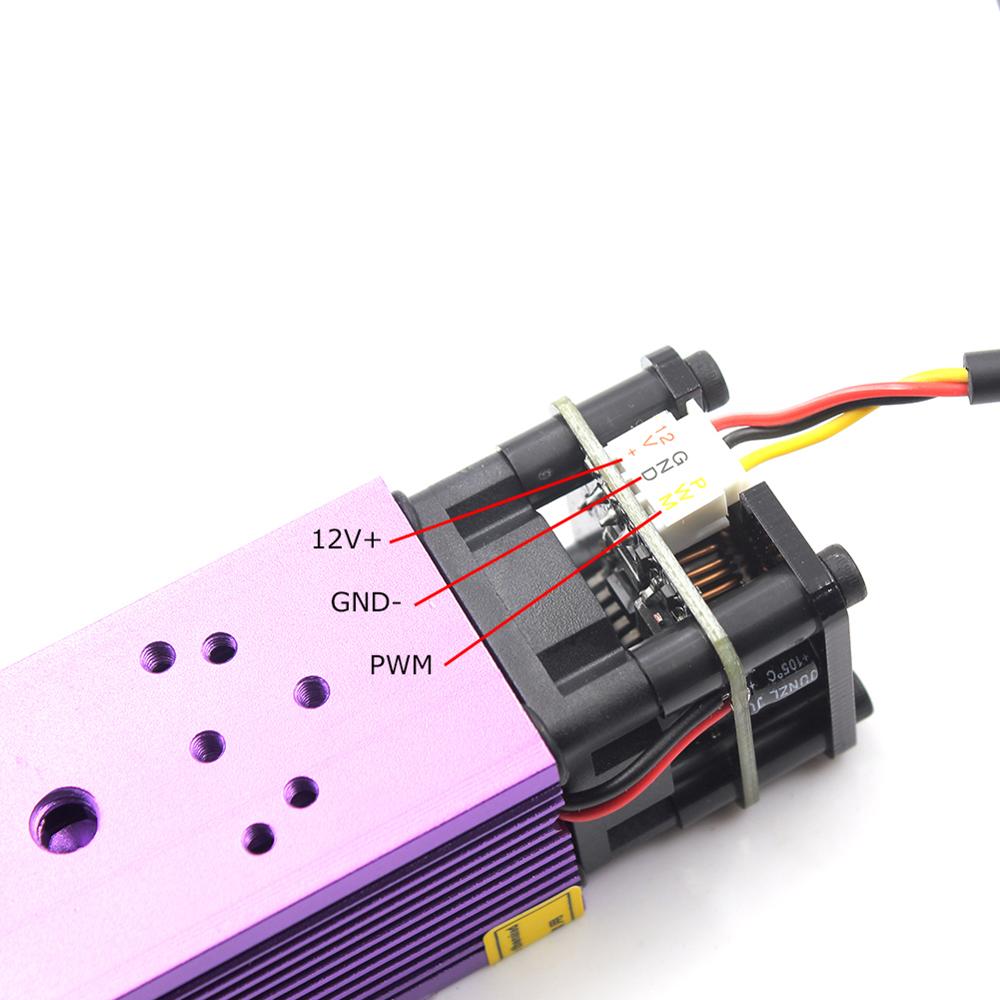

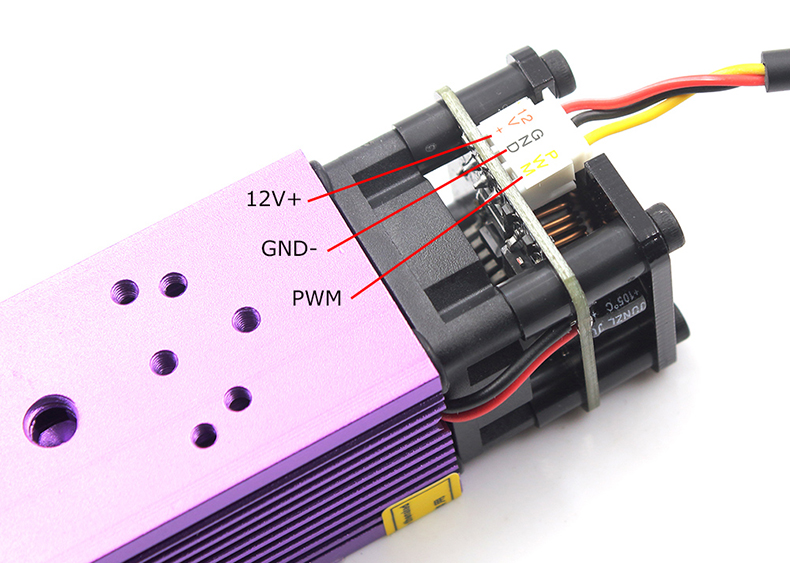

When you connect laser to your controller board, please pay attention to the pin positions of 12v+ GND- and PWM/TTL, red wire=12V+, black wire=GND-. Yello wire=PWM+, white wire=PWM-(3-4pin wire). So Red Wire must be connected to the 12v+ pin on your controller board’s interface, Black Wire Must be connected to the GND- pin and Yellow Wire must be connected to the PWM/TTL pin, if you use 3-4pin wire, White wire should be connected to the PWM- pin.
if your controller board’s laser interface pins are in different position, please change the wires position to make it match the positions of + – PWM of your interface. If the wires connected wrong, it will damage the diode and the driver board.
Please add a fan when you engraving or cutting, in case smoke blur the lens damage the lens
