Description
- Brand Name: Starry
- Certification: CE
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Style: Mini
- Power: 3W
- Model Number: W3000-RGB
- Voltage: 90-240V
- Occasion: Professional Stage & DJ
- Laser Sources: Diodes
- Beam Size@APERTURE: 3x3mm(3W-6W)
- Laser Wavelength: 445nm-638nm
- Beam Divergence: (3W-6W)<1.1mrad(full angle)
- Device net weigh: 2kg
- Modulation: Analog
Description
It could be used to repair the burned RGB laser stage lights.

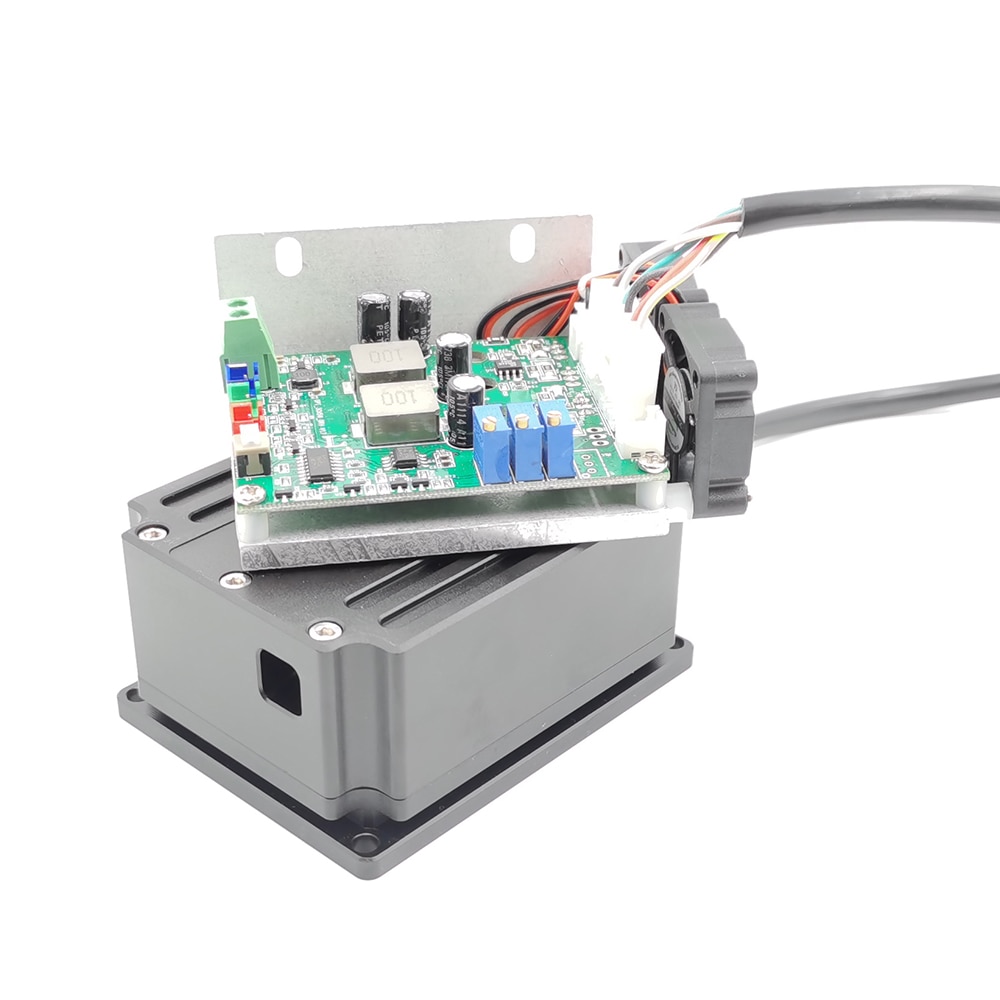

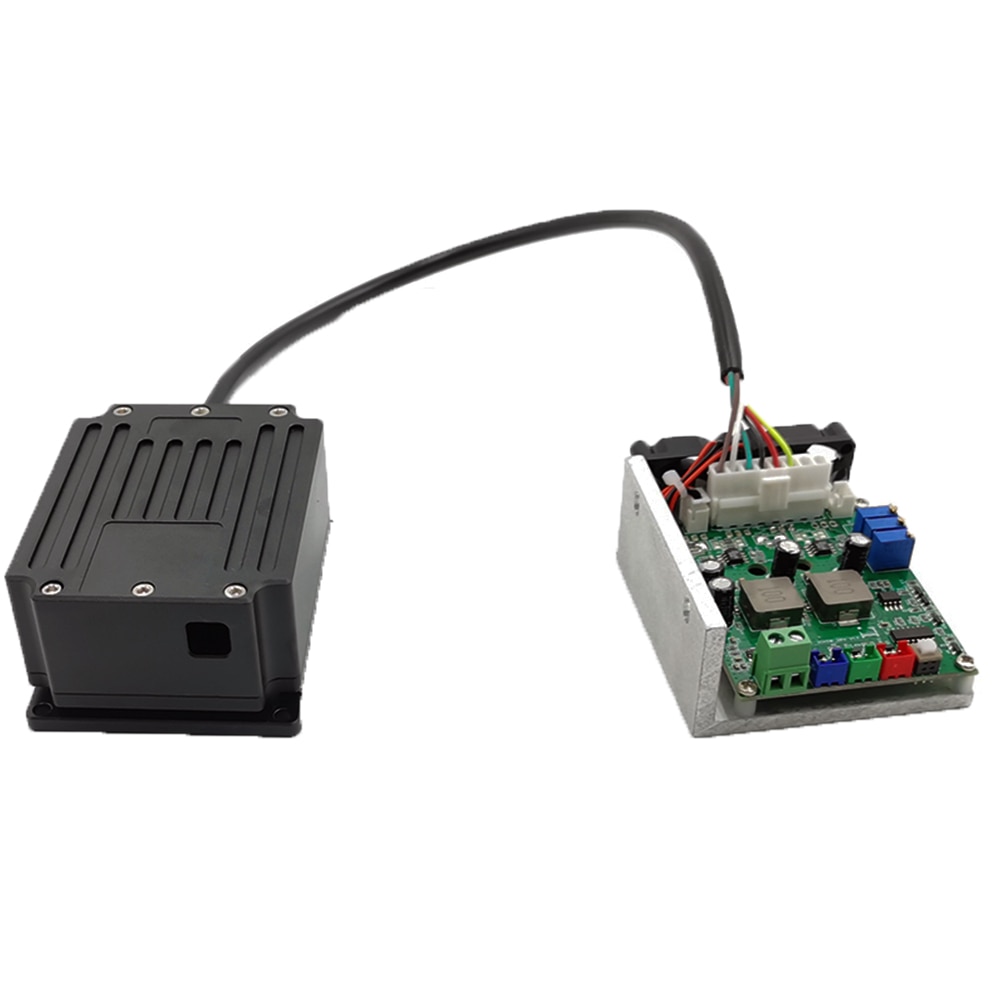

The whole set includes:
1pcs 3W RGB laser module,
1pcs modulation board,
1pcs 120V~240Vac input 12Vdc output power supply (include 1 pair 10cm red and black color cables.)
Modulation (Analog Defaulted)
There is a modulation switch for changing the modulation mode between Analog and TTL, the default factory mode is “Analog Modulation” and the inside indicator LED is in GREEN color; if the modulation is changed to TTL, the LED will be in RED color. The laser is defaulted NON-WORKING in factory mode, it means the laser will not give off light after we connect the whole set to the AC source, the laser only gives off lights after receiving modulation signal.

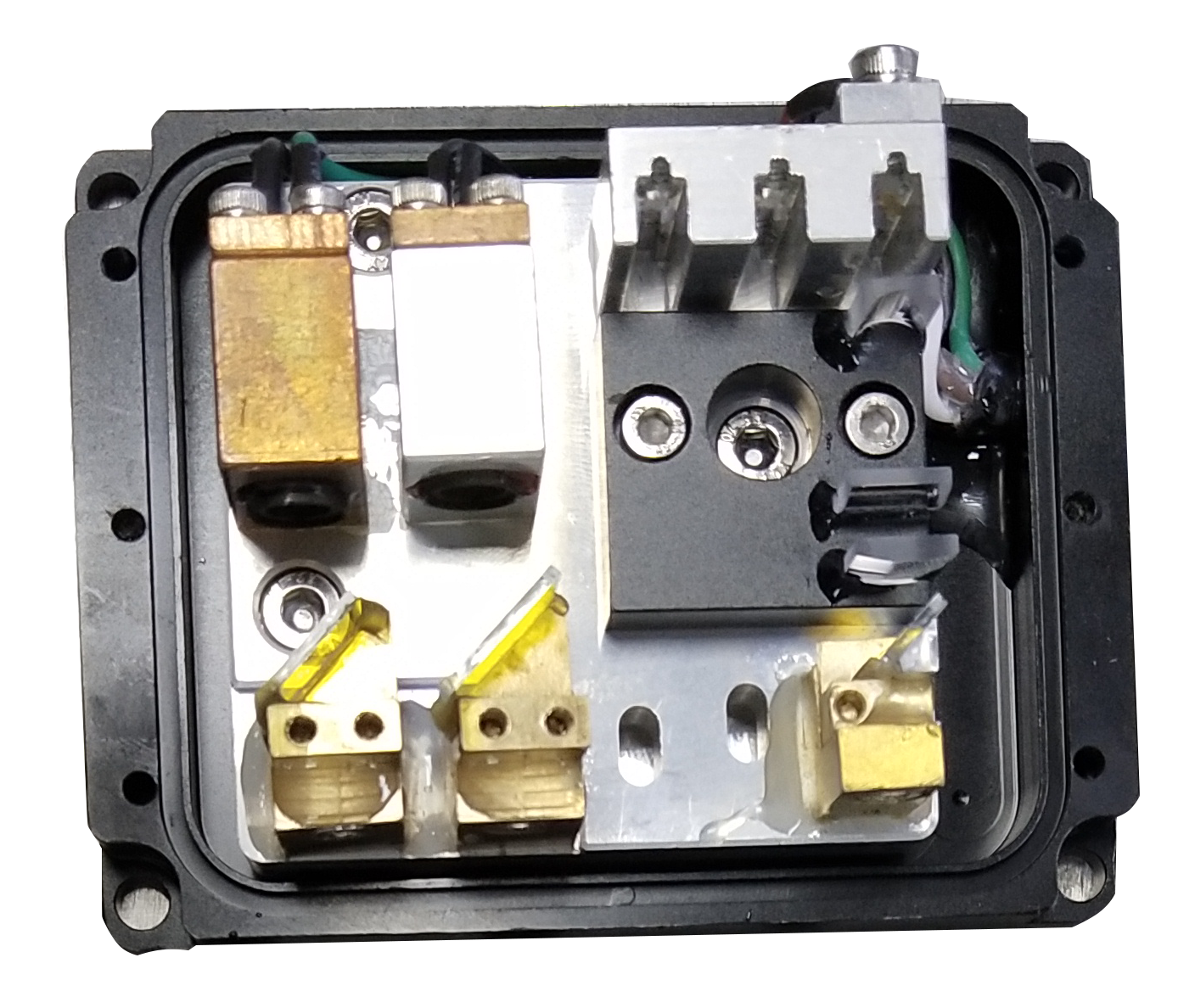

Inside Light Road
We might change the lens or reflectors for better beam quality, this photo is for reference only.
Important Notice
NEVER try to change the output current of any laser diode by rotating the adjustable resistor on the modulation board, all the diodes are nearly driven by their full powers, and the over driving will burn the diodes in only 0.5~2 seconds.
