Description
- Brand Name: NoEnName_Null
- Certification: CE
- Origin: CN(Origin)
- Size: 138.5*81*23cm
- Model Number: OHSP350UVP
- Focal Length: 42mm
- Weight: 430g
- Wavelength Range: 230nm-850nm
- Measurement Range: 230nm-850nm
- Product name: Portable Spectrometer
- Wavelength accuracy: 0.5nm
- Spectral bandwidth: 2nm
- Stray light: 0.3%
- Detector: CCD
- CCT range: 1000~100000K
- Display: 5 Inches LCD
- Certificate: CE RoHS
- Application: Led Spectrometer
- Warranty: 2 YEARS

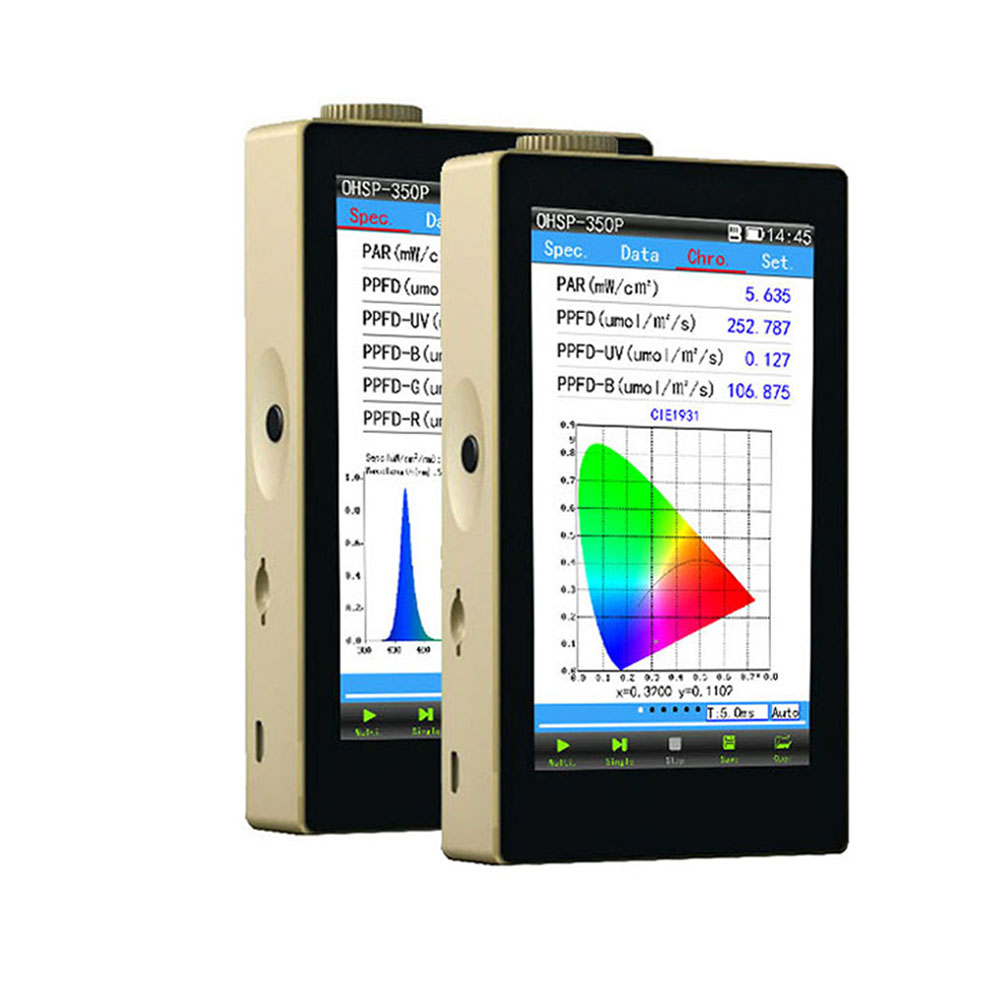

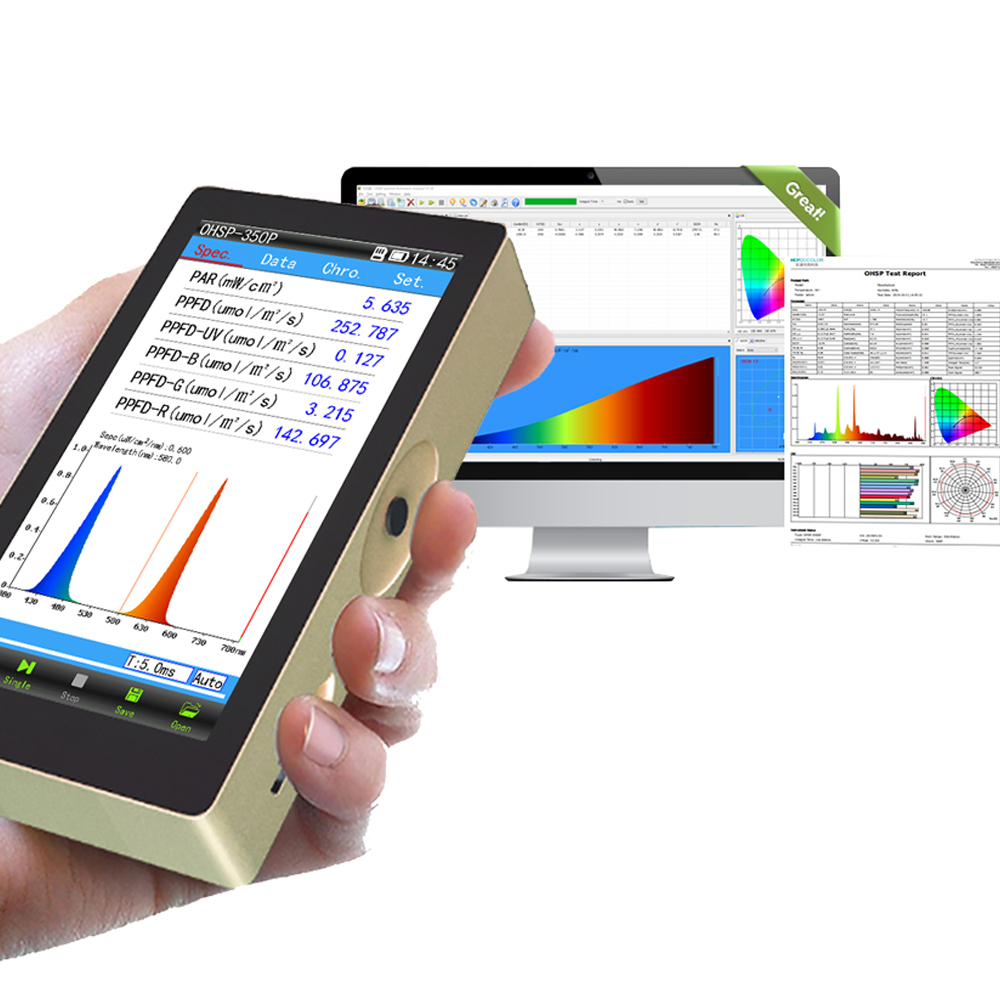

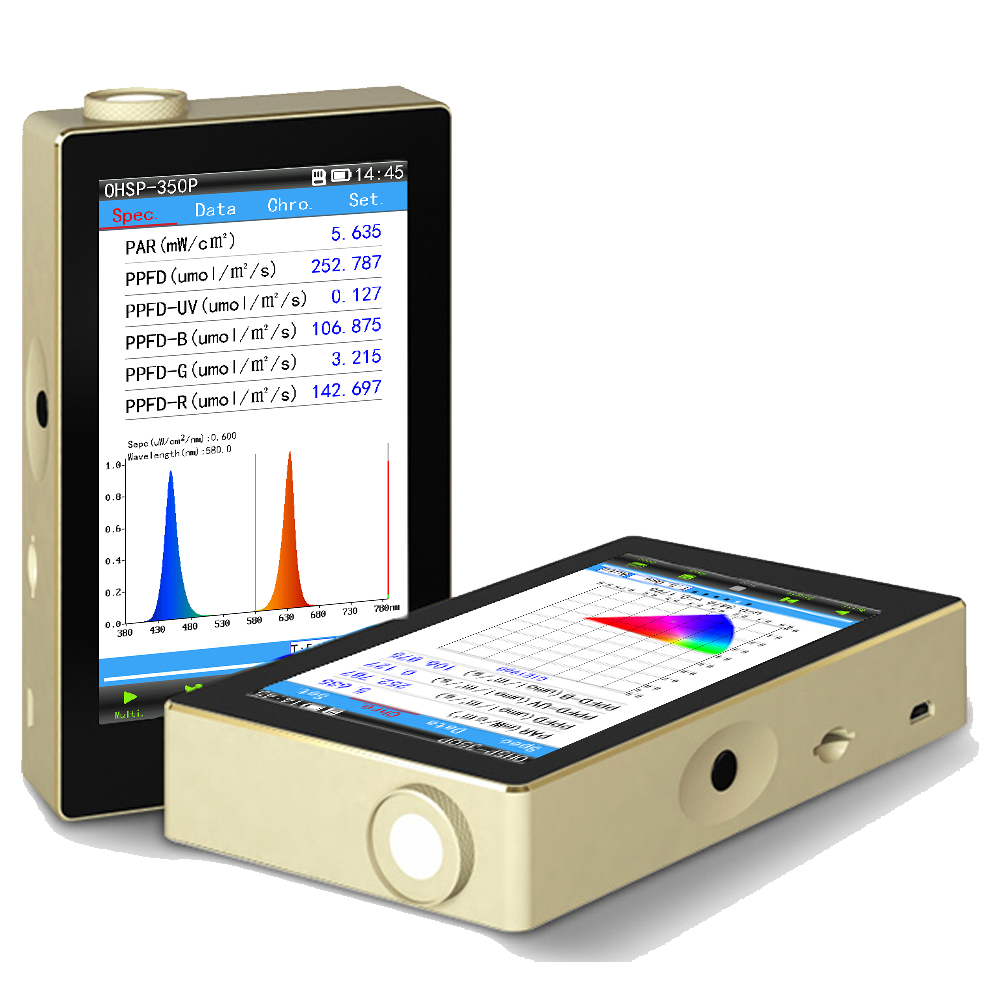

OHSP350UVP PLANT LIGHTING ANALYZER
Wavelength range:230-850nm

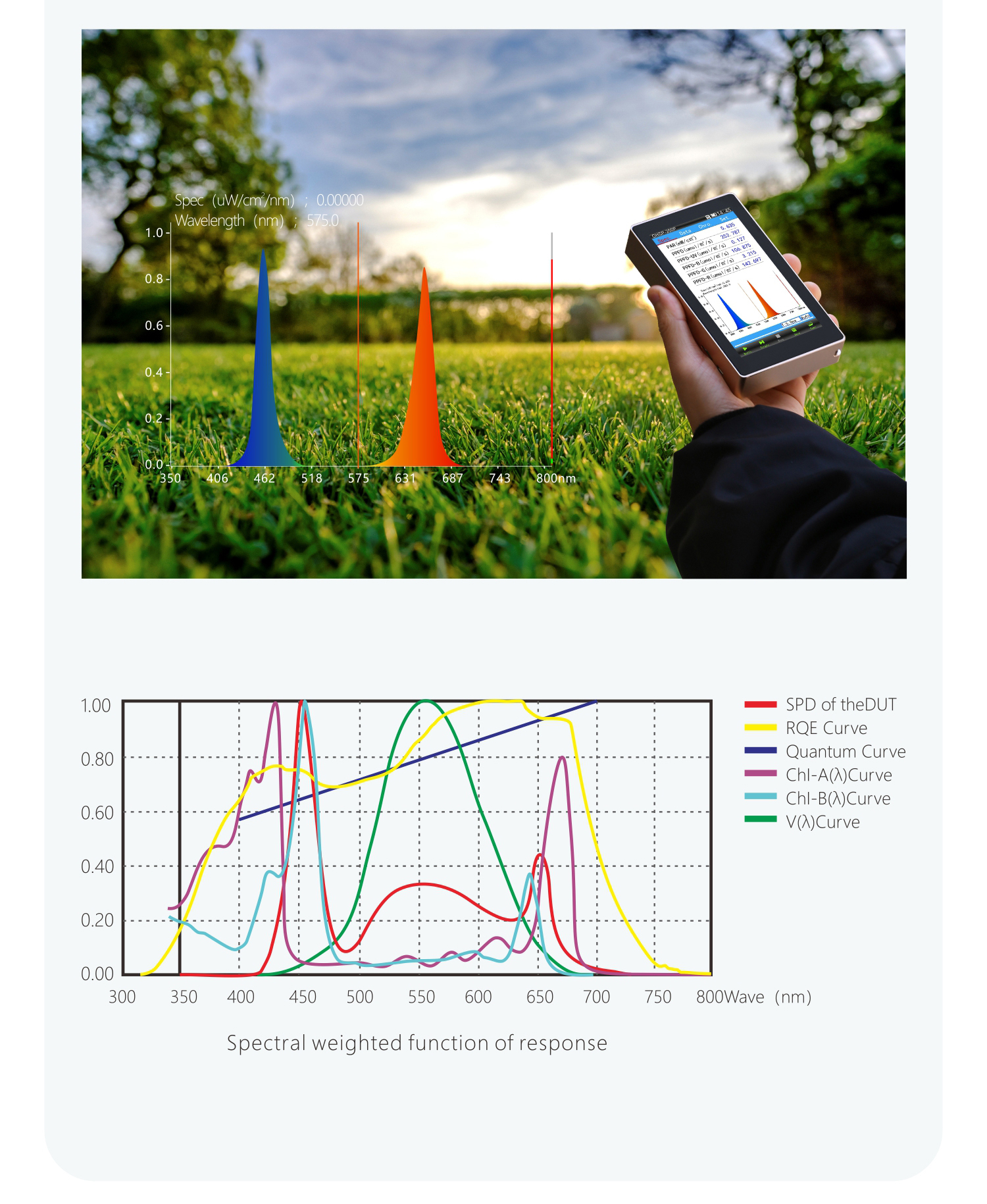

This tester is for plant growth lamp parameters PAR, PPFD tesing,it is dedicated to plant lighting measurement,integrated with intelligent professional portability,the measurement is based on the method of long focal length spectral.Measuring parameters like light intensity, radiation intensity, chromaticity coordinates, color temperature, color rendering index, photosynthetic photon flux density, photosynthetic radiation (shoot), far red irradiance etc. It an be widely used in plant lamp manufacturers, plant soilless cultivation, greenhouse and other plant growth of optical radiation field monitoring etc.
1,characteristic:
* Long focal length optical system, 2 nm optical resolution
* High performance linear CCD sensor 3648 points;
* Automatic zero and zero compensation technology, boot no manual zero;
* Electronic shutter technology, the minimum integration time 50 us, measurable stronger light signal;
* Quick switch machine, a key test, the use of more convenient
* 5 inch high-definition IPS screen, capacitive touch screen, display more content;
* Bring 4000mAh large-capacity lithium battery, 24 hour long test time;
* Illumination and radiation measurement
* CCD with long focal length and wide spectrum, intelligent and portable
* Automatic zero calibration
* Low power consumption large capacity battery
* Wide range of wavelengthscan test various types of light sources
* SD cardcan save a variety of formats Excel data analysis
* Be Suitable for different site test
* A millisecond key switchingmakes it more convenient forusing
* High performance linear CCD sensor 3648 points;
* Automatic zero and zero compensation technology, boot no manual zero;
* Electronic shutter technology, the minimum integration time 50 us, measurable stronger light signal;
* Quick switch machine, a key test, the use of more convenient
* 5 inch high-definition IPS screen, capacitive touch screen, display more content;
* Bring 4000mAh large-capacity lithium battery, 24 hour long test time;
* Illumination and radiation measurement
* CCD with long focal length and wide spectrum, intelligent and portable
* Automatic zero calibration
* Low power consumption large capacity battery
* Wide range of wavelengthscan test various types of light sources
* SD cardcan save a variety of formats Excel data analysis
* Be Suitable for different site test
* A millisecond key switchingmakes it more convenient forusing
application:
Application: Plant growth lamp, LED plant growth light,LED, OLED measurement, CFL energy saving lamp and high and HID low pressure sodium lamps etc
Application: Plant growth lamp, LED plant growth light,LED, OLED measurement, CFL energy saving lamp and high and HID low pressure sodium lamps etc
|

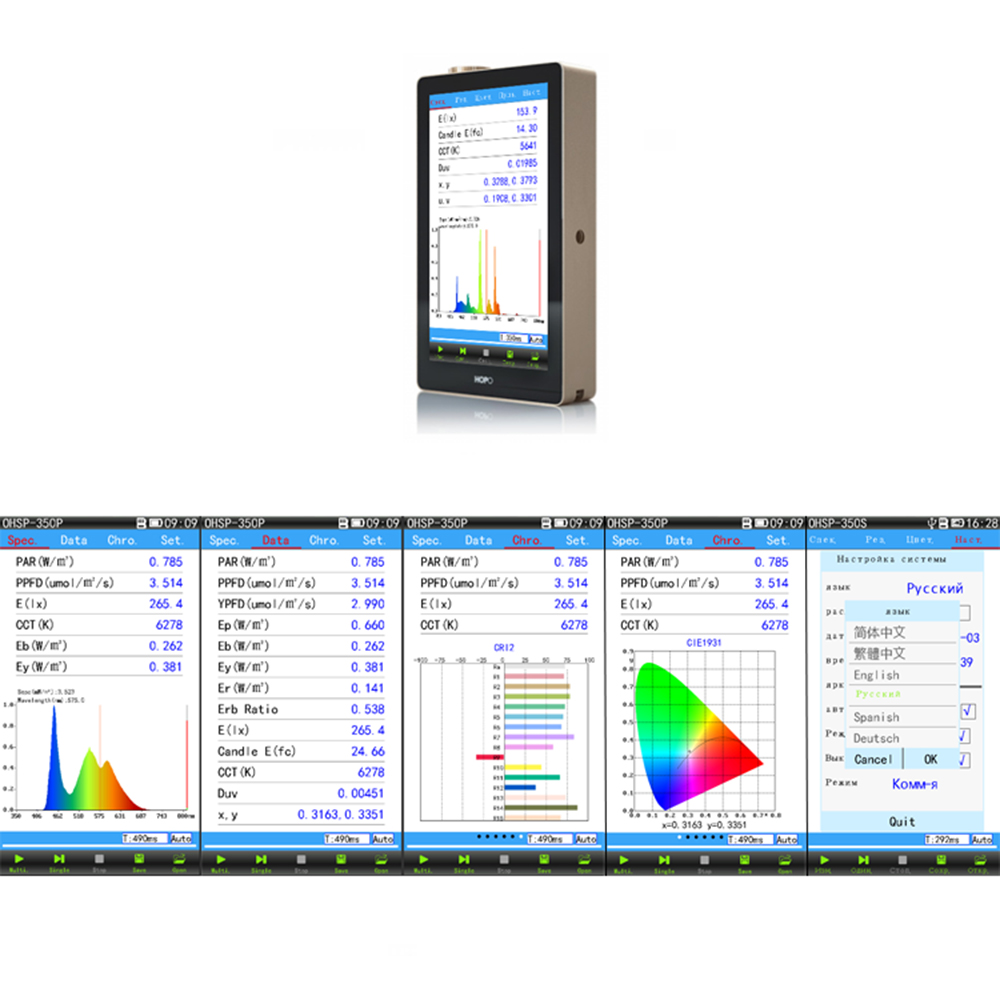

PAR mW/cm2
|
illuminance(lx)
|
|
PPFD Umol/m2/s
|
Candlelight(fc)
|
|
Coordinate x.y u,v u’,v’
|
CRI (Ra)
|
|
Half width(nm)
|
SDCM
|
|
Peak wave(nm)
|
Purity%)
|
|
Half width(nm)
|
CCT(K)
|
|
Central wave(nm)
|
Central wave(nm)
|
Specification
|
General
|
|
|
Short description
|
Spectroradiometer for measurement of the illuminance, spectrum, light color, and color rendering
|
|
Main features
|
Mobile meter, spectroradiometer with a 2 nm optical bandwidth , precise cosine field of view function, Lithium ion battery with
over 10 operation hours |
|
Measurement range
|
5 lx to 200,000 lx, 230 nm to 850 nm
|
|
typical applications
|
Precise spectral light meter for the lighting industry
|
|
Calibration
|
Factory calibration. Traceable to international calibration standards
|
|
Product
|
|
|
OHSP350P
|
Handheld meter for illuminance and light color. Color-Touchscreen, simple intuitive Operation with clearly arranged display views.
Storage of 10 measuring points and selection of different display views is possible. |
|
Input optics
|
Diffuser window with 10mm diameter, cosine corrected field of view, f1 ≤ 6 %
|
|
Spectral Detector
|
|
|
spectral range
|
(230 – 850) nm
|
|
Optical Bandwidth
|
2 nm
|
|
optical bandwidth correction applied according to CIE 214
|
|
|
Measurement range typ. white LED
|
(5 – 200000) lx
|
|
CCT Measurement range
|
(1000 – 100000) K
|
|
Calibration
|
|
|
Calibration uncertainty
|
|
|
Illuminance (typ. LED) +/- 4%
|
|
|
Miscellaneous
|
|
|

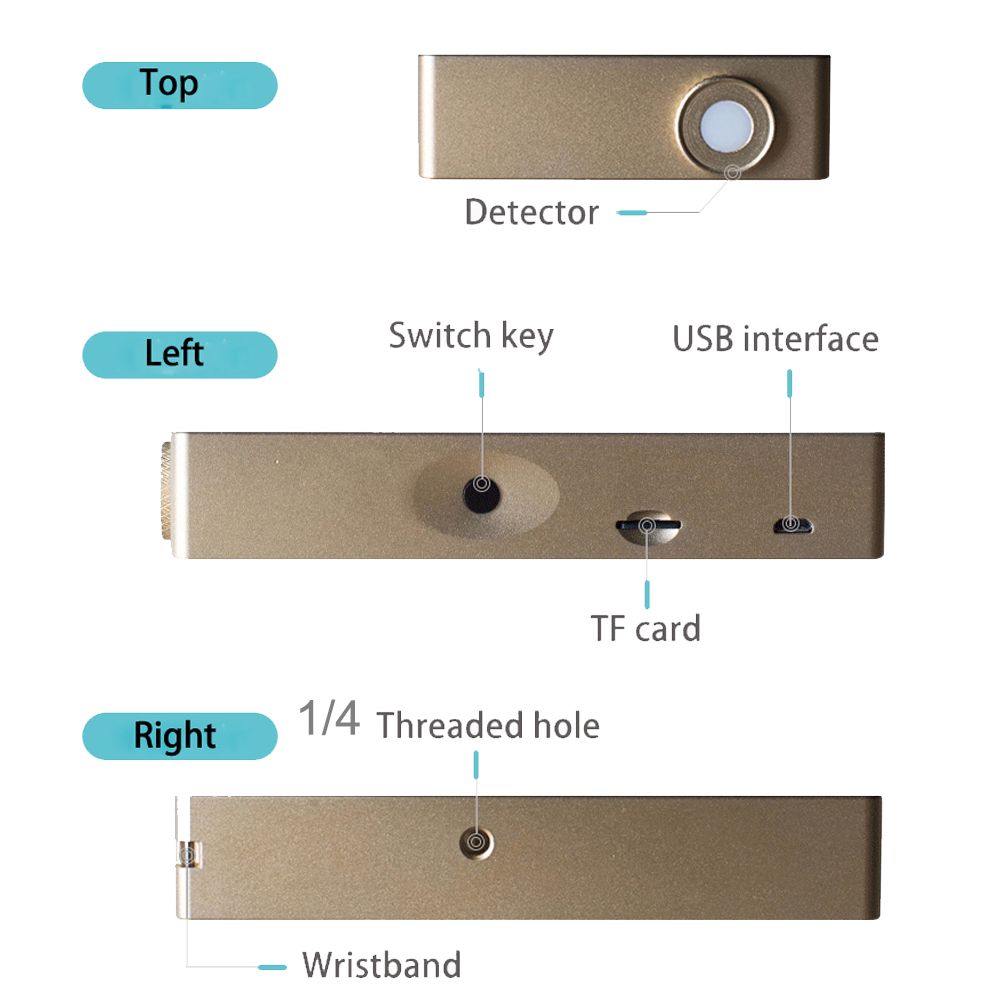

Interface
|
USB 2.0
|
|
temperature range
|
Operation: -10°C to +40°C
|
|
Storage: -25°C to +45°C
|
|
|
Power Supply
|
5VDC by USB
|
|
Power Supply
|
rechargeable battery
|
|
Display
|
Color Touchscreen
|
|
Weight
|
430 g
|
|
Dimensions
|
138.5 mm x 81 mm x 23 mm
|
