Description
Product Description
|
Product Name
|
OHSP350UV Portable Spectrum Analyzer UV Radiometer
|
|
Parameters
|
Irradiance (uW/cm2), UVA, UVB, UVC, CCT, CRI, LUX, DUV, Peak wave….
|
|
Application
|
Widely used inUV light source, disinfection, sterilization, light therapy…..
|
|
Package
|
carton box for spectral lux meter
|
-
-
Product description
OHSP-350UV UV spectral irradiance meter, use a UV CCD and UV processing optical path.Used to measure relative the spectral power distribution , UVA (315 nm -400 nm), UVB (280 nm-315 nm),UVC (230 nm-280 nm) of UV light source. It is widely used inUV light source, disinfection, sterilization, light therapy, Photolithography, Photosolidification, Breeding, Plant Cultivation and Evaluation of Solar UV Index..etc
|
MODEL
|
350UV
|
|
Wavelength range
|
230nm~850nm
|
|
Sensor
|
High precision CCD
|
|
Spectral Bandwidth (FWHM)
|
2nm
|
|
Spectral Resolution
|
0.2nm X, Y repetitive ±0.0005
|
|
Wavelength Accuracy
|
+ 0.5nm
|
|
Illuminantion Accuracy
|
(±4% Reading +1 Digital）
|
|
Lighting Area
|
Ф10mm
|
|
Integrating Time
|
50μs～10000ms
|
|
Chromaticity Coordinate Accuracy
|
±0.0025.
|
|
CCT Range
|
1,000K~ 100,000K
|
|
Stray Light
|
≤0.3%
|
|
Illuminance Range
|
5lx～200,000lx
|

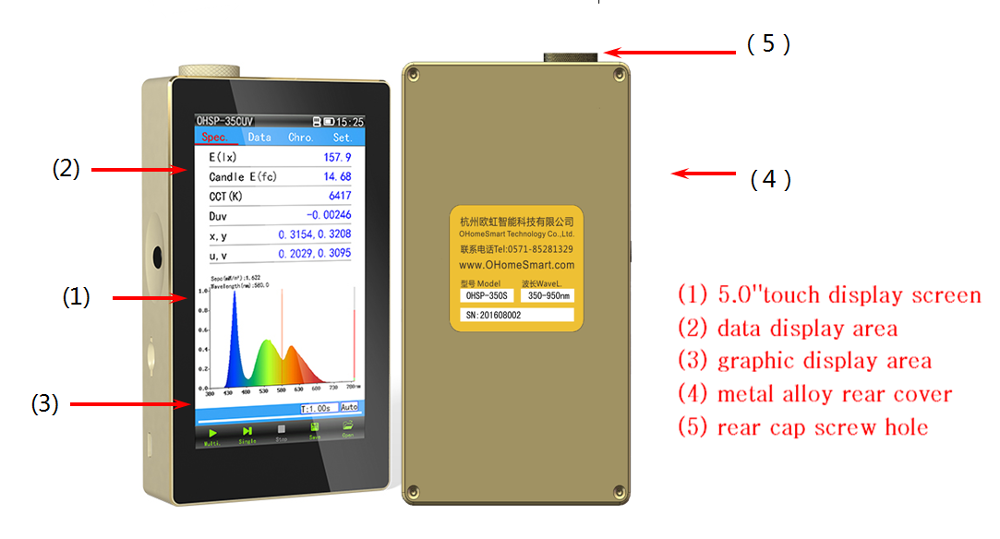

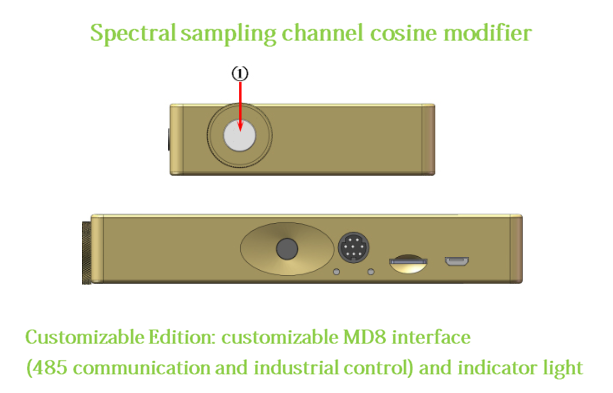

Details Images

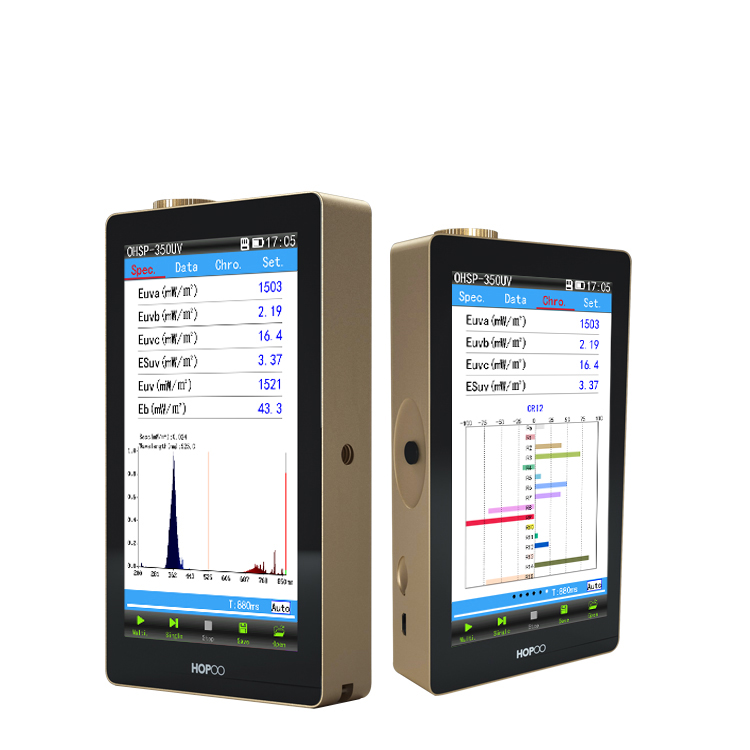

OHSP-350UV
UV spectral irradiance meter ,use a UV CCD and UV processing optical path.Used to measure relative the spectral power distribution , UVA (315 nm -400 nm), UVB (280 nm-315 nm),UVC (230 nm-280 nm) of UV light source.It is widely used inUV light source, disinfection, sterilization, light therapy,Photolithography, Photosolidification, Breeding, Plant Cultivation and Evaluation of Solar UV Index..etc
UV spectral irradiance meter ,use a UV CCD and UV processing optical path.Used to measure relative the spectral power distribution , UVA (315 nm -400 nm), UVB (280 nm-315 nm),UVC (230 nm-280 nm) of UV light source.It is widely used inUV light source, disinfection, sterilization, light therapy,Photolithography, Photosolidification, Breeding, Plant Cultivation and Evaluation of Solar UV Index..etc
OHSP350C Spectrum Lux Meter
OHSP350C: 380-780nm; not only measure LED wide spectrum light source ,but also measure CFL,HID narrow spectrum light source. But have no PC software.
OHSP660T Spectral Transmittance Tester
OHSP660T: 350-950nm; integrated Spectrum, Transmittance, L*A*B in one, can test material and lens immediately.
GREAT packing, use carton box for lux meter.
Hangzhou Hongpu Light and Color Technology Co., Ltd. established in September 2014, Is a professional manufacturer with more than 10 years experience in the field , which is located in Hangzhou Zhejiang China. Providing the best solutions with higher quality to our customers at a competitive price.
Providing the best solutions with higher quality
