Description
- Brand Name: NoEnName_Null
- Certification: CE
- Origin: CN(Origin)

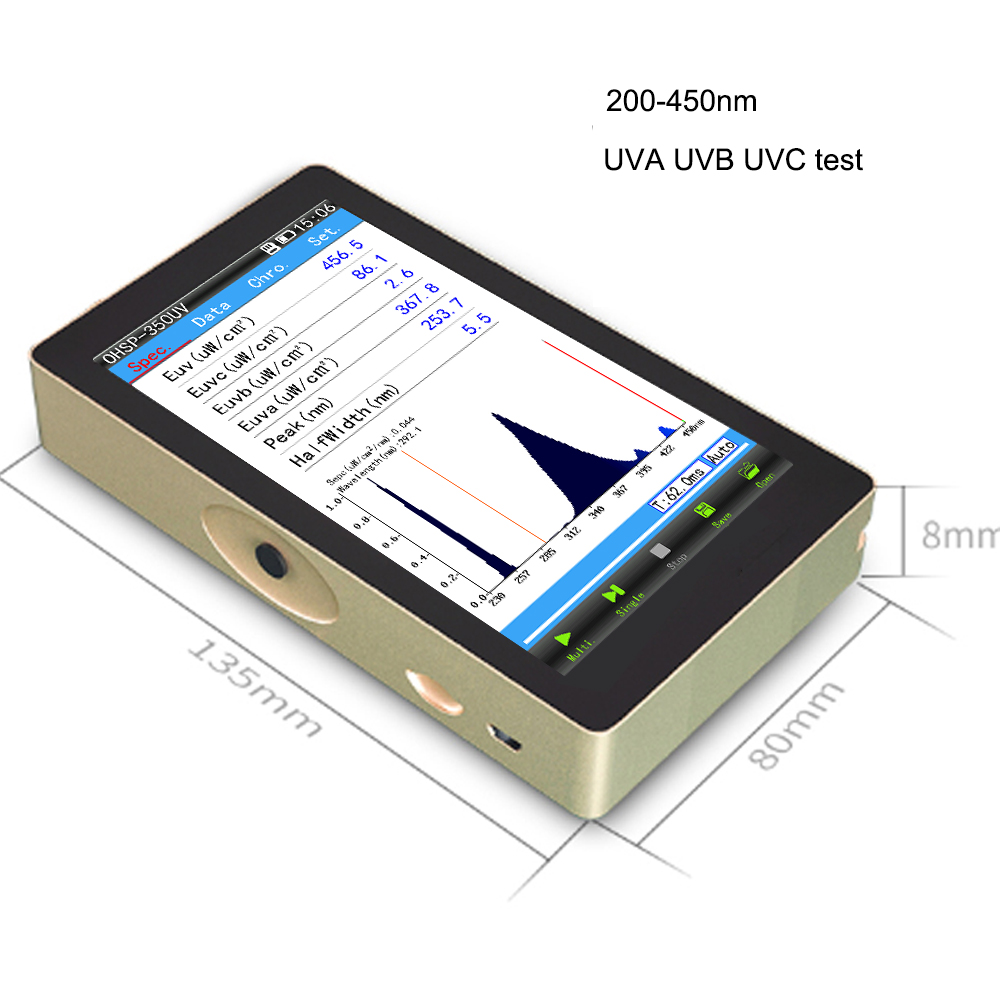

- Size: 138.5*81*23mm
- Model Number: 350UV
- Focal Length: 42mm
- Weight: 430g

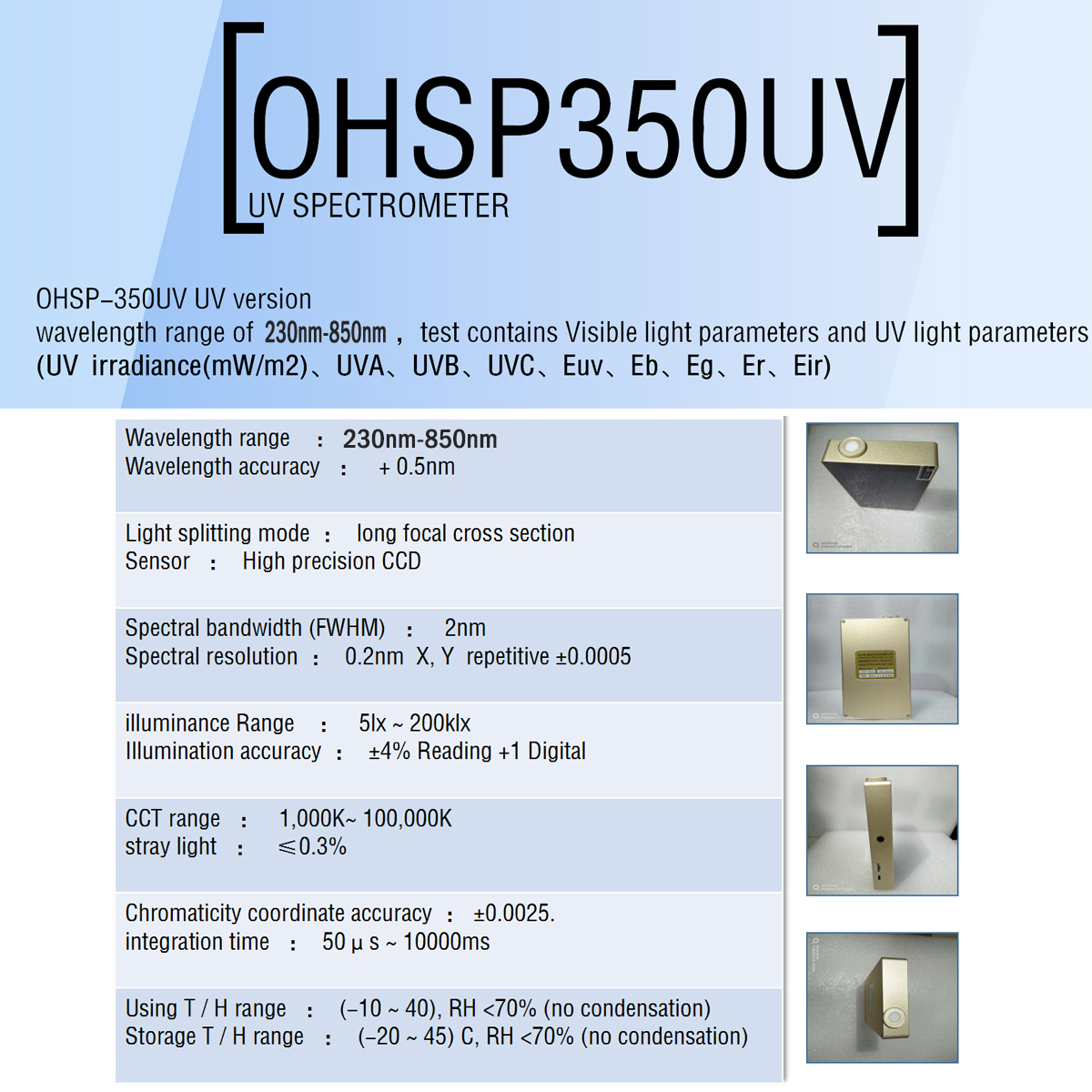

- Wavelength Range: 230-850nm
- Type: Single Beam Spectrometers
- Measurement Range: 230-850nm
- Name: UV spectrometer
- Spectral resolution: 0.2nm
- Spectral bandwidth (FWHM): 2nm
- Wavelength accuracy: 0.5nm
- Illuminance Range: 5lx~200klx
- Illumination accuracy: ±4% Reading 1 Digital
- Chromaticity coordinate accuracy: ±0.0025
- Application: sterilizing lamp, ultraviolet lamp

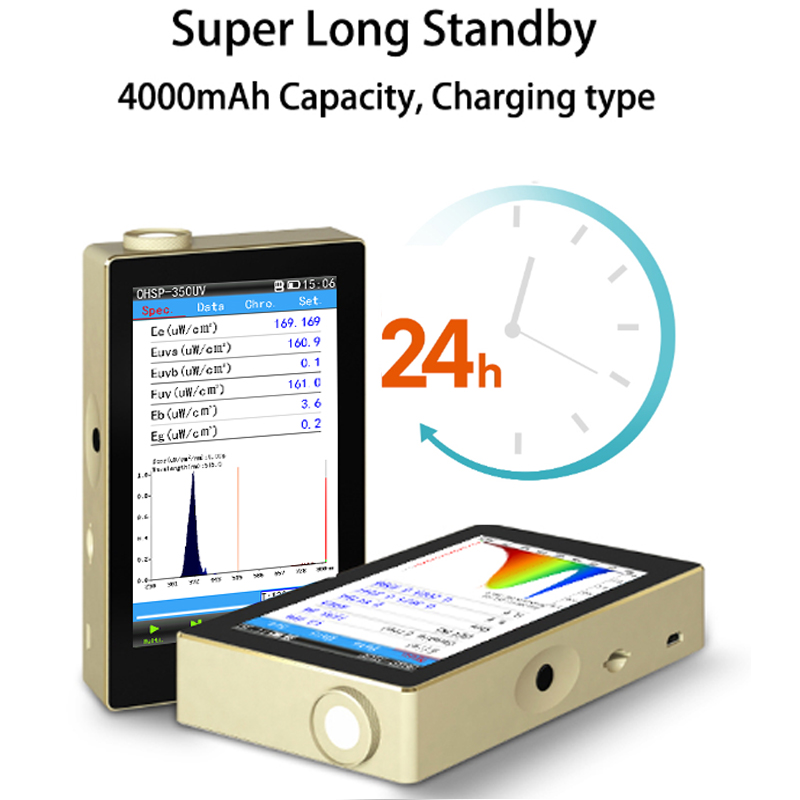

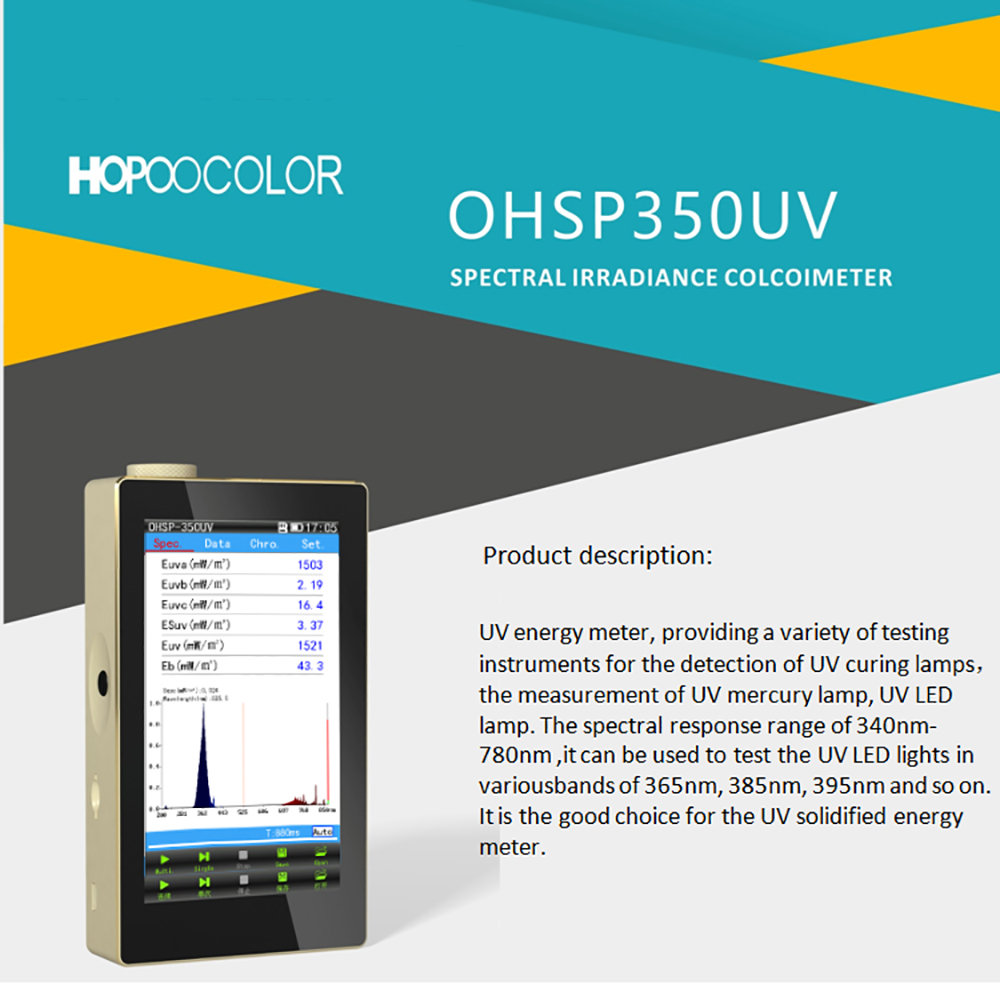

OHSP-350UV UV spectral irradiance meter ,use a UV CCD and UV processing optical path.Used to measure relative the spectral power distribution , UVA (315 nm -400 nm), UVB (280 nm-315 nm),UVC (230 nm-280 nm) of UV light source.It is widely used inUV light source, disinfection, sterilization, light therapy,Photolithography, Photosolidification, Breeding, Plant Cultivation and Evaluation of Solar UV Index..etc
Meas parameters Wave range:230nm-850nm
Basic Parameters
|
CCT(K) |
illuminance(lx) |
Irradiance(W/m2) |
CIE1931 |
|
Coordinate x,y |
Candlelight(fc) |
Duv |
CIE1960 |
|
Coordinate u,v |
CRI (Ra) |
R1-R15 |
CIE1976 |
|
Coordinateu’,v’ |
SDCM |
Red ratio(%) |
Colour Tolerance Elliptic graph |
|
Peak wave(nm) |
Purity%) |
Green ratio(%) |
CRI circular graph |
|
Half width(nm) |
Dominant(nm) |
Blue ratio(%) |

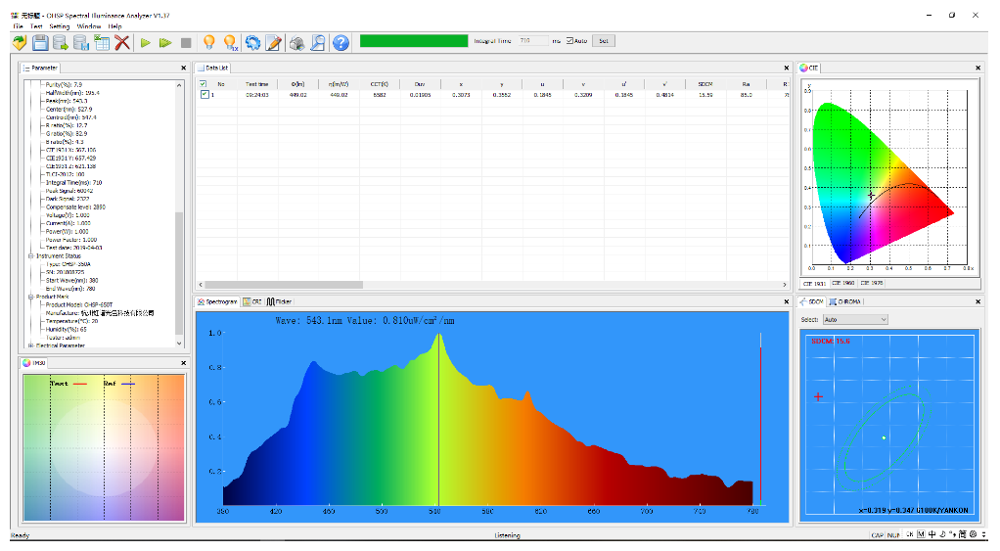

Spectral Power Distribution |
|
Central wave(nm) |
Centroid (nm) |
S/P |
CIE1931 X,Y,Z |

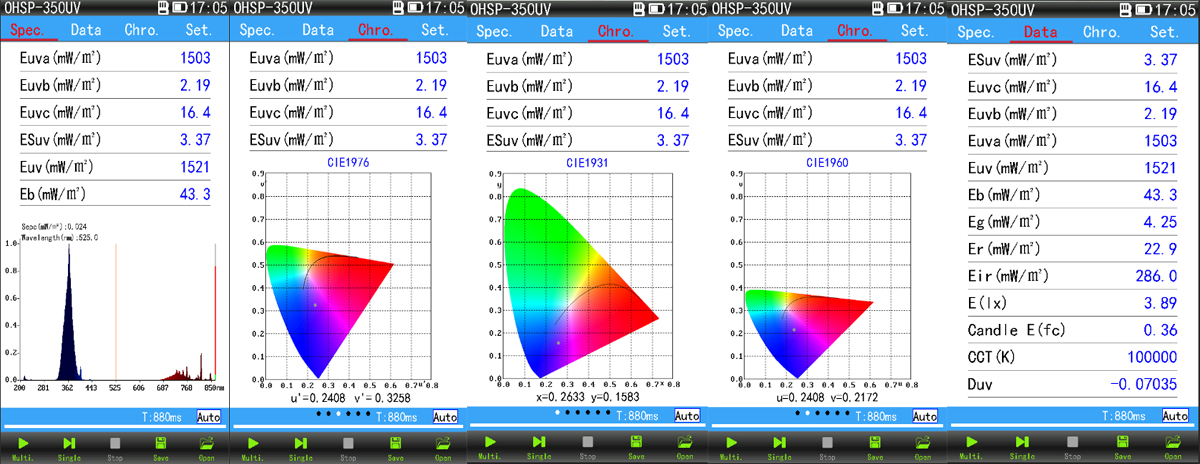

UV parameters
|
Irradiance (uW/cm2) |
Illuminance E(lx) |
SDCM |
Half width (nm) |
|
UVA(uW/cm2) |
CCT (K) |
S/P |
Dominant wave(nm) |
|
UVB(uW/cm2) |
Candle Light E(fc) |
Spectral Power Distribution |
Purity(%) |
|
UVC(uW/cm2) |
CRI Ra |
Irradiance Ee(W/m2) |
350 Basic Parameters |
Application
Relative product:OHSP350UVS 200-450nm Spectrometer
