Description
OHSP350SF SPECTRAL IRRADIANCE COLCOIMETER
Application: the illumination and spectrum measurement of light source like LED,OLED,CFL energy saving lamp and HID high low pressure sodium lamp etc.
characteristic:·
· Long focal length optical system, 2 nm optical resolution
· High performance linear CCD sensor 3648 points;
· Automatic zero and zero compensation technology, boot no manual zero;
· Electronic shutter technology, the minimum integration time 50 us, measurable stronger light signal;

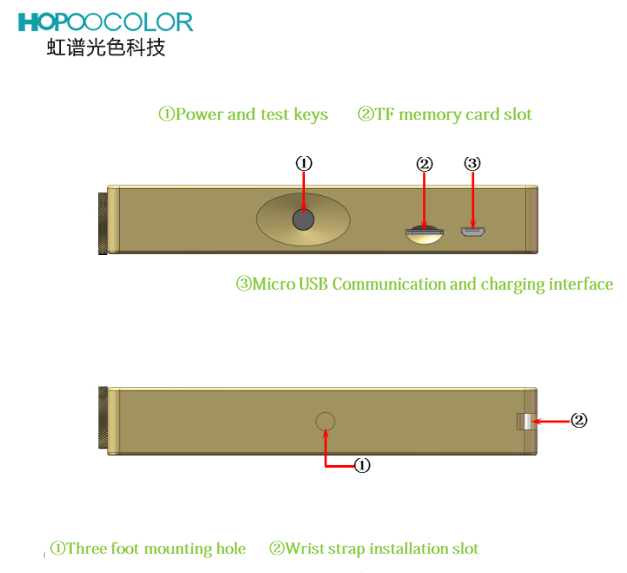

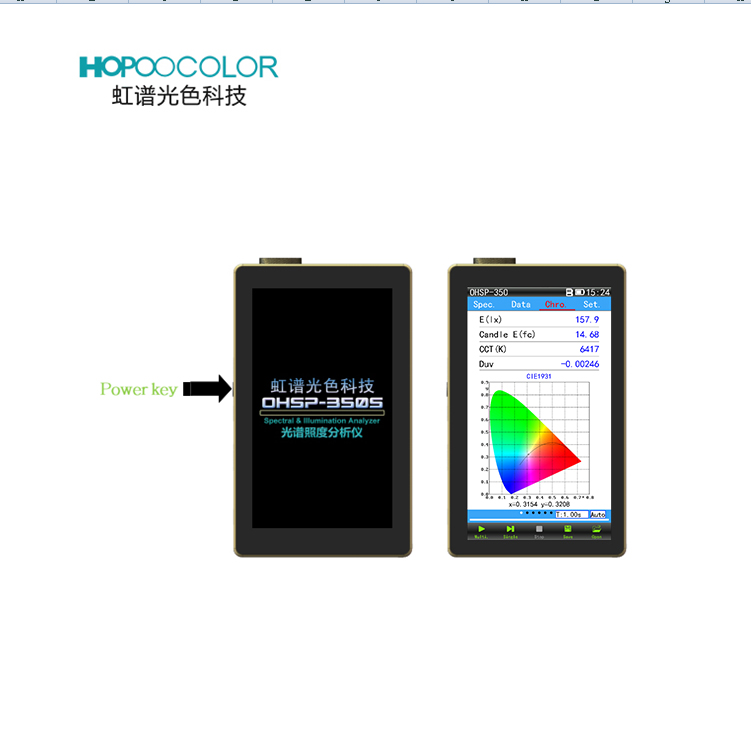

· Quick switch machine, a key test, the use of more convenient

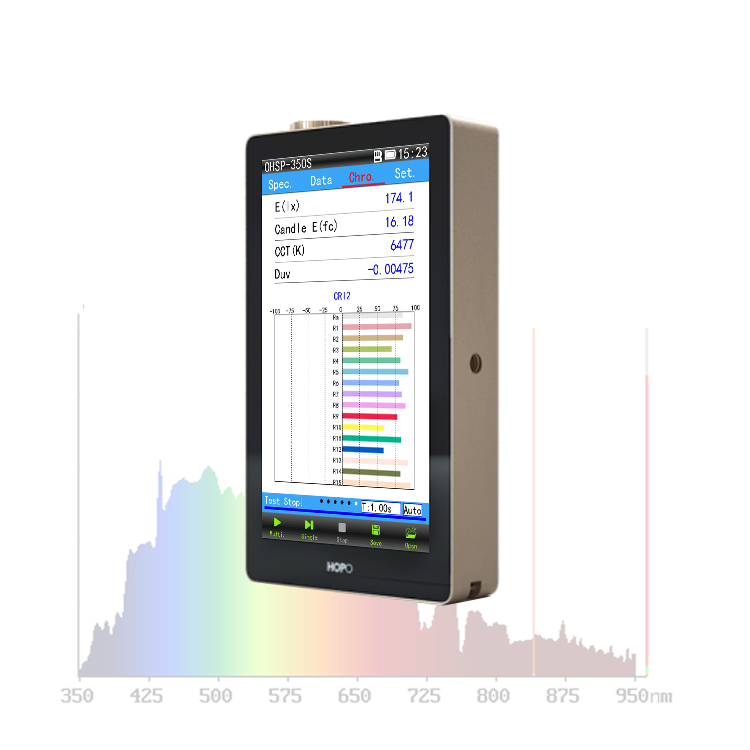

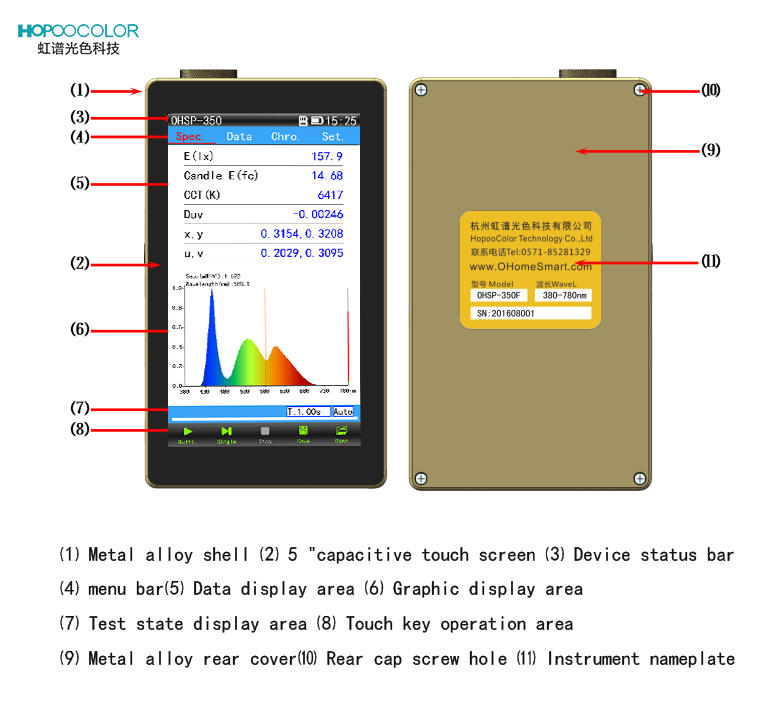

· 5 inch high-definition IPS screen, capacitive touch screen, display more content;
· Bring 4000mAh large-capacity lithium battery, 24 hour long test time;
· CCD with long focal length and wide spectrum, intelligent and portable
· Automatic zero calibration
· Low power consumption large capacity battery
· Wide range of wavelengthscan test various types of light sources
· SD cardcan save a variety of formats Excel data analysis
· Be Suitable for different site test
CHARACTERISTICS AND SPECIFICATIONS
Correlated color temperature (CCT) Illumination(Lux) candlelight
Spectral Irradiance (mW/cm2) Chromaticity Coordinates
The Relative Spectral power distribution Color Rendering Index (CRI)
Rf,Rg as per IES TM-30 SDCM Color Tolerance
Dominant Wavelength Peak Wavelength
Flicker index Flicker percent
Flicker frequency Blue light hazard…more
|
Model
|
OHSP-350SF
|
|
Wavelength range
|
350nm~950nm
|
|
Splitting mode
|
Long-focus cross asymmetric CT optical system
|
|
Sensor
|
High-precision CCD
|
|
By light device
|

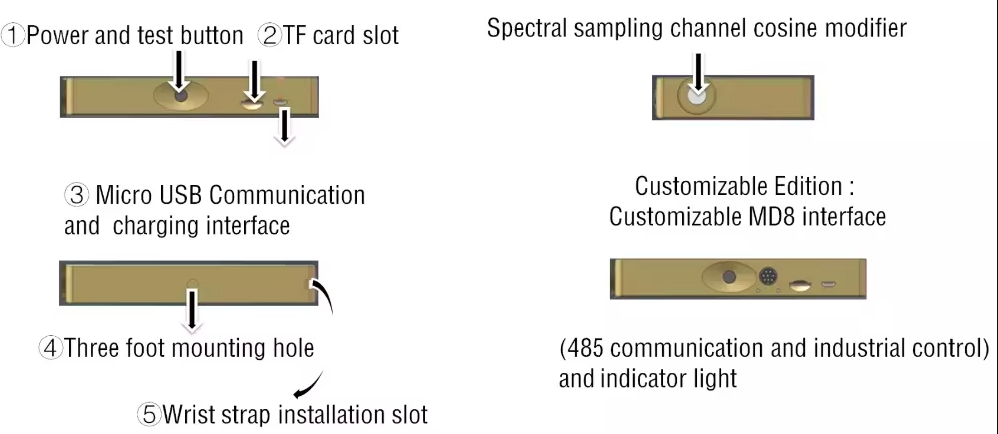

10mm Cosine corrector
|
|
Spectral resolution
|
0.2nm X, Y repetitive ±0.0005
|
|
Wavelength accuracy
|
±0.5nm
|
|
Illumination accuracy
|
(±4% Reading +1 Digital)
|
|
Spectral bandwidth (FWHM)
|
2nm
|
|
TM-30 chromaticity parameters
|
YES
|
|
Plant growth light parameters
|
YES
|
|
Accuracy of chromaticity coordinates
|
±0.0025(Relative to the standard light source whose stability is better than ±0.0005and NIM traceable calibrated value) |
|
CCT range
|
1,000K~100,000K
|
|
Stray light
|
≤0.3%
|
|
Illuminance measurement range
|
5lx~200klx
|
|
Integration time
|
50µs~10000ms
|
|
Communication interface
|
Micro USB Interface
|
