Description
- Brand Name: NoEnName_Null
- Certification: CE
- Origin: CN(Origin)
- Size: 138.5*81*23mm
- Model Number: OHSP350M
- Weight: 430g
- Wavelength Range: 350-950NM
- Measurement Range: 350-950NM
- Warranty: 2 years
OHSP-350M Spectral Irradiance Colorimeter, it can test Lux and Luminous flux in one, Suitable for measuring the luminous flux of single light source or whole LED lamp. Also good for field test.

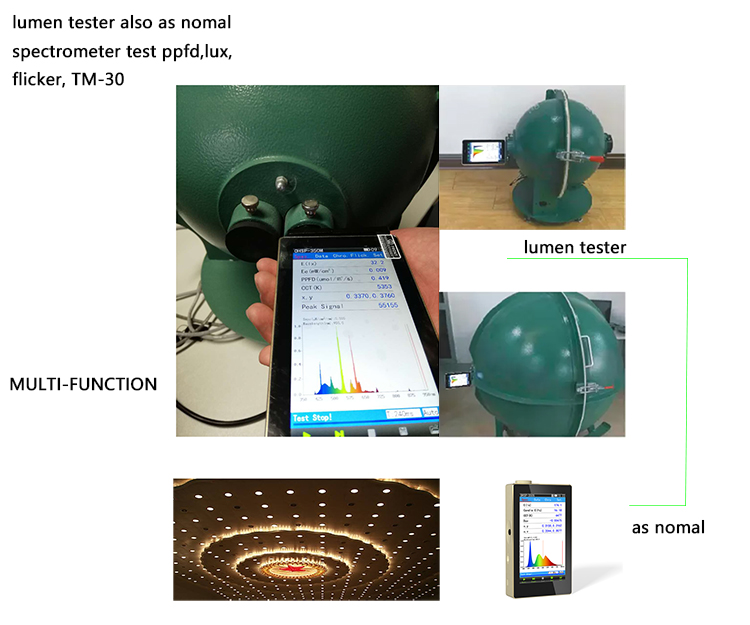

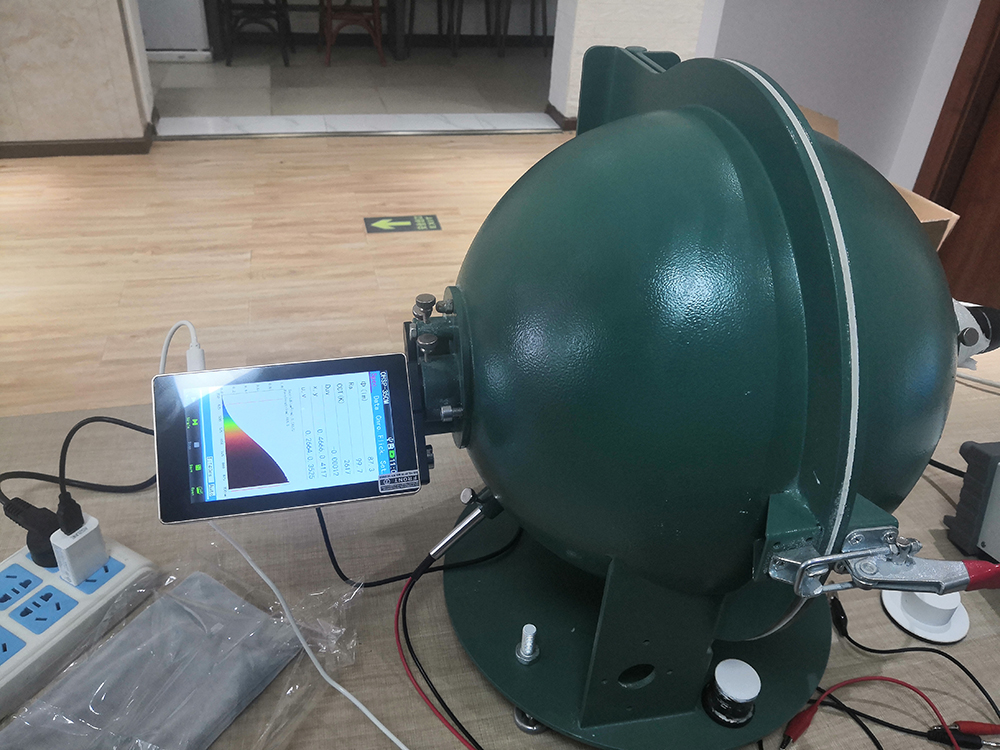

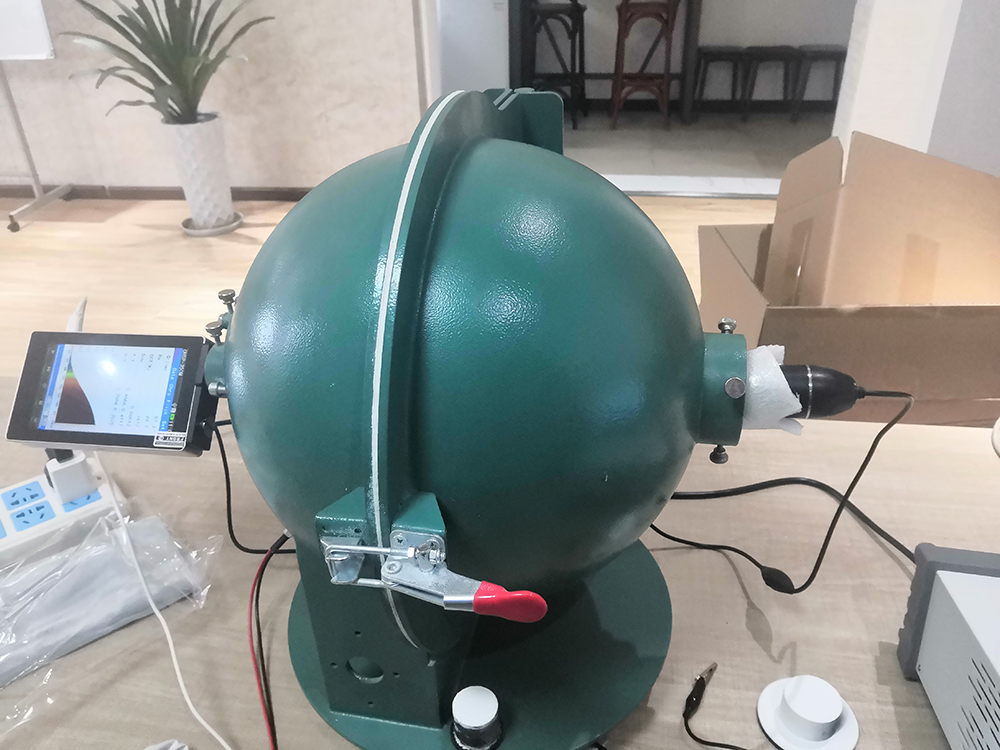

OHSP350M test luminous flux with different size of integrating sphere
Model OHSP350M Luminous Flux Version
Wavelength range 350nm ~950nm
Light Splitting Mode: long focal cross section
Sensor: High precision CCD
Spectral Bandwidth (FWHM): 2nm
Spectral Resolution: 0.2nm X, Y repetitive ±0.0005
Wavelength Accuracy: ±0.5nm
Illuminantion Accuracy: (±4% Reading +1 Digital）
Lighting Area: Ф10mm
Integrating Time: 50μs～10000ms
Chromaticity Coordinate Accuracy: ±0.0025.
CCT Range: 1,000K~ 100,000K
Stray Light: ≤0.3%

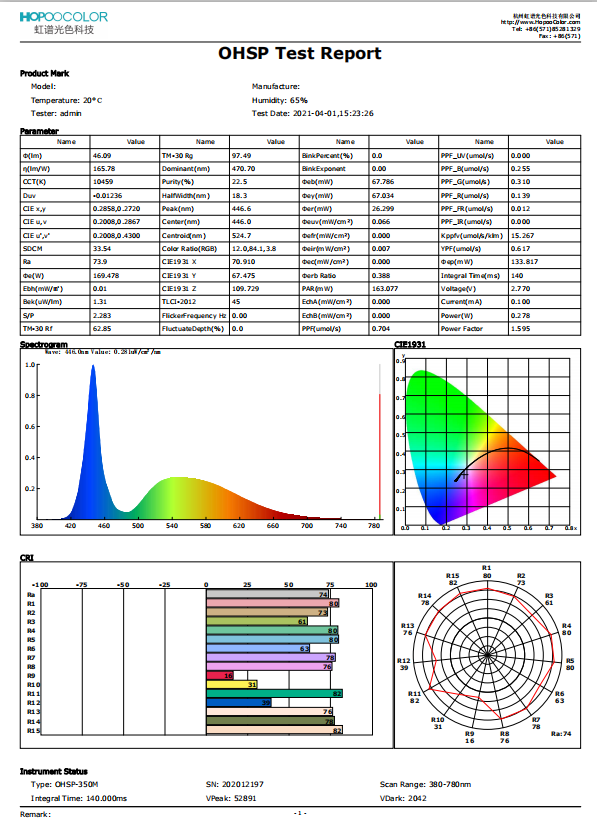

Meas parameters WavelengthRange:350-950nm
Luminous flux(lm) CRI Ra
Flicker index Flicker freq (Hz)
illuminance E(lx) CCT(K)
Spectral Distribution S/P
Irradiance Ee(W) TM-30-2015 Rf
Modulation depth(%)
Grow light parameters par ppfd
PPF(umol/s) TM-30-2015 Rg
Flicker percent(%) OHSP350 basic paramters
