Description
Products Description
|
Product Model
|

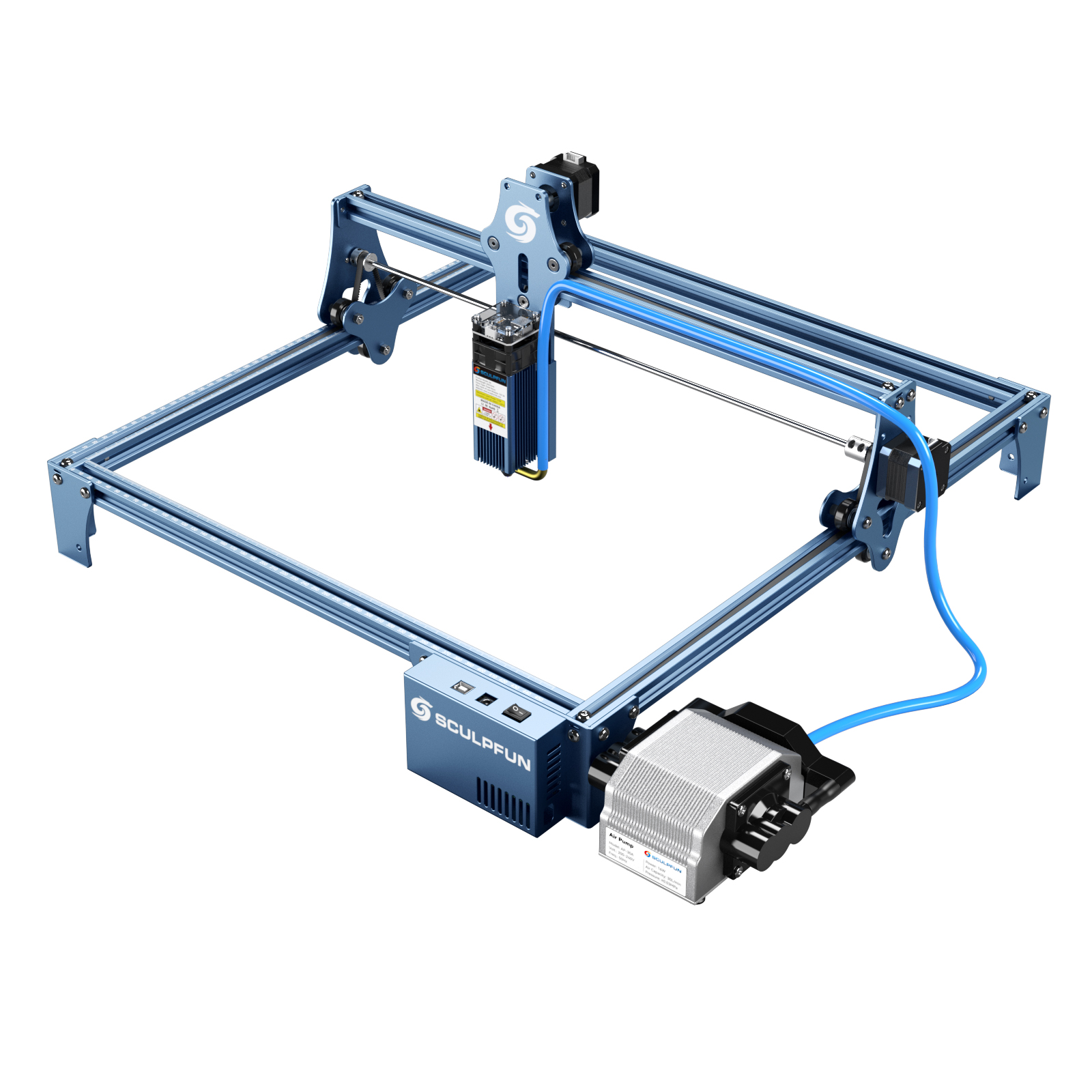

SCULPFUN S9 Air Assist Kit（with air pump）
|
|
Air pump selection suggestion
|
Note that when you buy the kit that includes an air pump you need to double check that the voltage matches your local voltage.
US version 110V, European version 220V, please select the correct version. |
|
Interface diameter size
|
Air-assisted copper tube outer diameter: 8mm
Inner diameter of trachea: 7.5mm
|
|
Packing weight
|
1.76kg
|
|
Packing size:
|
255*192*145mm
|
Main feature:
1. Official SCULPFUN S9 Air Assist:

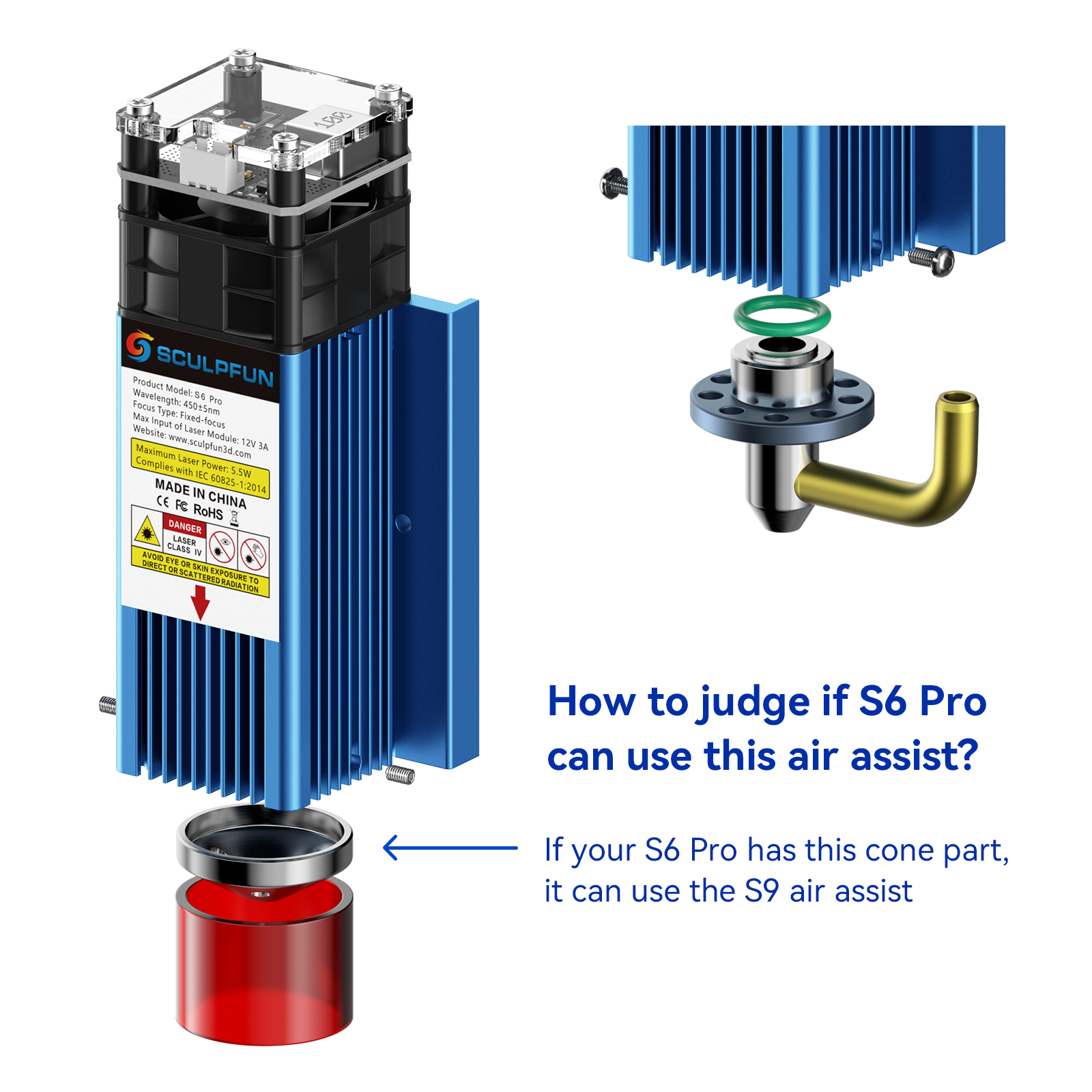

This is a standard S9 air assist nozzle designed by SCULPFUN, it is an all-metal structure and fits perfectly with the S9 laser. Installation is very simple and you only need a few minutes to install. 2. High-speed air-assist nozzle:
Like the S10 nozzle, it is a high speed air-assist nozzle with advanced fluid mechanics design. Only a 30L/min air pump can achieve a high-speed airflow of 13.5m/s. 3. Faster and cleaner cutting:
S9 air assist will greatly improve the cutting ability of the S9 laser. With air assist S9 cuts plywood and MDF boards 2-3 times faster, and cutting surfaces are cleaner and no smoky. 4. Excellent air sealing:

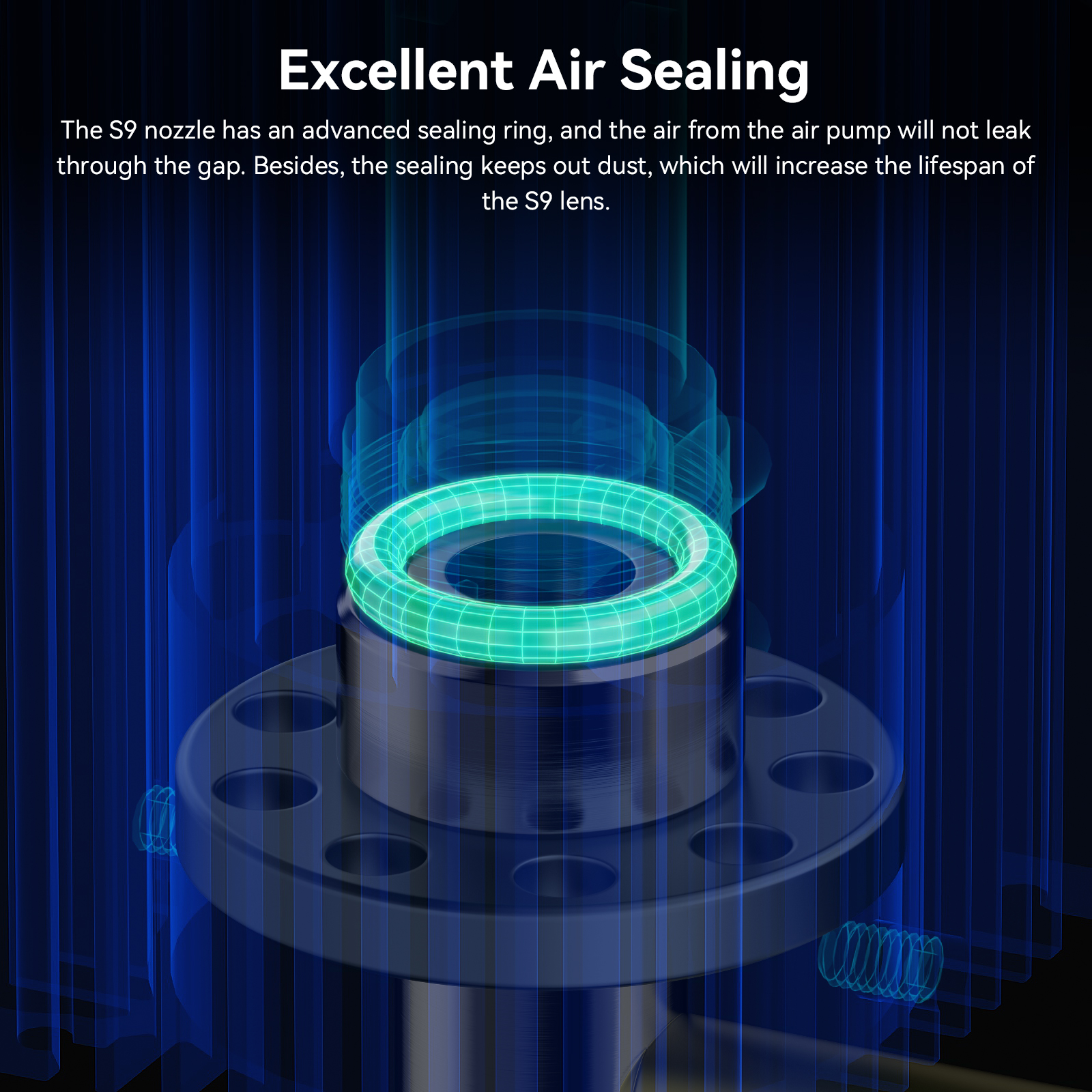

The S9 nozzle has a sealing ring, and the air of the air pump will not leak from the gap. In addition, the sealing keeps out dust, which will increase the lifespan of the S9 lens. 5. Complete accessories for air assist upgrade:
The product includes SCULPFUN 30L/min silent air pump, S9 air assist nozzle, air pipe, sealing ring and other installation accessories you need. You don’t need to buy additional accessories, directly to upgrade the S9 machine.
Details Images
Production Process
Quality Control
Our Advantages

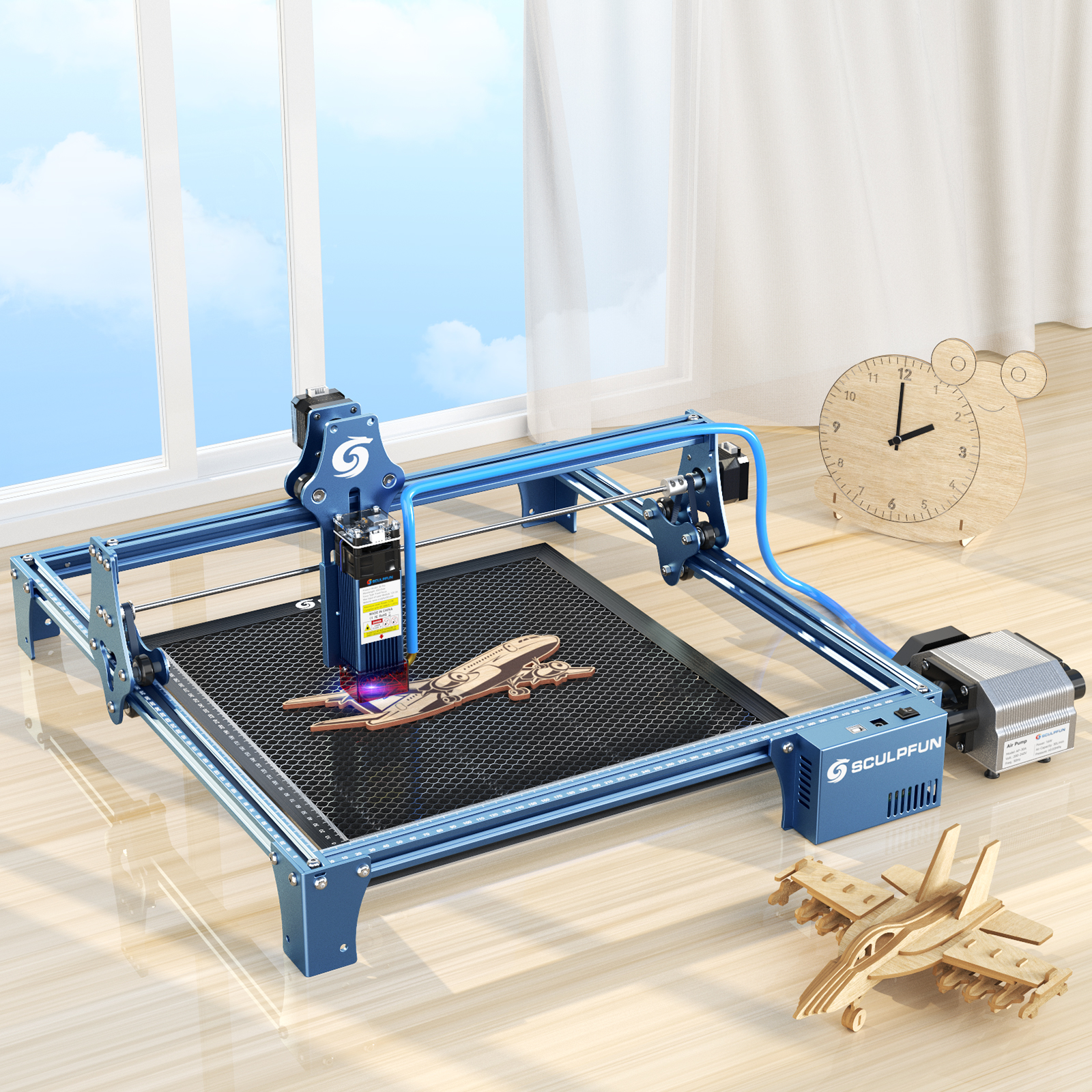

Features:
1. 90W Effect Laser Beam Shaping Technology:
S9 uses the latest 5.5W laser beam shaping technology diode laser, it has an ultra-fine 0.06mm sharp laser focus, with super cutting penetration and precision, he can cut up to 15mm thick wood, 10mm acrylic, carve ceramics and stainless steel, this is almost beyond the effect of 90W CO2 laser.
2. Fast Focusing Design:
S9 has the fastest focus design. The S9 laser combines a fixed focus lens and a sliding design. You only need to slide the laser and tighten the screws to complete the focusing. This makes it very easy to use the laser .
3. Solid and Easy-assembly Structure Design:
The full-metal structure design makes the machine extremely solid, and it improves the accuracy of engraving. The whole structure is designed for easy-assembly, and the assembly can be completed in 10-20 minutes. The structural frame is very durable and remains open to upgrade. During use, you can keep the frame and replace with other new lasers. Or replace longer metal beams to expand the engraving area.
4. New Eye Protection Design:
The laser filter cover filters 98% of the ultraviolet light to the eyes. You and the people around you can watch laser engraving without wearing goggles. At the same time it can prevent animals from catching the laser spot.
5. Wide Compatibility:
The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows system, Apple system (LightBurn), and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.
6. Safe Design:
The machine is equipped with a very convenient power switch, which is not available in others. Fixing holes are reserved on the four feet and the body structure to facilitate fixing the machine and the data cable.
7. A4 Steel Pad:
The free A4 size steel pad can protect the table from laser damage. Isolate fire hazards.
8. Square Measuring Ruler:
X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly. The 410x420mm large-area engraving interval can meet your various engraving needs.
Note:
1. For detailed machine instructions, please refer to the manual for parameter settings.
2. When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
3.Please do not touch the laser emitter with your hand, or it may burn your hand.
4.Please avoid strong impact on the machine.
5. Children under 14 are not allowed to use this product and children over 14 need adult supervision.
6.The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
2. When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
3.Please do not touch the laser emitter with your hand, or it may burn your hand.
4.Please avoid strong impact on the machine.
5. Children under 14 are not allowed to use this product and children over 14 need adult supervision.
6.The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
