Description
- Brand Name: Q-BAIHE
- Certification: NONE
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Style: Mini
- Model Number: Housing(17.5mm) Case(40*40*60mm)

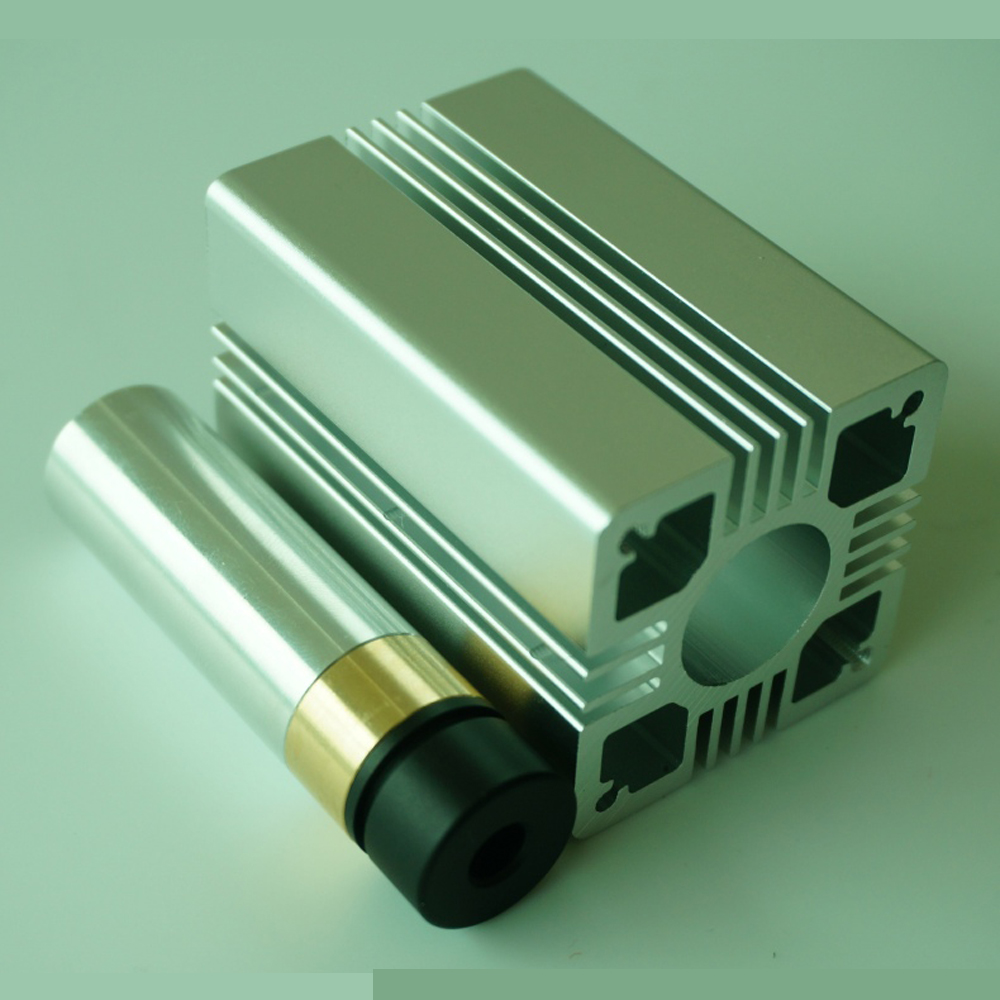

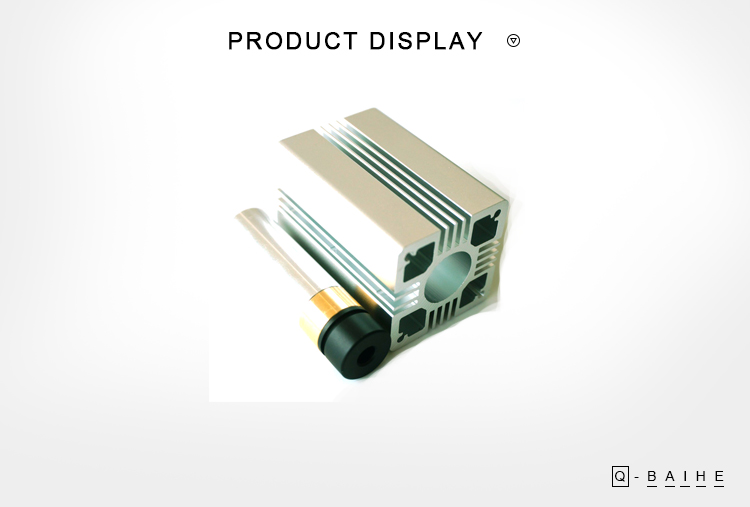

NUBM08 Red Green And Blue High-Power DIY Module Assembly 40X40mm Aluminum Radiator
|
Title： |
NUBM08 Red Green And Blue High-Power DIY Module Assembly 40X40mm Aluminum Radiator |
||
|
Specification: |

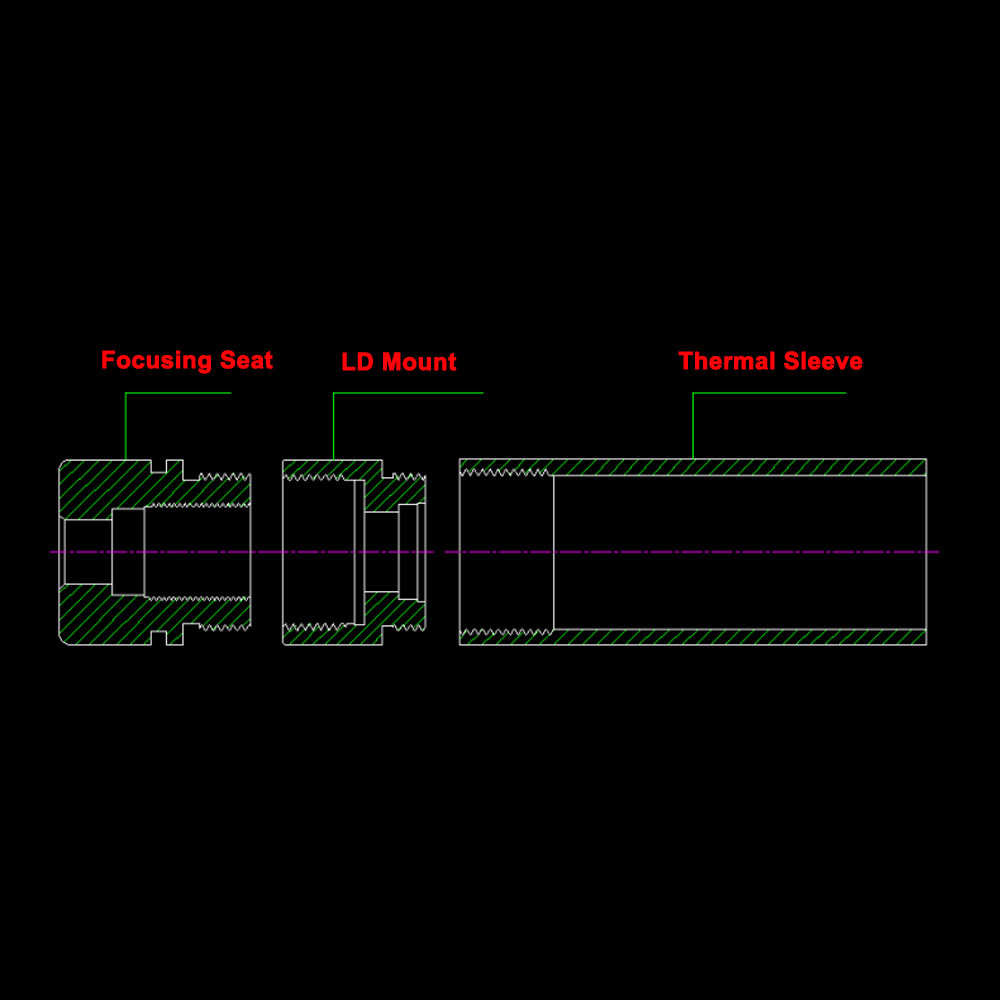

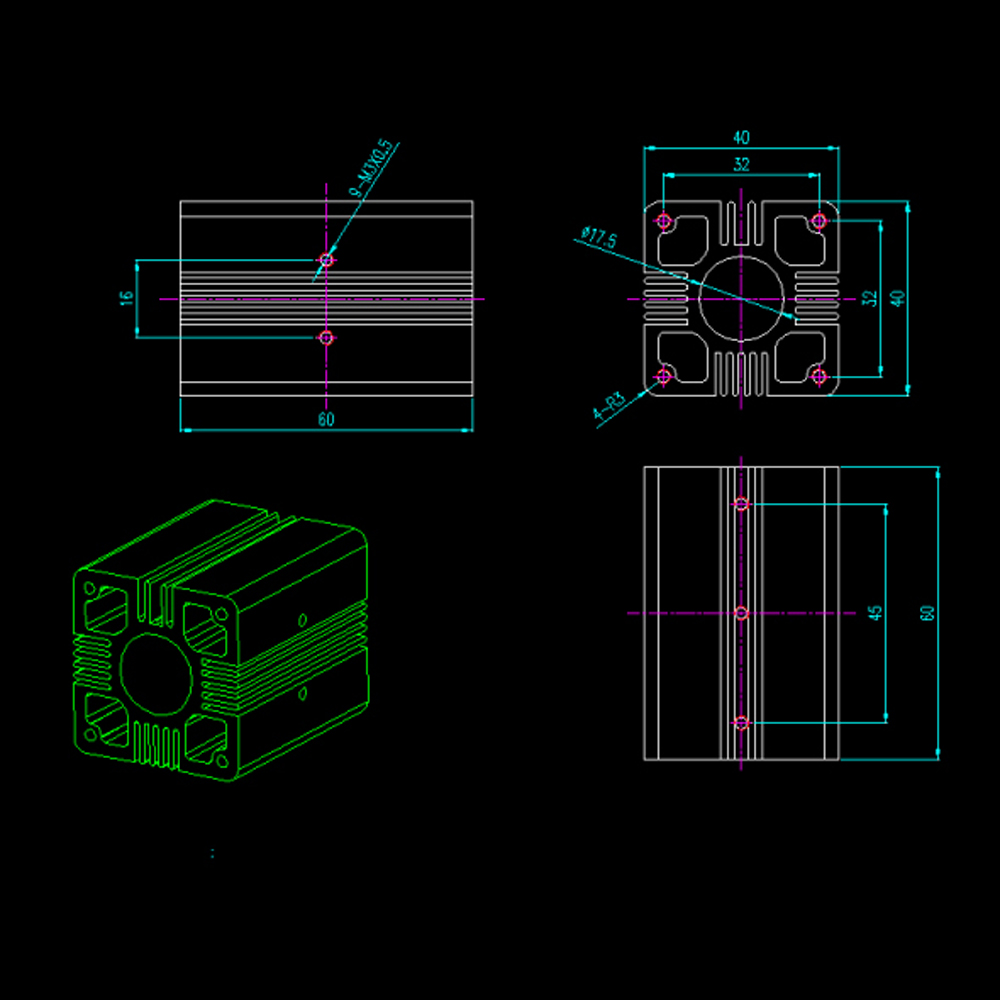

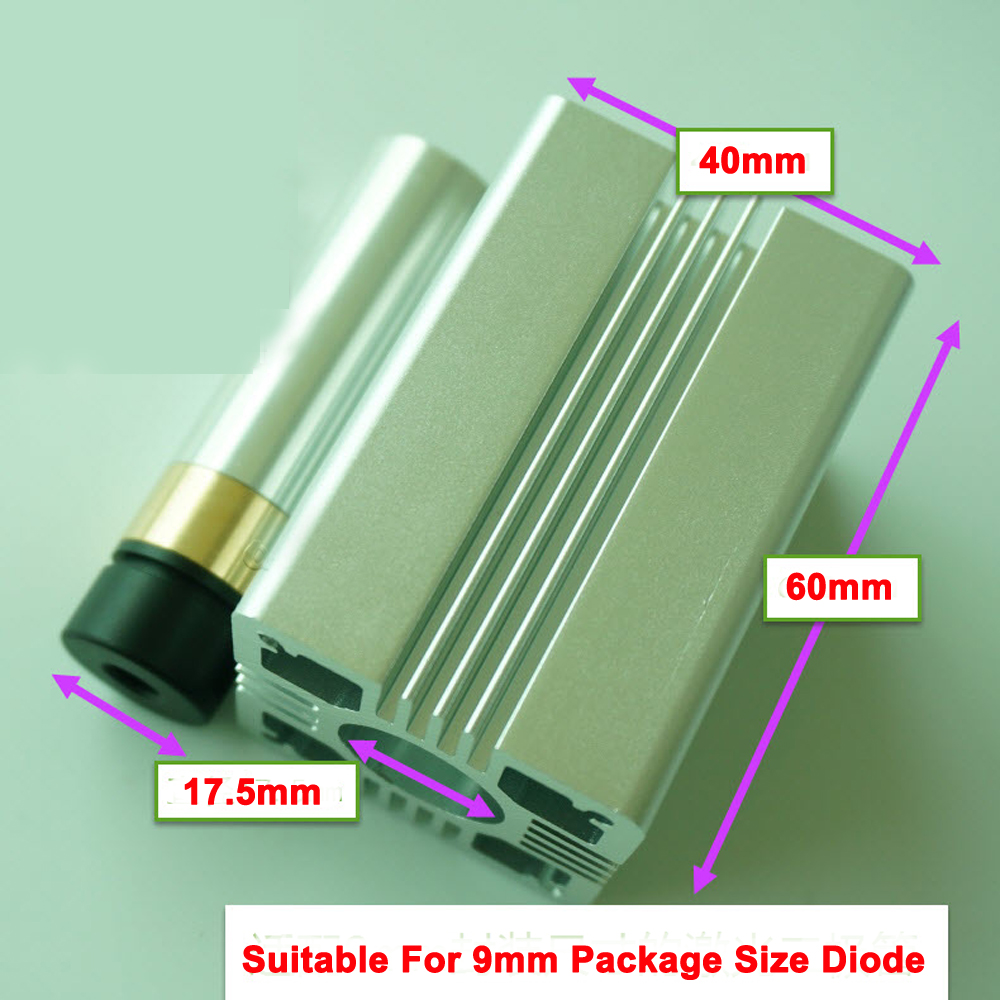

Applicable type: laser tube diode with 9mm size package Radiator size: 40*40*60mm square Module size: 17.5*65mm (diameter * length) Product material: radiator is aviation aluminum, module components are aviation aluminum + brass LD seat Structure description: LD fixing seat + lens fixing seat + lens cover + optical lens + circuit warehouse protection copper tube |
||
|
Note: |
This model is a complete set of module hardware components including optical lenses, only need to be equipped with a laser tube and a circuit board to form a complete module. |
||
|
Packing: |
1*DIY Module Assembly |
||
