Description
NEJE E40 Laser Module for CNC Wood Cutting Engraver Router DIY Logo Marking Tools, NEJE 3 Max Laser Engraving Machine
- Brand Name: NEJE
- Model Number: E40
- Focus: 0.06×0.06mm
- Optical power: CW 11W
- Available Materials of Engraving: Wood, Paperboard, Acrylic, Metal
- Available Materials of Cutting: Kraft Paper, Paper Board, etc.
RECOMMENDED REASON
NEJE E40 is a professional cutting module specially designed for long-term safety cutting processing. It is currently the strongest power and optical performance module with 2 beams. Compared with NEJE A40640, E40 is more focused on cutting stability, heavy-duty design, and easier to use air asisst, more stable output power for cutting, E40 also has good cutting efficiency, 300mm/min can cut 4mm plywood cleanly, NEJE has optimized the optical characteristics in the XY axis direction, so that the XY axis cutting is balanced and more suitable for cutting; remove it Air nozzle, E40 can also be directly used for engraving without air assistance, and the engraving ability of E40 is also very close to A40640. If most of your work is for cutting, choose E40. If most of your work is for carving, choose A40640.
Specification
Module: NEJE E40
Focus: 0.06×0.06mm
Focus method: fixed ( 3mm from the radiator )
Optical power: CW 11W+
Wavelength: 450nm
Weight: 280g
Module Size: 40x48x130 mm
Input: DC 12V 4A
Interface: 4pin PH2.0 + ( 2pin DC12v extra power )
Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 2s Max, NEJE 2s Plus, etc…
Power Control: PWM Power Modulation
Fan: Double Ball High Life Fan
Drive: NEJE Smart Quiet Drive, Built-in static elimination technology.
Surge Protection: Yes
Smart Feedback: Yes
Temperature Feedback: Yes
Temperature control: 45℃
air pump: 0.5-1.5mpa clean air
Air interface: 4mm pvc trachea
Protective window lens: Yes ( withstand 1000℃ )
Original registered brand: Yes
Warranty: 2 years

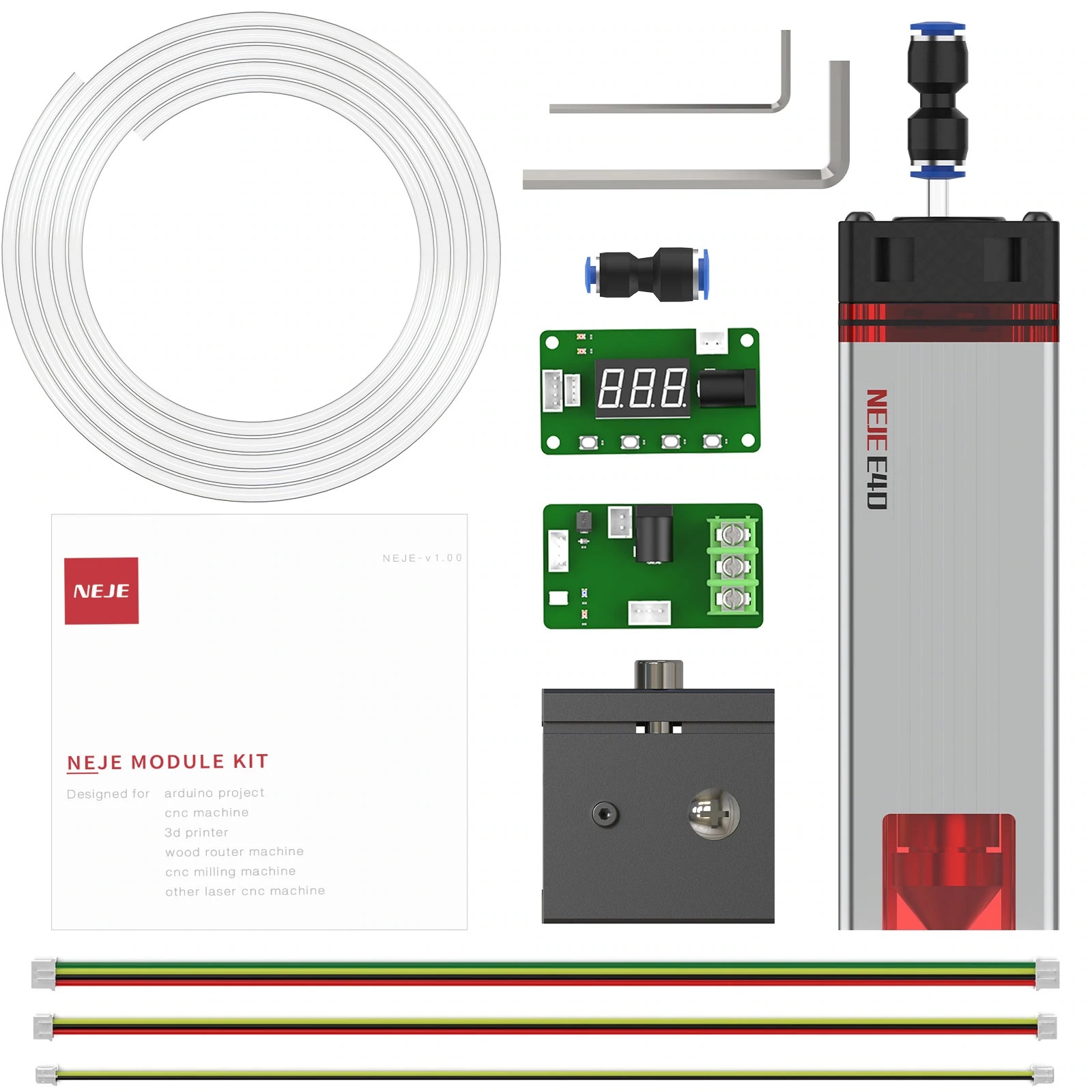

Package list:
- 1 x NEJE E40 laser module ( Built-in high pressure air nozzle )
- 1 x Laser module height adjuster
- 1 x 4 pin cable(30cm)
- 1 x 2pin yellow and black signal line + 3pin input line
- 1 x NEJE digital pwm temperature test / switch / interface adapter board
- 1 x NEJE test / switch / interface adapter board
- 1 x 2.5mm L-shaped wrench
- 1 x 5mm L-shaped wrench
- 1 x Tube (4mm x 2m)
- 1 x connector ( M8 to M4 )
