NEJE 6000MW Laser head 12V Laser module Modulation For DIY CNC Laser engraver

$70.18

NEJE 6000MW Laser head 12V Laser module Modulation For DIY CNC Laser engraver Main applications: deep engraving, drawing, simple cutting, etc. Interface specification: 4pin PH2.0 (red: 12V, black: GND, yellow: PWM, green: temperature signal) Radiator size: 30*60mm Wavelength: 450nm Material: copper + aluminum Weight: 128g Drive position: built-in Is the power adjustable: PWM can be…

Model Number

Clear

SKU: 3470193018651

Category: Uncategorized

Description

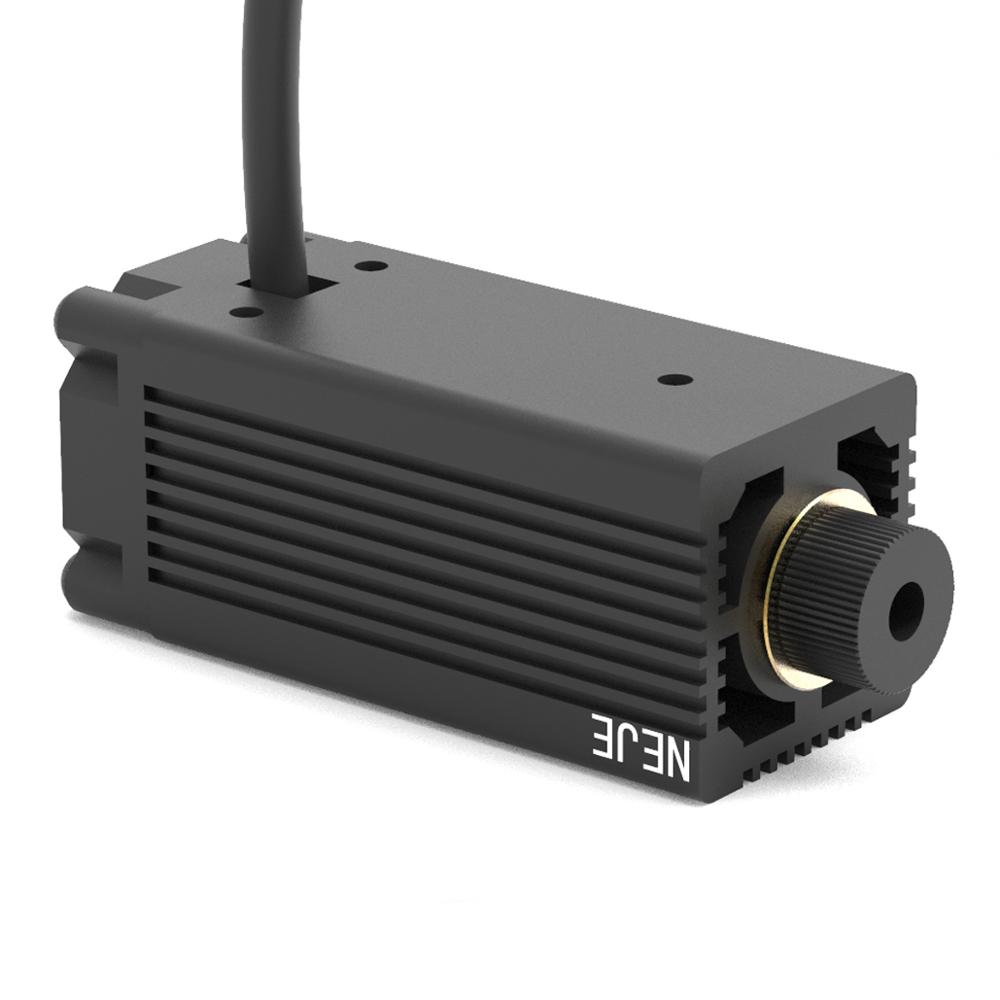

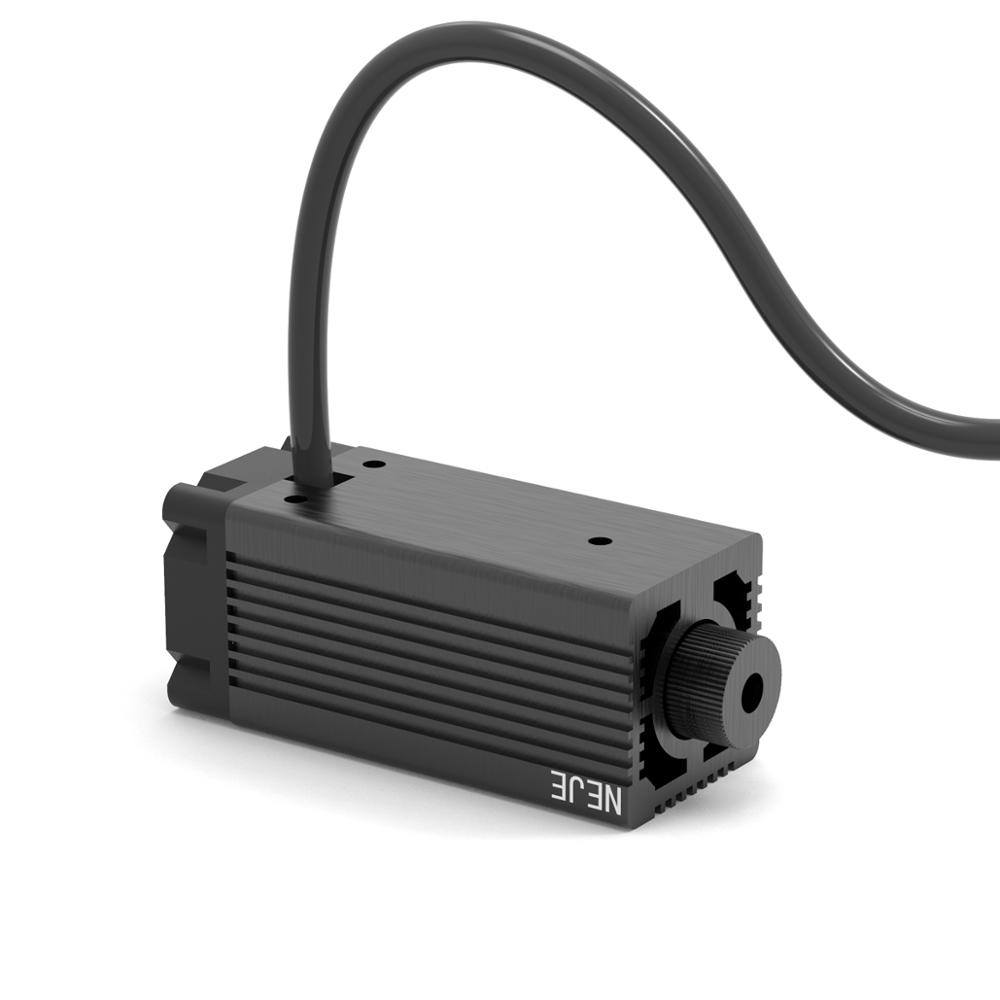

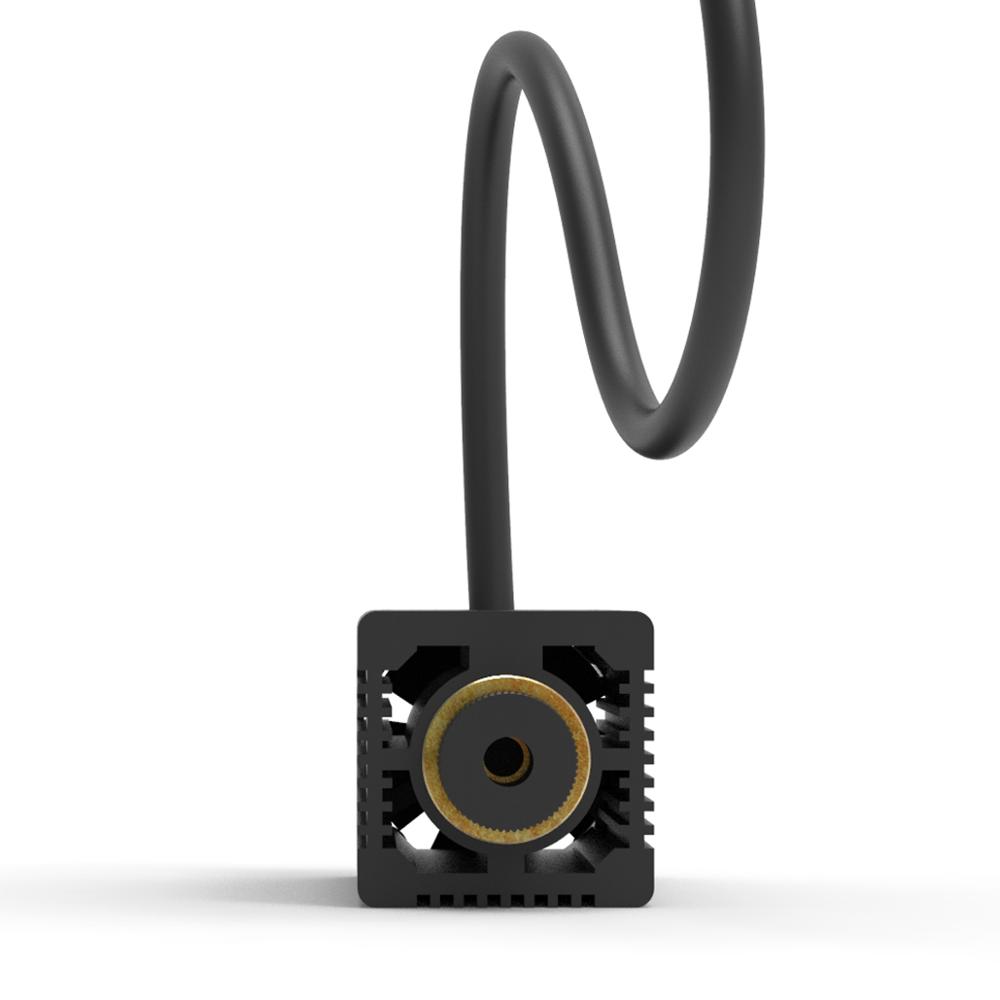

NEJE 6000MW Laser head 12V Laser module Modulation For DIY CNC Laser engraver

fetch (1).jpg fetch (2).jpg fetch (3).jpg fetch (4).jpg fetch (5).jpg fetch (6).jpg

Main applications: deep engraving, drawing, simple cutting, etc.

Interface specification: 4pin PH2.0 (red: 12V, black: GND, yellow: PWM, green:

temperature signal)

Radiator size: 30*60mm

Wavelength: 450nm

Material: copper + aluminum

Weight: 128g

Drive position: built-in

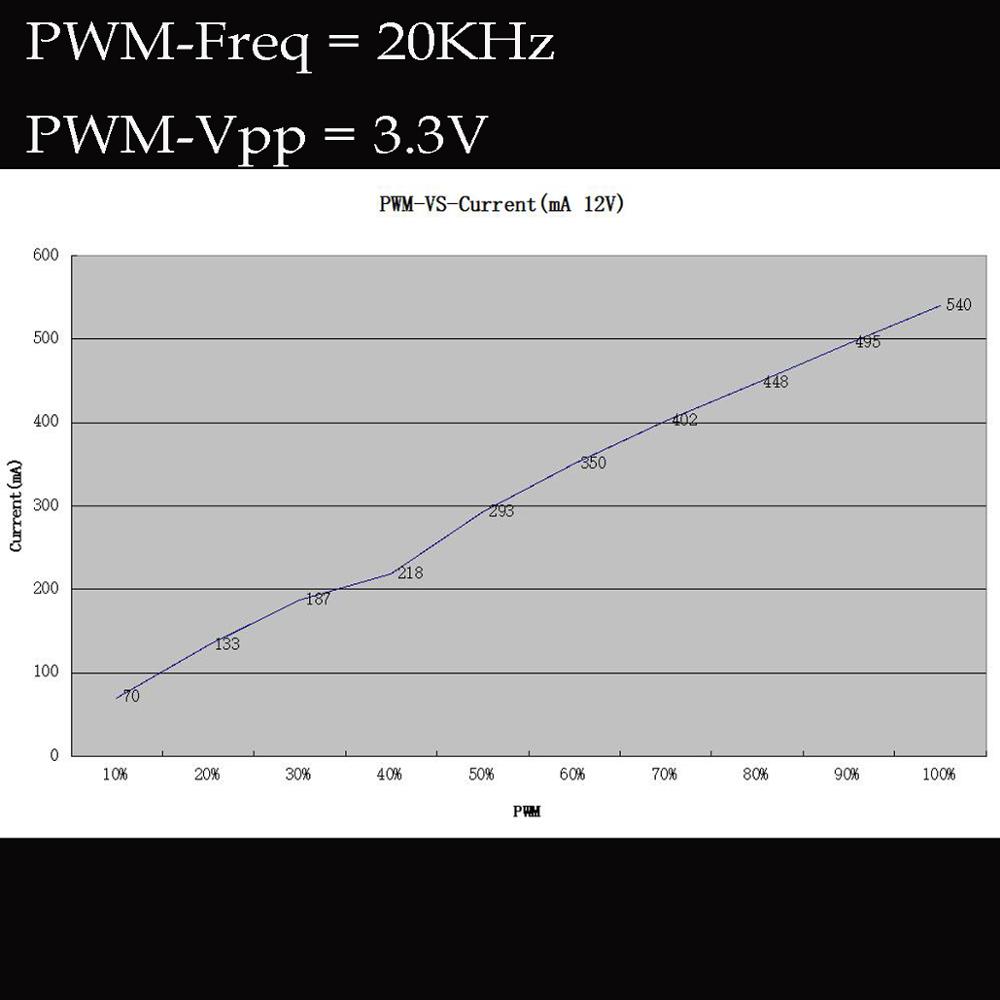

Is the power adjustable: PWM can be adjusted

Drive protection: surge protection, overvoltage protection

Input power: approx. 12V550ma (without fan power)

Line length: 300mm

Line length material: sports silicone

Control line installation method: integrated

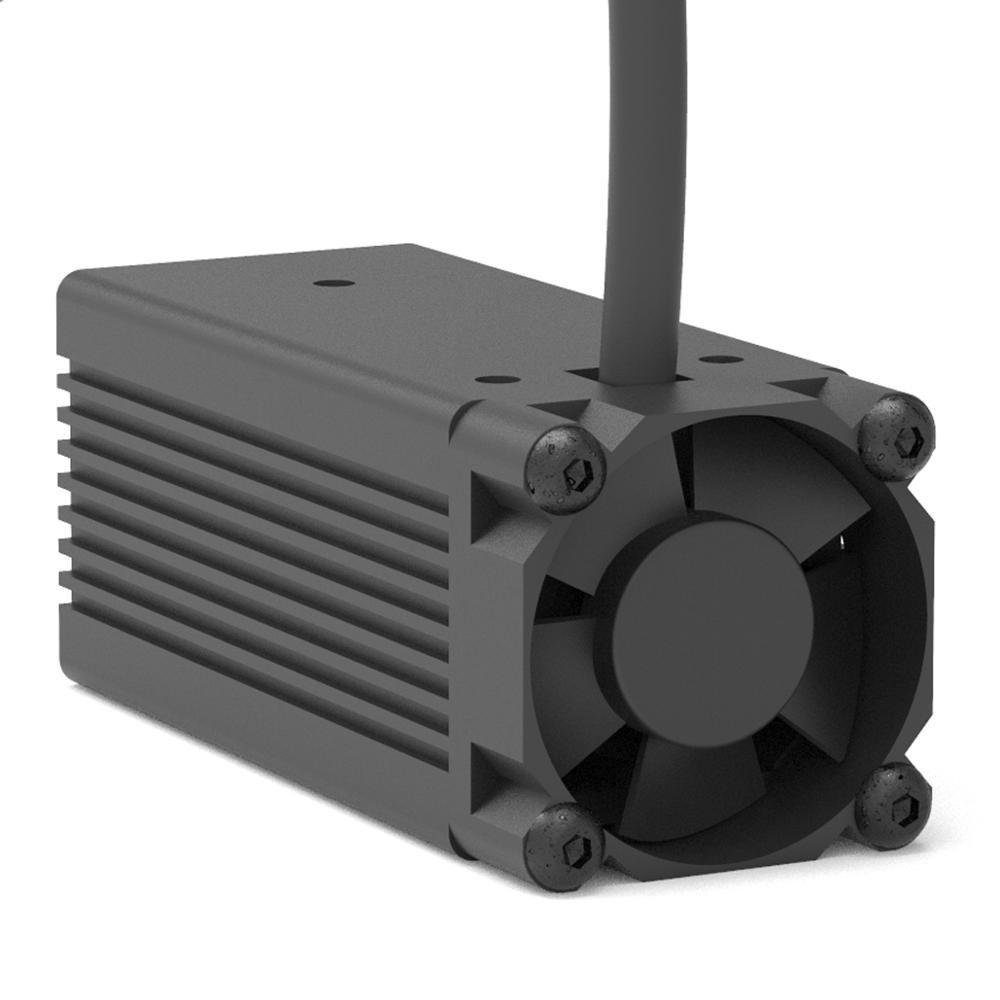

Fan size: 30*10mm

Fan speed: 10,000 rpm

Controllable temperature: less than 60 degrees Celsius

Focus range: 10-100mm (best focus: 50mm from the light exit)

Safety Warning: Please apply this module under the premise of safety protection!

Recommended application machine: NEJE Master

packing list:

1 x module

2 x screw

2 x gasket

Additional information

Model Number	NEJE master 6000mW laser module
