NCSU276A (T) U365nm 3w Nichia NICHIA3535 package

$19.00

Category:

Description

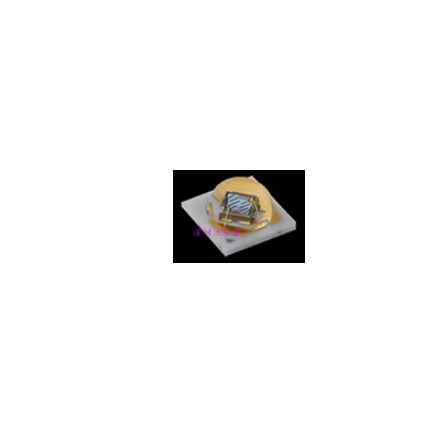

NCSU276A (T) U365nm 3w Nichia NICHIA3535 package

Nichia NCSU276A U365nm

Voltage: 3.8V

Electric power: 3W

Current: 700mA

Optical power: 780mW

Peak wavelength: 365nm

Package size: 3.5 * 3.5 * 0.4mm

Lens material: silicone resin

Features:

1. Cold light source, no thermal radiation, suitable for bonding thermosensitive materials

2. Turn it on and off immediately, without preheating, and the irradiation intensity can reach 500mw/cm– Above 12000mw/c ㎡

3. The compact appearance allows the equipment to be easily integrated into fully automated production lines and equipment

4. UV LED has no infrared radiation and no harmful gas generation, and meets ROHS standards. Compared to traditional mercury lamps, it is safer and more environmentally friendly

5. With a lifespan of over 20000 hours, it can significantly reduce operating costs and maintenance hours

6. The connecting wire is a bending resistant cable, which can be installed freely on the movable part to meet the needs of repeated movement
