Description
- Brand Name: HJZ Laser
- Origin: CN(Origin)
- Certification: CE
- Certification: ce
- Model Number: RFL-P20MX RFL-P30MX
Product Description

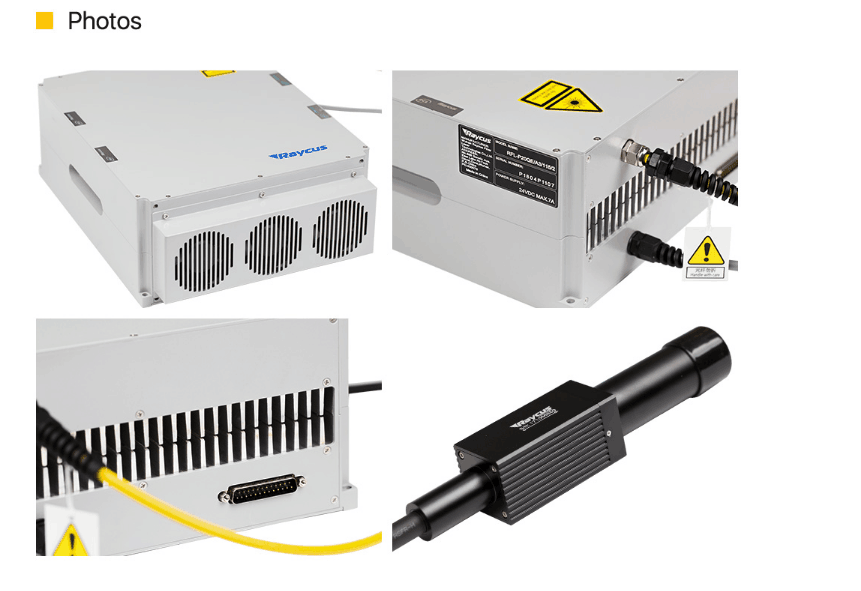

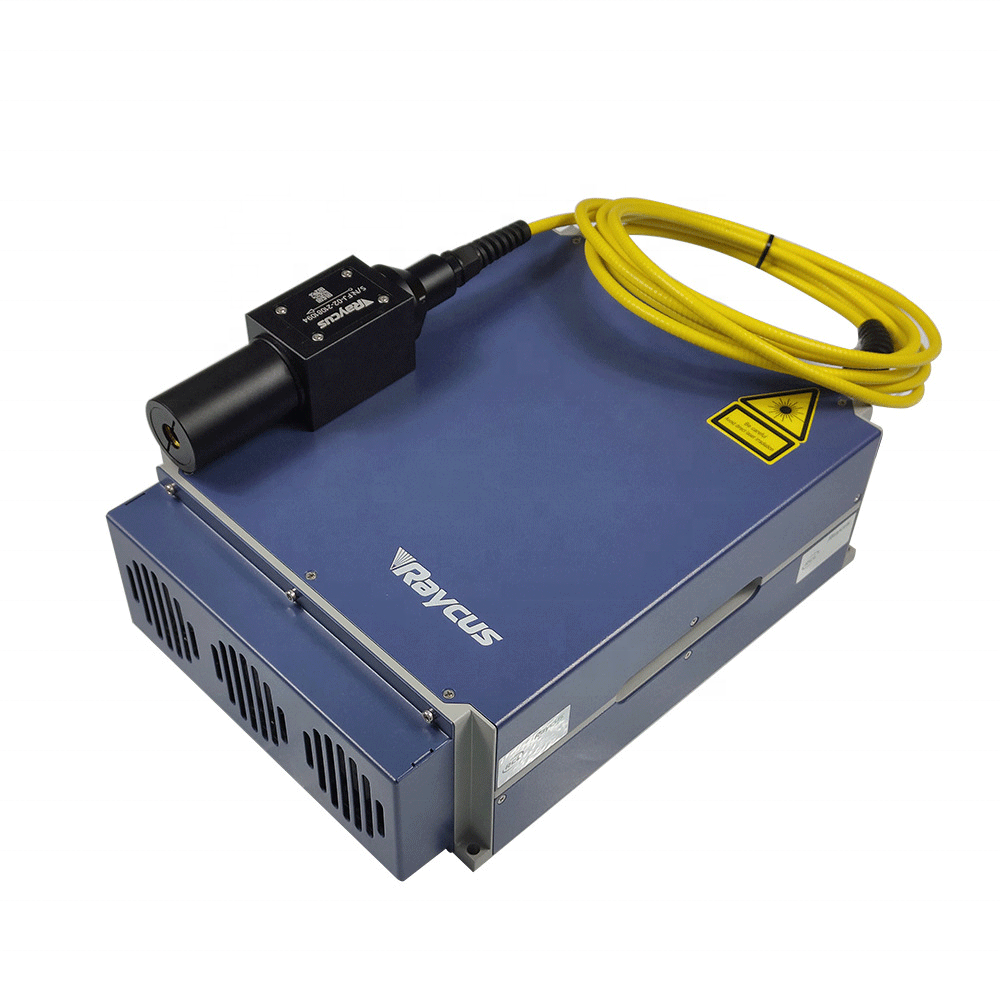

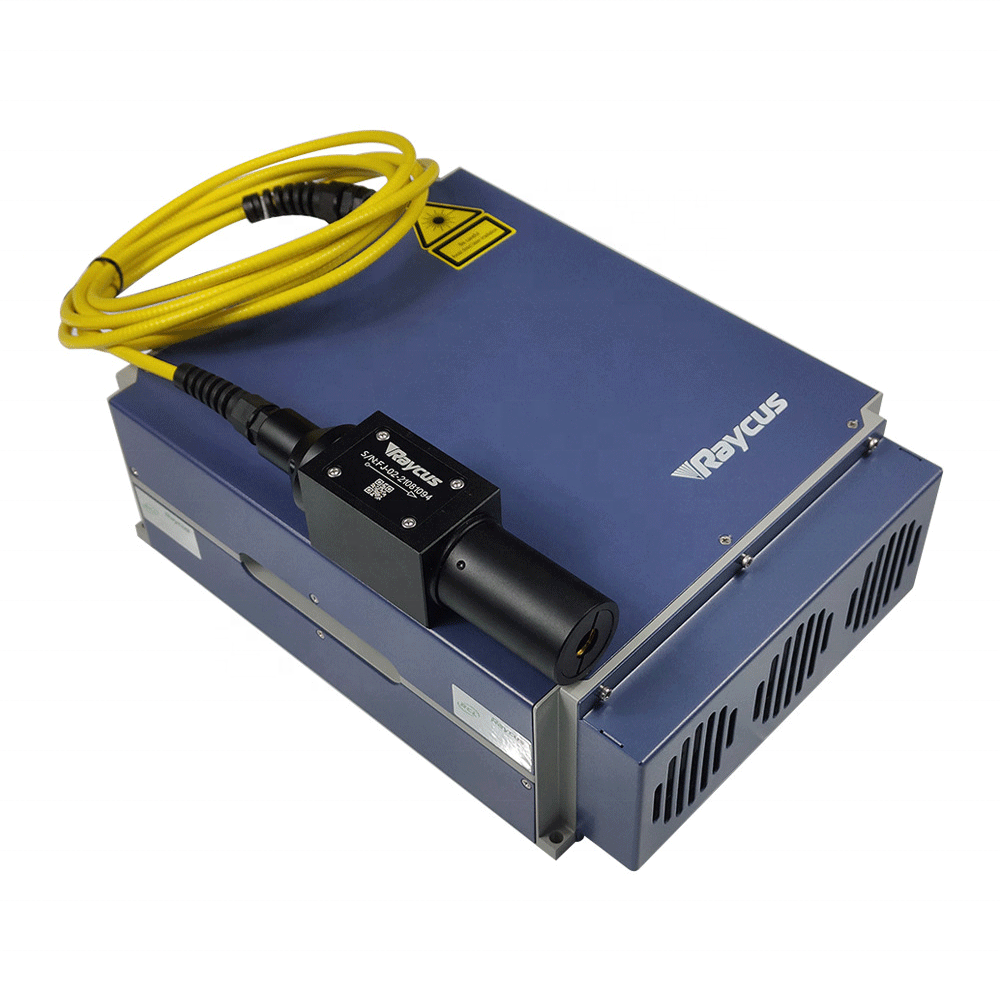

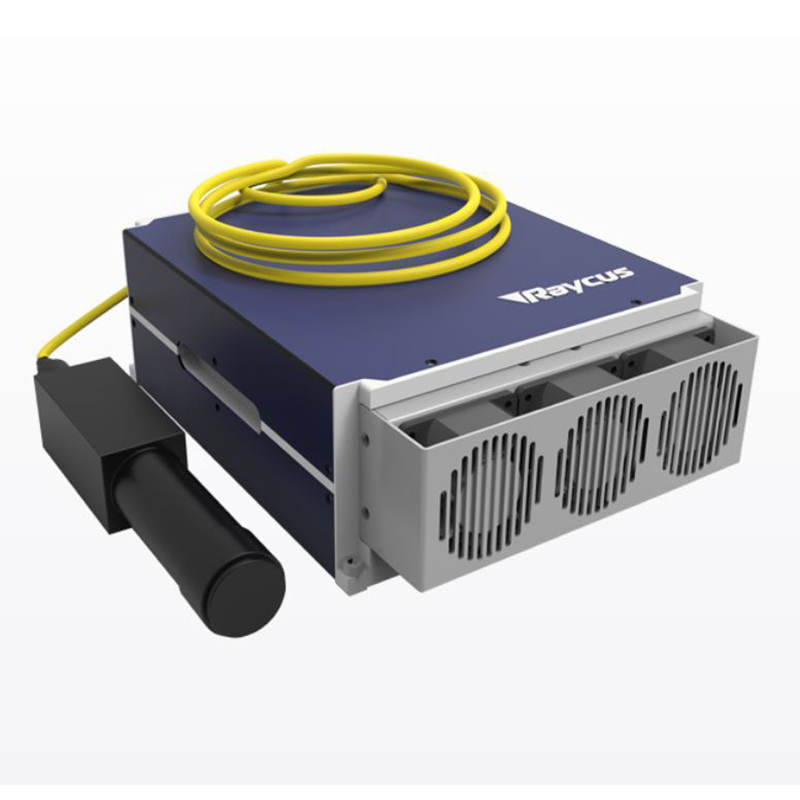

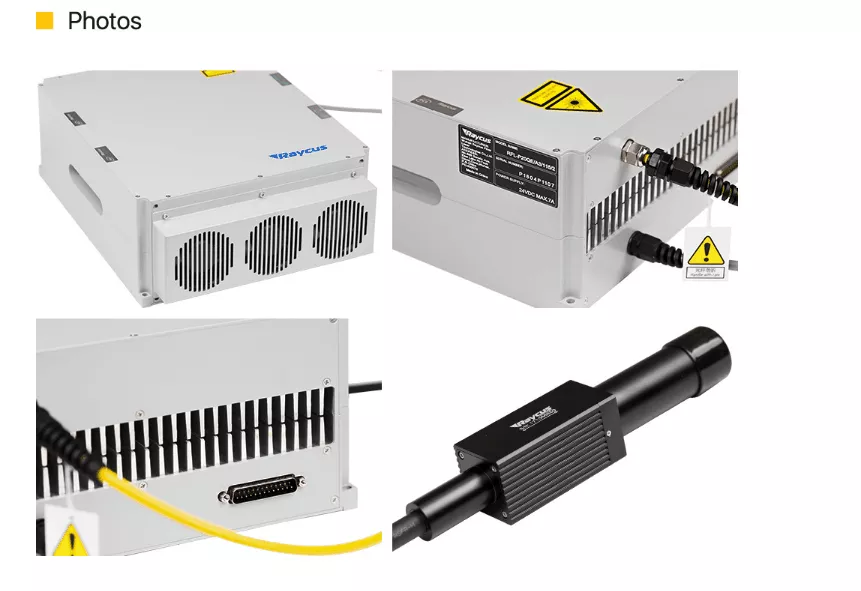

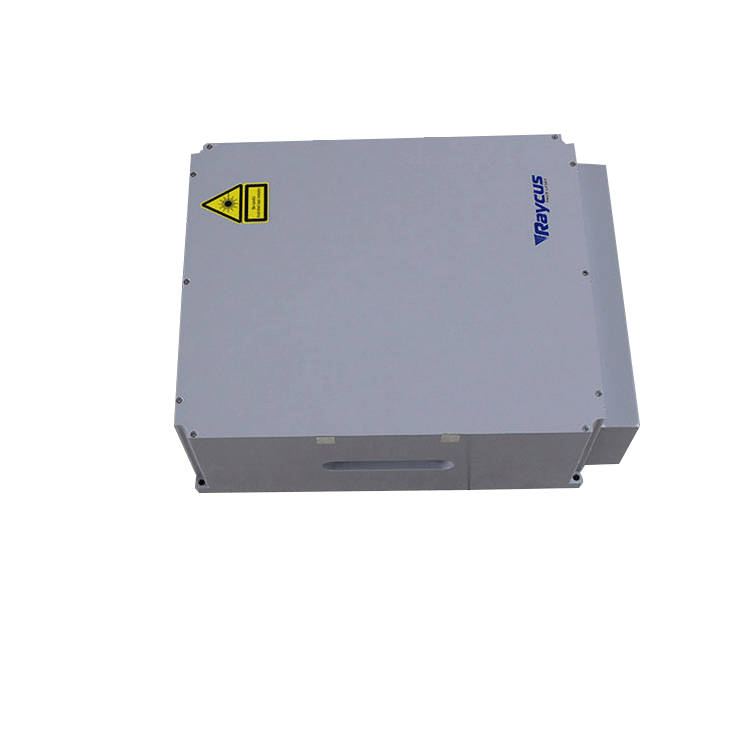

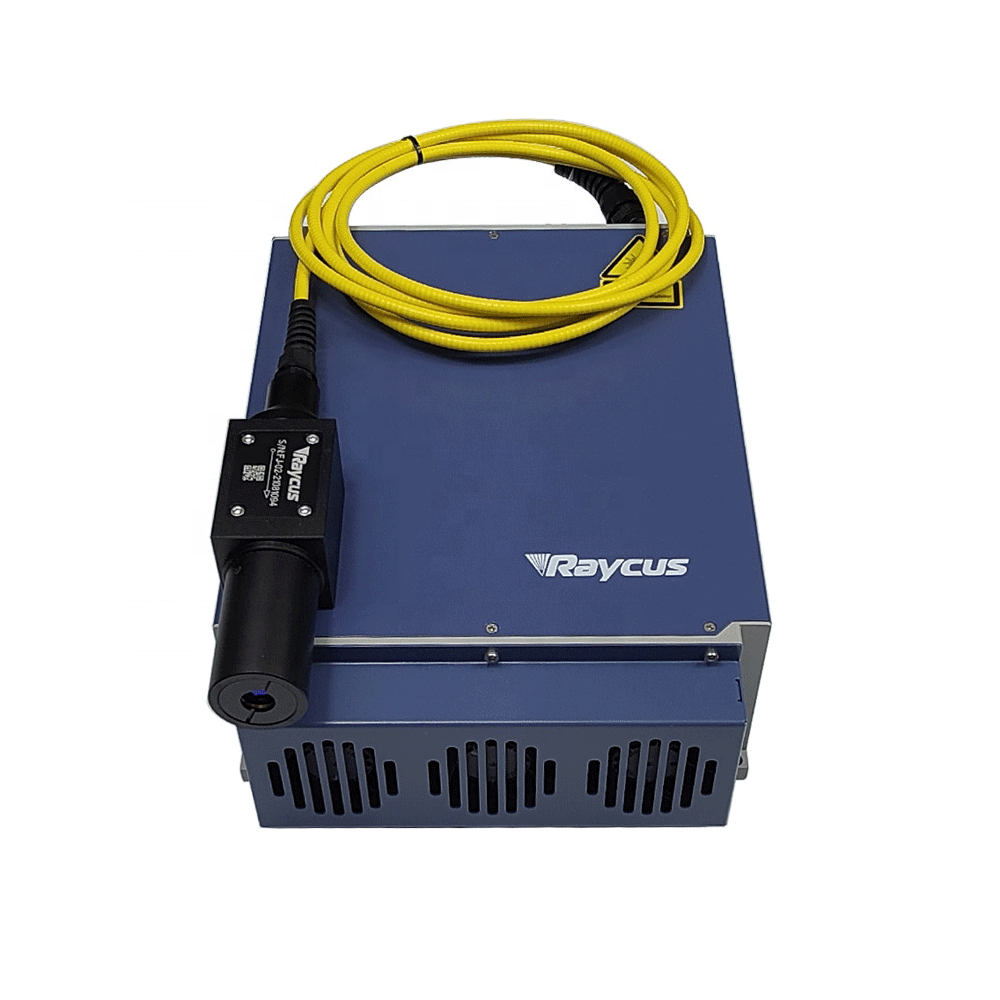

MOPA pulsed fiber laser
MOPA pulsed fiber laser with high average power (20W-200W), high
peak power (≤15kW), 2-500ns pulse width optional, 1-2000kHz
adjustable repetition frequency, first pulse available, continuous mode
optional ,
The pulse width can be modified
online and
other features. Its industrial applications include solar photovoltaic field,
thin film cutting, thin sheet material cutting, welding, material surface
cleaning, fine marking, and material deepening..
Product Paramenters
|
Models |
RFL-P20MX |
RFL-P30MX |
RFL-P100M |
RFL-P200S |
|
Rated output power: (W) |
20 |
30 |
100 |
200 |
|
Center wavelength: (nm) |
1064±5 |
1064±5 |
1064±5 |
1064±5 |
|
Output spot diameter (mm) |
7±1 |
7±1 |
6.5±1 |
5.5-8 |
|
Beam quality M² |
＜1.5 |
＜1.5 |
＜1.6 |
＜1.6 |
|
Output fiber length (m) |
3 (can |
3 (can be customized) |
3 (can be customized) |
3 (can be customized) |
|
Input power (VAC) |
24 |
24 |
24 |
24 |
|
Power adjustment range (%) |
0-100 |
0-100 |
0-100 |
0-100 |
|
Power consumption (W) |
170 |
280 |
500 |
1000 |
|
Dimensions (mm) |
286×215×95 |
286×215×95 |
360×390×123 |
400×460×121 |
|
cooling method |
Air-cooled |
Air-cooled |
Air-cooled |
Air-cooled |
