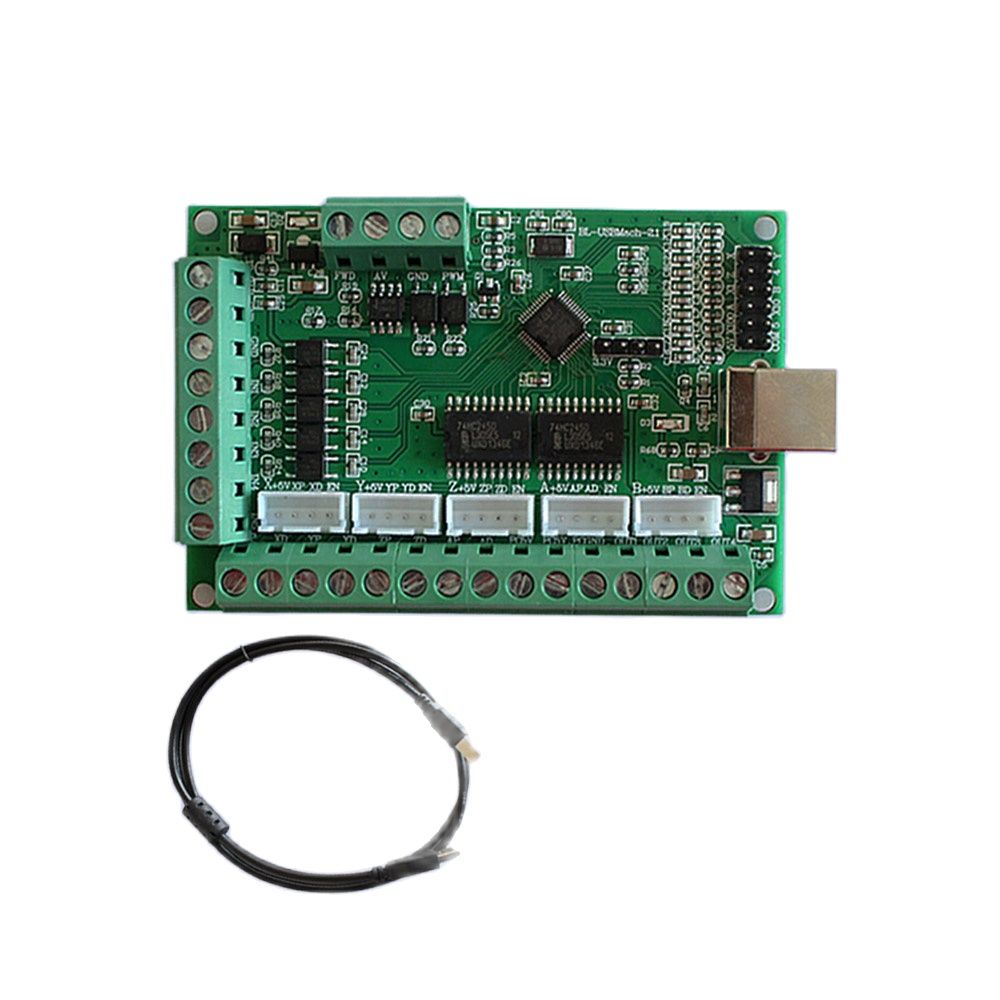

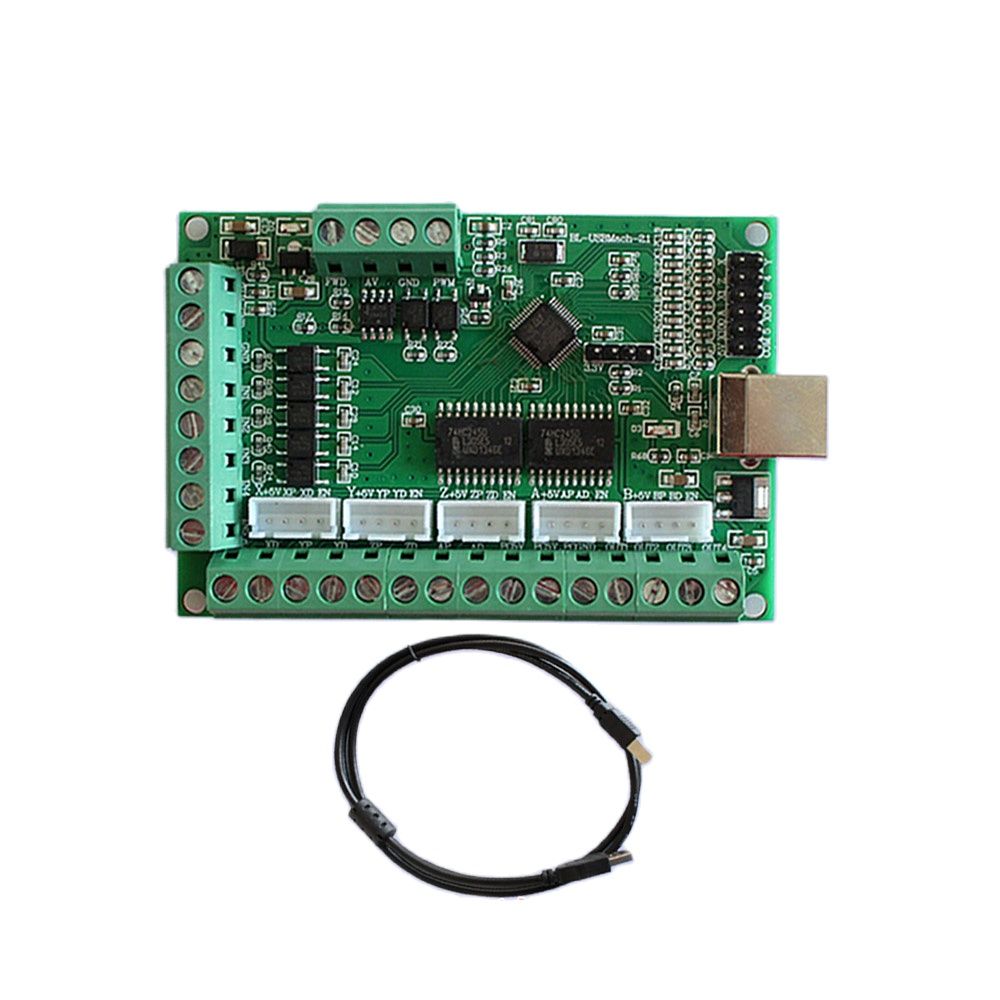

MACH3 V2.1 Five-axis Engraving Machine Motherboard Stepper Motor Drive Interface Board Cnc Motion Control Card 5 Axis

$29.00

SKU: 1005003627742849 Category:

Description

  • Origin: CN(Origin)
modname=ckeditor


Type 1: 5-axis board

Type 2: 5-axis board + 1 USB cable

Type 3: 5-axis board + 1 USB cable + CD

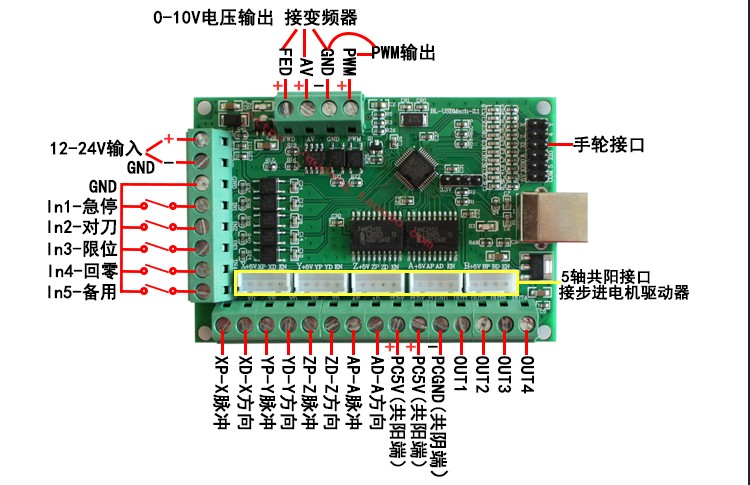

Features:

1. Fully supports MACH3 software.

2. Supports windows XP, WIN7, WIN8, WIN10, supports tablet computers, and supports 64-bit systems.

3. External wide voltage input, 12-24V, and anti-reverse connection function.

4. All input signals are isolated by optical coupling, which can be connected to emergency stop, tool setting, limit, return to zero, etc., to ensure computer safety.

5. It provides 0-10V analog voltage output isolated by optocoupler, and can control the frequency converter input by 0-10V analog voltage to control the spindle speed.

6. Provide PWM output (5V level) isolated by optocoupler to control other PWM controlled spindle speed controllers.

7. Provide 4 output ports (5V level), which can be connected to a relay module with optocoupler to control water cooling, spray, etc.

8. It can be connected to a stepping motor driver with a common anode or common cathode input, a level of 5V, and an optocoupler input.

9. At the same time, a 5-axis interface cable socket (HX2.54) is provided, which is convenient for connecting the stepper motor driver.
