Description
- Brand Name: MLHJ
- Origin: CN(Origin)
- Certification: CE
- Model Number: MC30-350N
- Type: Ultrasonic Proximity Sensor
- Place of Origin: Guangdong, China
- Brand Name: AKUSENSE
- Usage: Position Sensor
- Output: Analog Output Switch Output
- Description: Ultrasonic Sensor
- Certificate: CE
- Repeated Accuracy: 1%
- Protection Degree: IP67
- Storage Temperature: -35~ 70 celsius(No freezing is allowed)
- Linear error: 1%
- Beam Angle: ±7°
- Switching Frequency: 2Hz
- Response Time: 250ms
- Face Material: Epoxy Resin
- Sensivity Adjustment: Teach-in Button

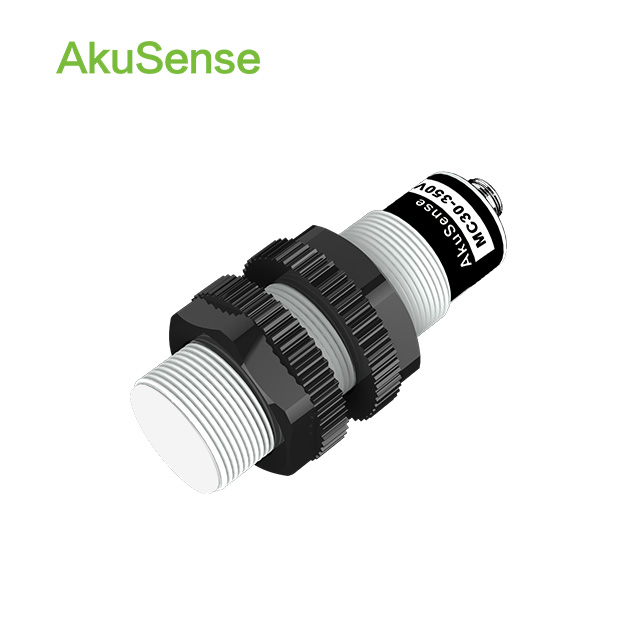

(M30 series)0-10V DC IP67 Analog Output Ultrasonic Proximity Sensor
Ultrasonic Sensors cylindrical M18 Short-body series
1,Selectable M18 and M30.
2,Sensing distance varies from 40 to 6000mm.
3,Various output type from NPN/PNP/Analog voltage/Analog current to choose.
Product Description

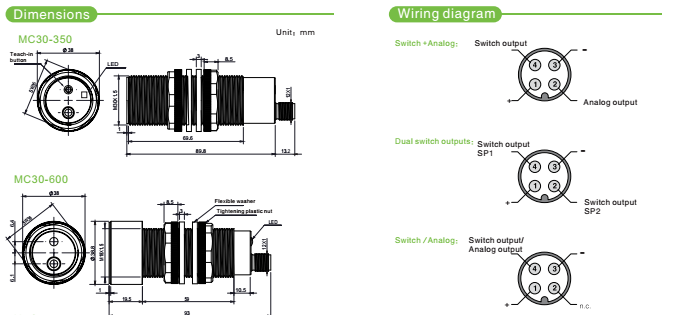

Specification
| Output Type |
Model No. |
| NPN+Current | MC30-350NI |
| NPN+Voltage | MC30-350NV |
|
PNP+Current |
MC30-350PI |
|
PNP+Voltage |
MC30-350PV |
| Operating Range |
250~3500mm |
| Operating voltage | 12~30VDC |
| Analog Voltage Output |
15~30VDC(±5%) |
| Repeated Accuracy |
1% |
| Linear Error |
1% |
| Switching Frequency |
2Hz |
| Comsumption Current |
≤50mA |
| Max Over-load Current |
100mA |
| Leakage Current |
≤10μA@30V DC |
| Min Over-load Resistance |
3 kΩ |
| Beam Angle | ±7% |
| Switch Hysteresis |
2mm |
| Operating Temperature | -20~+70°c |
| Response Time |
250ms |
| Protection Degree |
IP67 |
| Residual Voltage |
2.2V Max.(1L=100mA) |
| Body Material |
PBT |
| Face Material |
Epoxy Resin |
| Protection circuit | Reverse polarity ,short circuit , Over Current Pulses protection |
| Sensitivity Ajustment |
Teach-in button |
| Weight |
104g |
Related products
Main applications
Packaging & Shipping
1.Packing
1).Neutral packing:plastic bag for goods+inner box bubble+inner box+carton.
2).Upon customers’ require,but the price is different with neutal packing.
2.Shipping
Products are shipped from china. We will sent out within 15 working days after the payment.We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually akes 3–5 working days to reach your side which depend on the country delivery to.
