Description
- Brand Name: MLHJ
- Origin: CN(Origin)
- DIY Supplies: ELECTRICAL
- Certification: CE
- Model Number: LGUB1000-18GM55A-I-V15

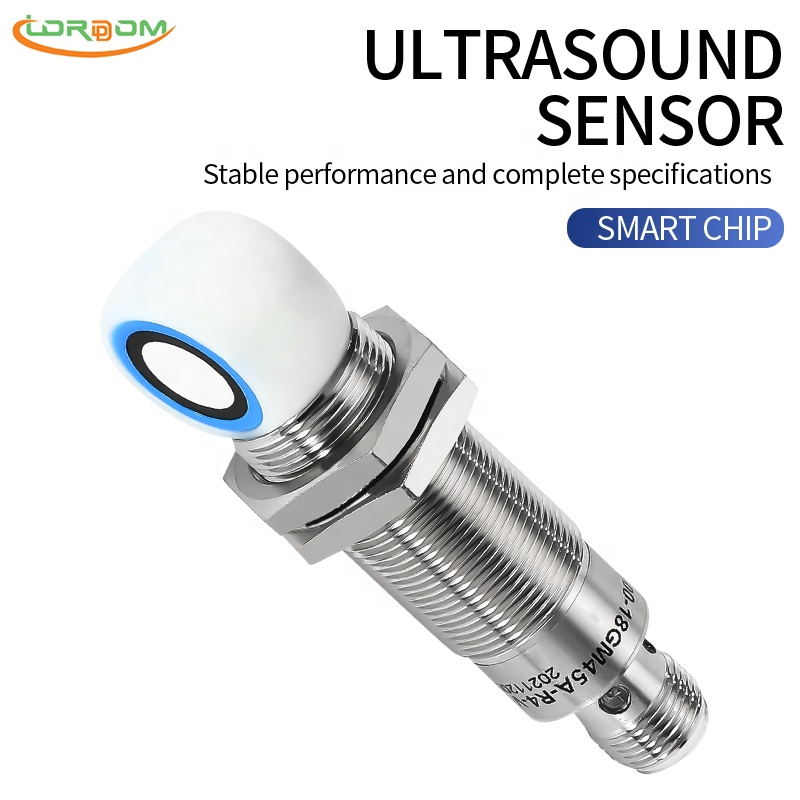

- Type: Ultrasonic Sensor
- Place of Origin: Zhejiang, China
- Brand Name: LORDDOM
- Usage: Ultrasonic Sensor
- Theory: Distance Measuring Sensor
- Output: NPN/PNP/0-10V/4-20mA/RS485
- Description: Ultrasonic Sensor
- Product name: Ultraconis Sensor

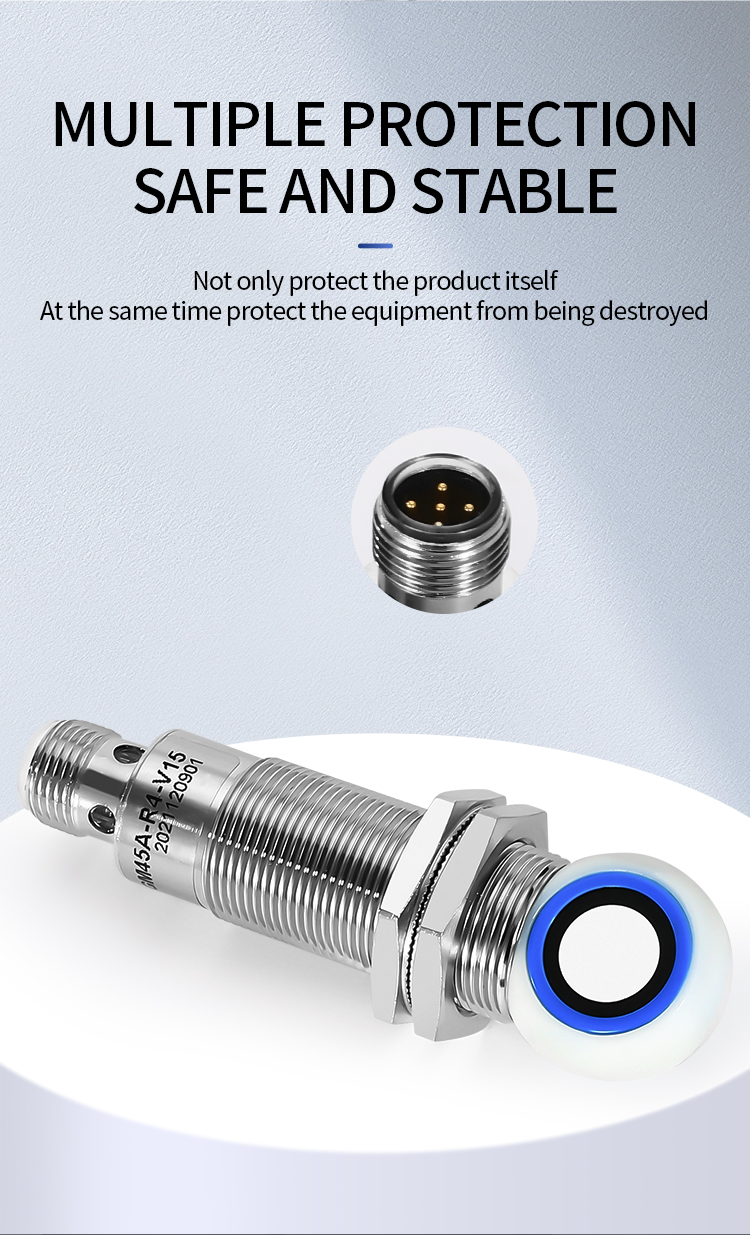

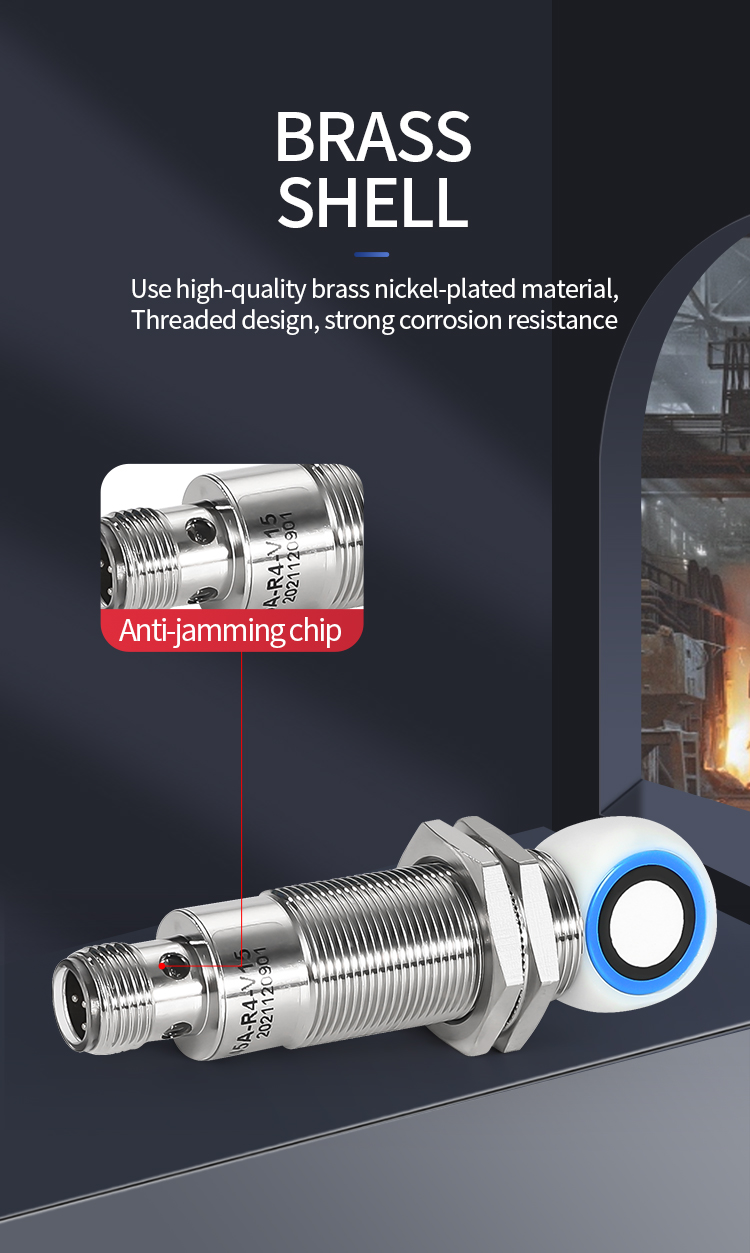

- Material: Nickel-plated
- Supply Voltage: 10-30 VDC
- Frequency: 20Hz
- Output mode: RS-485/NPN/PNP/0-10V/4-20mA
- Warranty: 1 Year
- Measuring range: 60-1000mm
- Size: M18*60mm

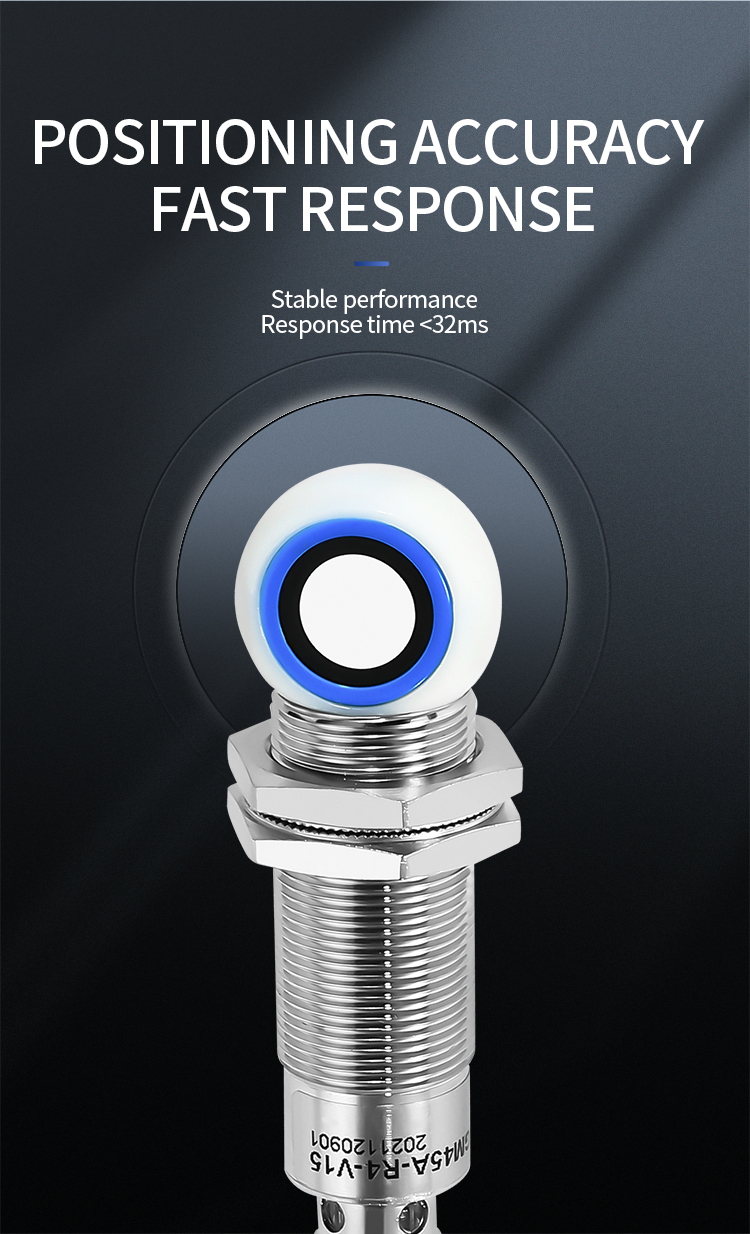

- Response Time: 52ms
- Weight: 100g
#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{width:320px}#detail_decorate_root .magic-2{overflow:hidden;width:320px;height:212px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:246px;height:246px}#detail_decorate_root .magic-4{overflow:hidden;width:320px;height:212px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-5{overflow:hidden;width:426px;height:426px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-6{margin-top:0;margin-left:0;width:428px;height:428px}#detail_decorate_root .magic-7{vertical-align:top}#detail_decorate_root .magic-8{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-9{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-10{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-11{overflow:hidden;width:750px;height:1385px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:750px;height:1385px}#detail_decorate_root .magic-13{width:750px;border-collapse:collapse}#detail_decorate_root .magic-14{min-height:28px;padding:5px 10px;width:171px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:74px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:28px;padding:5px 10px;width:49px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:28px;padding:5px 10px;width:169px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-18{color:#333;font-family:Roboto,Helvetica,Arial,sans-serif,宋体;font-size:14px;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;font-weight:400;letter-spacing:normal;orphans:2;text-align:start;text-indent:0;text-transform:none;white-space:normal;widows:2;word-spacing:0;-webkit-text-stroke-width:0;background-color:#f3f4f8;text-decoration-thickness:initial;text-decoration-style:initial;text-decoration-color:initial;display:inline !important;float:none}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:67px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:28px;padding:5px 10px;width:66px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:28px;padding:5px 10px;width:172px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:28px;padding:5px 10px;width:73px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:28px;padding:5px 10px;width:168px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-24{min-height:28px;padding:5px 10px;width:68px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:28px;padding:5px 10px;width:173px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-26{min-height:28px;padding:5px 10px;width:72px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-27{min-height:28px;padding:5px 10px;width:180px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:28px;padding:5px 10px;width:75px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:28px;padding:5px 10px;width:50px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-30{min-height:28px;padding:5px 10px;width:153px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-31{min-height:28px;padding:5px 10px;width:78px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-32{min-height:28px;padding:5px 10px;width:60px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-33{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-34{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:1440px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:750px;height:1440px}#detail_decorate_root .magic-37{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-38{margin-bottom:0}#detail_decorate_root .magic-39{position:relative;width:100%}#detail_decorate_root .magic-40{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-41{padding:0;margin:0}#detail_decorate_root .magic-42{padding:0;margin:0;color:#333;font-size:14px;line-height:20px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-43{white-space:pre-wrap;font-size:14px}
In industrial applications, ultrasonic sensors are characterized by their reliability and outstanding versatility. Ultrasonic
sensors can be used to solve even the most complex tasks involving object detection or level measurement with millimetre precision
, because their measuring method works reliably under almost all conditions.
sensors can be used to solve even the most complex tasks involving object detection or level measurement with millimetre precision
, because their measuring method works reliably under almost all conditions.
No other measuring method can be successfully put to use on such a wide scale and in so many different applications. The devices
are extremely robust, making them suitable for even the toughest conditions. The sensor surface cleans itself through vibration,
and that is not the only reason why the sensor is insensitive to dirt. The physical principle-the propagation of sound-works, with
a few exceptions, in practically any environment.
The measuring method employed by ultrasonic sensors has been viewed as an excessively complex technology, and only used as a “last
resort” … as a solution for particularly difficult applications. Those times have long since passed!
Ultrasonic sensors have proven their reliability and endurance in virtually all industrial sectors.
|

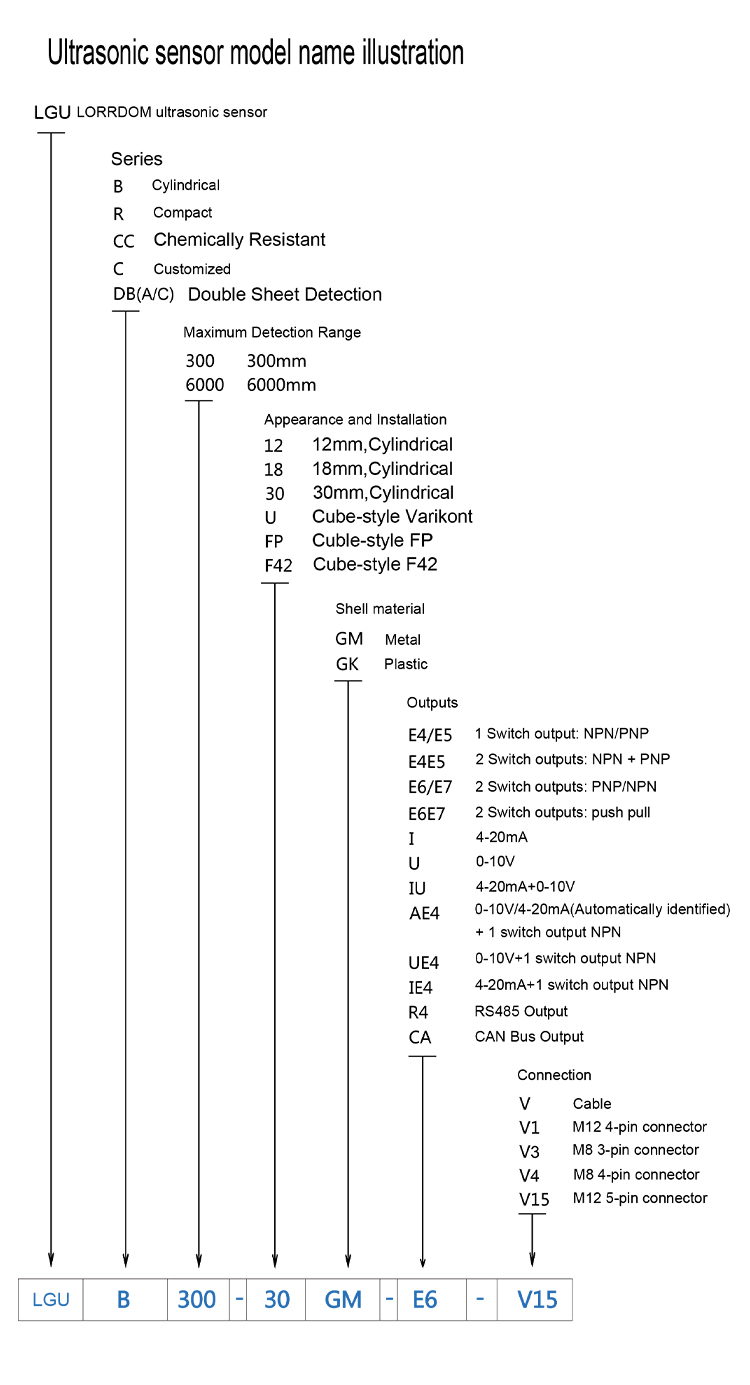

Model
|
Detection distance
|
Output
|
Model
|
Detection distance
|
Output
|
|
LGUB150-18GM45A-E4-V15
|
20-150mm
|
NPN
|
LGUB150-18GM45A-E5-V15
|
20-150mm
|
PNP
|
|
LGUB150-18GM45A-I-V15
|
20-150mm
|
4-20mA
|
LGUB150-18GM45A-U-V15
|
20-150mm
|
0-10V
|
|
LGUB150-18GM45A-R4-V15
|
20-150mm
|
RS485
|
|
|
|
|
Model
|
Detection distance
|
Output
|
Model
|
Detection distance
|
Output
|
|
LGUB300-18GM45A-E4-V15
|
30-300mm
|
NPN
|
LGUB300-18GM45A-E5-V15
|
30-300mm
|
PNP
|
|
LGUB300-18GM45A-I-V15
|
30-300mm
|
4-20mA
|
LGUB300-18GM45A-U-V15
|
30-300mm
|
0-10V
|
|
LGUB300-18GM45A-R4-V15
|
30-300mm
|
RS485
|
|
|
|
|
Model
|
Detection distance
|
Output
|
Model
|
Detection distance
|
Output
|
|
LGUB500-18GM45A-E4-V15
|
50-500mm
|
NPN
|
LGUB50-18GM45A-E5-V15
|
50-500mm
|
PNP
|
|
LGUB500-18GM45A-I-V15
|
50-500mm
|
4-20mA
|
LGUB150-18GM45A-U-V15
|
50-500mm
|
0-10V
|
|
LGUB500-18GM45A-R4-V15
|
50-500mm
|
RS485
|
|
|
|
|
Model
|
Detection distance
|
Output
|
Model
|
Detection distance
|
Output
|
|
LGUB1000-18GM45A-E4-V15
|
60-1000mm
|
NPN
|
LGUB1000-18GM45A-E5-V15
|
60-1000mm
|
PNP
|
|
LGUB1000-18GM45A-I-V15
|
60-1000mm
|
4-20mA
|
LGUB1000-18GM45A-U-V15
|
60-1000mm
|
0-10V
|
|
LGUB1000-18GM45A-R4-V15
|
60-1000mm
|
RS485
|
|
|
|
