Description
20W Optical Power Laser Head with Air Assist 455nm Blue Light TTL PWM Module Set for Laser Engraving Cutting Machine
- Brand Name: Laser Tree
- Model Number: Engraving Laser Head
- CNC or Not: CNC
- Is Smart Device: YES
- Condition: New
- Certification: CE
- Material: Aluminum alloy
- Air Assist: LT-4LDS-V1, LT-80W-AA
- LT-4LDS-V1 Output Optical Power: 20W (18~21W)
- LT-4LDS-V1 Electric Power: 24V 2.3-3.2A
- LT-4LDS-V1 Wavelength: 455nm
- LT-4LDS-V1 Focus Length: 20mm
- Power Adjustable: TTL/ PWM/ Analog Modulation
- LT-4LDS-V1 Module Weight: 460g
- LT-80W-AA Output Optical Power: 10W (±1W)
- -AA Electric Power: 3-3.5A (12V), 1.5-2A(24V)
- LT-80W-AA Wavelength: 450nm (±10nm)
- LT-80W-AA Focus Length: 45mm
- LT-80W-AA Module Weight: 250g
- LT-40W-F20-GOLD Output Optical Power: 5W
- LT-40W-F20-GOLD Electric Power: 12V 1.8A(1.5A-2A)
- LT-40W-F20-GOLD Wavelength: 450nm
- LT-40W-F20-GOLD Focus Length: 20mm
- LT-40W-F20-GOLD Module Weight: 230g
- LT-40W-F23 Output Optical Power: 5W
- LT-40W-F23 Electric Power: 12V 1.8A(1.5A-2A)
- LT-40W-F23 Wavelength: 450nm
- LT-40W-F23 Focus Length: 23mm
- LT-40W-F23 Module Weight: 240g
- Cable: 3PIN 80CM
- Fan Speed: 10000rpm
- Function: Engraving/ Cutting
- Operating Temperature: 0~60℃
- Compatible with: Various models of DIY laser engraver cutter
- Service: Dropping Shipping Service
LT-4LDS-V1:
20W Optical Power Laser Module with Air Assist
By LASER TREE
Enjoy the Joy of DIY
1. 4-Beam compression technology, 20W ultra-strong optical power laser module
2. With air nozzle to get clean- cut edges, improve cutting performance
3. Excellent heat dissipation design, keep stable cutting ability and extend service life
4. High stable 2EDG3.81 connector, up to 7A operating current
5. Only 300~400mw power decrease with 100% power output in 30mins
6. Support digital（TTL/PWM）and analog modulation
7. Compatible with various DIY cutting engraving machines
Specification:
Output Optical Power: 20W (18~21W)
Electric Power: 24V 2.3-3.2A
(If your machine is 12V, select LT-4LDS-V1 Kit A is suitable)
Power Adjustable: TTL/PWM/Analog Modulation
Material: aluminum alloy
Wavelength: 455nm
Light Color: blue
Focus Length: 20mm
Interface: 2EDG-3.81
Cable: 3PIN 80CM
Fan Speed: 10000rpm
Module Size: 56*56*132.5mm
Module Net Weight: 460g

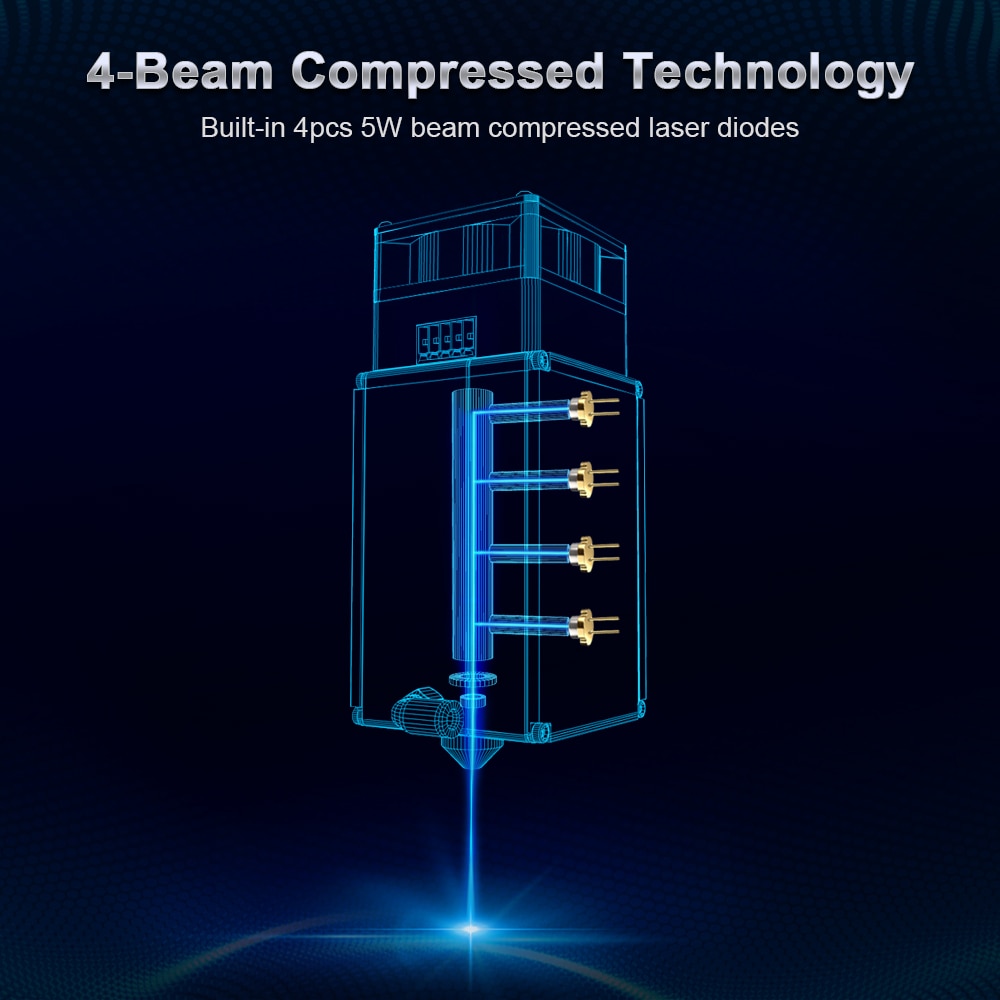

4-Beam Compressed Technology
Built-in 4pcs 5W beam compressed laser diodes

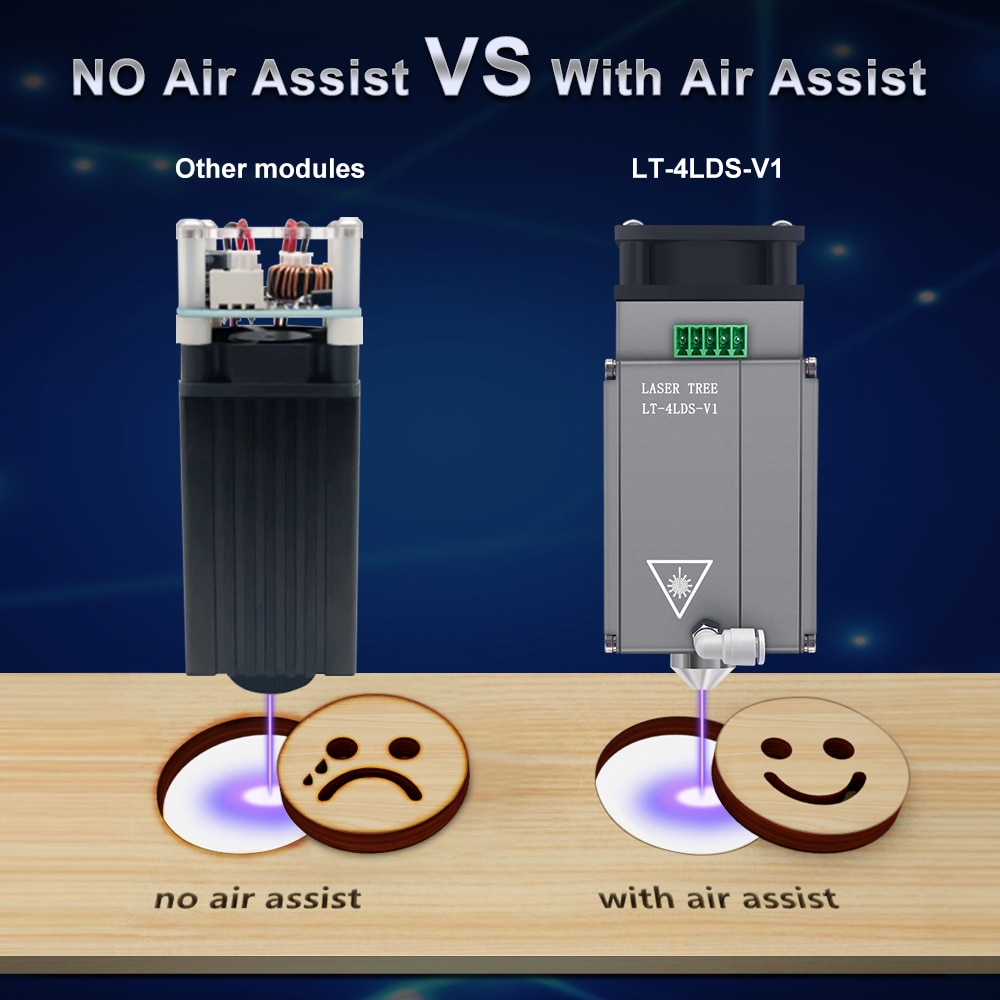

With Air Assistance
With air nozzle to get clean-cut edges, and improve cutting performance
Note: Please ensure that the air pump is turned on before you start cutting.
If not, the smoke will contaminate the lens.

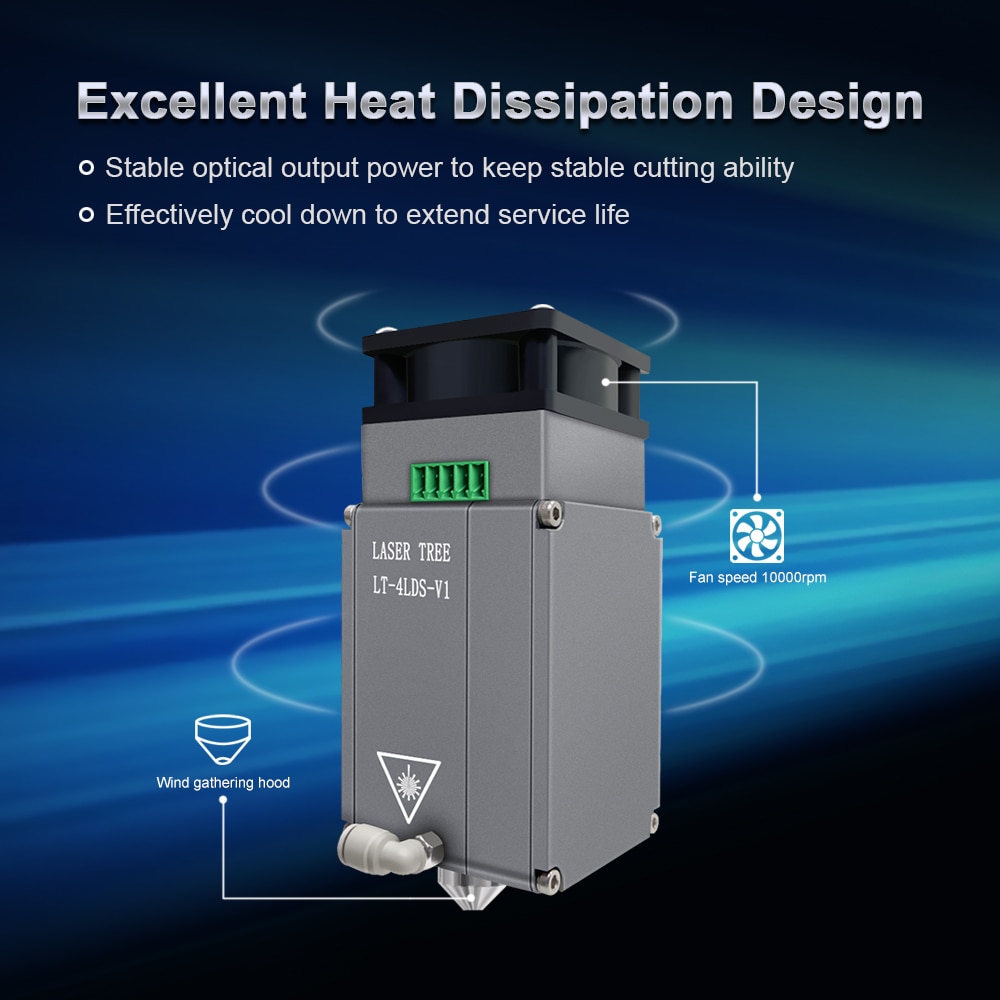

Excellent Heat Dissipation Design
Stable optical output power to keep stable cutting ability
Effectively cool down to extend service life
Minimum 0.08mm Ultra-thin Beam
Thinner beam and longer effective energy range
Higher energy density beam, stronger cutting ability

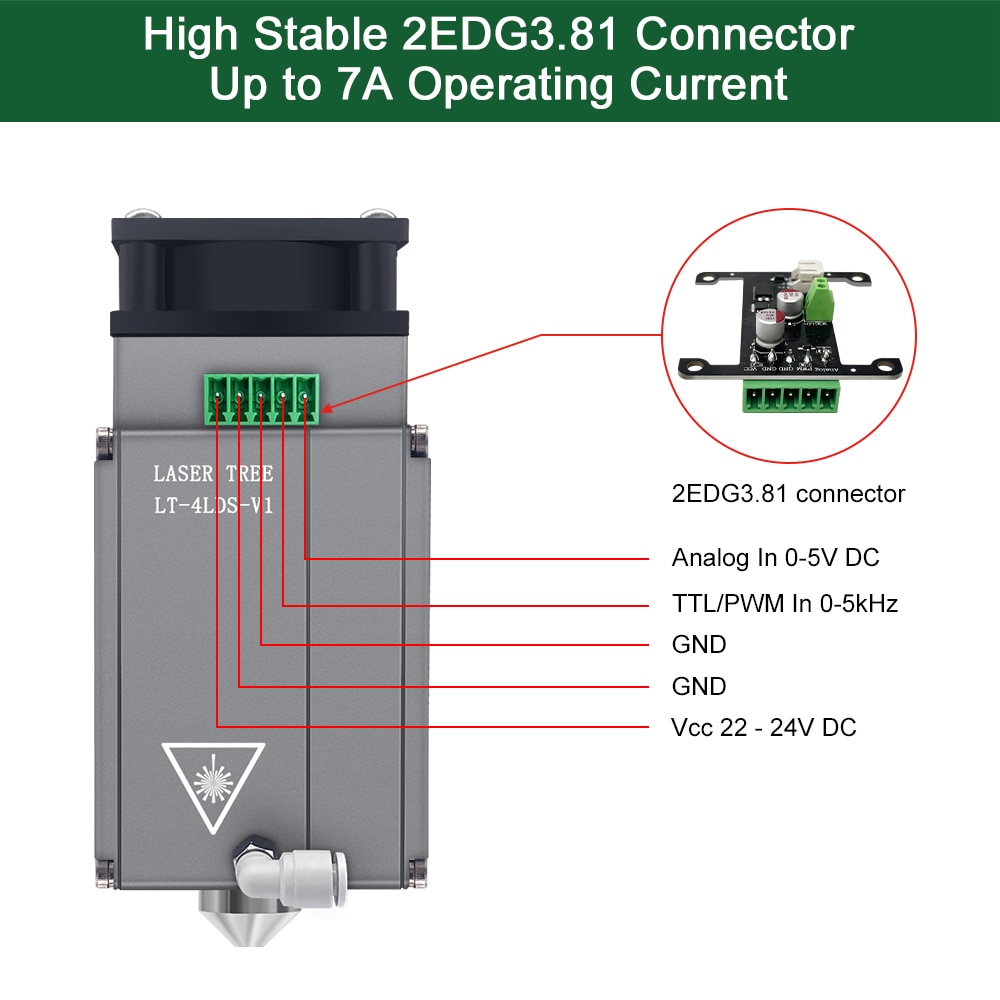

High Stable 2EDG3.81 Connector
Up to 7A Operating Current
Support Digital(TTL/PWM) and Analog Modulation
LT-80W-AA:
80W Laser Module Head with Air Assist
By LASER TREE
Features:
1. With Air-assist: with air nozzle to get clean-cut edges, and improve cutting performance
2. Remarkable cutting ability: Cutting through 8-10mm thickness plywood by one pass at speed of 1.5mm/s
3. Super fast engraving speed: 304 stainless steel, ultra-fast engraving on stainless steel-30mm/s
4. Fixed focus laser head: Suitable for three-axis engraving machine, easy to install
5. Original diode: Original diode, high quality, 20,000 hours life time
6. Strong compatibility: Suitable for various types of laser cutting machines and engraving machines
Two Forms of LT-80W-AA:
Form 1: Equipped with specially designed air-assisted nozzles for cutting
(In order to have a better cutting effect, it is recommended to use an air pump)
Form 2: Equipped with a protective cover that can effectively filter blue light, suitable for engraving
Specification:
Material: aluminum alloy
Effect output power: 80W
Optical Power：10W (±1W)
Wavelength: 450nm (±10nm)
Light color: blue
Focus Length: 45mm
Spot form: Punctiform, fixed focus
Electric power: 12V 3.2A(3A-3.5A);
24V 1.7A(1.5A-2A)
PWM Modulation: 0/5-12V 0-5kHz TTL/PWM
Input port: XH2.54-3P socket
Item size: 40*40*147mm
Module weight: 250g
Dual-LDs with Beam Compressed Technology
One laser module has two built-in laser diodes.The optical power of each diode is 5W.
With beam combination technology, our laser module is double powerful and the beam quality is as good as a single diode.
Minimum 0.08mm Ultra-thin Beam
Thinner beam and a longer effective energy range
Higher energy density beam, stronger cutting ability
Widely Compatible Design
Suitable for ATO*TACK, OR&UR laser engraving machine, or other DIY type machines
Form 1: With the Air Assist Nozzle
Greatly reduce burned marks, good for cutting
(In order to have a better cutting effect, it is recommended to use an air pump)
Form 2: With the Laser Protective Cover
Effectively filter blue light, suitable for engraving
LT-40W-F20-GOLD:
40W Fixed Focus 20mm Laser Engraving Head
By LASER TREE
Product Features:
1.Blue laser module, a professional laser head with high speed and high stability. Bright blue light, easy to locate when carving.
2.Fixed focus laser head, suitable for three-axis engraving machine, easy to install.
3.Directly engrave mirror stainless steel: no need painting black;
4. Super fast engraving speed: 304 stainless steel, up to 30mm/s with 20mm focus length;
5. Remarkable cutting ability: cutting through 4-5mm thickness plywood by one pass at speed of 2mm/s with 20mm foucs length.
[Original diode with FAC] Original diode, high quality,20,000 hours life time! Built-in FAC to make the beam size much smaller at focus, power density increase 4~5times, the engraving speed increase 4~5 times accordingly. At same time, the precision increase 4~5 times also. The solution make high engrave speed and high precision possible.
[Applicable Materials] Ceramics, Bone, MDF, Coated glass, Black acrylic, Mirror stainless steel, Plywood, Brushed stainless steel, Stone, Bamboo, Leather, Rubber, Alumina, Solid wood, etc.
[Precautions] Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.
Specification:
Effect output power: 40W
Output optical power: 5W
Material: aluminum alloy + plastic
Light color: blue
Wavelength: 450nm
Spot form: Punctiform, fixed focus
Input voltage: 12V 1.8A(1.5A-2A)
Interface: XH2.54-3PIN socket
Modulation: 0/5-12V 0-5kHz TTL/PWM
Item size: 12 * 4 * 4cm
Packing size: 14 * 6.2 * 6.2cm
Product weight: 230g
Fixed Focus 20mm
Perfect engraving performance on stainless steel
LT-40W-F23:
40W Fixed Focus 23mm Laser Engraving Head
By LASER TREE
Product Features:
1.Engraving Mirror Stainless Steel, no need to Paint Black.
2.Very Fast Engraving Speed: 23mm focal length, engrave 304 stainless steel at speeds up to 800mm/min.
3.Excellent Cutting Ability: Cutting 4mm thick plywood by one pass at a Speed of 80-100mm/s.
4.Magnetic eye protective cover: It allows you to see the laser module in action without the need for eye protection and is easy to disassemble without screws.
5.Metal cutting air outlet: Which does not generate heat and can resist flames.
Specification:
Material: Aluminum alloy
Effect Output Power: 40W
Output Optical Power: 5W
Electric Power: 12V 1.8A(1.5A-2A)
Focus Length: 23mm
Interface: XH2.54-3P socket
Modulation: 0/5-12V 0-5kHz TTL/PWM
Function: Engraving/Cutting
Module Size: 40*40*121mm
Module Weight: 240g
