Laser module 15w 15000mw High power Blue ray DIY carving and cutting 450nm carving machine

modname=ckeditor

Pulse 15W power 450nm laser module

Specification parameters:

Main dimension: length 50mm* width 50mm* height 100mm

Output wavelength: 445nm ~ 450nm

Output power: pulse 15W average 8W

Modulation frequency: TTL can modulate 0V-Off 5V on PWM frequency <9Khz

Working voltage: DC=12V

Working current: I<3A

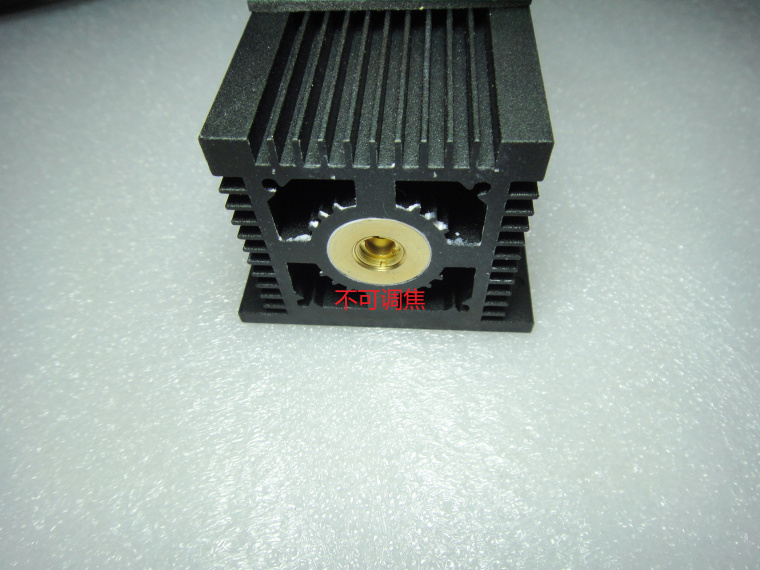

Focal length: not adjustable

Operating temperature: 15℃ ~ 45℃

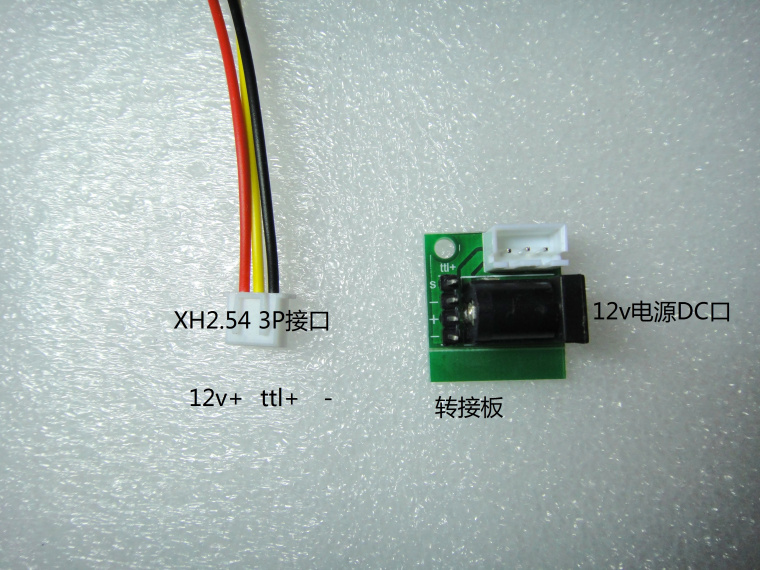

Xh2.54 3P interface, transfer plate, convenient wiring





‘
