Description
- Brand Name: KAIWEETS
- DIY Supplies: ELECTRICAL
- Certification: CE
- Certification: EAC
- Certification: RoHS
- Origin: CN(Origin)
- Model Number: ST600Y
- AC Current: 600mA/6A/10A±(1.2%reading 3)
- AC Voltage: 6V/60V/600V±(0.8%reading 3)
- Measuring Resistance Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ±(1.5%reading 10)
- Operating Mode: Smart/Manual
- Display Type: Digital Display
- DC Current: 600mA/6A/10A±(1.2%reading 3)
- DC Voltage: 600mV/6V/60V/600V±(0.5%reading 3)
- Measuring Capacitance Range: 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF ±(5.0%reading 5)
- Dimensions: 113 x 68 x 19mm
- Weight: 0.45kg
- Display Measurements: 6000counts
- Frequency: 6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz ±(1.0%reading 3)
- Duty: 1%~99% ±(1.0%reading 3)
- Temperature Measurement: -40℃-1000℃ ±2.0%reading or ±3
- Range: Auto
- Measurement Speed: 3 times per second
- Battery: 4×1.5V AAA Batteries(included)
- Maximum Voltage: DC/AC 600V
- Maximum Current: 10A
- True-RMS yes or no: yes
- NCV test: yes
- low battery indicator: yes
- Continuity Measurement: yes
- Diode Measurement: yes
- Live test: yes
- Flashlight: yes
- alarm indicator: yes
-
SPECIFICATION
-
-
Item Weight
-
0.45 KG
-
Product Dimensions
-
113 X 68 X 19 mm
-
Batteries
-
4 AAA batteries required (included)
-
Performance Description
-
HD Color Display, True RMS
-
Safety Level/Certification
-
IEC-61010-1 CATⅢ 1000V, CAT IV 600V, double insulation
-
Usage
-
▲ Voltage tester
▲ Large range measuring tool
▲ Frequency multimeter
▲ Diode electronic tester
▲ Capacitance digital meter
▲ Ohm meter -
Upgraded Specification
-
● DC Voltage: 600mV/6V/60V/600V±(0.5%+3)
● AC Voltage: 6V/60V/600V/750V±(0.8%+5)
● DC Current: 600mA/6A/10A ±(1.2%+3)
● AC Current: 600mA/6A/10A ±(1.2%+3)
● Resistance: 600/6k/60k/600kOHM ±(1.0%+5)
● Capacitance: 6nF/60nF/600nF/6uF/60uF/600uF ±(4.0%+5); 6mF/60mF ±(5.0%+5)
● Frequency: 16Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz ±(1.0%+3)
● Duty: 1.0%-99.0% ±(1.0%+3)
● Temperature: -40~1000°C; -40-1832°F 2°C
KAIWEETS ST600Y
Multiple Functions
It can be used to test continuity, capacitance, frequency, duty cycle, resistance, diode, temperature, NCV, and live wire.

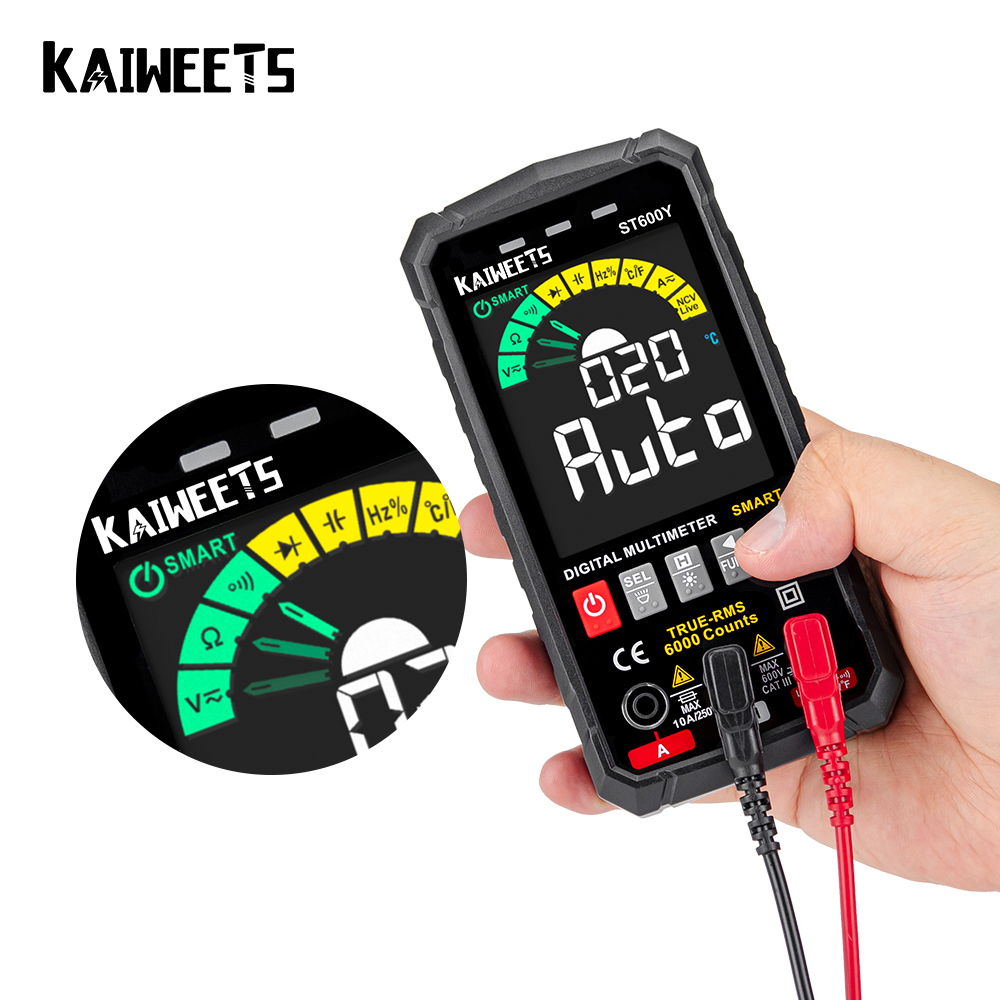

Easy Switch Between Smart Mode and Manual Mode
Press to turn on manual mode. Press and hold to switch back to SMART mode

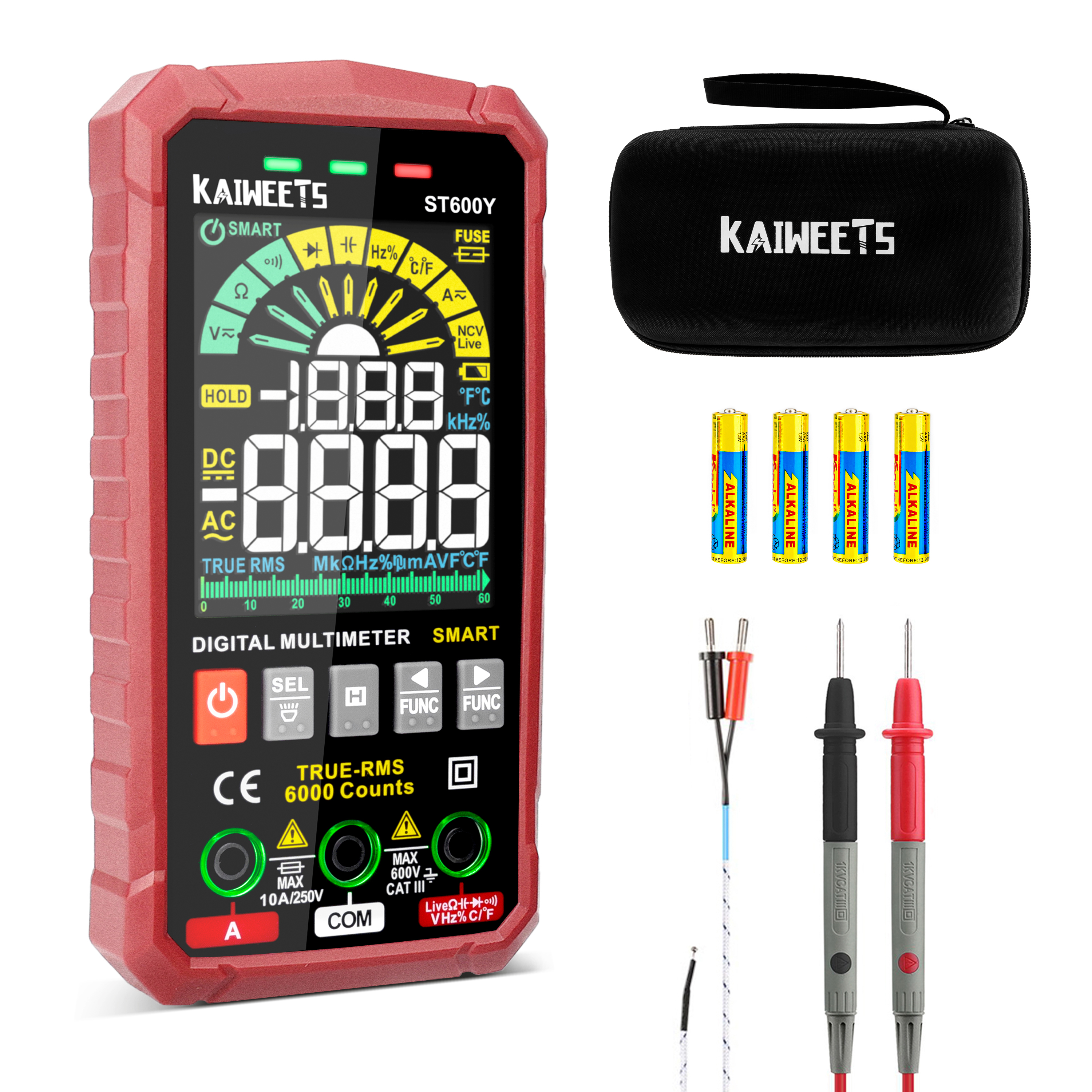

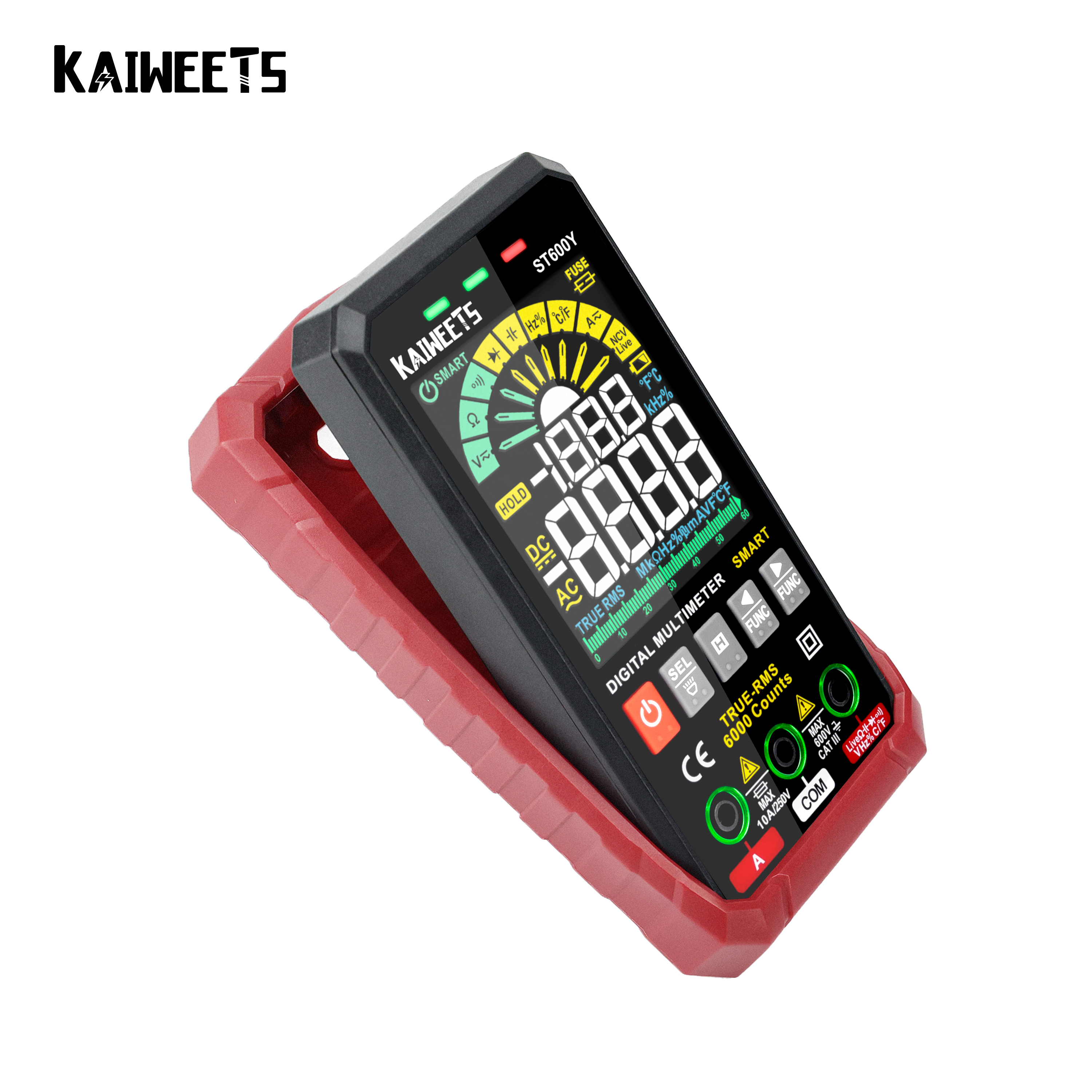

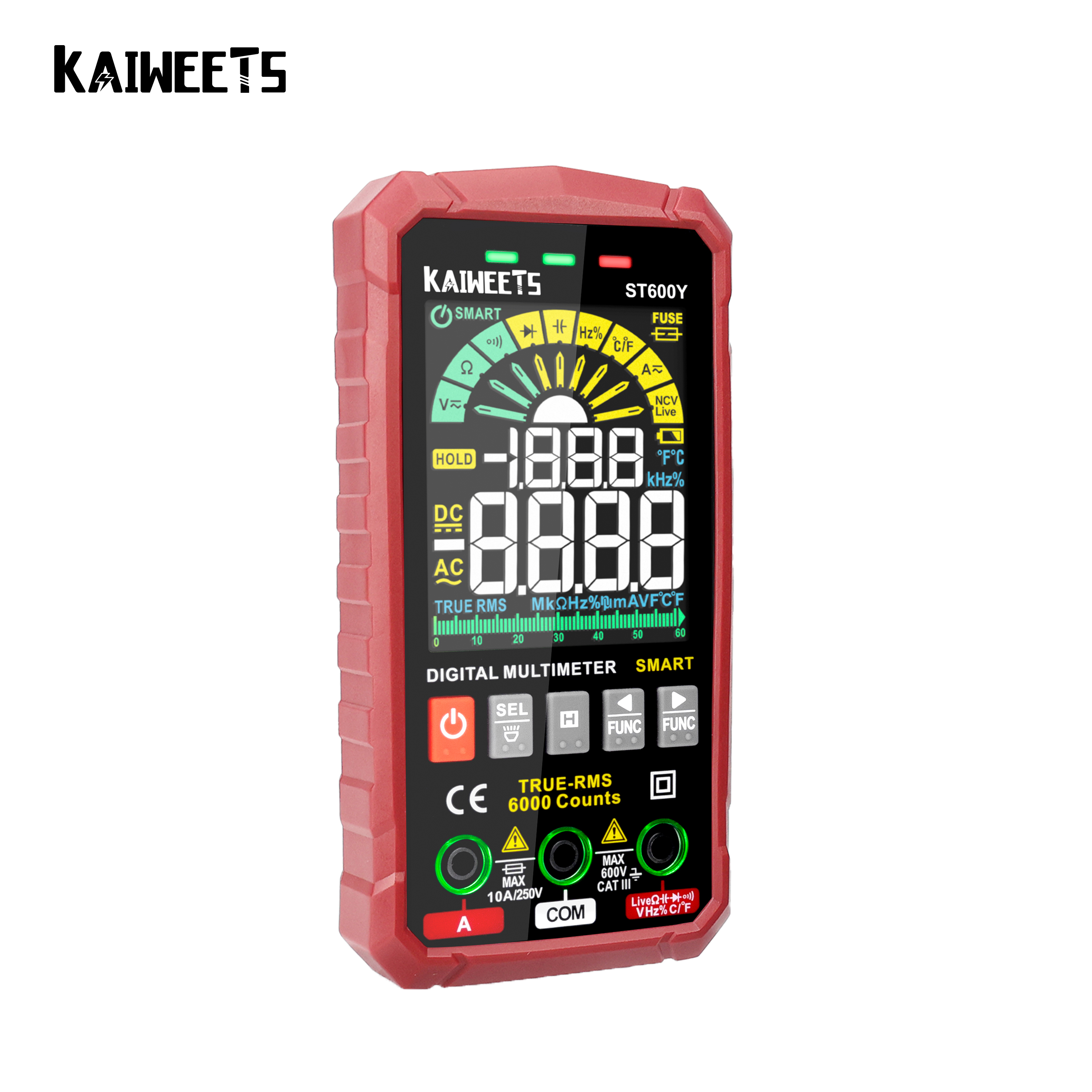

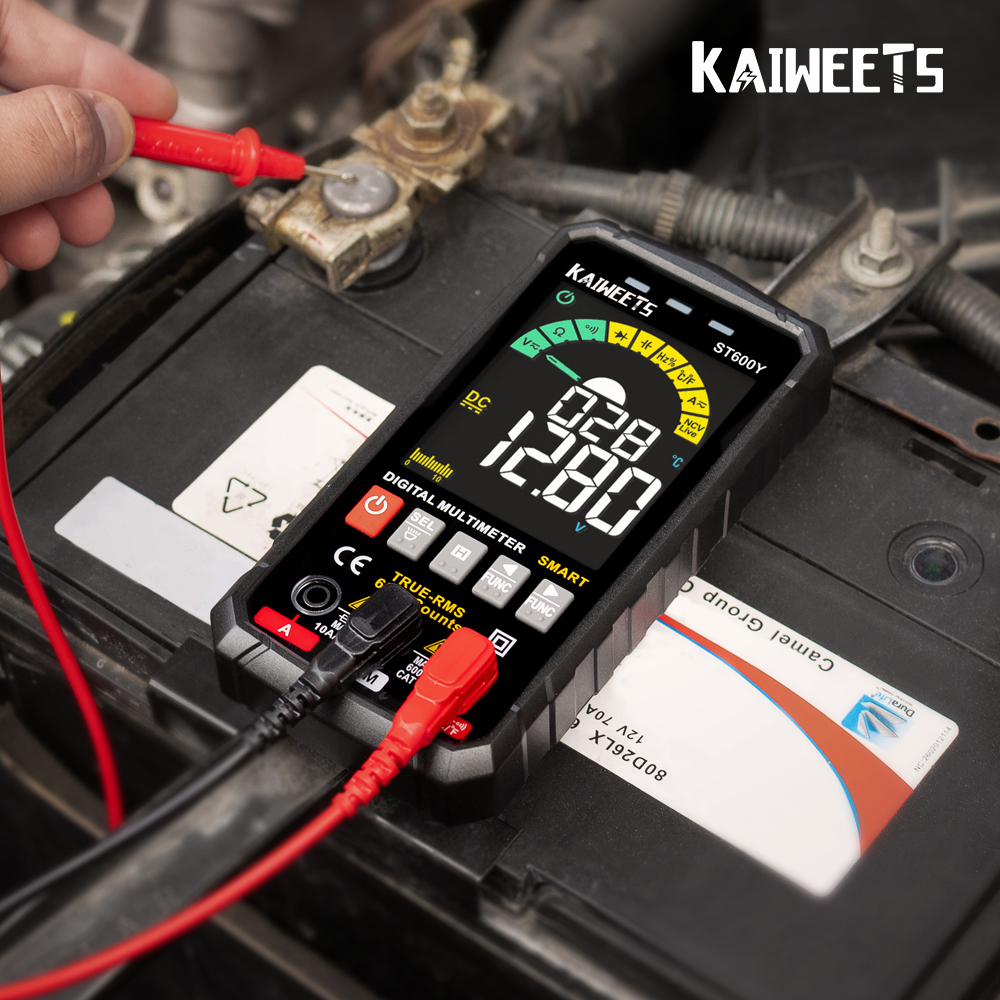

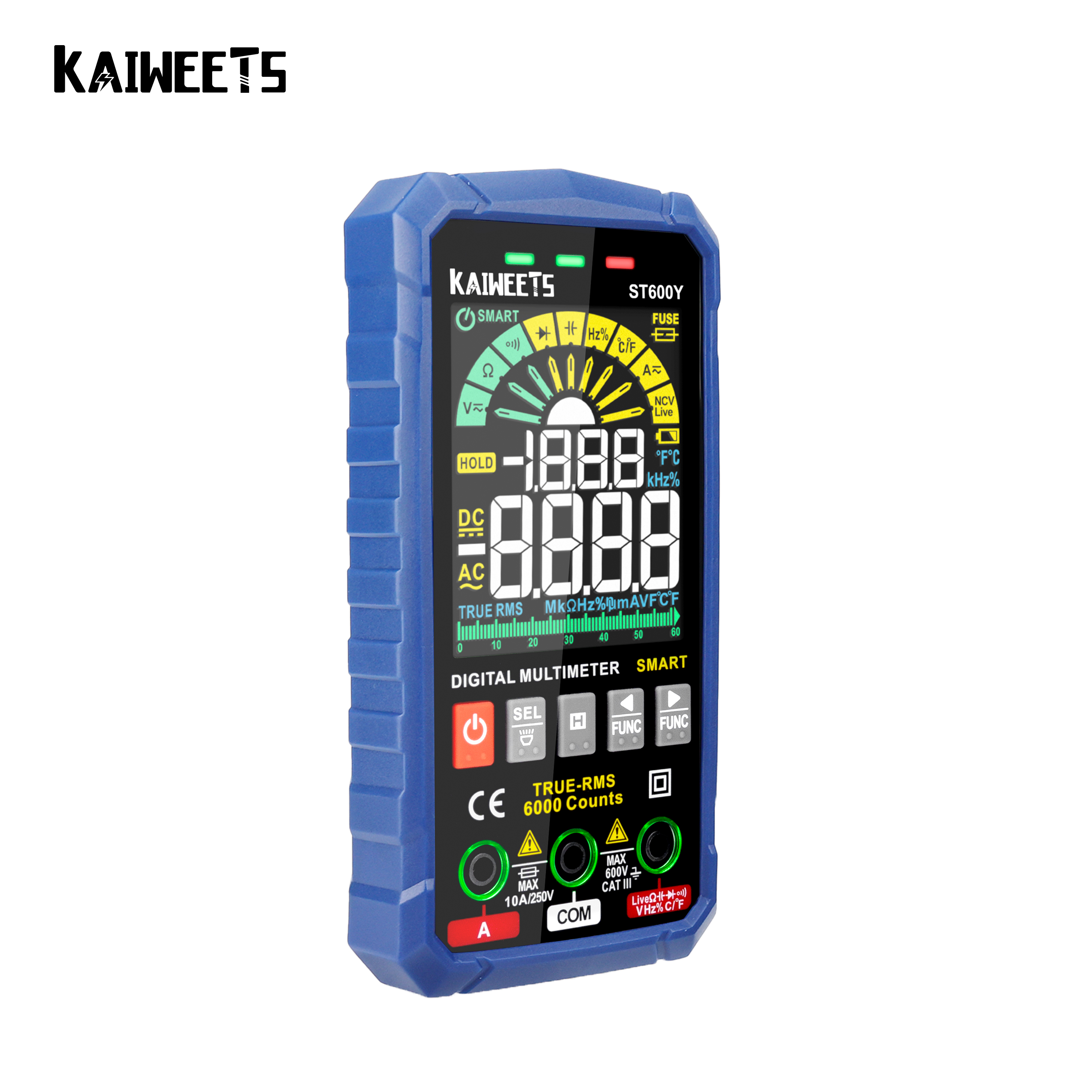

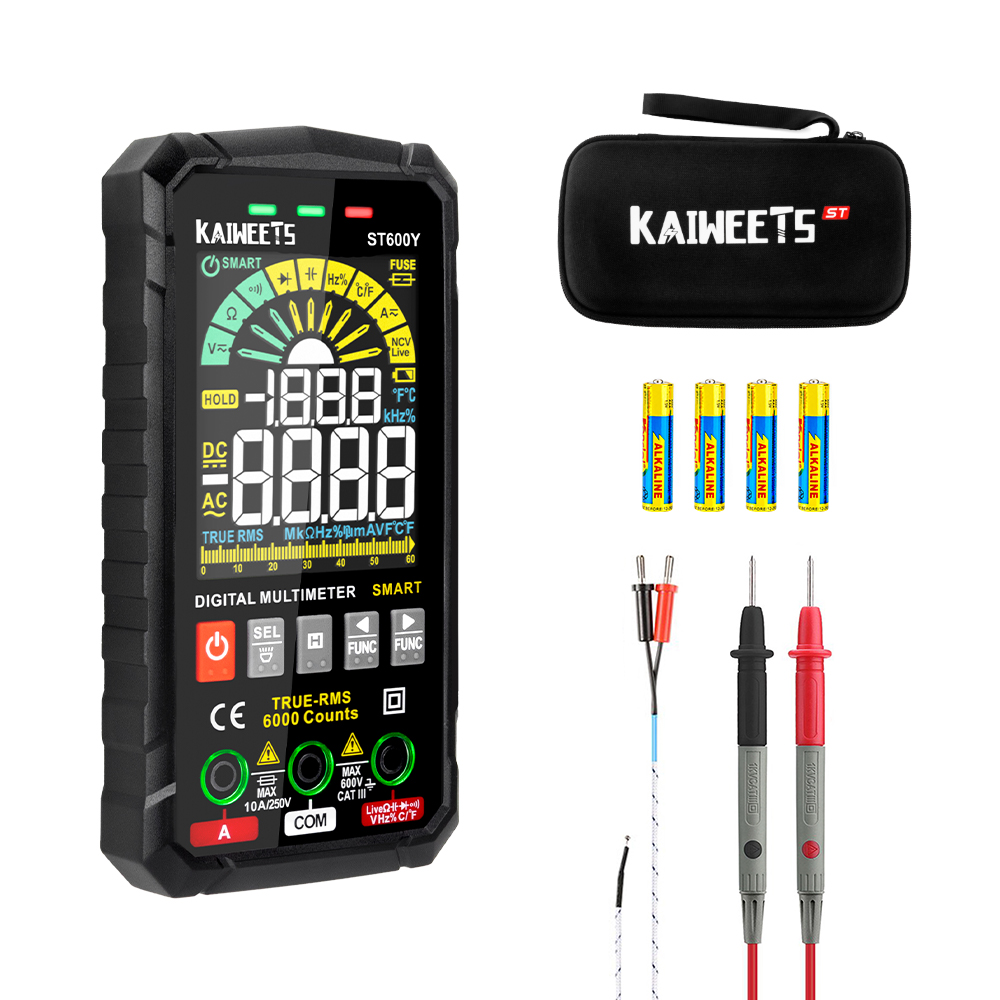

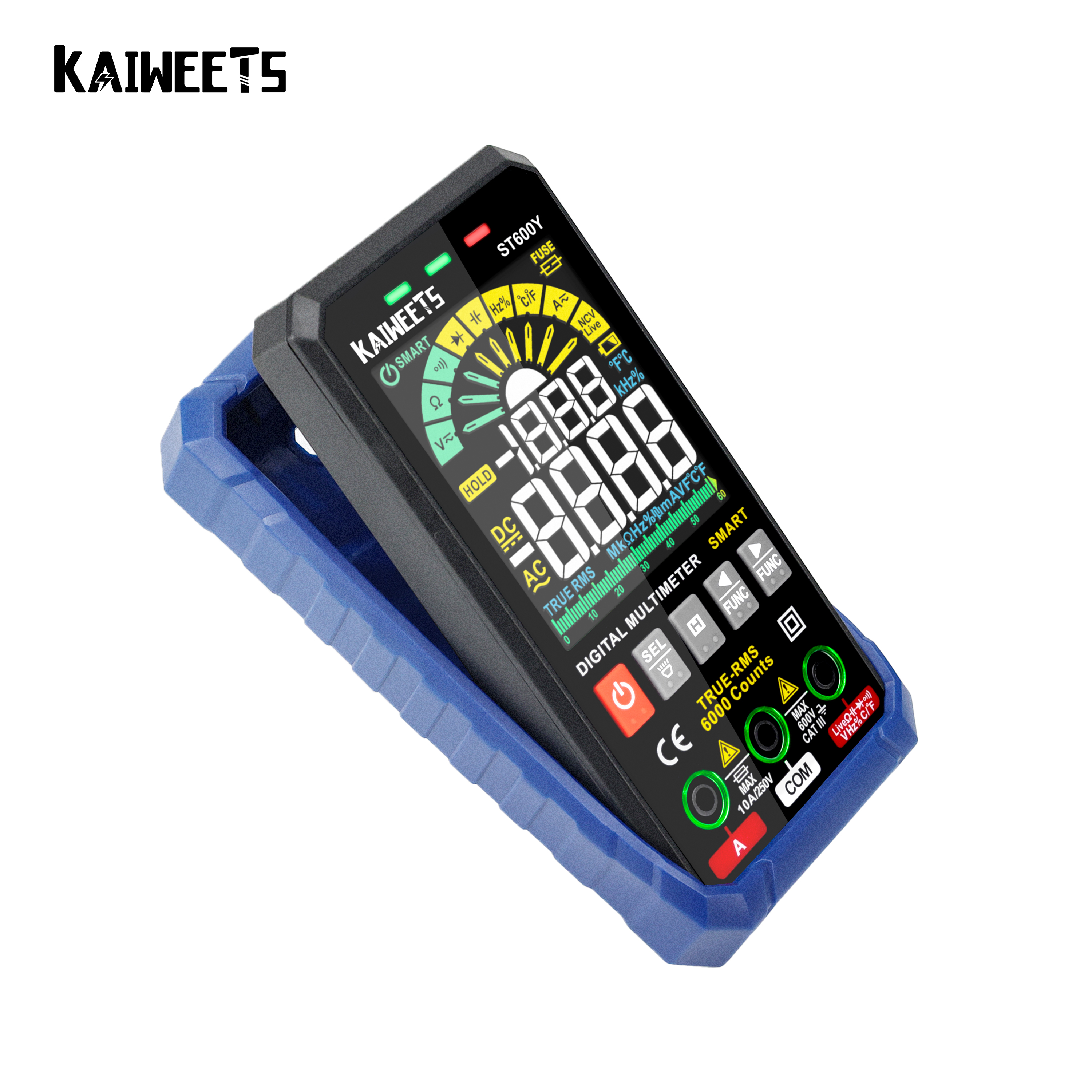

ST600Y Product Shows
、
