Description
- Brand Name: LanYuXuan
- Certification: CE
- Origin: CN(Origin)
- Place of Origin: Zhejiang, China
- Brand Name: OEM
- Model Number: HPL200P
- Power: Electronic
- Product name: HPL-200P Grow Light Lux Detector
- Dimension: 38*22*22mm
- Display: 5 Inches LCD
- Material: ABS Plastic
- Application: Plant light
- Spectral Resolution: 0.2nm
- Stray light: 0.3%
- Warranty: 24 Months
- Weight: 50g
- Measuring range: 400-700nm
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-5{box-sizing:content-box;margin:0 0 24px;padding:0;border:0;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;font-variant-numeric:inherit;font-variant-east-asian:inherit;font-weight:normal;font-stretch:inherit;font-size:1.17em;line-height:1;font-family:sans-serif,Arial,Helvetica;vertical-align:baseline;letter-spacing:normal;orphans:2;text-indent:0;text-transform:none;white-space:normal;widows:2;word-spacing:0;-webkit-text-stroke-width:0;text-decoration-style:initial;text-decoration-color:initial;color:#585858;text-align:left;background-color:#fff}#detail_decorate_root .magic-6{box-sizing:content-box;margin:0;padding:0;border:0;font-style:inherit;font-variant:inherit;font-weight:inherit;font-stretch:inherit;font-size:14px;line-height:21px;font-family:arial,helvetica,sans-serif;vertical-align:baseline}#detail_decorate_root .magic-7{box-sizing:content-box;font-weight:700}#detail_decorate_root .magic-8{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-9{margin-bottom:0}#detail_decorate_root .magic-10{position:relative;width:100%}#detail_decorate_root .magic-11{box-sizing:content-box;margin:0;padding:0;border:0;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;font-variant-numeric:inherit;font-variant-east-asian:inherit;font-weight:400;font-stretch:inherit;font-size:16px;line-height:inherit;font-family:sans-serif,Arial;vertical-align:baseline;letter-spacing:normal;orphans:2;text-indent:0;text-transform:none;white-space:normal;widows:2;word-spacing:0;-webkit-text-stroke-width:0;text-decoration-style:initial;text-decoration-color:initial;color:#666;clear:left;text-align:left;background-color:#fff}#detail_decorate_root .magic-12{box-sizing:content-box;margin:0;padding:0;border:0;font-style:inherit;font-variant:inherit;font-weight:inherit;font-stretch:inherit;font-size:inherit;line-height:24px;font-family:inherit;vertical-align:baseline;color:#000}#detail_decorate_root .magic-13{box-sizing:content-box;margin:0;padding:0;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;font-variant-numeric:inherit;font-variant-east-asian:inherit;font-weight:400;font-stretch:inherit;font-size:12px;line-height:inherit;font-family:Arial,Helvetica,sans-senif;border-collapse:collapse;color:#333;letter-spacing:normal;orphans:2;text-align:start;text-indent:0;text-transform:none;white-space:normal;widows:2;word-spacing:0;-webkit-text-stroke-width:0;text-decoration-style:initial;text-decoration-color:initial;background-color:#fff}#detail_decorate_root .magic-14{box-sizing:content-box;margin:0;padding:0;font-style:inherit;font-variant:inherit;font-weight:inherit;font-stretch:inherit;font-size:12px;line-height:inherit;font-family:inherit}#detail_decorate_root .magic-15{box-sizing:content-box;margin:0;padding:0;font-style:inherit;font-variant:inherit;font-weight:400;font-stretch:inherit;font-size:12px;line-height:inherit;font-family:inherit;float:none}#detail_decorate_root .magic-16{box-sizing:content-box;margin:0;padding:0;border:0;font-style:normal;font-variant:inherit;font-weight:400;font-stretch:inherit;font-size:14px;line-height:21px;font-family:inherit;vertical-align:baseline;color:#585858;text-align:left;background-color:#fff;float:none;display:inline !important}#detail_decorate_root .magic-17{box-sizing:content-box;margin:0;padding:0;border:0;font-style:inherit;font-variant:inherit;font-weight:inherit;font-stretch:inherit;font-size:inherit;line-height:inherit;font-family:inherit;vertical-align:baseline}#detail_decorate_root .magic-18{box-sizing:content-box;margin:0;padding:0;border:0;font-style:normal;font-variant:inherit;font-weight:inherit;font-stretch:inherit;font-size:10.5pt;line-height:21px;font-family:inherit;vertical-align:baseline;color:#585858}#detail_decorate_root .magic-19{box-sizing:content-box;margin:0;padding:0;border:0;font-style:normal;font-variant:inherit;font-weight:400;font-stretch:inherit;font-size:14px;line-height:21px;font-family:inherit;vertical-align:baseline;color:#585858;text-align:center;background-color:#fff;float:none;display:inline !important}#detail_decorate_root .magic-20{box-sizing:content-box;margin:0 !important;padding:0 !important;border:0;font-style:normal;font-variant:inherit;font-weight:400;font-stretch:inherit;font-size:inherit;line-height:18px;font-family:inherit;vertical-align:baseline;text-decoration:none;color:#585858;text-align:left;background-color:#fff}#detail_decorate_root .magic-21{box-sizing:content-box;margin:0 !important;padding:0 !important;border:0;font-style:inherit;font-variant:inherit;font-weight:inherit;font-stretch:inherit;font-size:inherit;line-height:18px;font-family:sans-serif,Arial;vertical-align:baseline;text-decoration:none;color:#585858}#detail_decorate_root .magic-22{width:750px}#detail_decorate_root .magic-23{overflow:hidden;width:750px;height:375px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:750px;height:375px}#detail_decorate_root .magic-25{overflow:hidden;width:373px;height:252.47473200612558px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:373px;height:252.47473200612558px}#detail_decorate_root .magic-27{overflow:hidden;width:373px;height:252px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:373px;height:259.7056074766355px}#detail_decorate_root .magic-29{overflow:hidden;width:750px;height:1583px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:750px;height:1583px}#detail_decorate_root .magic-31{overflow:hidden;width:750px;height:454.83870967741933px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:750px;height:454.83870967741933px}#detail_decorate_root .magic-33{text-align:center}#detail_decorate_root .magic-34{box-sizing:content-box;margin:0;padding:0;border:0;font-variant-numeric:inherit;font-variant-east-asian:inherit;font-stretch:inherit;font-size:16px;line-height:24px;font-family:Arial,Helvetica,sans-senif;vertical-align:baseline}#detail_decorate_root .magic-35{box-sizing:content-box;margin:0;padding:0;border:0;font-style:inherit;font-variant:inherit;font-weight:inherit;font-stretch:inherit;font-size:inherit;line-height:24px;font-family:inherit;vertical-align:baseline;color:#9cf}#detail_decorate_root .magic-36{box-sizing:content-box;margin:0;padding:0;border:0;font-variant-numeric:inherit;font-variant-east-asian:inherit;font-stretch:inherit;font-size:12px;line-height:18px;font-family:Arial,Helvetica,sans-senif;vertical-align:baseline;color:#9cf}#detail_decorate_root .magic-37{overflow:hidden;width:247.33333333333334px;height:157.29032258064518px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:247px;height:157px}#detail_decorate_root .magic-39{overflow:hidden;width:247.33333333333334px;height:157.2118758434548px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-40{margin-top:0;margin-left:0;width:260px;height:157px}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:247px;height:172px}#detail_decorate_root .magic-42{overflow:hidden;width:750px;height:421.875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:750px;height:421.875px}#detail_decorate_root .magic-44{overflow:hidden;width:750px;height:200px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-45{margin-top:0;margin-left:0;width:750px;height:200px}
Product Description

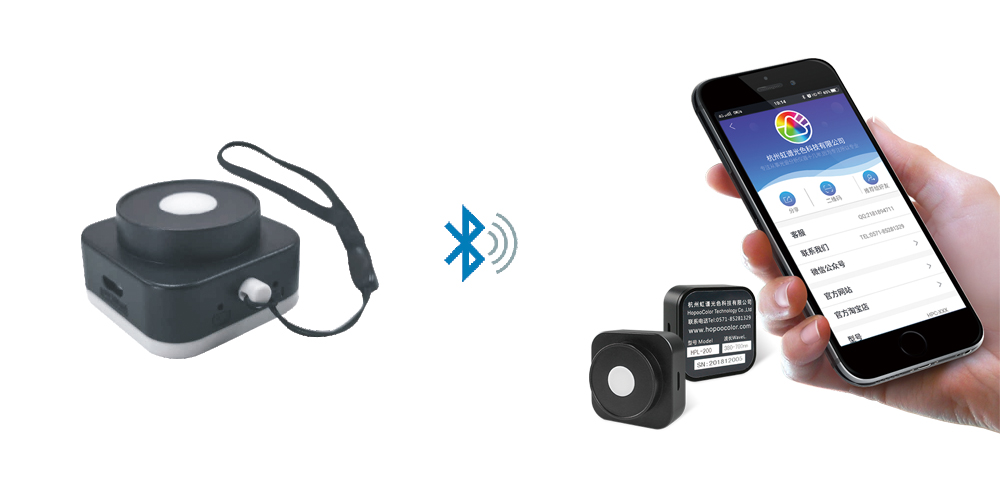

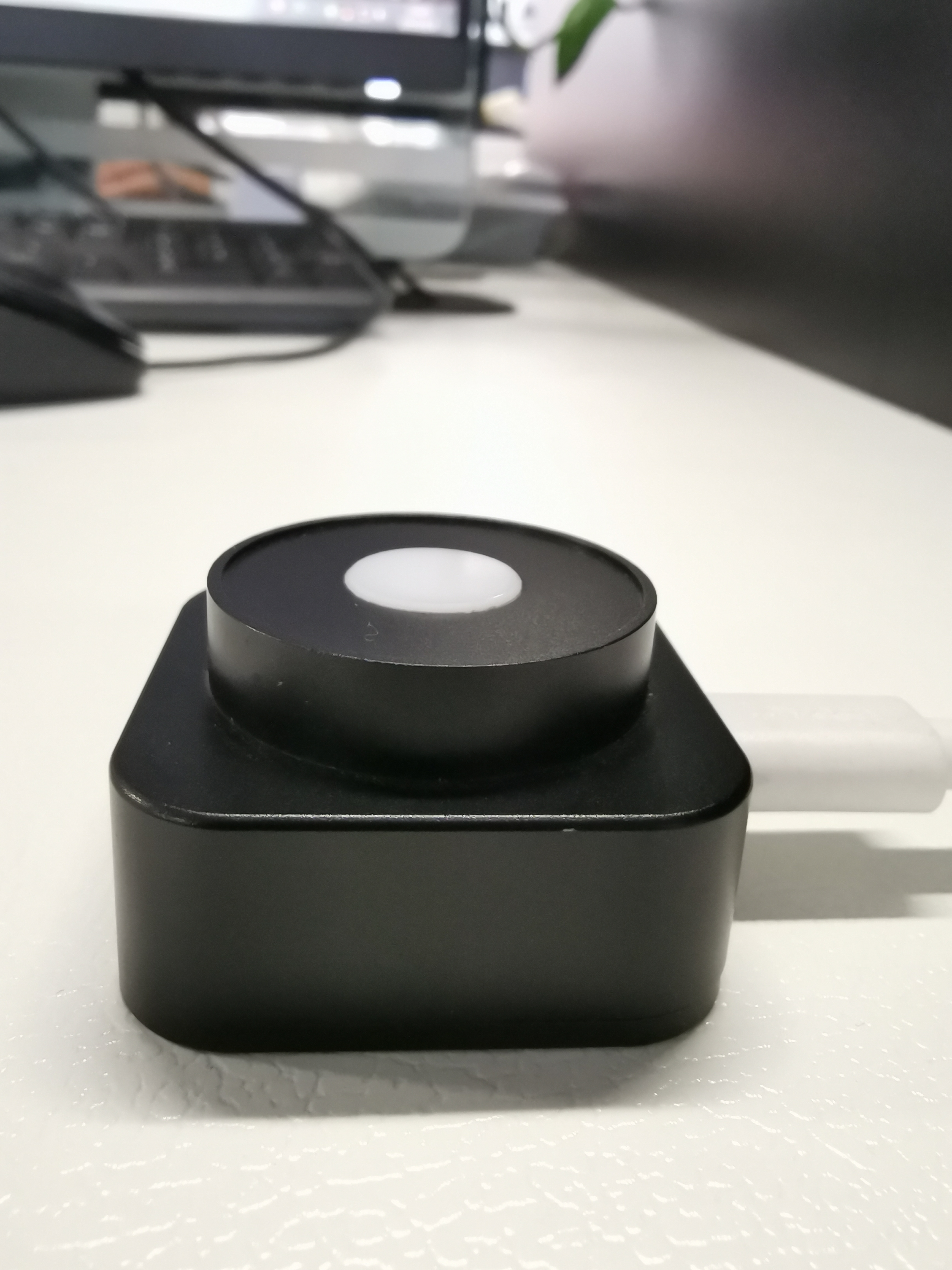

HPL-200 Wireless Lux Light meter,adopt Innovative compact Design,I/V current-voltage conversion and signal processing, data acquisition, preservation and transmission are integrated into it,Miniaturization and Intelligence.
Measurement Parameters
| Model | Name | Wavelength Range |
Unit |
Measurement Range | Accuracy | Remark |
| HPL200 | Lux meter | 380-780nm | lx | 0.1-200000 | 5% | Bluetooth,USB |
| HPL200F | Flicker Luxmeter | 380-780nm | lx | 0.1-200000 | 5% | Flicker |
| HPL200PPFD | PPFD meter | 400-700nm | umol/m2/s | 0.01-4000 | 5% | PPFD,umol/m2/s |
|
HPL200PAR |
PAR meter | 400-700nm | uW/cm2 | 0.1-200000 | 5% | PAR uW/cm2 |
| HPL200UV1-254 | UV meter | 230-280nm | uW/cm2 | 0.1-200000 | 8% | 254nm,uW/cm2 |
| HPL200UV2-297 | UV meter | 280-320nm | uW/cm2 | 0.1-200000 | 8% | 365nm,uW/cm2 |
| HPL200UV3-365 | UV meter | 320-400nm | uW/cm2 | 0.1-200000 | 8% | 365nm,uW/cm2 |
Technical
| Resolution | <10 | 0.01 |
Cosine Correction Accuracy |
<4% |
| >10, <10000 | 0.1 | V(λ)error | <6% | |
| >10000 | 1 | Shift error | <±1% | |
| Operate Tem | 0~35°C |
Probe window |
Ø 12mm | |
| Storage Tem | -10~40°C | Size | 38×38 x 22mm | |
| Power supply | Li-On rechargeable | Weight | 50g | |

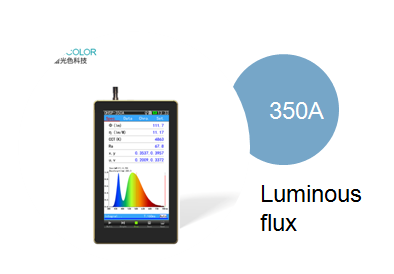

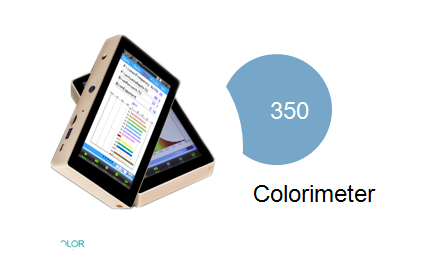

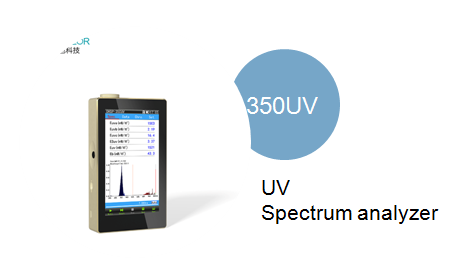

Recommend Products
Maybe you like our series related product. CLICK HERE!
Product packaging
Company Profile
Our Advantages
Certifications

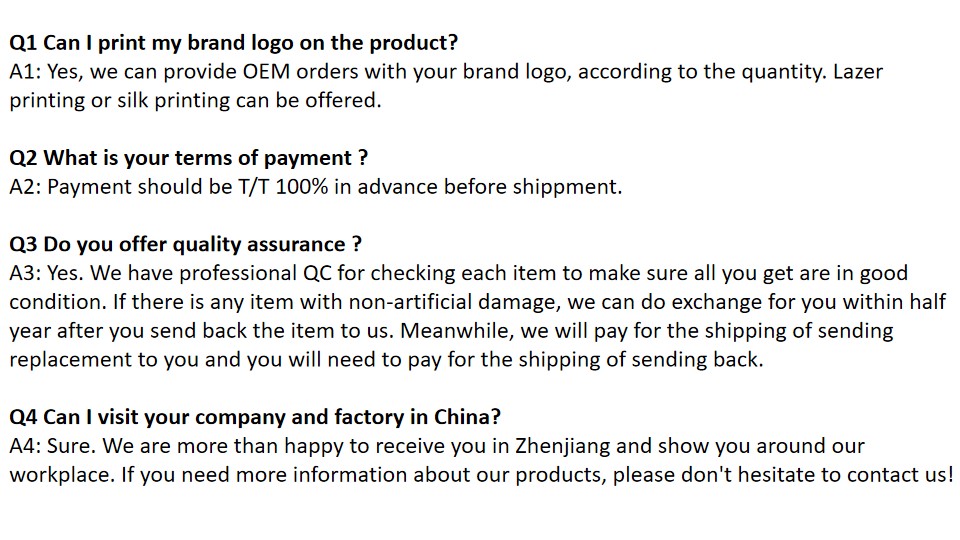

FAQ
