Description
- Brand Name: NoEnName_Null
- Model Number: HPCS-300I
- Wavelength Range: 380-780nm
- Size: 38*22*22mm
- Type: Single Beam Spectrometers
- Measurement Range: 350-800nm
- Weight: 250g
- Focal Length: 2mm
- Place of Origin: Zhejiang, China
- Brand Name: HOPOOCOLOR
- Power: Electronic
- Product name: HPCS-300I SPECTRAL ILLUMINANCE SENSING MODULE
- Display: 5 Inches LCD
- Dimension: 38*22*22mm
- Application: Lighting
- Stray light: 0.3%
- Spectral Resolution: 0.2nm
- Warranty: 24 Months
- Measuring range: 380-780nm
- Weight: 250g

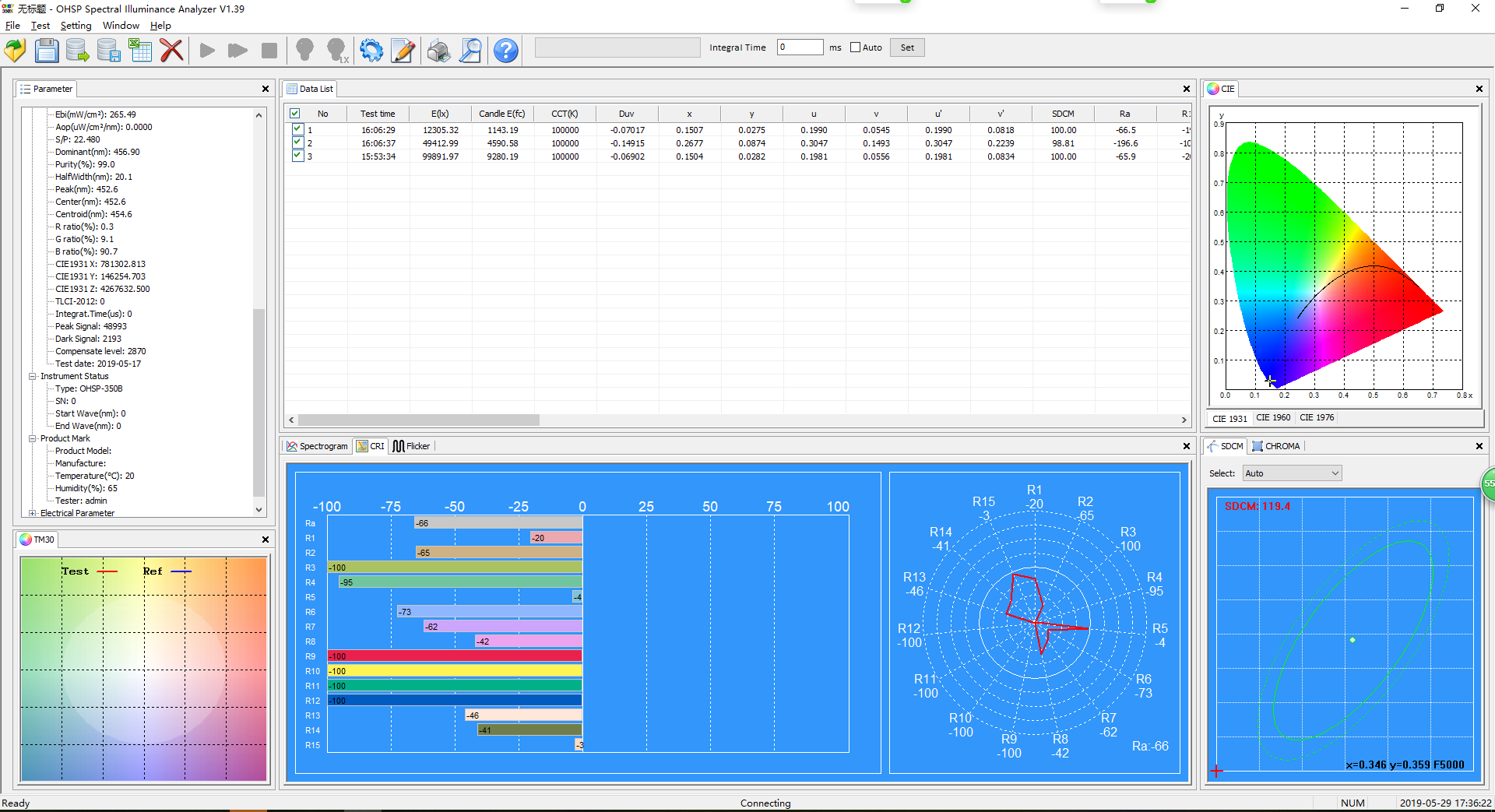

HPCS300I Spectral Illuminance Sensing Module ,adopt advanced technology, used in production line ,achievement On-line analysis of light and color parameters, RS485 interface or USB interface to output test result, open Modbus communication, it can use by self-programme ,read spectrum data、CCT、Lux、PPFD etc
Models
|
Model |
Wave Range |
communication interface |
Parameters |
|
HPCS300 |
350-780nm |
USB |
Base +USB interface |
|
HPCS300P |
350-800nm |
USB |
Base+plant light parameters |
|
HPCS300I |
350-800nm |
USB/RS45 |
IO Control, Rs485 |
Technical Indicator
|
Name |
Specifications |
Name |
Specifications |
|
Spectral platform |
Long focus CT system |
illuminance range |
5-200000lx |
|
(FWHM) |
4nm |
CCT range |
1000-100000K |
|
Spectral Resolution |
0.5nm |
x,yAccuracy |
±0.0025
±0.0025
±4%
|
|
Sensor |
CCD |
x,yRepeatability |
|
|
Sensor array points |
1500 |
Illuminance accuracy |
|
|
Zeroing mode |
Auto zeroing |
Wave Accuracy |
±1nm |
|
Integration time |
50us-20000ms |
resolution |
16bits,250kSPS |
|
Window size |
⌀10mm |
size |
50*41*22mm |
