Description
- Model Number: VC921
- Operating Temperature: 0 – 50 ℃
- Measuring Inductance Range: Refer to SPEC
- DC Voltage: Refer to SPEC
- DIY Supplies: ELECTRICAL
- AC Voltage: Refer to SPEC
- Measuring Capacitance Range: Refer to SPEC
- AC Current: Refer to SPEC
- Measuring Resistance Range: Refer to SPEC
- DC Current: Refer to SPEC
- Display Type: Digital display
- Brand Name: NoEnName_Null
- Dimensions: 117*80*19mm
- Operating Mode: Refer to SPEC

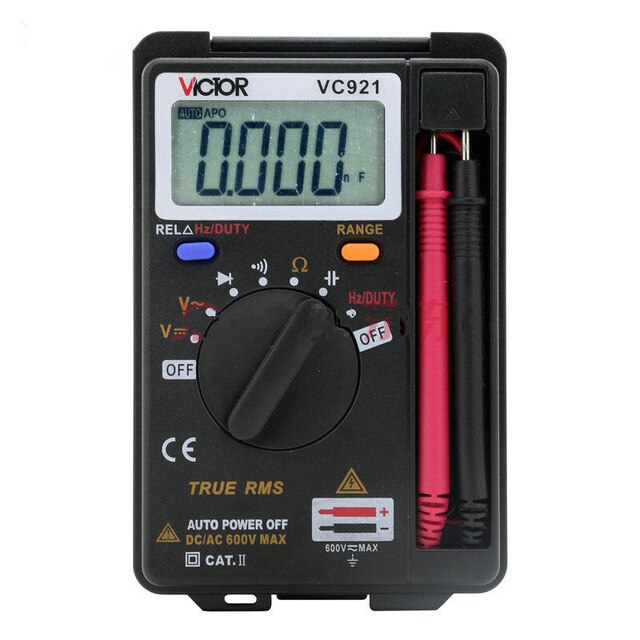

Hot Sale VICTOR VC921 DMM Integrated Personal Handheld
Pocket Mini Digital Multimeter
Specifications:
Basic Function Range Basic accuracy
DC Voltage 400mV/4V/40V/400V/600V ±(0.5%+4)
AC Voltage 400mV/4V/40V/400V/600V ±(0.8%+6)
Resistance 400Ω/4kΩ/40kΩ400kΩ/4MΩ/40MΩ ±(0.8%+4)
Capacitance 4nF/40nF/400nf/4uF/40uF/200uf ±(3.5%+8)
Frequency 100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(0.5%+4)
Special Function
Diode test √
Continuity buzzer √
Low battery indication √
Data Hold √
Auto power off √
Function protection √
Frequency √
Duty cycle measuring √
Input impedance 10MΩ
Sampling rate 3 times/s
AC Frequency response 40~400Hz
Operation way Auto range
Max. Display 3999
LCD size : 55×43mm
Product Dimension :117×80×19mm
Battery :3V (1.5×2)(not included)

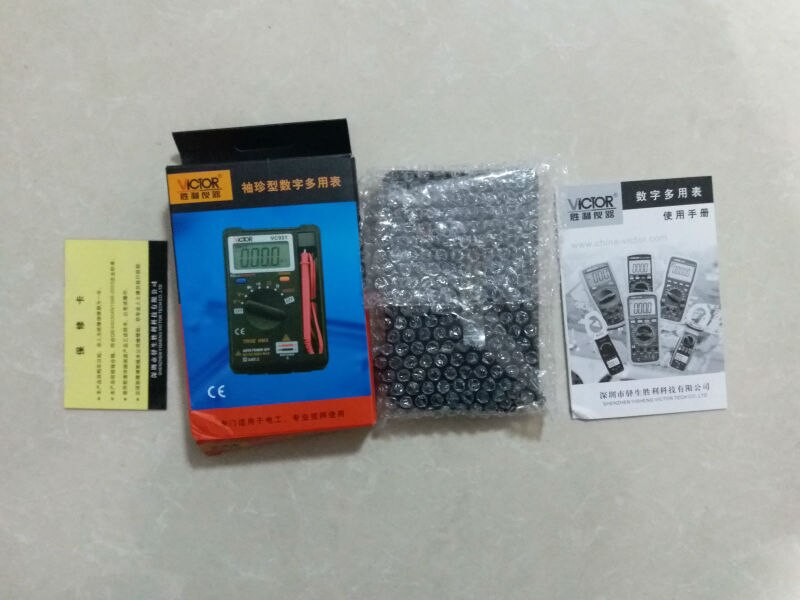

Package Includes:
1 x New Victor VC921 3 3/4 Handheld Pocket Digital Multimeter
1 x Original Package
