Description
- Brand Name: MLHJ
- Origin: CN(Origin)
- Certification: CE
- Place of Origin: China
- Application: MILLING MACHINE
- Condition: New
- Video outgoing-inspection: Provided
- Machinery Test Report: Provided
- Marketing Type: Ordinary Product
- Brand Name: Heavth
- Dimension(L*W*H): 180 mm x 105 mm x 65 mm
- Weight: 1KG
- Warranty: 1 Year
- Showroom Location: None
- Core Components: Pressure vessel

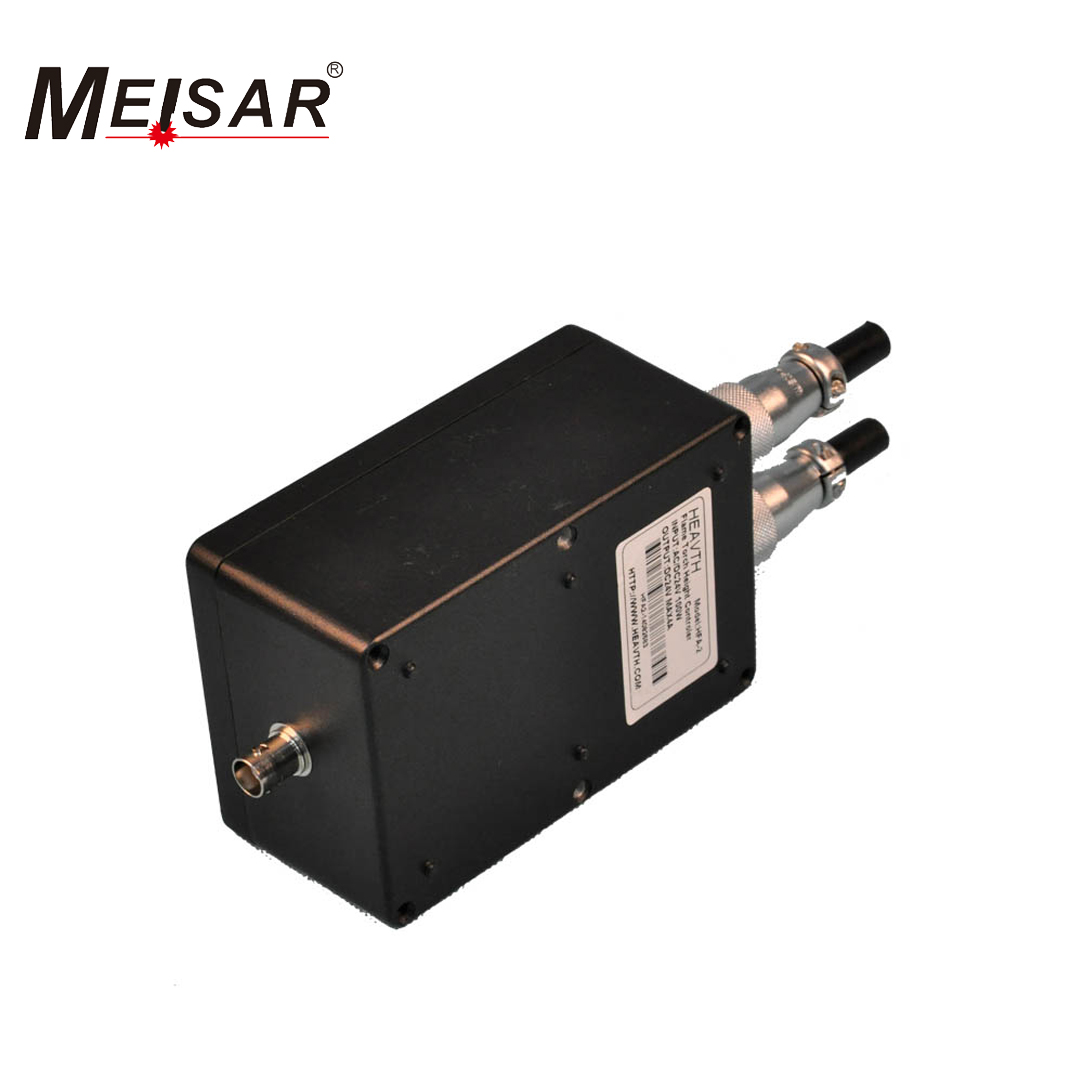

- Product Name: Torch Height Controller
- Function: Auto Height Control
- Input Voltage: DC24V±10%
- IHS Type: Proximity Switch
- Lifter Motor: DC24V Motor Max 40W
- Features: AVR core, Rich function, 2 EDG plug
- After Warranty Service: Video technical support, Online support, Spare parts
- Local Service Location: None
- Certification: CE
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:251px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:-149px;margin-left:125px;width:469px;height:469px}#detail_decorate_root .magic-4{vertical-align:top}#detail_decorate_root .magic-5{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-6{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-7{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-8{width:750px;border-collapse:collapse}#detail_decorate_root .magic-9{min-height:28px;padding:5px 10px;width:261px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-10{min-height:28px;padding:5px 10px;width:442px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-11{overflow:hidden;width:373px;height:209px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:-246px;margin-left:5px;width:373px;height:465.00666666666666px}#detail_decorate_root .magic-13{overflow:hidden;width:373px;height:209px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-14{margin-top:-45px;margin-left:-2px;width:371px;height:463px}#detail_decorate_root .magic-15{overflow:hidden;width:750px;height:960px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-16{margin-top:0;margin-left:0;width:750px;height:960px}
Product Description

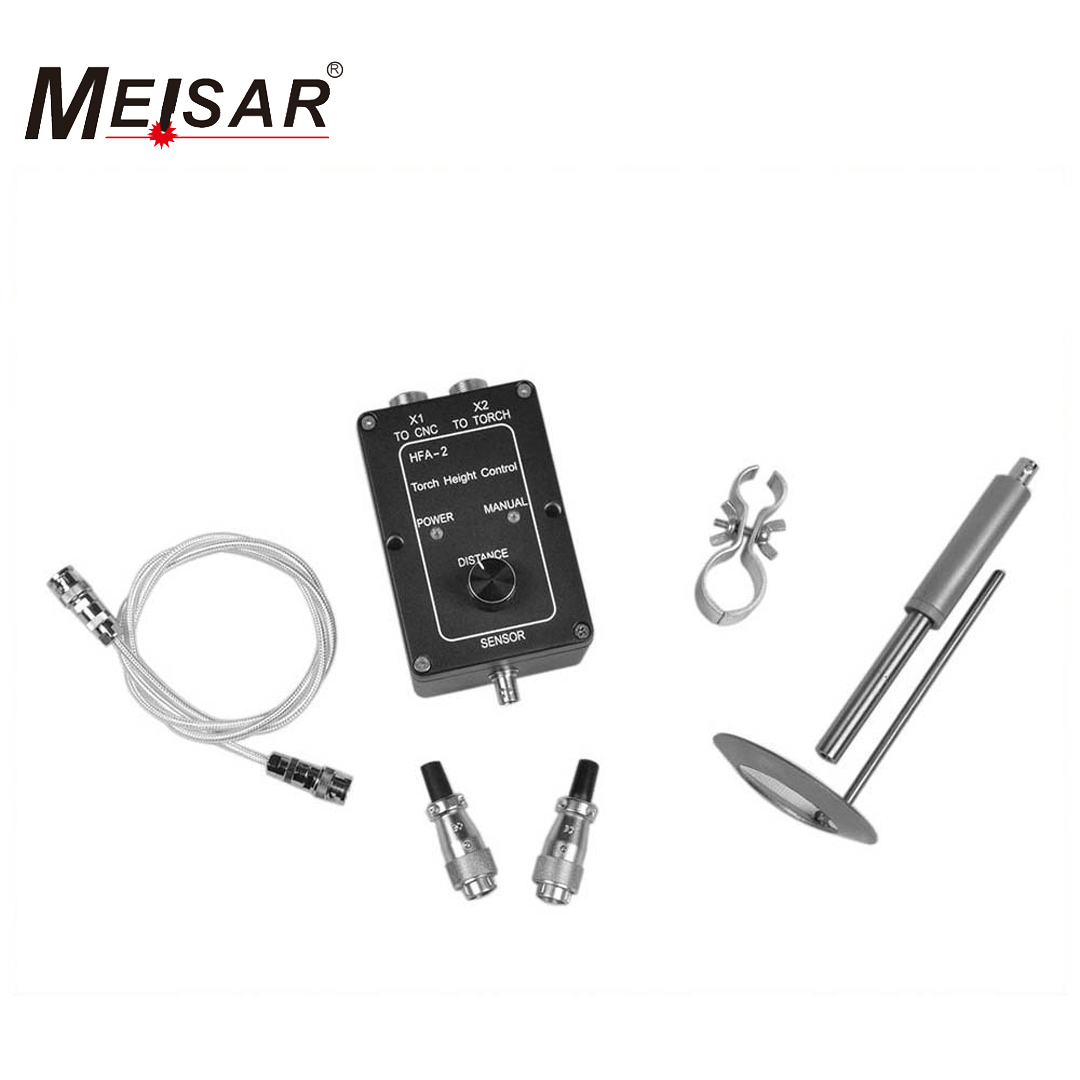

HFA2 is a closed controlling system. It contains 4 parts: Detecting the position signal, transform the signal treated, logic
control and motor drive. This system is applied to CNC flaming cutting. equipment whose cutting torch height needs to be
adjusted automatically.
control and motor drive. This system is applied to CNC flaming cutting. equipment whose cutting torch height needs to be
adjusted automatically.

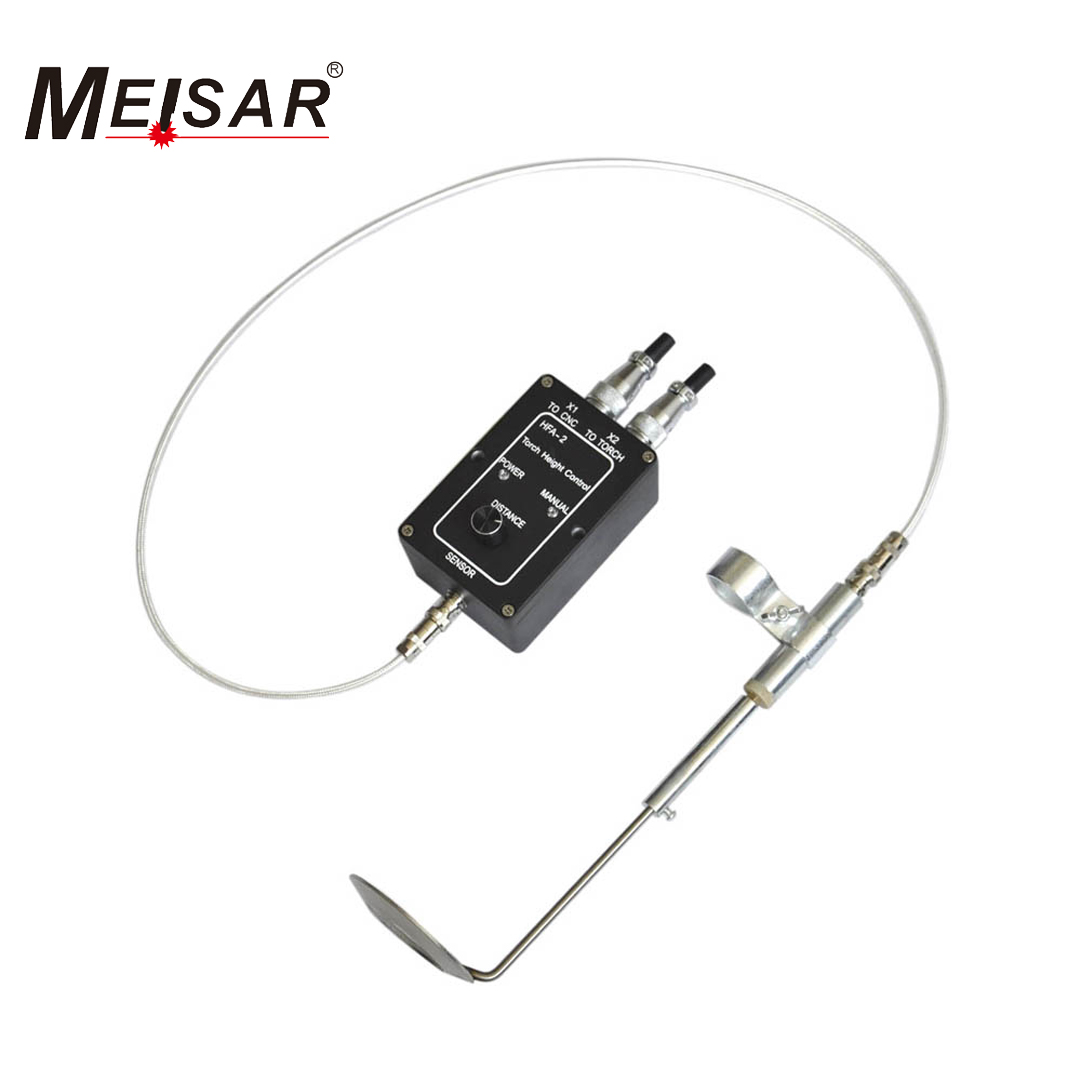

The height signal detecting device makes use of the capacitance sensor. It is isolative between sensor ring and NC machine. The sensor ring is underneath the cutting tip. The detecting device is connected to the metal detector via coaxial-cable. It can get the inductive signal of the height between cutting tip and material(such as steel). The sensor
can send out corresponding signal to logic control circuit after dealing with the information by inner circuit in control box.
can send out corresponding signal to logic control circuit after dealing with the information by inner circuit in control box.
Specification
|
Input Voltage:
|
DC/AC24V±10%,50/60 Hz, 150 W
|
|
Lifter Motor:
|
24 VDC MOTOR
|
|
Output current:
|
1A-4A
|
|
Sense Distance:
|
5mm-30mm to workpiece, adjustable
|
|
Accuracy:
|
±0.2mm
|
|
Size/Weight:
|
120mm X 80mm X 55mm, 1.5kg
|
|
MAX Power Output:
|
100W
|
|
HF Cable:
|
1000mm
|
|
Sensor Type:
|
Ring
|
|
Sensor Ring:
|
Outer diameter 80 mm,Inner diameter 40 mm
|

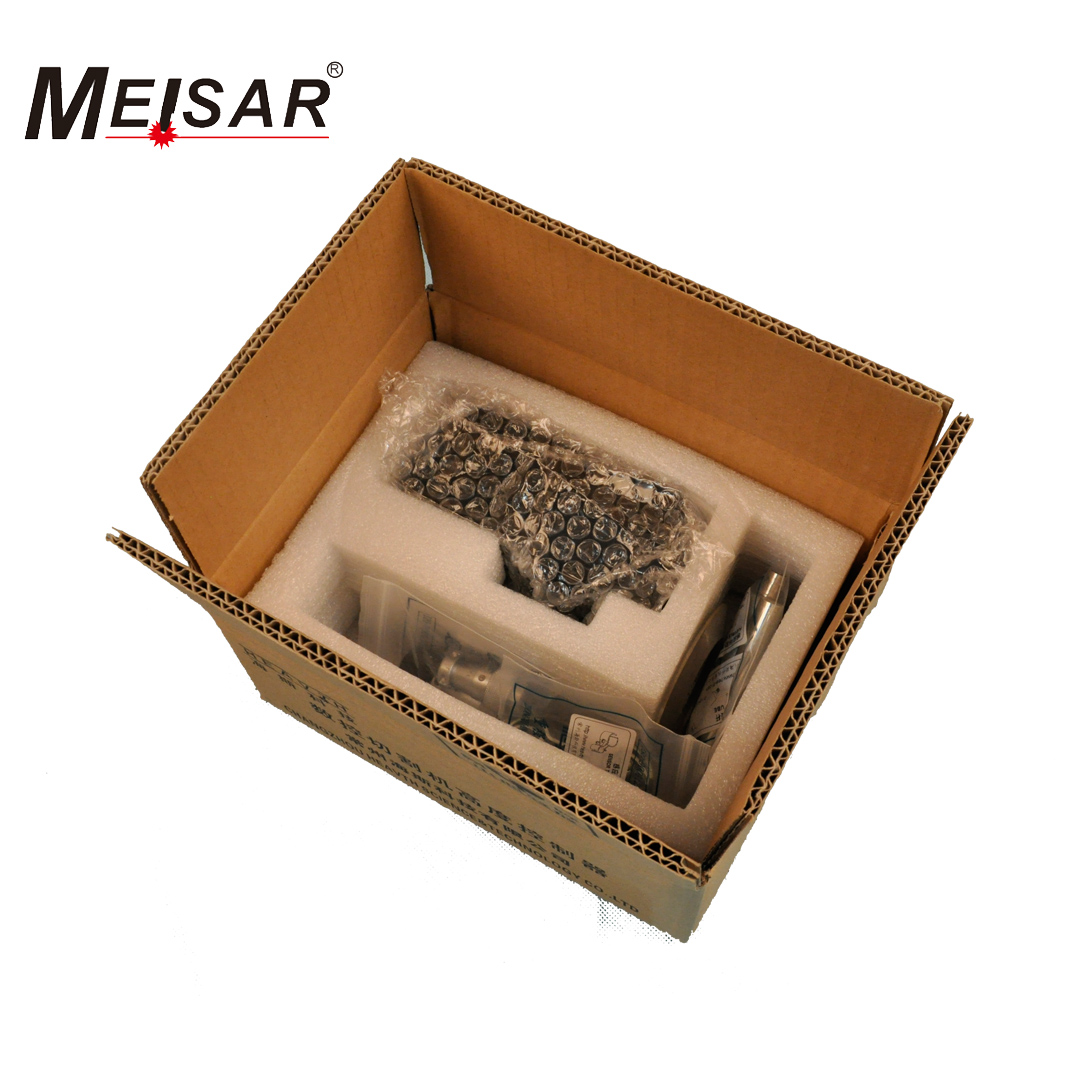

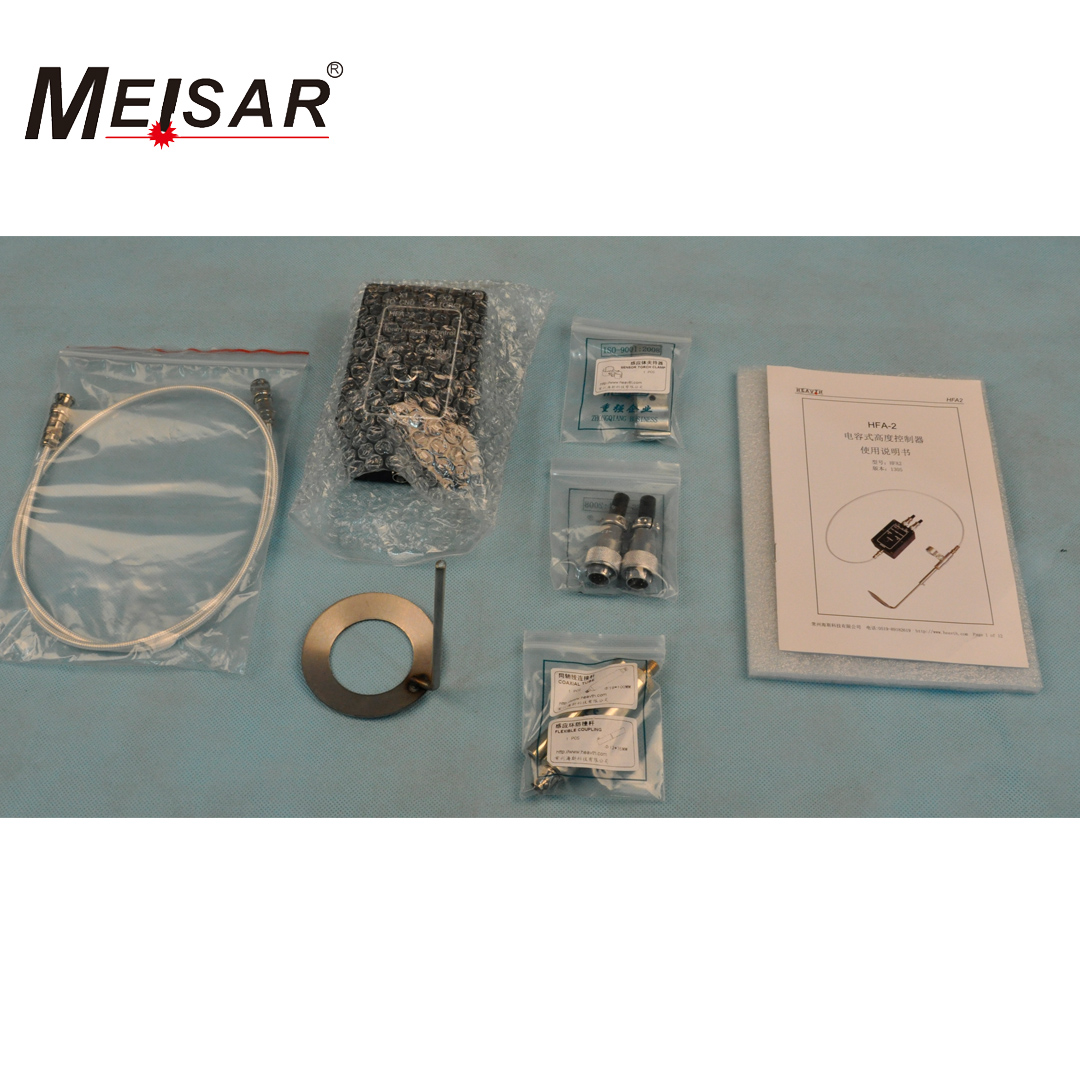

Packing & Delivery
