Description
- Brand Name: HoldPeak
- Origin: CN(Origin)
- DIY Supplies: ELECTRICAL
- Certification: NONE
- Display Type: Digital Only

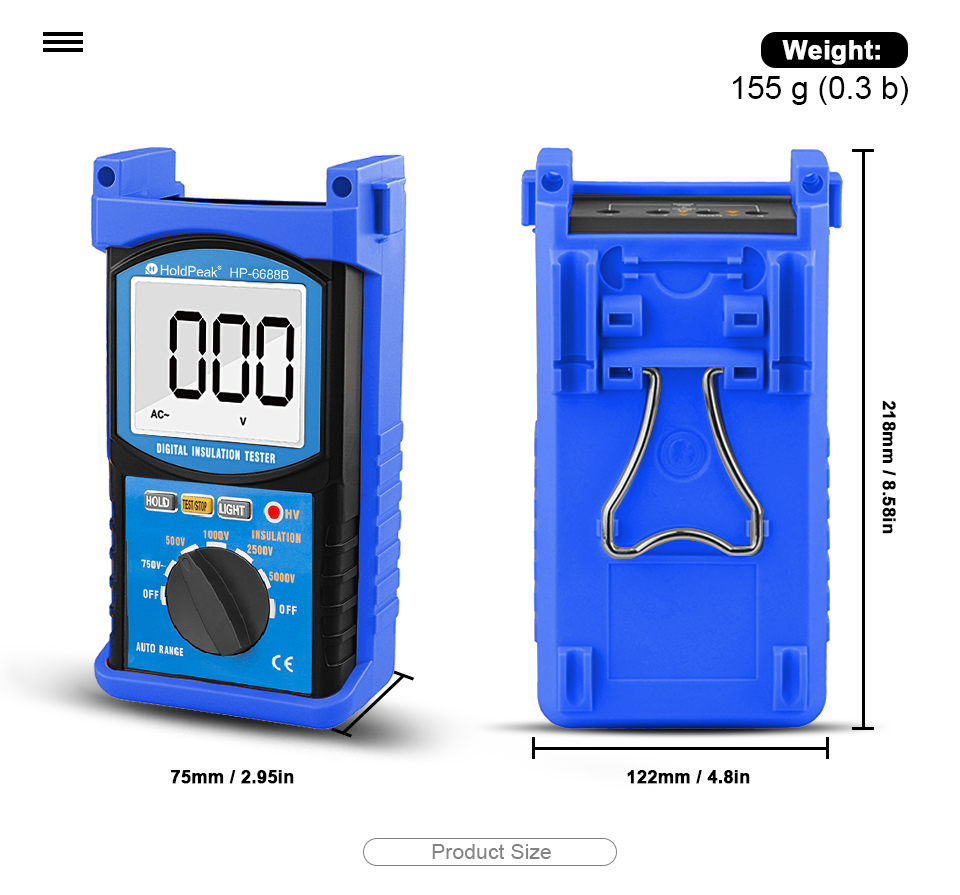

- Dimensions: 201×92.8x 53.8mm
- Testing Voltage: 500V~5000V
- Operating Temperature: No
- Accuracy Class: 3% of rdg 5digits
- Model Number: HP-6688B
- Measuring Range: 500V-5000V
- Model: HP-6688B
- Insulation tester: 5000V

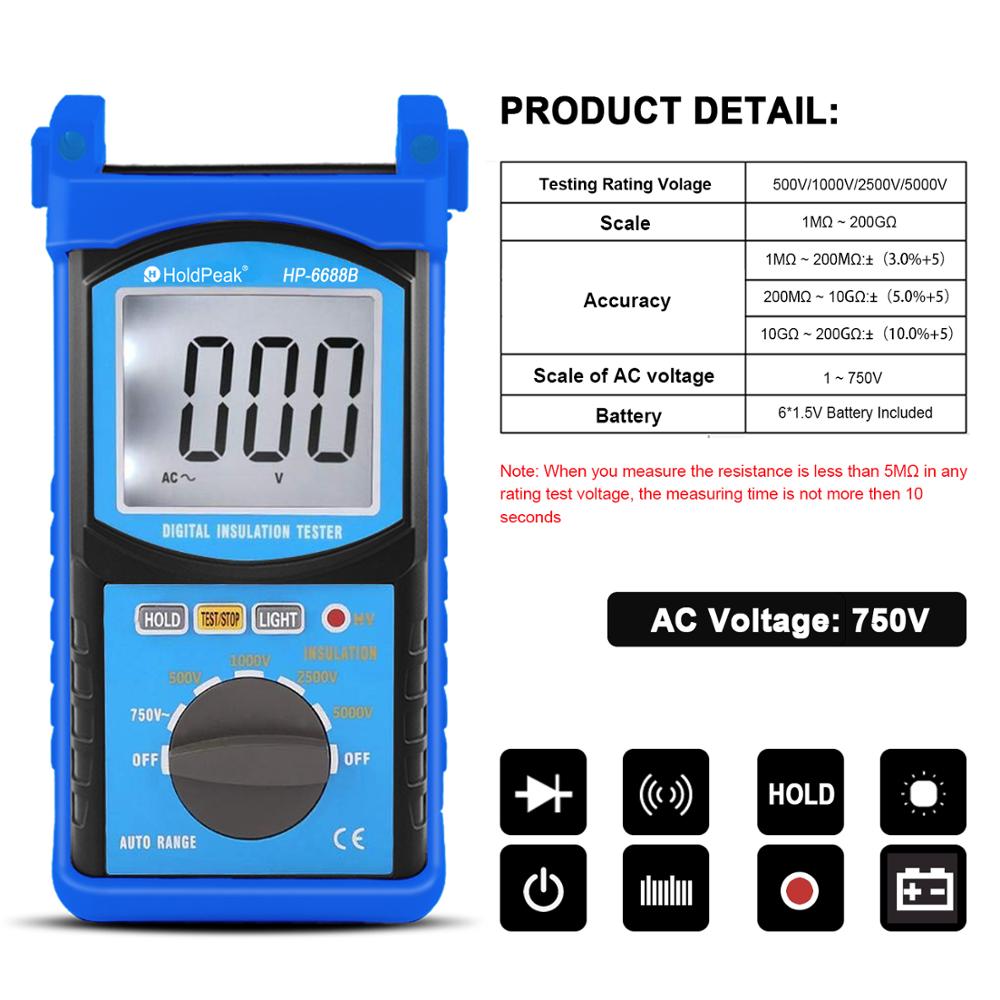

- Testing Rating Voltage: 500V/1000V/ 2500V/5000V

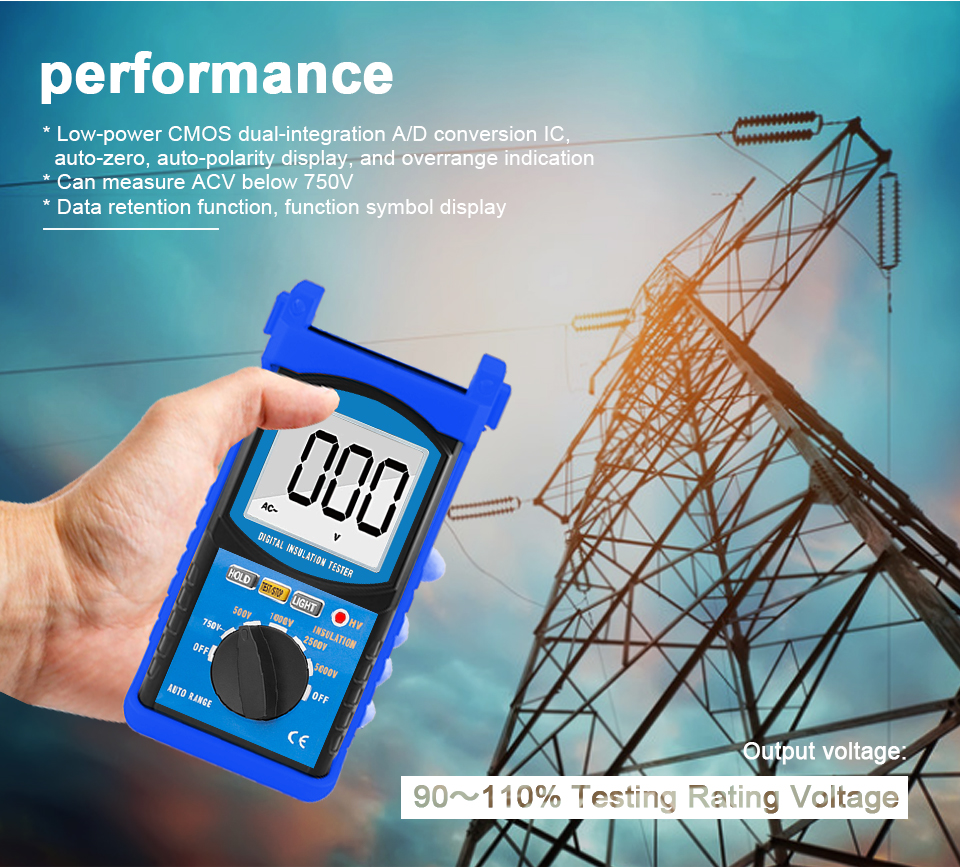

- Output voltage: 90~110% Testing Rating Voltage

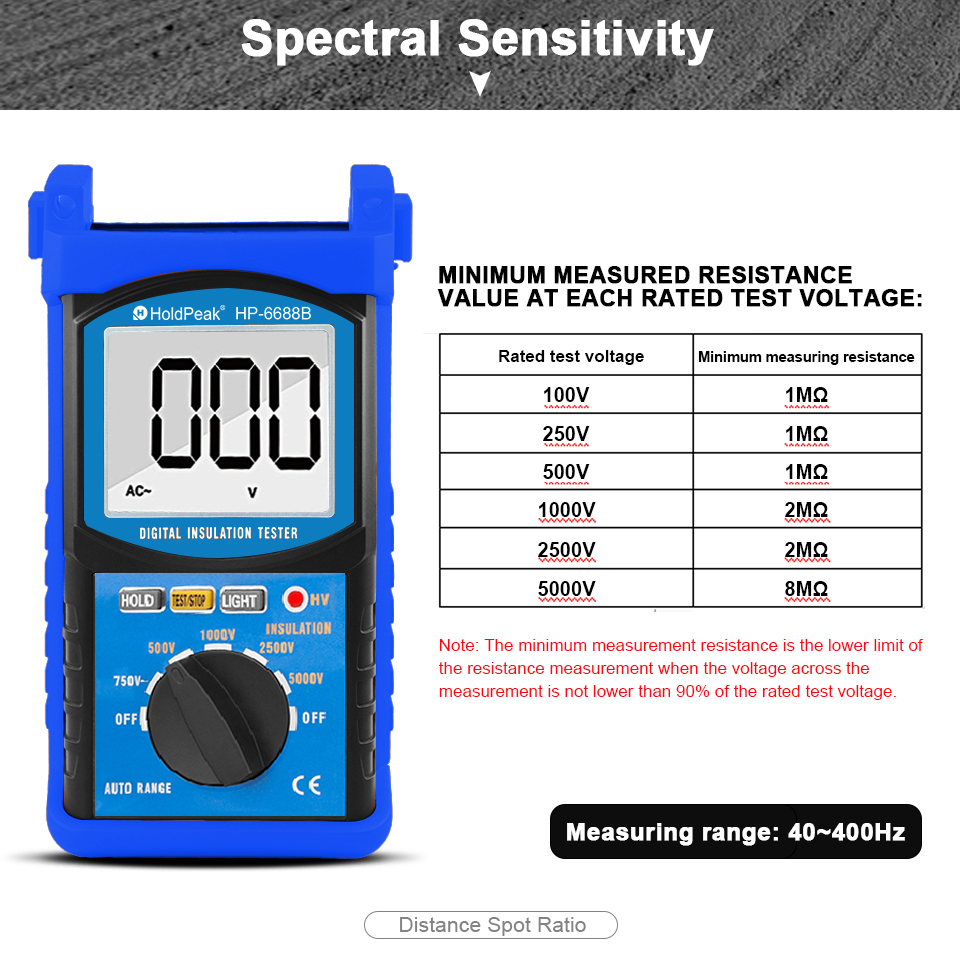

- Scale: 1MΩ~200GΩ
- Minimum division: 0.01MΩ
- Scale of AC voltage: 1~750V
- Accuracy: ± ( 2.0% 5 )
- Resolution: 1V
- Frequency response: 40~400Hz
Note: Our products have many different colors, so the colors will be sent randomly. They are just different in color, and other functions are consistent with their appearance. If you do not agree to send other colors, please do not place an order for purchase.
Thanks for choosing Holdpeak, you can click the following link to watch a more detailed video:https://youtu.be/y2v4u2l0ocQ

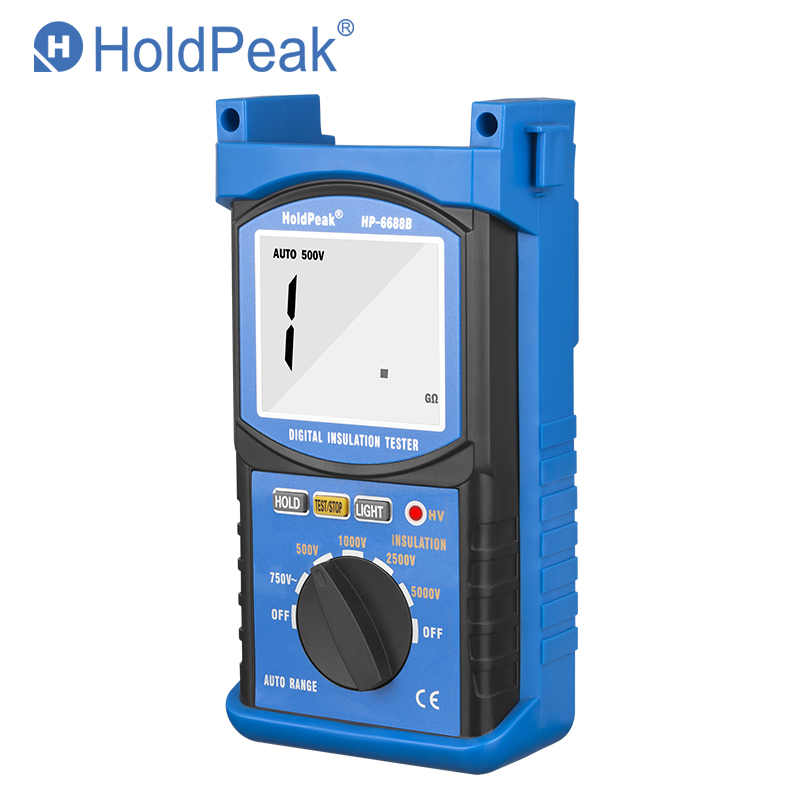

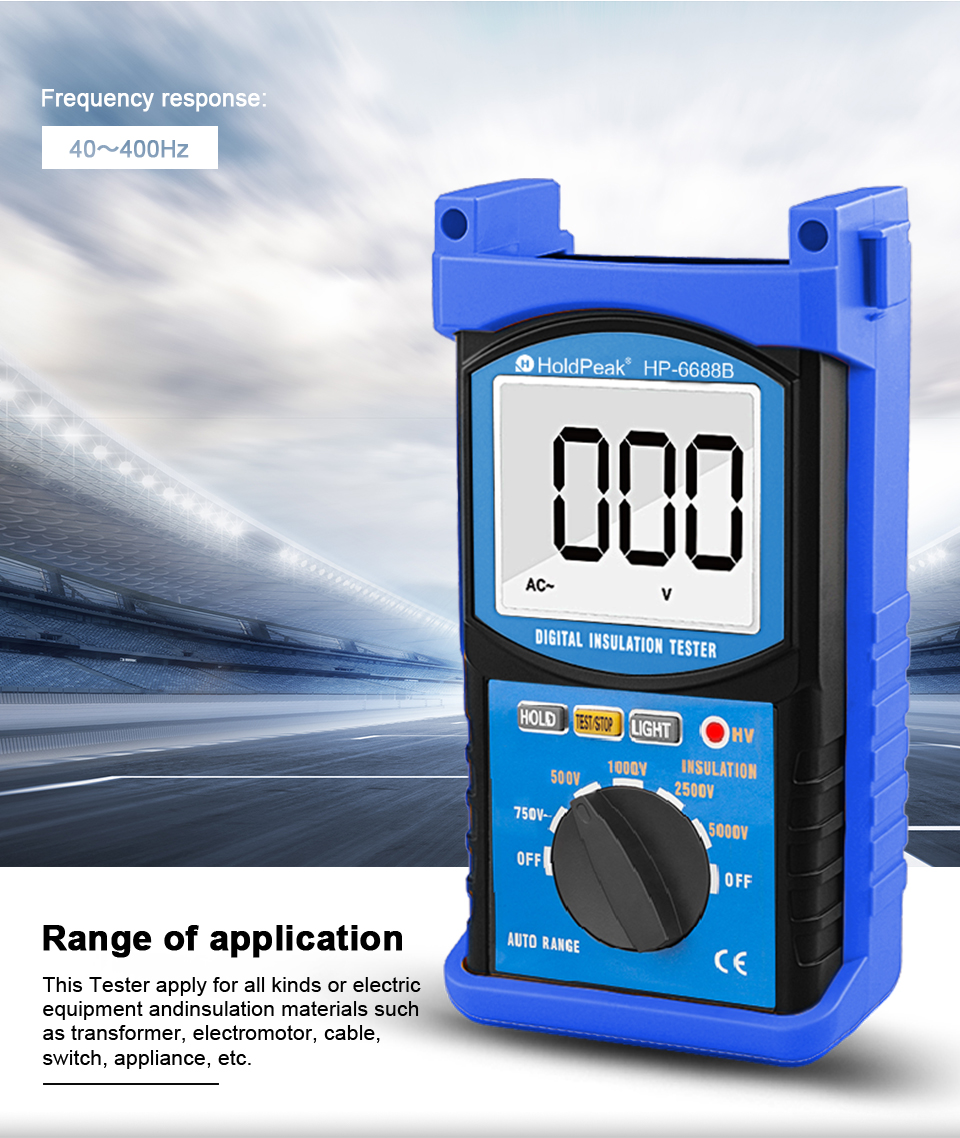

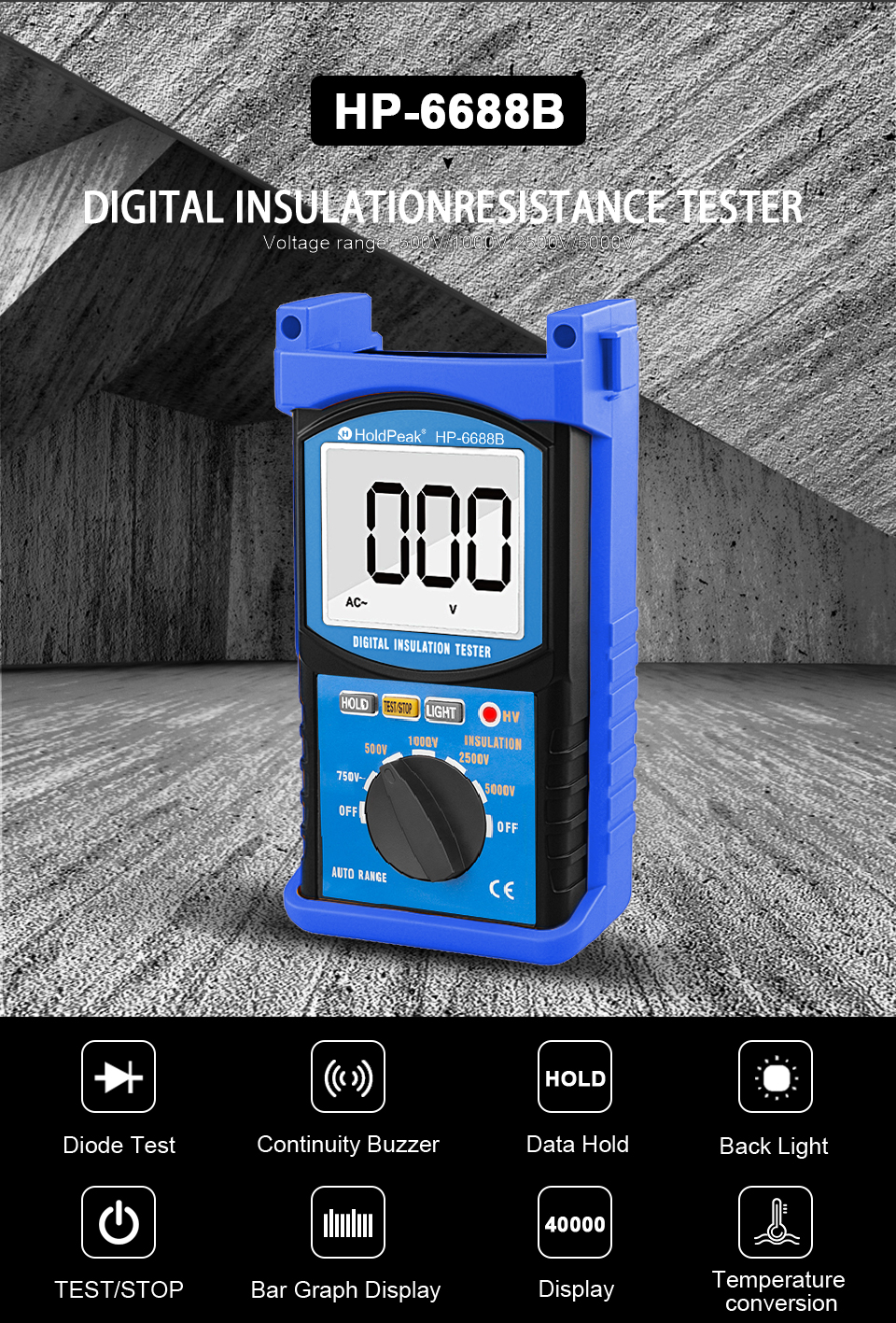

HoldPeak HP-6688B High Quality DigitalAuto Range Insulation Resistance Tester
【Test voltage combinations】500V,1000V,2500V or 5000V;AC Voltage：750V.
【Battery Included】Contain 6*1.5V (AA) Battery.Comes with a rechargeable function that lets you recycle your battery,Don’t need to replace batteries frequently.
【Insulation Resistance】1MΩ～200GΩ.A large range for you measure the insulation resistance.

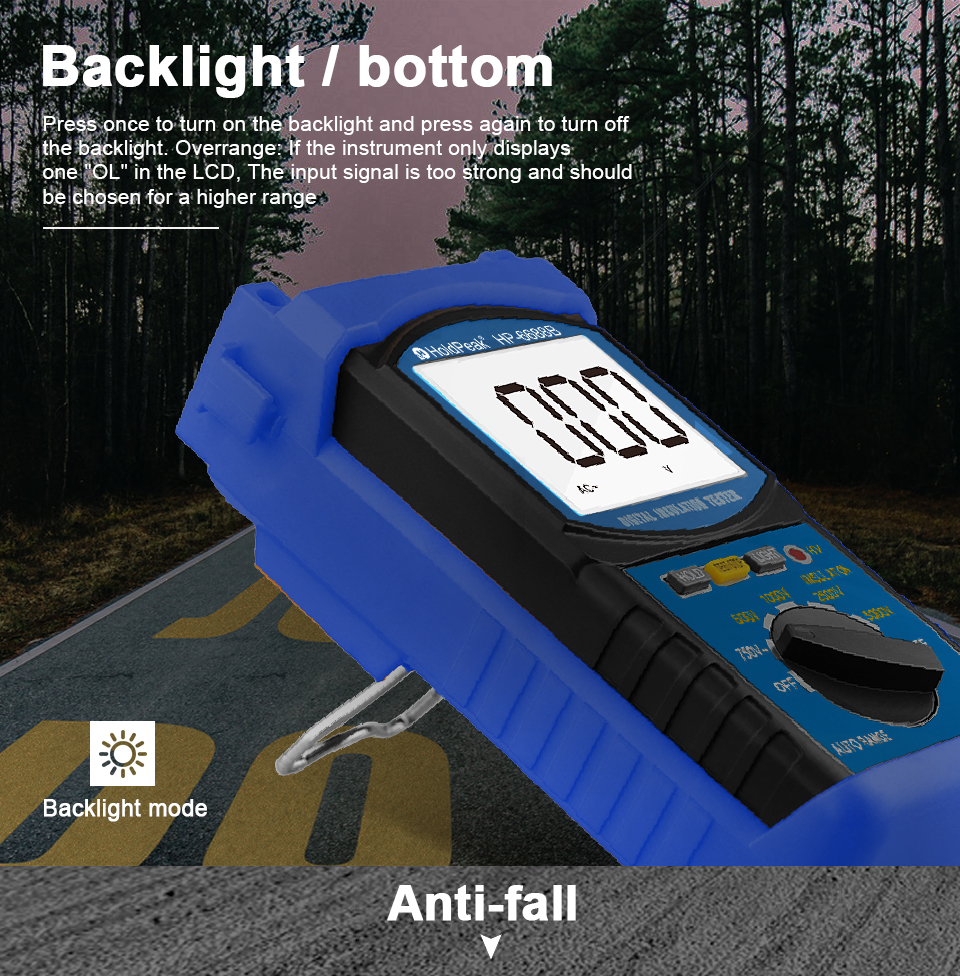

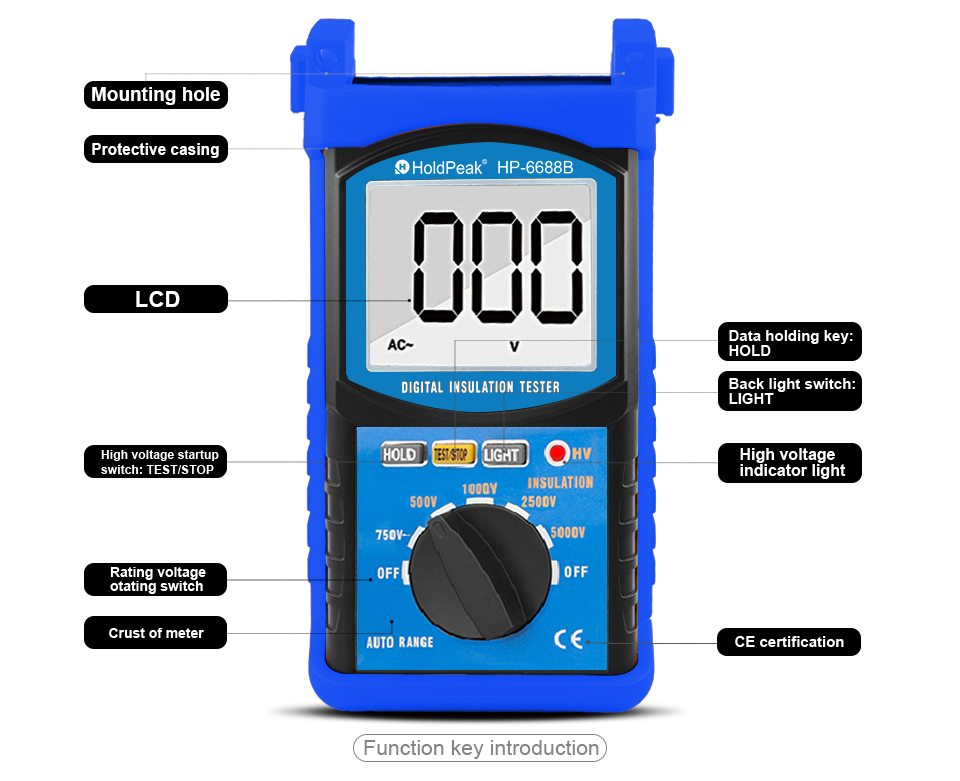

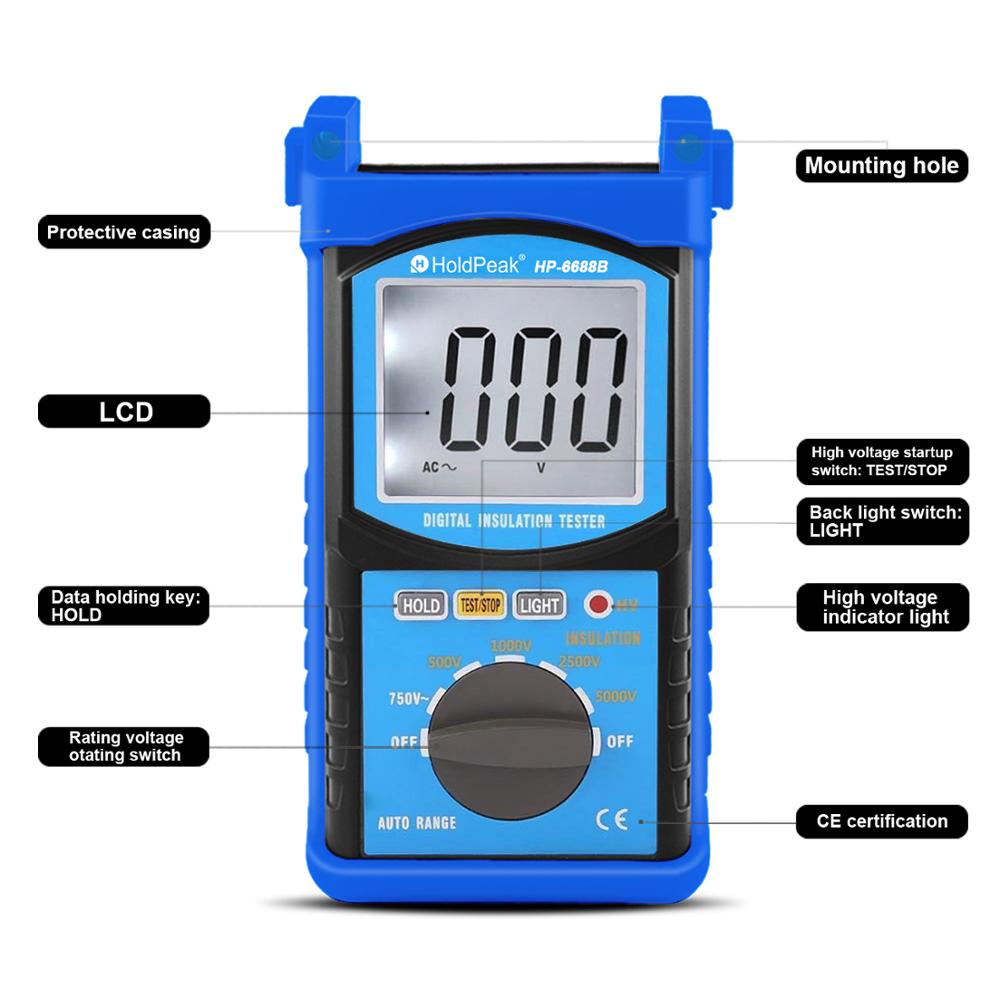

【Multi-Function】Strong anti-magnetic and anti-jamming function.With Auto Range,Data Hold,Low Battery Indication,Backlight,HV red indication lamp light，High voltage and short circuit input alarm.
No battery because transportation is not allowed
