Description
- Brand Name: MLHJ
- Origin: CN(Origin)
- Certification: CE
- Model: SHTW-1
- Brand: WELLNIT
- Torque: 183-1837 N.m
- Bolt Size: 16-36 M
- Weight: 2KGS
- Square: 3/4inch
- Driven: Hydraulic
- Delivery: Stock
- Certificate: CE ISO
- Color: Customer’s request
High Pressure Square Hydraulic Torque Wrench Bolting Tool

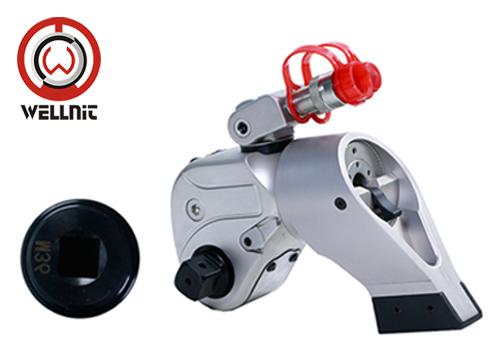

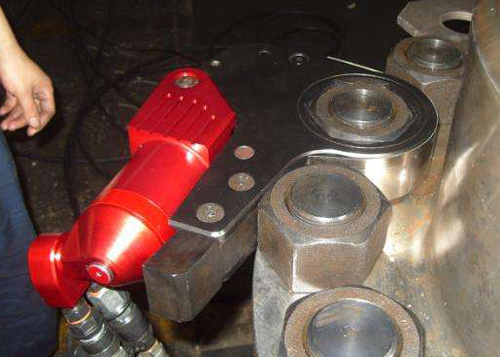

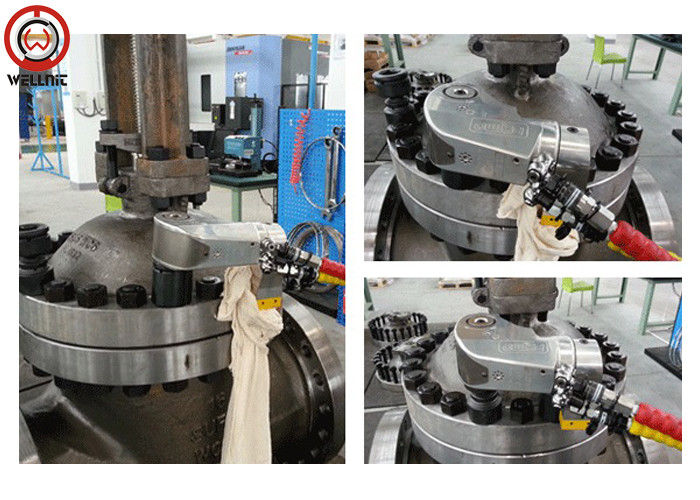

Product Show

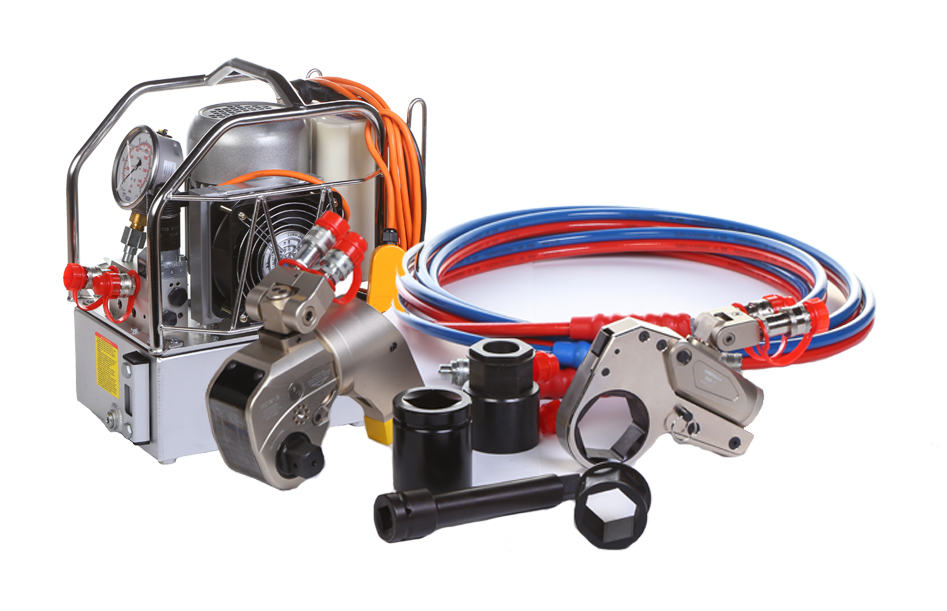

Matching Product: Electric Hydraulic Pump
Matching Product: Hydraulic Hose

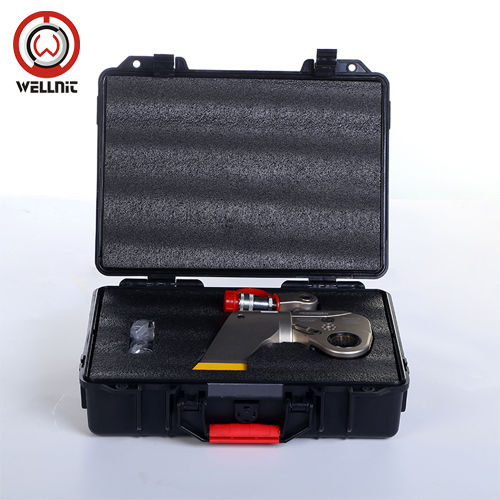

Package

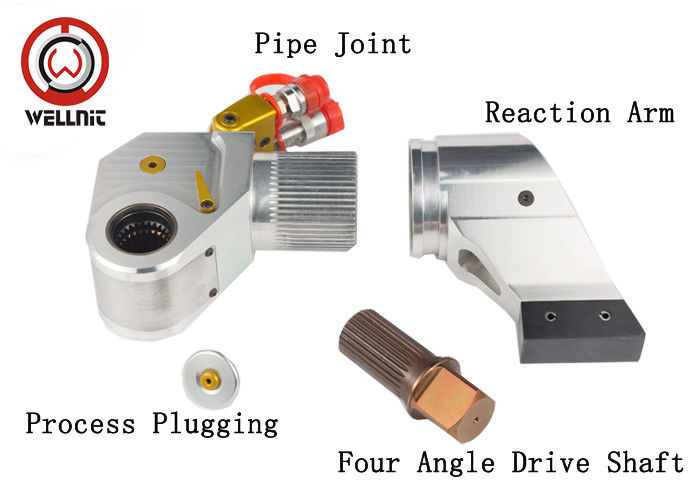

Product Details
1. Patented integrated body design, more sturdy and durable

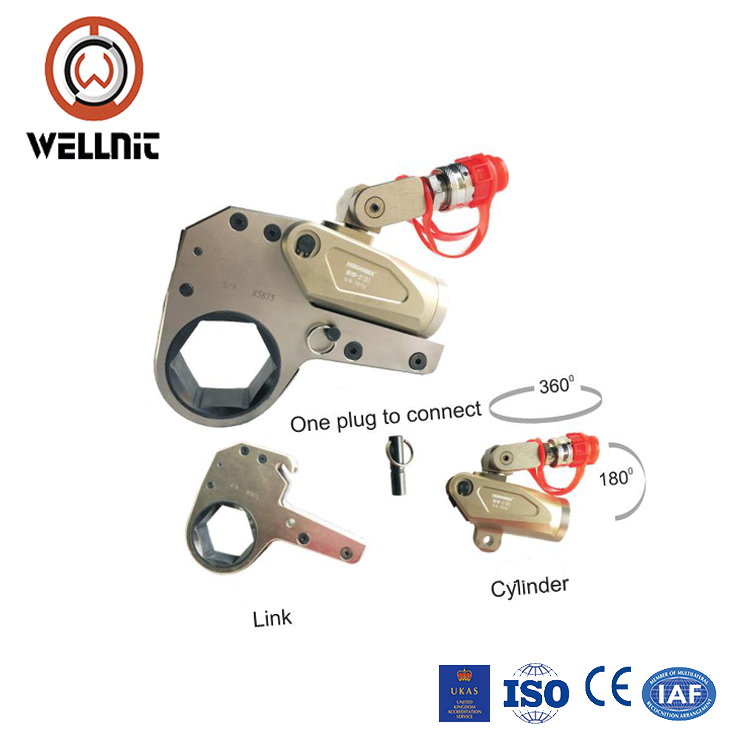

2. Rotary-return mechanism design, never-jam mechanism.
3. Hands-free operation, making the use more safety.
4. Slim nose radius and 360°×180° swivel hose connection allow easier positioning in confined space.
5. High repeatability, with accuracy±3%
6. 360°reaction arm, makes the wrench get better supporting
7. Standard working pressure: 700par.
| Model | Torque | Bolt Size | Weight | Square Driven |
|
SHTW-1 |
183-1837 |
16-36 | 2 | 3/4″ |
| SHTW-3 | 451-4512 | 22-48 | 4 | 1″ |
| SHTW-5 | 752-7528 | 27-56 | 7 | 11/2″ |
| SHTW-8 | 1078-10780 | 30-64 | 9 | 11/2″ |
| SHTW-10 | 1551-15516 | 36-72 | 13 | 11/2″ |
| SHTW-15 | 2063-20627 | 39-80 | 21 | 21/2″ |
| SHTW-20 | 2666-26664 | 42-90 | 25 | 21/2″ |
| SHTW-25 | 3472-34725 | 48-100 | 31 | 21/2″ |
| SHTW-35 | 4866-48666 | 64-1202 | 45 | 21/2″ |

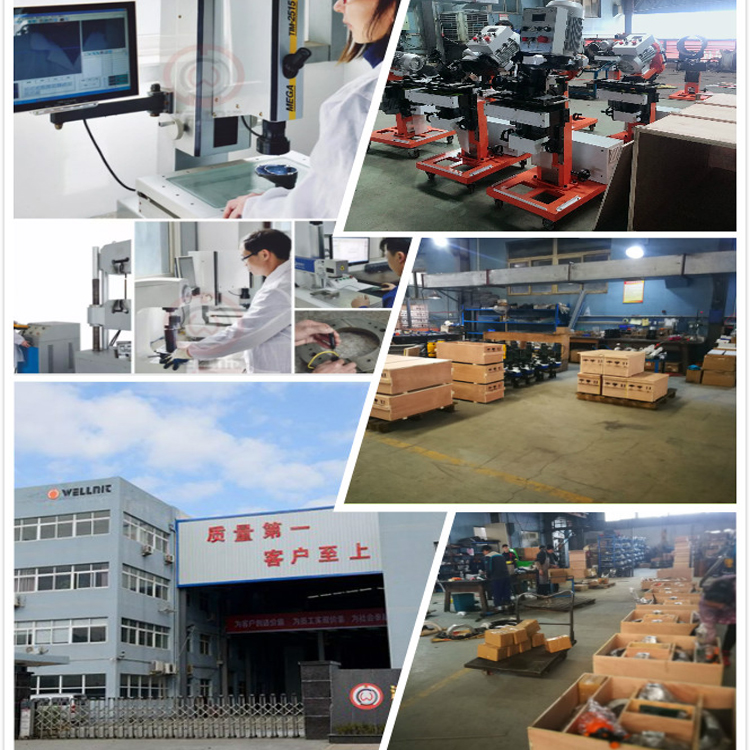

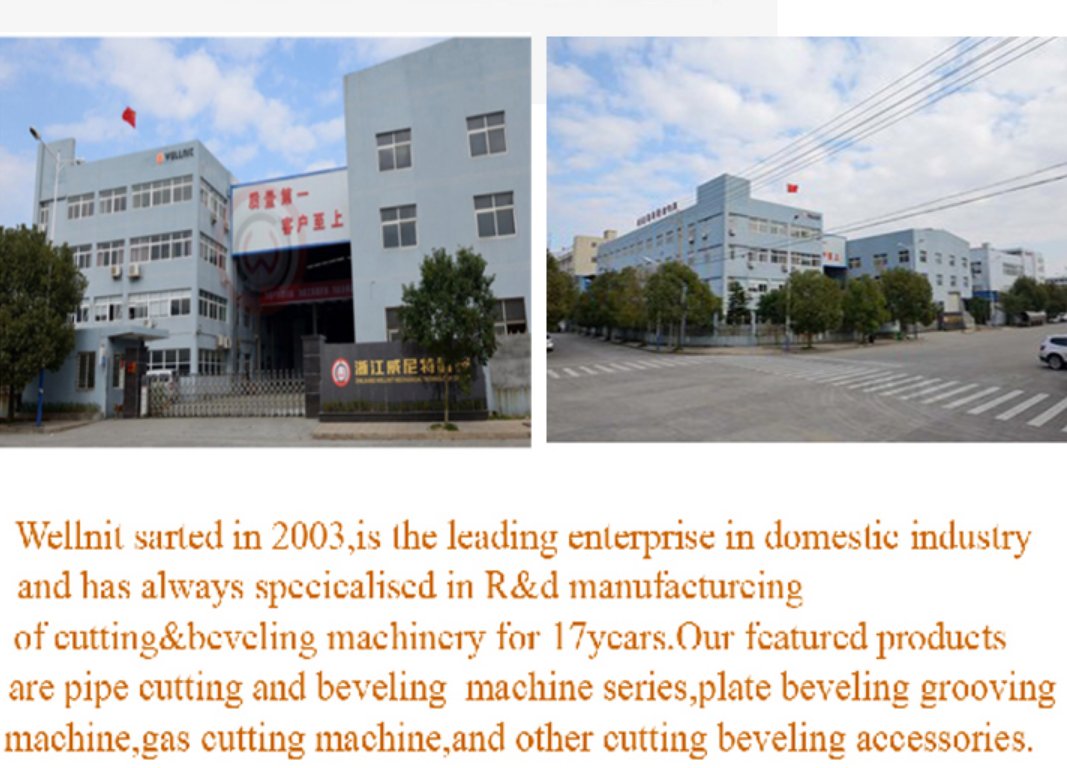

Company Profile
