Description
- Brand Name: phlatlight
- Origin: CN(Origin)

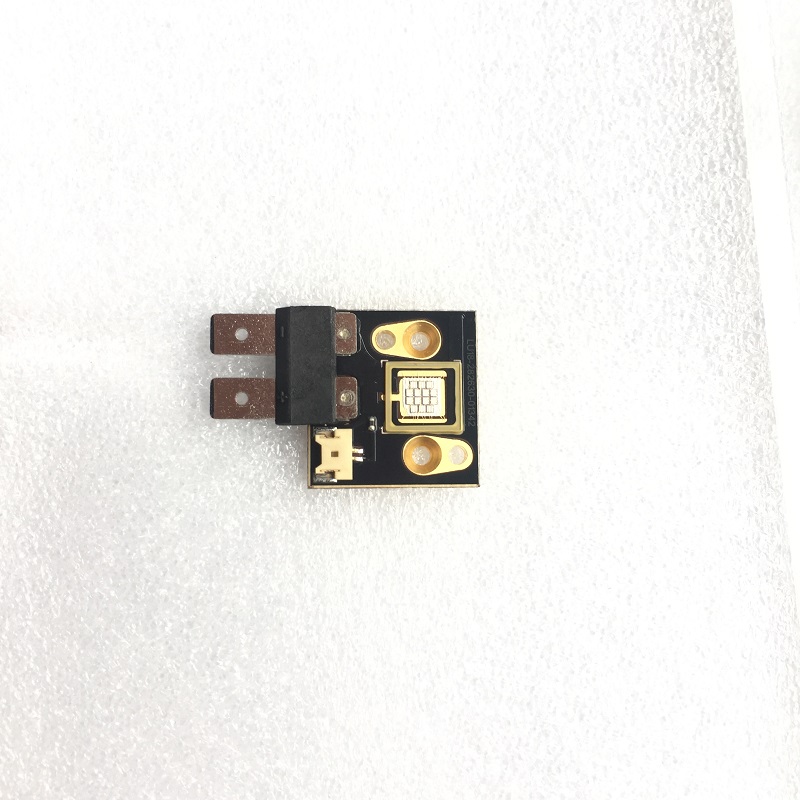

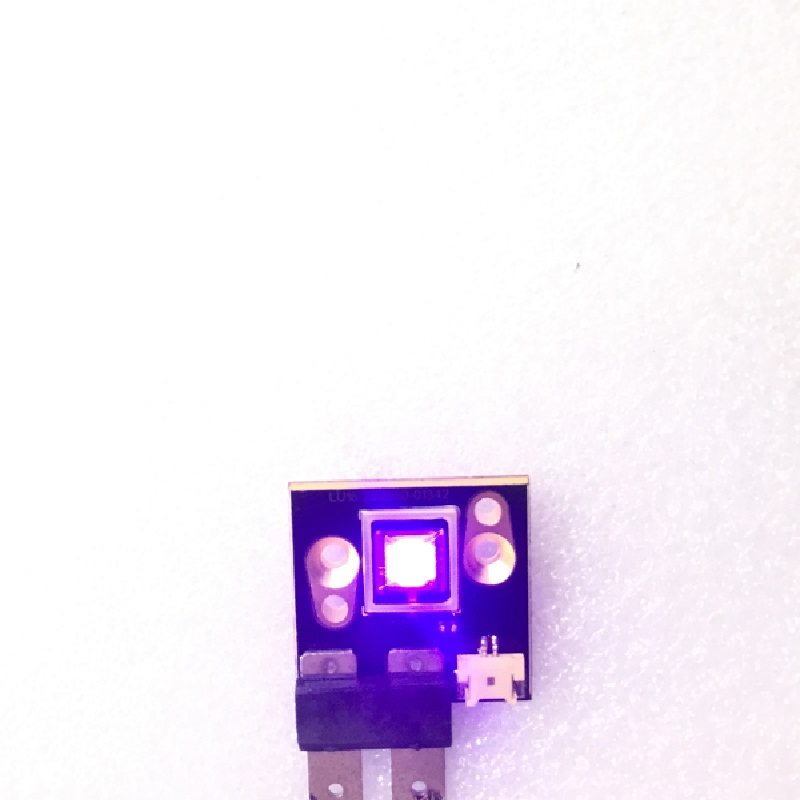

- Item Type: UV GEL Curing Lamps
- Model Number: CB1400-UV405
THE WAVE LENGTH IS 405NM
UV glue and UV ink curing 3dprinter curing dlp printer
Electronic components, hard disc, micro-generator, earphone,
watch precision components manufacturing;
DVD/CD light head, optical lens, LCD sealing curing
;
medical equipment, artwork, etc.
|
Item |
Spec |
|
Part No. |
CB-1400UV |
|
Wave Length |
365nm 385nm 395nm 405nm |
|
Chip brand |
Sunner |
|
PO.mW |
10000 19000 19000 20000 |
|
Power |
100watt @ 25A |
|
Voltage |
3.4-4.3v |
|
Certification |
LM80 , SO,CE, Rohs |
|
Chip area |
Like aroud chip 14mm² |
|
Place of Orign |
TAIWAN |
the heatsinck is:http://it.aliexpress.com/store/product/the-heat-pipe-heatsink-for-endoscope-light-source-high-power-light-source-heatsink-the-heatsink-for/507885_32521018291.html
|
|
|
|
|
|
|
|
|
|
