Description
- Brand Name: MLHJ
- Origin: CN(Origin)
- Certification: CE
- Model Number: HTS4S200A
- Place of Origin: Sichuan, China
- Brand Name: Heltec
- Base Material: –
- Copper Thickness: –
- Board Thickness: –
- Min. Hole Size: –
- Min. Line Width: –
- Min. Line Spacing: –
- Surface Finishing: –
- Board Size: –
- Battery type: lipo/Lifepo4/LTO
- Application: HTS4S200A
- Mobile App: Android
- Bluetooth: Yes
- Communicate method: Bluetooth,CAN,RS485
#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-3{vertical-align:top}#detail_decorate_root .magic-4{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-5{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-6{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-7{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-8{font-size:28px}#detail_decorate_root .magic-9{overflow:hidden;width:750px;height:993.872549019608px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-10{margin-top:0;margin-left:0;width:750px;height:993.872549019608px}#detail_decorate_root .magic-11{overflow:hidden;width:750px;height:689.655172413793px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:750px;height:689.655172413793px}#detail_decorate_root .magic-13{overflow:hidden;width:750px;height:936.7305061559507px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-14{margin-top:0;margin-left:0;width:750px;height:936.7305061559507px}#detail_decorate_root .magic-15{overflow:hidden;width:750px;height:358.16326530612247px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-16{margin-top:0;margin-left:0;width:750px;height:358.16326530612247px}#detail_decorate_root .magic-17{font-size:26px}#detail_decorate_root .magic-18{overflow:hidden;width:750px;height:605.643994211288px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:750.0000000000001px;height:605.643994211288px}#detail_decorate_root .magic-20{overflow:hidden;width:750px;height:244.05506883604508px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:750.0000000000001px;height:244.05506883604508px}#detail_decorate_root .magic-22{font-size:24px}#detail_decorate_root .magic-23{overflow:hidden;width:750px;height:243.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:750px;height:243.75px}#detail_decorate_root .magic-25{overflow:hidden;width:750px;height:341.25px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:750px;height:341.25px}#detail_decorate_root .magic-27{font-size:20px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:440.4400606980273px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:440.4400606980273px}#detail_decorate_root .magic-30{font-weight:normal}#detail_decorate_root .magic-31{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:373px;height:373px}#detail_decorate_root .magic-33{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:373px;height:390.9592592592592px}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:468.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:750px;height:468.75px}#detail_decorate_root .magic-37{overflow:hidden;width:750px;height:279.17376490630323px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:750px;height:279.17376490630323px}#detail_decorate_root .magic-39{font-size:16px}#detail_decorate_root .magic-40{font-size:18px}#detail_decorate_root .magic-41{overflow:hidden;width:247.33333333333334px;height:139.12500000000003px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;width:247px;height:139px}#detail_decorate_root .magic-43{overflow:hidden;width:247.33333333333334px;height:138.18623481781378px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-44{margin-top:0;margin-left:0;width:247px;height:149px}#detail_decorate_root .magic-45{margin-top:0;margin-left:0;width:247px;height:164px}

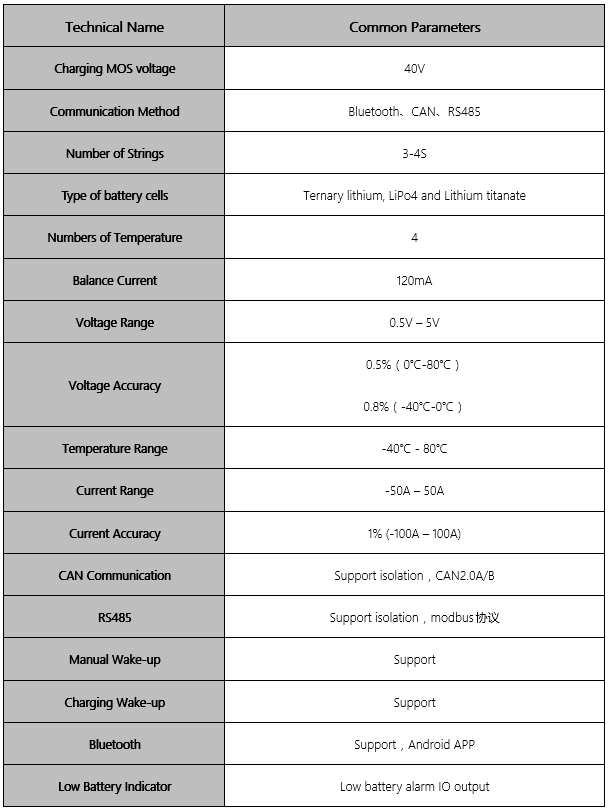

Feature

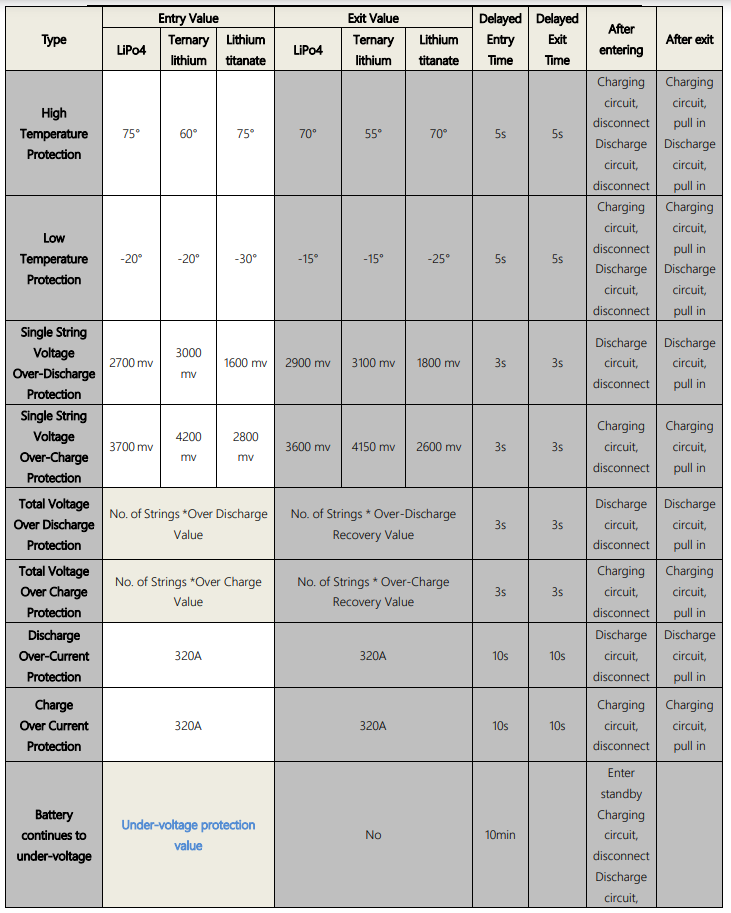

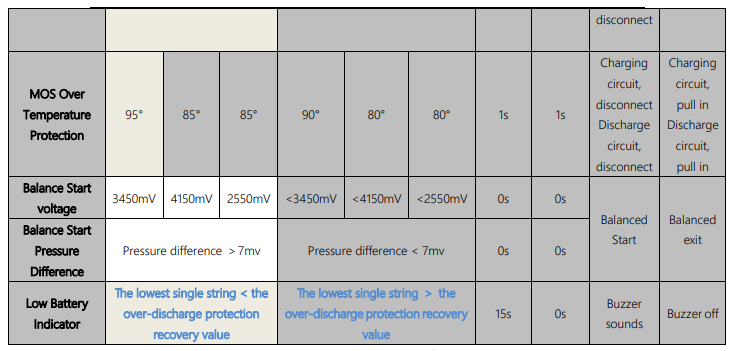

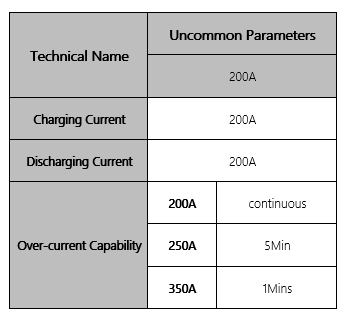

The Battery Cells Default Protection Parameters, the White Background Can be Set

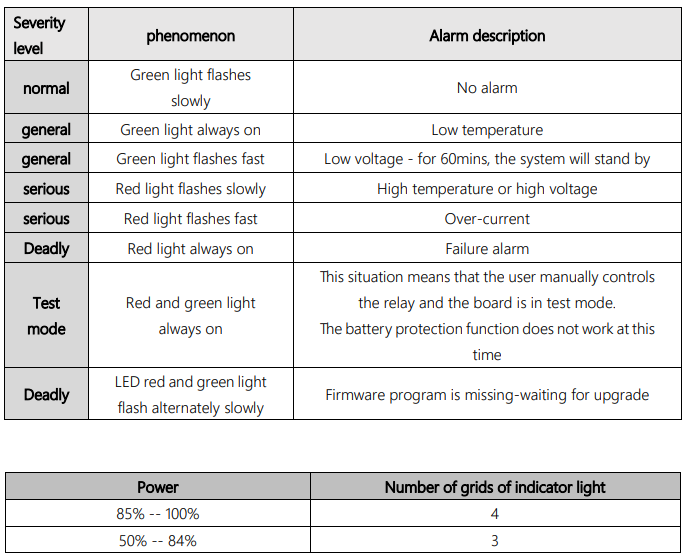

LED Indicator Description

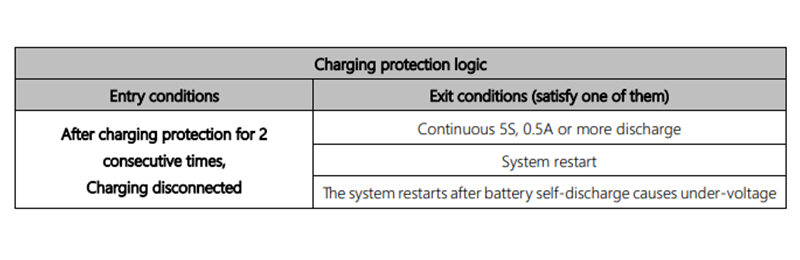

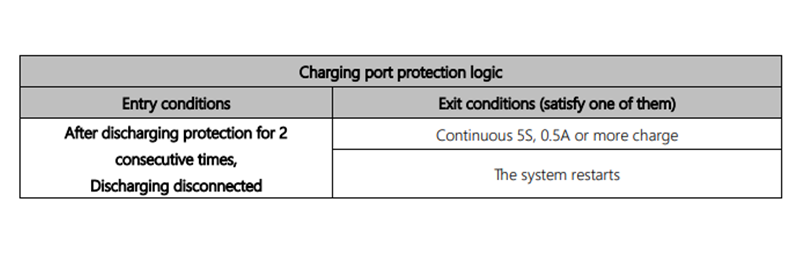

BMS Charging Protection Logic
BMS Discharge Protection Logic

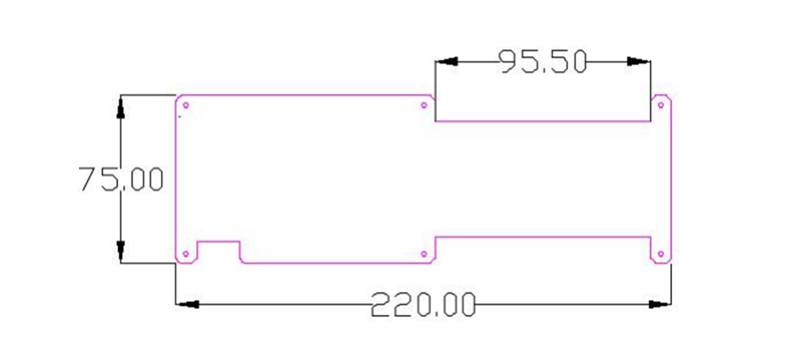

Dimensions
RS485 Communication, CAN Communication Description

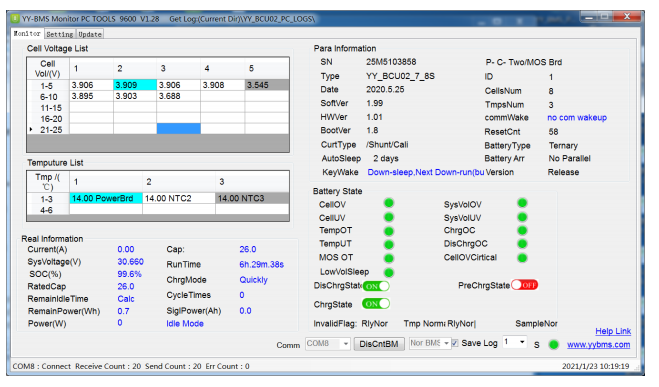

To implement standard modbus protocol through RS485, you need to connect BMS A and B lines. Using the PC software of Yanyang
Company, the detailed parameter information of BMS can be viewed on RS485 bus. The following page is the RS485 parameter
information viewing page.
Company, the detailed parameter information of BMS can be viewed on RS485 bus. The following page is the RS485 parameter
information viewing page.

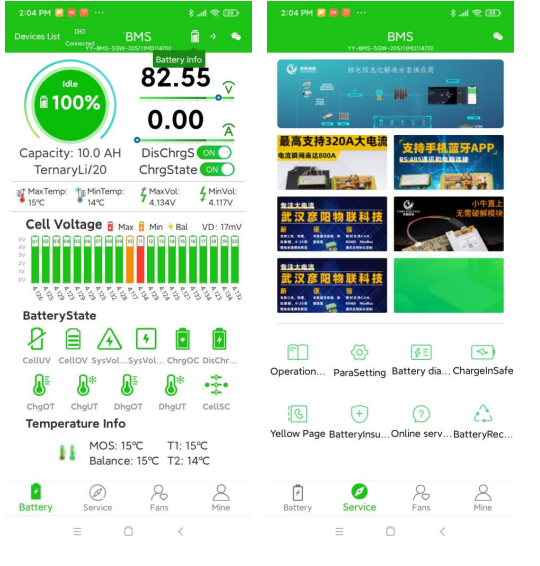

Bluetooth APP
Scan the code to get the APP for Android

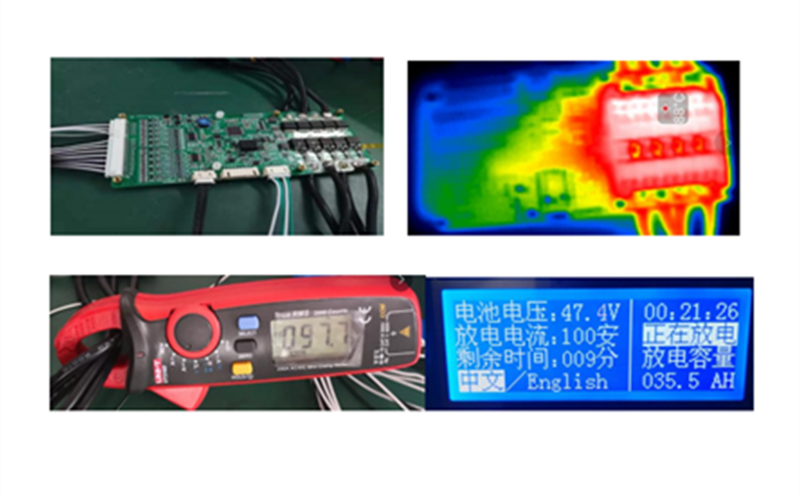

Thermal Field Test Data
100A continuous discharge, MOS temperature 88° under the aluminum plate without heat dissipation.
Chengdu Heltec Automation Technology Co., Ltd. ( English abbreviation Heltec Automation). At present, The company’s research and development and production include OLED dot matrix screen, electronic ink screen, IoT series products, LoRa supporting solutions and high-precision temperature controllers with automatic control algorithms as the core.
At present, there is a strong technical research and development team, a scientific production and manufacturing platform and a strict quality management system.
OUR SERVICES & STRENGTH
Stable performance, cost-effective products, high-quality and superior service, our products have not only gained a good reputation in the country, but also received high-quality evaluation in France, Germany, Russia, the United States, South Korea and other countries.
1). Rigorous quality assurance system.
2). High level of service awareness.
3). High quality team.
4). Components use well-known brands.
5). Quick response customer program.
6). Self-owned processing plant, rapid production, equipped with automatic SMT placement machine, automatic screen printing machine and reflow oven.
3). High quality team.
4). Components use well-known brands.
5). Quick response customer program.
6). Self-owned processing plant, rapid production, equipped with automatic SMT placement machine, automatic screen printing machine and reflow oven.
