Description
- Brand Name: Hantek
- Certification: CE
- DIY Supplies: ELECTRICAL
- Origin: Mainland China
- Model Number: MSO7204BLG
- Display Resolution: 640*480 Pixels
- IS Battery Demountable: Yes
- Max Waveform Capture Rate: 30,000wfm/s
- Real Time Sampling Rate: 1GSa/S
- Record Length: 32K
- Display Size: 7 Inches
- Digital Channels: 4
- Band Width: 100-349MHz

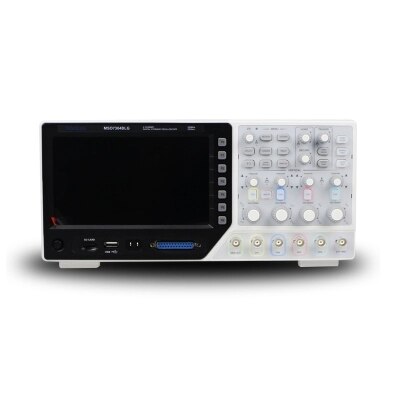

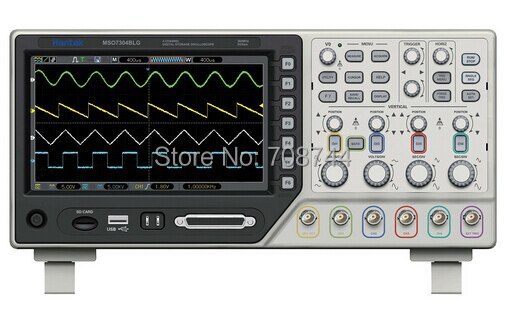

Hantek MSO7204BLG 4 Channel Oscilloscope 8 Channel Logic Analyzer 25MHz Arb. Waveform Generator 2Gsa/s 32K 3 in 1
Feature
4 Channel Oscilloscope+8 Channel Logic Analyzer + 25MHz Arb. Waveform Generator.
Abundant Trigger type: Video, Edge, Slope, Pluse Width, Overtime, Alternative, Code-type, Duration, Queue, Repeat trigger.
Large 7 inch 64K color Display, WVGA: 800*480.
USB host and device connectivity, standard.
Ultrathin desigh, handy volume, easily portable.
Oscilloscope
2Gsa/s Real Sample Rate;
4 Channels Oscilloscope;
200MHz Bandwidth, 32K Record Length;
32 automotive measurement and FFT Analysis for Simplified Waveform Abalysis.

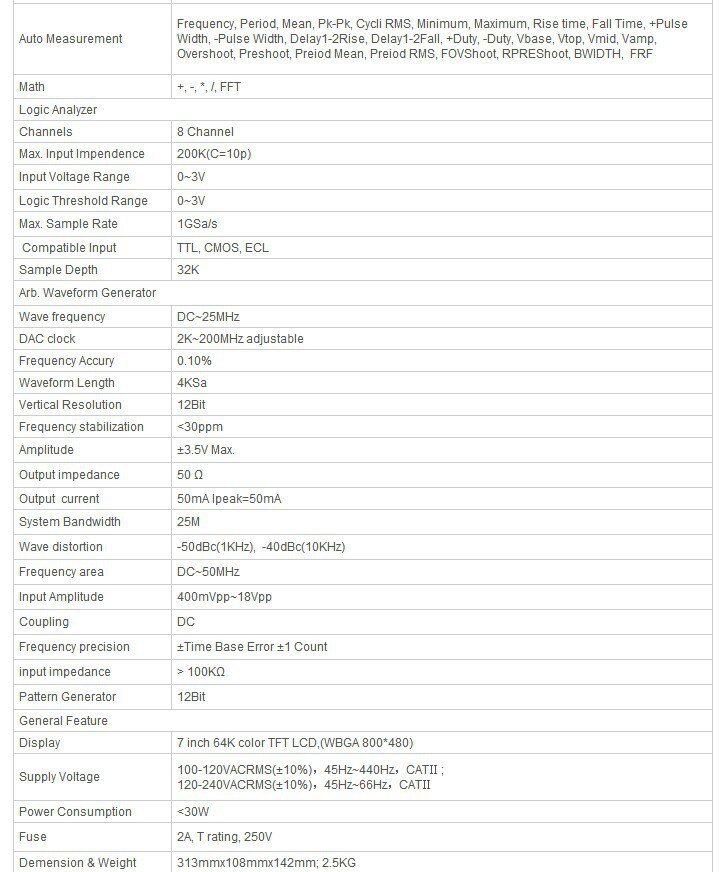

Logic Analyzer
8 Channles Logic Analyzer;
1GSa/s Sample Rate
32KRecord Length
Arb. Waveform Generator
25MHz Arb. Waveform Generator Output(Sine wave up to 75MHz)
12bit Pattern Generator
50MHz Frenquery Counter
