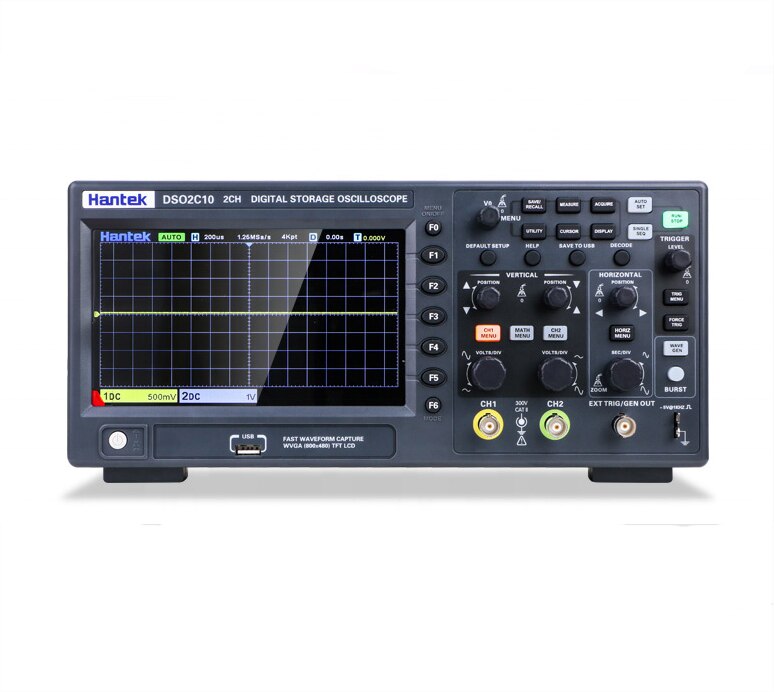

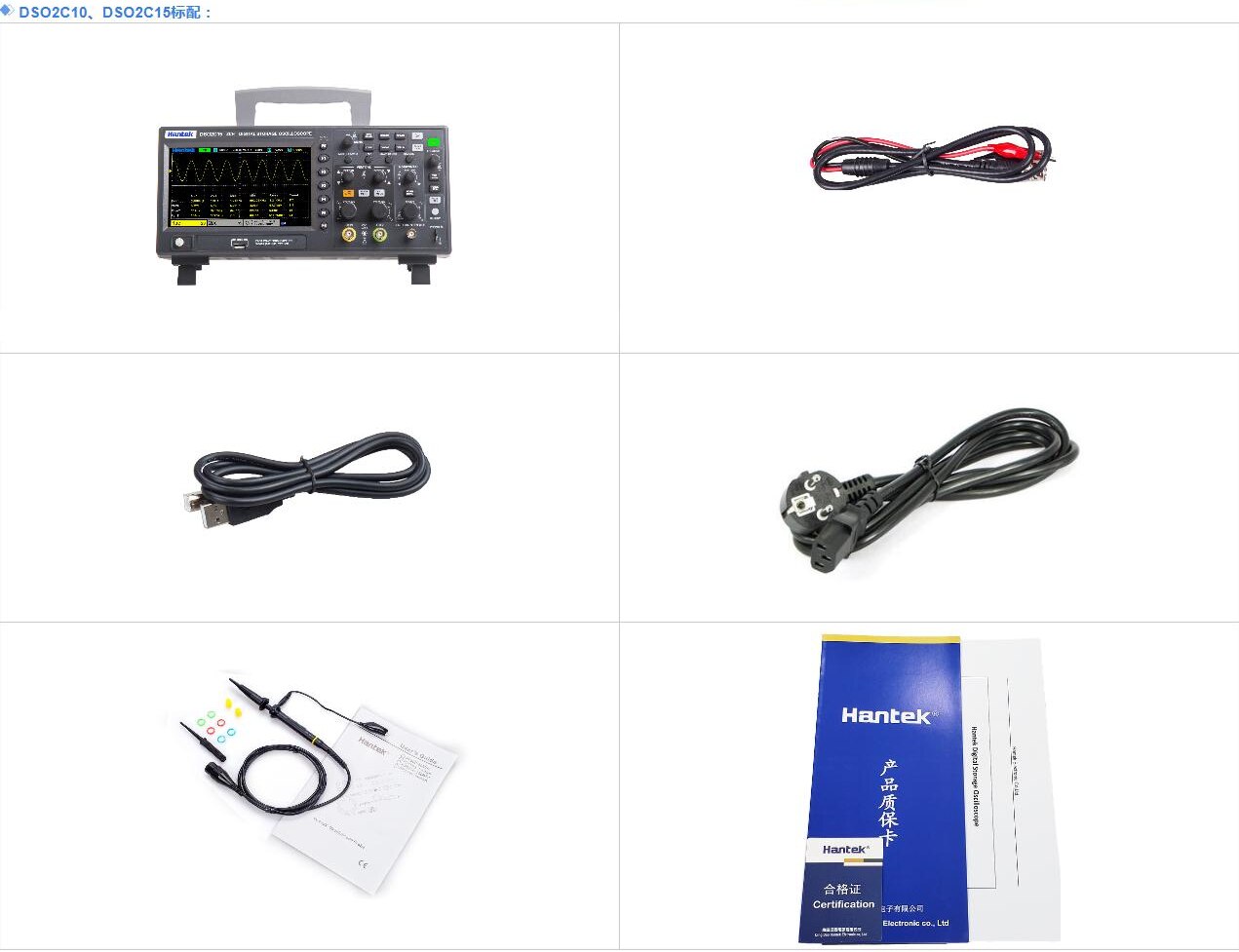

Description
- Brand Name: Hantek
- Certification: CE
- DIY Supplies: ELECTRICAL
- Origin: Mainland China
- Model Number: DSO2C15
- Max Waveform Capture Rate: 30,000wfm/s
- IS Battery Demountable: No
- Digital Channels: 2
- Display Resolution: 800*480 Pixels
- Record Length: 8M
- Display Size: 7 Inches & Above
- Band Width: 100-349MHz
- Real Time Sampling Rate: 1GSa/S

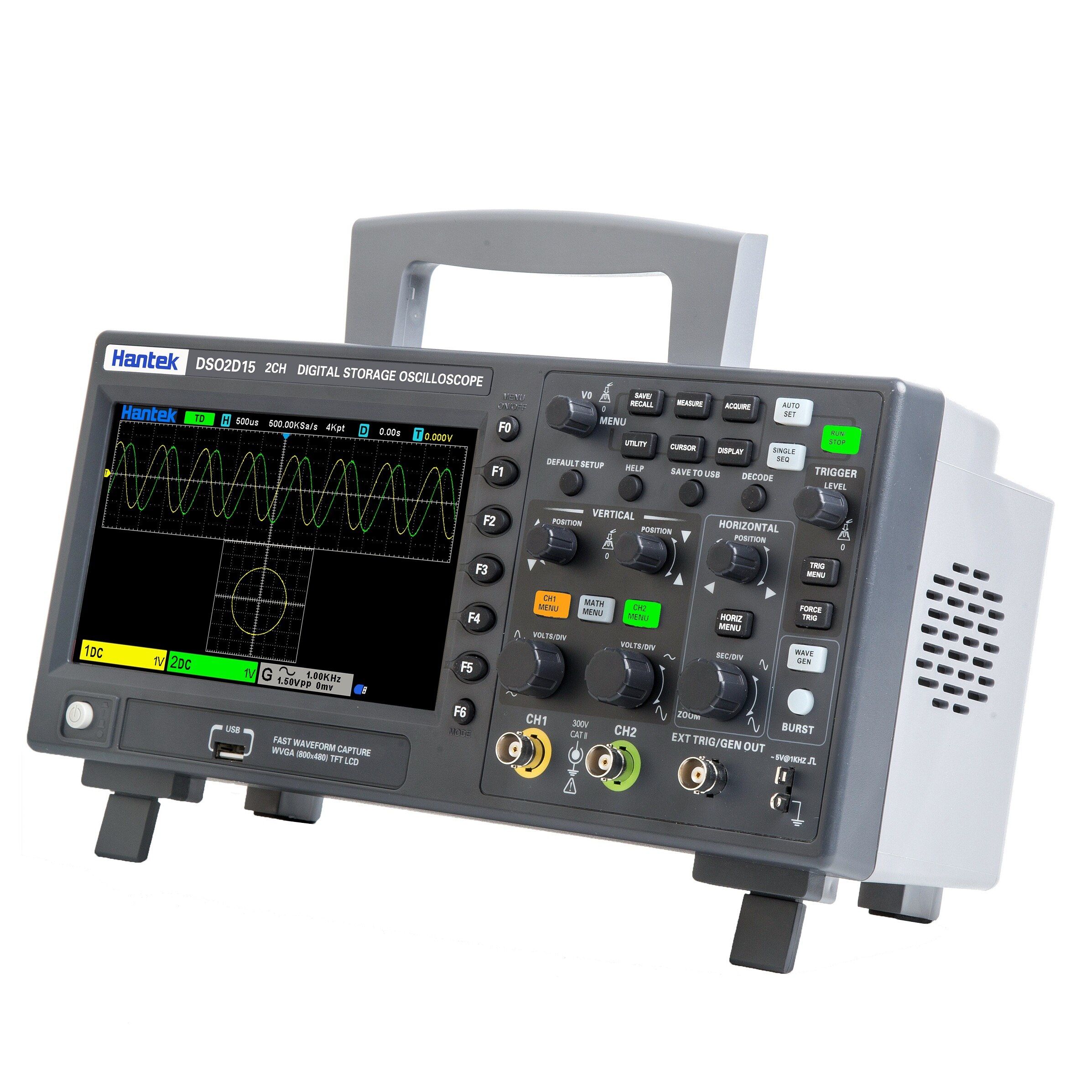

Feature
1) 2 channels, both are respectively controlled by independent knobes;
2)100 MHZ, 150MHZanalog channel bandwidth;
3)1 GSa/s real-time sample rate;
4) 8Mmemory depth;
5) Vertical range2mV/div ~ 10V/div;
6) Built-in 1 CH5MHz waveform generator;
7) Vertical resolution :8bit;
8) Trigger:Edge,Pulse width,Video,Slope,Overtime,Window,Pattern,Interval,Delay,UART,LIN,CAN,SPI,IIC;
9) CAN decode and protocol analysis:RS232/UART、I2C、SPI、CAN、LIN
10) Can save as multiple data formats, such as setting, waveform, referance waveform, CSV, picture;
11)5 bits digital voltage meter and 6 bits hardware frequency indicator function;
12) 32 kinds of auto measurements with statistics, real-time statistics of maxmum, minimum, standrad deviation and etc.;
13) 2 sets of digital voltmeter;
14) Support threshold testing, free measurements within the screen;
15) Abundant SCPIremote command control;
16) Many external interface:USB Host/Device.
NOTE:DSO2C10 and DSO2C15 have no waveform generator function!
|
Model |
DSO2D15 |
DSO2D10 |
DSO2C15 |
DSO2C10 |
|||
|
Bandwidth |
150MHz |
100MHz |
150MHz |
100MHz |
|||
|
Rising time in BNC position (typical) |
2.3ns |
3.5ns |
2.3ns |
3.5ns |
|||
|
Vertical resolution |
8 bits resolution, each channel samples simultaneously |
||||||
|
Vertical sensitivity |
2mV/div to 10V/div |
||||||
|
Offset range |
2mV/div to 20mV/div, ±100mV; 50mV/div to 200mV/div, ±1V; |
||||||
|
500mV/div to 2V/div, ±10V; 5V/div to 10V/div, ±50V |
|||||||
|
Mathematical operation |
+, -, ×, ÷, FFT |
||||||
|
FFT |
Window: Rectangle, Hanning, Hamming, Blackman, Bartlett, Flattop |
||||||
|
Bandwidth Limit |
20MHz |
||||||
|
Bass response（-3db） |
In BNC position ≤ 10Hz |
||||||
|
Vertical gain accuracy |
In ”normal” or ”average” acquisition mode, the accuracy of 10V/div to 10mV/div is ±3%; |
||||||
|
In ”normal” or ”average” acquisition mode, the accuracy of 5mV/div to 2mV/div is ±4% |
|||||||
|
DC offset accuracy |
±0.1 div±2 mV±1% offset value |
||||||
|
Voltage measurement repeatability, average acquisition mode |
Under the same setting and environment, ≥16 waveforms are sampled, △V of any two averages: ±（3%×value+ 0.05 div） |
||||||
|
Note: Bandwidth reduced to 6MHz when using a 1X probe |
|||||||
|
Trigger |
|||||||
|
Trigger type |
Edge,Pulse width,Video,Slope,Overtime,Window,Pattern,Interval,Delay,UART,LIN,CAN,SPI,IIC |
||||||
|
Trigger level range |
±5 divisions from the center of the screen |
||||||
|
Trigger mode |
Auto,general,single |
||||||
|
Level |
CH1~CH2 |
±4 divisions from the center of the screen |
|||||
|
EXT |
0~3.3V |
||||||
|
Holdoff range |
8ns~10s |
||||||
|
Trigger level accuracy |
CH1~CH2 |
0.2 div×volts/div within ±4 divisions from the center of the screen |
|||||
|
EXT |
±（Set value× 6%+40mV） |
||||||
|
Edge trigger |
Slope |
Rising edge,falling edge,rising or falling edge |
|||||
|
Signal source |
CH1, CH2, EXT |
||||||
|
Pulse width trigger |
Polarity |
Positive polarity, negative polarity |
|||||
|
Condition(When) |
, !=, = |
||||||
|
Signal source |
CH1~CH2, |
||||||
|
Pulse width range |
8ns ~ 10s |
||||||
|
Accuracy |
8ns |
||||||
|
Video trigger |
Signal standard |
NTSC, PAL |
|||||
|
Signal source |
CH1~CH2 |
||||||
|
Synchronization |
Scanning line, line number, odd field, even field, all field |
||||||
|
Slope trigger |
Slope |
rise, fall |
|||||
|
Condition(When) |
, !=, = |
||||||
|
Signal source |
CH1 ~ CH2 |
||||||
|
Time range |
8ns ~ 10s |
||||||
|
Accuracy |
8ns |
||||||
|
Overtime trigger |
Signal source |
CH1~CH2， |
|||||
|
Polarity |
Positive polarity, negative polarity |
||||||
|
Time range |
8ns ~ 10s |
||||||
|
Accuracy |
8ns |
||||||
|
Window trigger |
Signal source |
CH1~CH2 |
|||||
|
Pattern trigger |
Pattern |
0: low level; 1: high level; X: ignore |
|||||
|
Level（signal source） |
CH1~CH2 |
||||||
|
Interval trigger |
Slope |
rise, fall |
|||||
|
Condition(When) |
, !=, = |
||||||
|
Signal source |
CH1~CH2 |
||||||
|
Time range |
8ns ~ 10s |
||||||
|
Accuracy |
8ns |
||||||
|
Delay trigger |
Polarity |
Positive polarity, negative polarity |
|||||
|
Condition(When) |
, !=, = |
||||||
|
Signal source |
CH1~CH2 |
||||||
|
Time range |
8ns ~ 10s |
||||||
|
Accuracy |
8ns |
||||||
|
UART trigger |
Condition(When) |
start, stop, data, odd-even check, reception error |
|||||
|
Signal source(RX/TX) |
CH1~CH2 |
||||||
|
Data format |
Hex (hexadecimal) |
||||||
|
Data length |
1 byte |
||||||
|
Data bit width |
5 bit, 6 bit, 7 bit, 8 bit |
||||||
|
Odd-even check |
none, odd, even |
||||||
|
Free level |
high, low |
||||||
|
Baud rate (optional) |
110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/380400/460400 bit/s |
||||||
|
Baud rate(user-defined) |
300bit/s~334000bit/s |
||||||
|
LIN trigger |
Condition(When) |
Interval field, synchronization field, ID field, synchronization error, identifier, ID and data |
|||||
|
Signal source |
CH1~CH2 |
||||||
|
Data format |
Hex (hexadecimal) |
||||||
|
Baud rate (optional) |
110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/380400/460400 bit/s |
||||||
|
Baud rate(user-defined) |
300bit/s~334000bit/s |
||||||
|
CAN trigger |
Condition(When) |
Start bit, remote frame ID, data frame ID, frame ID, remote frame data, data frame data, wrong frame, all errors, answer error, overload frame |
|||||
|
Signal source |
CH1~CH2 |
||||||
|
Data format |
Hex (hexadecimal) |
||||||
|
Baud rate (optional) |
10000, 20000, 33300, 500000, 62500, 83300, 100000, 125000, 250000, 500000, 800000, 1000000 |
||||||
|
Baud rate(user-defined) |
5kbit/s~1Mbit/s |
||||||
|
SPI trigger |
Signal source |
CH1~CH2 |
|||||
|
Data format |
Hex(hexadecimal) |
||||||
|
Data bit width |
4, 8, 16, 24, 32 |
||||||
|
IIC trigger |
Signal source(SDA/SCL) |
CH1~CH2 |
|||||
|
Data format |
Hex(hexadecimal) |
||||||
|
Data index |
0~7 |
||||||
|
Opportunity(condition) |
Start bit, stop bit, no response, address, data, restart |
||||||
|
Measurement |
|||||||
|
Cursor |
Voltage difference between cursors△V |
||||||
|
Time difference between cursors△T |
|||||||
|
Reciprocal of△T,in Hertz (1/△T) |
|||||||
|
Auto measurement |
|
||||||
|
DVM |
Data source |
CH1, CH2 |
|||||
|
Measurement type |
DC effective value |
||||||
|
AC effective value |
|||||||
|
DC |
|||||||
|
Frequency meter |
hardware 6 bits frequency meter |
||||||
|
Arbitrary waveform generator |
|||||||
|
Channel |
1 |
||||||
|
Sample rate |
200MSa/s |
||||||
|
Vertical resolution |
12 bits |
||||||
|
Maximum frequency |
25 MHz |
||||||
|
Standard waveforms |
sin、square, pulse, triangular, sampling wave, index, noise |
||||||
|
Arbitrary waveform |
Arb1, Arb2, Arb3, Arb4 |
||||||
|
Sin |
Frequency range |
0.1Hz~25MHz |
|||||
|
Square/pulse |
Frequency range |
0.1Hz~10MHz |
|||||
|
Triangular wave |
Frequency range |
0.1Hz~1MHz |
|||||
|
Sampling wave |
Frequency range |
0.1Hz~1MHz |
|||||
|
Index |
Frequency range |
0.1Hz~5MHz |
|||||
|
Noise |
|||||||
|
Arb1 |
Frequency range |
0.1 Hz to 10 MHz |
|||||
|
Arb2 |
Frequency range |
0.1 Hz to 10 MHz |
|||||
|
Arb3 |
Frequency range |
0.1 Hz to 10 MHz |
|||||
|
Arb4 |
Frequency range |
0.1 Hz to 10 MHz |
|||||
|
Waveform length |
8KSa |
||||||
|
Frequency |
Accuracy |
100 ppm (10 kHz) |
|||||
|
Resolution |
0.1 Hz or 4 bits，take the greater one |
||||||
|
Amplitude |
Output range |
10mV~7Vp-p (high impedance) |
|||||
|
5mV~3.5Vp-p (50Ω) |
|||||||
|
DC offset |
Range |
±3.5 V,high impedance |
|||||
|
±1.75 V, 50 Ω |
|||||||
|
Resolution |
100 μV or 3 bits,take the greater one |
||||||
|
Accuracy |
2% (1 kHz) |
||||||
|
Output impedance |
50 Ω |
||||||
|
General specifications |
|||||||
|
Display |
Display type |
7”diagonalTFTliquid crystal |
|||||
|
Display resolution |
800 (horizontal)*480 (vertical)pixels |
||||||
|
Display colour |
16 million colours (24 bits true colour) |
||||||
|
Persistence time |
minimum,1 s, 5 s, 10 s, 30S,infinite |
||||||
|
Display type |
dot, vector |
||||||
|
Display brightness |
adjustable |
||||||
|
Grid type |
adjustable |
||||||
|
Grid brightness |
adjustable |
||||||
|

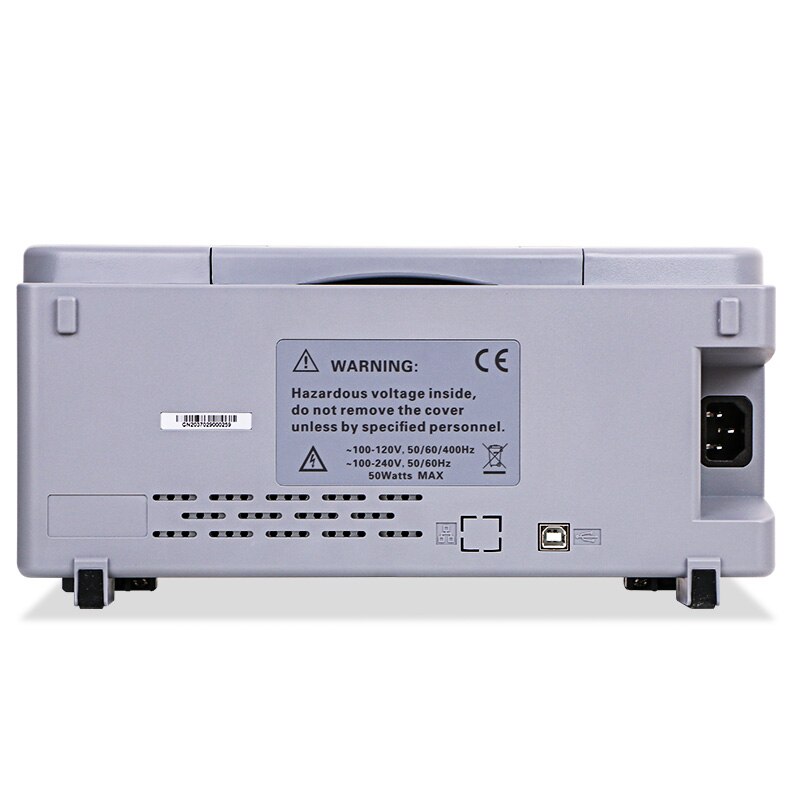

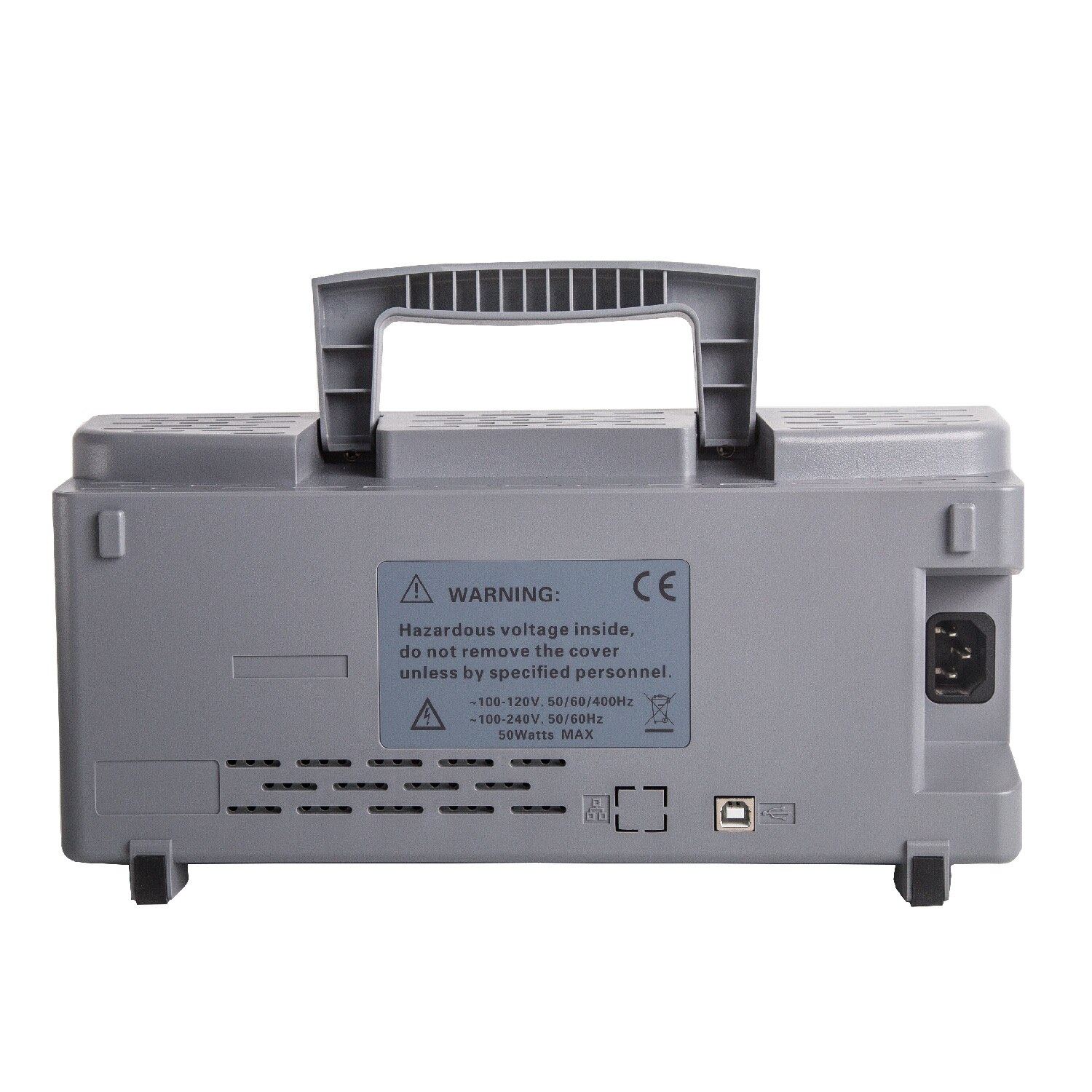

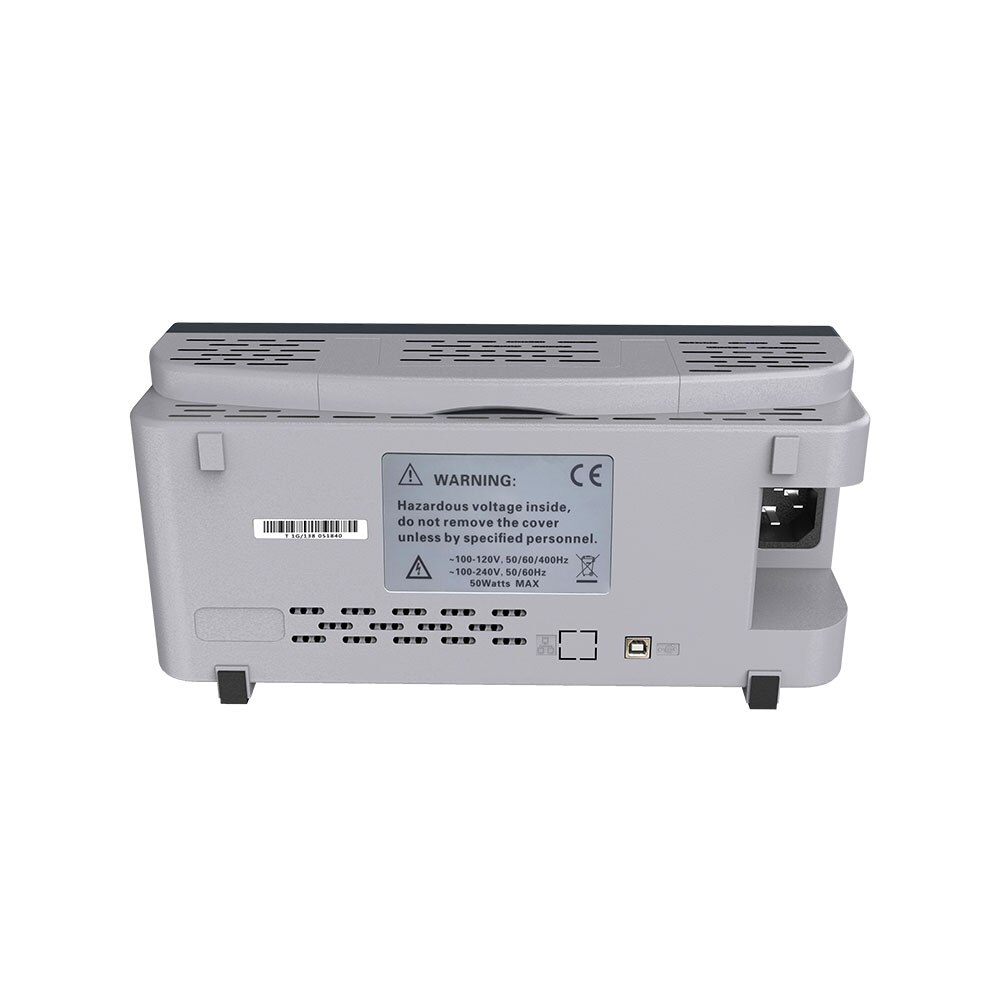

Interface |
Standard interface |
USB Host，USB Device |
|||||
|
General specifications |
Probe compensator output |
||||||
|
Output voltage, typical |
about 2Vpp input ≥1MΩ load |
||||||
|
Frequency, typical |
1kHz |
||||||
|
Power supply |
100-120VACRMS(±10%), 45Hzto 440Hz, CATⅡ |
||||||
|
120-240VACRMS(±10%), 45Hz to 66Hz, CATⅡ |
|||||||
|
Power consumption |
<30W |
||||||
|
Fuse |
T, 3.15A, 250V, 5x20mm |
||||||
|
Operating temperature |
0~50 °C (32~122 °F) |
||||||
|
Storage temperature |
-40~+71 °C (-40~159.8 °F) |
||||||
|
Humidity |
≤+104℉(≤+40°C): ≤90%relative humidity |
||||||
|
106℉~122℉ (+41°C ~50°C): ≤60%relative humidity |
|||||||
|
Altitude |
Operating and nonoperating |
3, 000m (10, 000 feet) |
|||||
|
Mechanical shock |
Random vibration |
0.31 gRMSfrom 50Hz to 500Hz, |
|||||
|
10 minutes on each axis |
|||||||
|
Nonoperating |
2.46gRMSfrom 5Hz to 500Hz, |
||||||
|
10 minutes on each axis |
|||||||
|
Operating |
50g, 11ms,half-sine wave |
||||||
|
Mechanical |
Size |
318 x 140 x 150mm (length x width x height) |
|||||
|
Weight |
2900g |
||||||
