Product Description
OHSP-350C
OHSP-350C: Spectral irradiance colorimeter, integrated spectrumCCT, CRI, Lux, irradiation. etc,parameters in one. With 5 inchtouch screen, Real-time displayof measurement parameters andcurves, use convenient and fast,not only measure LED widespectrum light
source, but also measure CFL, HID narrow spectrumlight source.
source, but also measure CFL, HID narrow spectrumlight source.
DATE

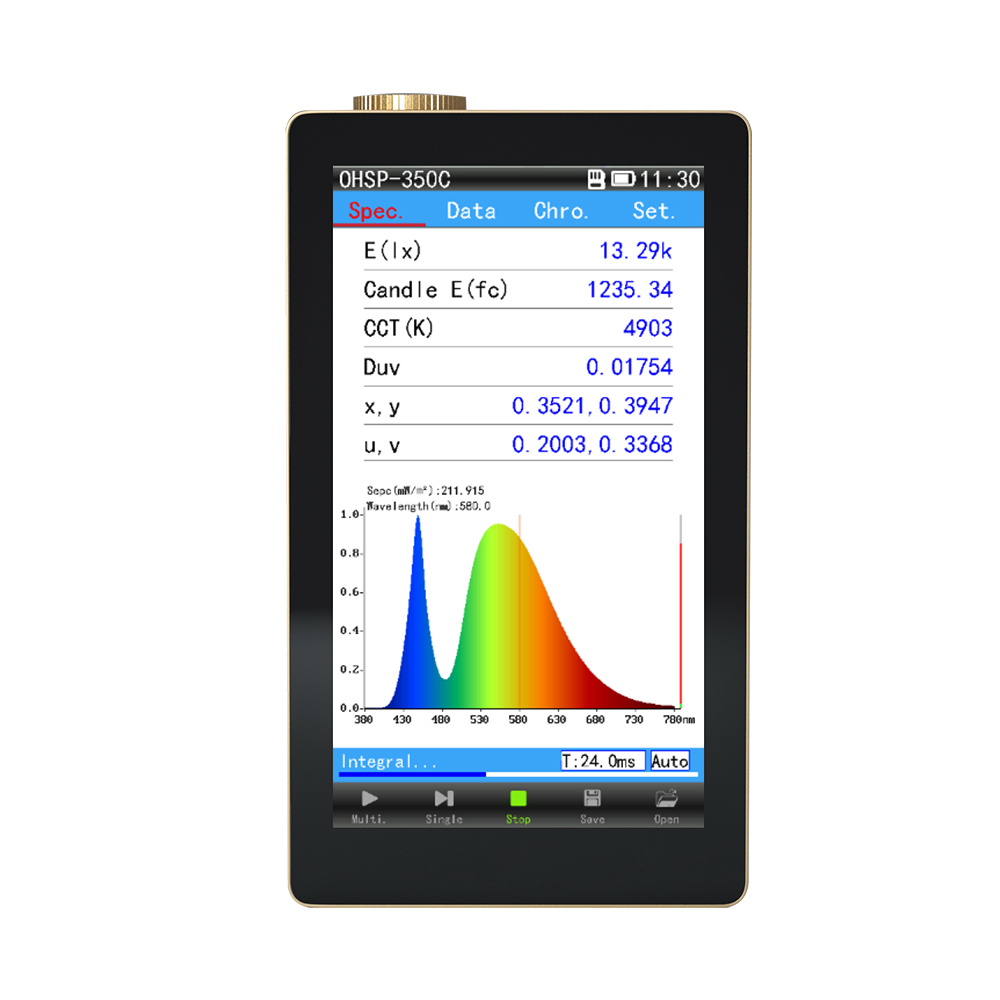

Actual light measurement data, analyzed by OHSP-350C spectrometer data, standard spectrum display.

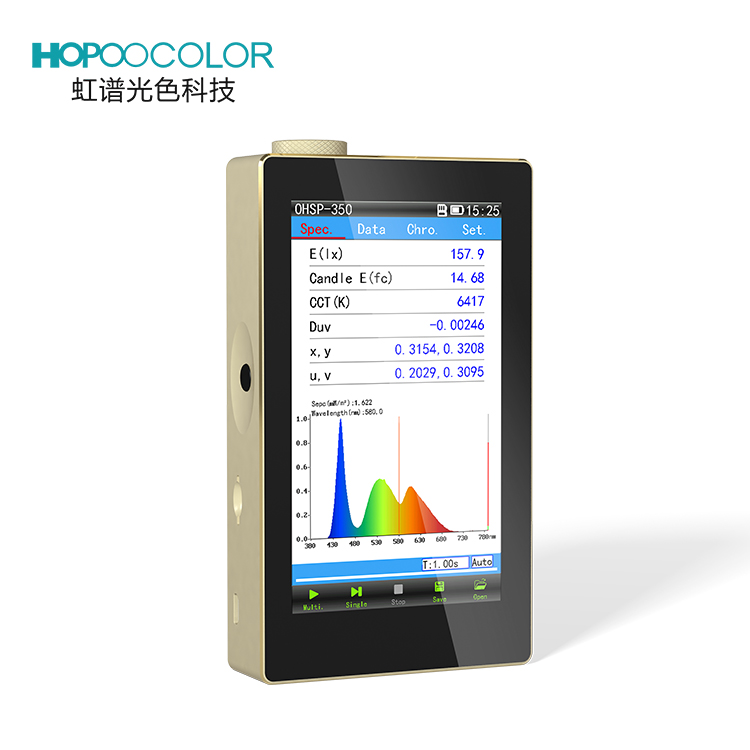

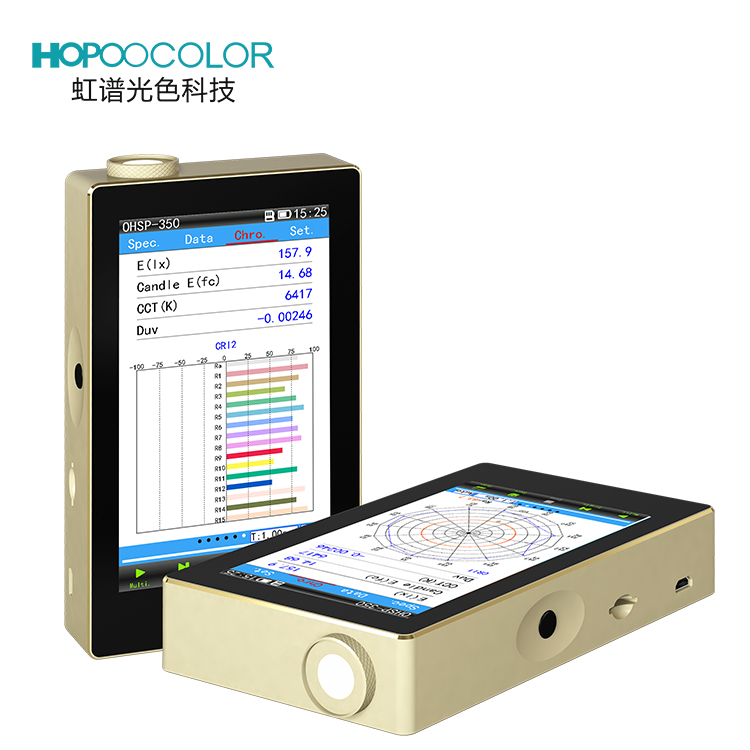

OHSP350C Portable Spectrometer
Application: the illumination and spectrum measurement of light source like LED,OLED,CFL energy saving lamp and HID high low pressure sodium lamp etc.
1. characteristic:
- Long focal length optical system, 2 nm optical resolution
- High performance linear CCD sensor 3648 points;
- Automatic zero and zero compensation technology, boot no manual zero;
- Electronic shutter technology, the minimum integration time 50 us, measurable stronger light signal;
- Quick switch machine, a key test, the use of more convenient
- 5 inch high-definition IPS screen, capacitive touch screen, display more content;
- Bring 4000mAh large-capacity lithium battery, 24 hour long test time;
- Illumination and radiation measurement
- CCD with long focal length and wide spectrum, intelligent and portable
- Automatic zero calibration
- Low power consumption large capacity battery
- Wide range of wavelengthscan test various types of light sources
- SD cardcan save a variety of formats Excel data analysis
- Be Suitable for different site test
- A millisecond key switchingmakes it more convenient forusing
2. CHARACTERISTICS AND SPECIFICATIONS
- Correlated color temperature (CCT) Illumination candlelight Spectral Irradiance
- Chromaticity Coordinates The Relative Spectral power distribution
- Color Rendering Index Rf,Rg as per IES TM-30
- SDCM Color Tolerance Dominant Wavelength Peak Wavelength
3. Application:
Application: Plant growth lamp, LED plant growth light,LED, OLED measurement, CFL energy saving lamp and high and HID low pressure sodium lamps etc
4.Technical Indicator
|
Name
|
Specifications
|
Name
|
specifications
|
||
|
Spectral platform
|
Long focus CT system
|
Illuminance range
|
5-200000lx　
|
||
|
Spectral bandwidth
|
2nm (FWHM)
|
CCT range
|
1000-100000K
|
||
|
Spectral resol
|
0.2nm
|
x,y Accuracy
|
±0.001
|
||
|
Sensor
|
CCD,3648 dots
|
x,y Repeatability
|
±0.0005
|
||
|
Integration time
|
10μs-10s
|
Illuminance accuracy
|
±4%(Class 1)
|
||
|
Display screen
|
5′ HD IPS LCD
|
Chromogenic accuracy
|
±1.5%
|
||
|
Resolution
|
480X854
|
Wavelength Accuracy
|
±0.5nm
|
||
|
Measure mode
|
Single/ continuous
|
Wavelength Interval
|
1nm
|
||
|
Exposure mode
|
Auto/ Manual
|
AD Resolution
|
16bits, 250kSPS
|
||
|
Display mode
|
6 Parameters Sel
|
Language
|
Chinese/English
|
||
|
Spectral Curve
|
File save
|
16GB SD Card
|
|||
|
Output format
|
Excel, jpg
|
Data Interface
|
SDCard/USB2.0
|
||
|
Window size
|
Ø 10mm
|
Dimensions (L x W x H)
|
163x81x25.8mm
|
||
5.Meas parameters
|
CCT(K)
|
illuminance(lx)
|
Irradiance(W/m2)
|
CIE1931
|
||
|
Coordinate x,y
|
Candlelight(fc)
|
Duv
|
CIE1960
|
||
|
Coordinateu,v
|
CRI (Ra)
|
R1-R15
|
CIE1976
|
||
|
Coordinateu’,v’
|
SDCM
|
Red ratio(%)
|
SDCM elliptical pattern
|
||
|
Peak wave(nm)
|
Purity(%）
|
Green ratio(%)
|
CRI elliptical pattern
|
||
|
Half width(nm)
|
Dominant(nm）
|
Blue ratio(%)
|
Spectral Distribution
|
||
|
Central wave(nm)
|
Centroid (nm)
|
S/P
|
CIE1931 X,Y,Z
|
||

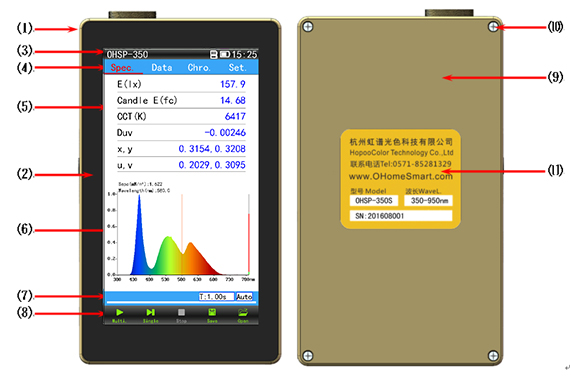

6.Software interface
7.Models
|
Model
|
Functional version
|
Wave Range
|
Function Description
|
||
|
OHSP350
|
Essence
|
380-780nm
|
Base parameters
|
||
|
OHSP350F
|
Flicker
|
380-780nm
|
Base + Flicker parameters
|
||
|
OHSP350P
|
Plant Light
|
350-800nm
|
Base + Plant light parameters
|
||
|
OHSP350S
|
Flagship
|
350-950nm
|
Base + Plant light+TM-30
|
||
|
OHSP350L
|
luminance
|
380-780nm
|
luminance (unitcd/m2)Base Parameters +Cd/m2
|
||
|
OHSP350B
|
Blue Light
|
380-780nm
|
Base + Blue light Parameters
|
||
|
OHSP350BF
|
BlueFlicker
|
380-780nm
|
Base + Blue light + Flicker Parameters
|
||
|
OHSP350BR
|
BlueReference
|
380-780nm
|
Base + Blue light + Reference Parameters
|
||
|
OHSP350FA
|
Flash lamp
|
380-780nm
|
Base + Flash Parameters
|
||
|
OHSP350M
|
Luminous flux
|
380-780nm
|
Luminous flux of matching sphere
|
||
|
OHSP350Z
|
Multi-function
|
380-780nm
|
Illuminance, Luminance, LuminousFlux, Intensity
|
||
|
OHSP350I
|
Industry
|
380-780nm
|
IO Control, RS485
|
||
|
OHSP350UV
|
UV
|
230-850nm
|
Base + UV Irradiation Parameters
|
||
|
OHSP350SF
|
Full function
|
350-950nm
|
Base +Flicker+ Plant Parameters
|
||
|
OHSP350C
|
Economics
|
380-780nm
|
No PC software
|
||
