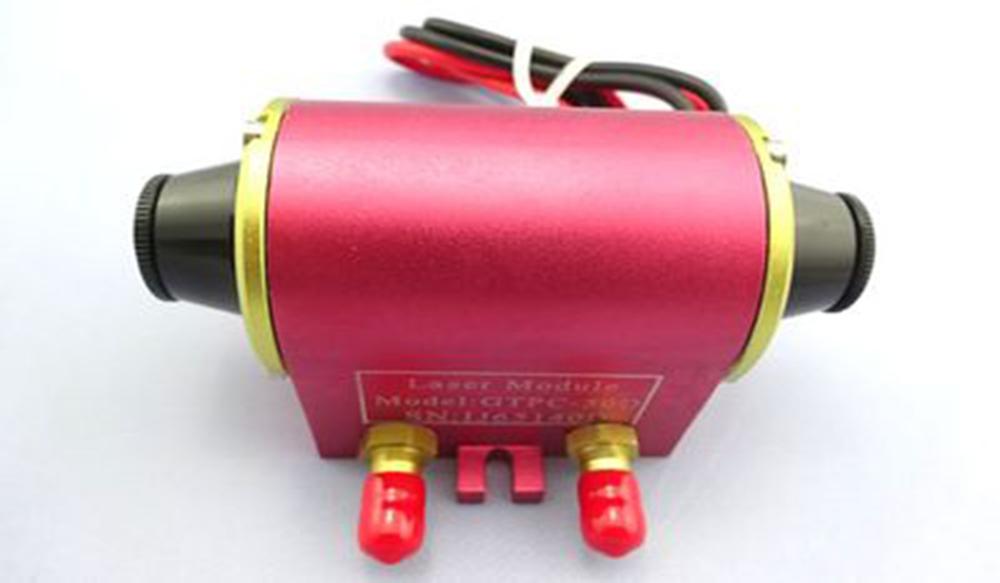

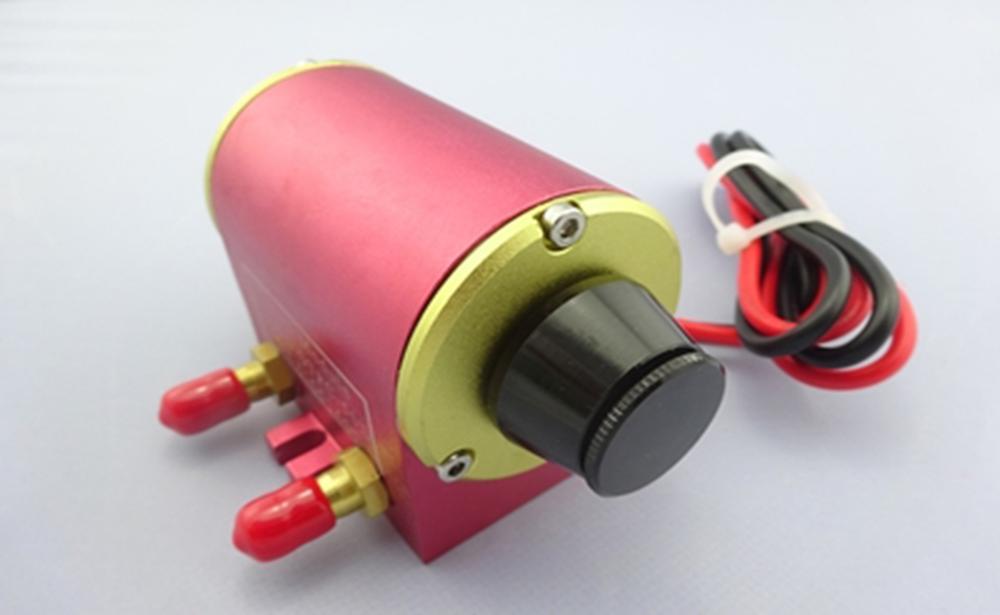

GTPC-50D laser diode pump module 1064nm for YAG laser marking machines high quality jl

Features:

1. High Output Power

2.Stable working condition

3.Reliable

4.Efficient

5.Compact

6. Longer lifespan

7.Easy to use

GTPC-50D

1. Technical parameters

CW Output Power: 25W

Threshold Current: ~6A

Operating Current: ~29A

Forward Voltage: ≤24V

Center Wavelength: 1064nm

The length of the YAG rod：65mm

The Diameter of the YAG rod：3mm

YAG Terminal: Flat/AR at 1064nm/YAG doped 1%

The cooling water flux: 4-5L/min

Cooling power: >100W

Optimum temperature: 20°C

Temperature Range (Storage): -20°C~ 70°C

50D semiconductor module, 50W semiconductor module, model: GTPC-50D, supporting power supply: GTDC-2420

 The bar bar inside the 50D semiconductor module is made in China. Compared with the 50S, the price is superior and the quality is stable. It should be said that from the perspective of customer response, the quality of 50D modules is getting better and better. In the current era of vicious competition, 50D is a good choice for 50-watt semiconductor marking machines without basically reducing the quality.
  50D module supporting power supply: (Please inform the model of the power supply before buying the module first, thank you for your cooperation)!
A: GTDC-2415, that is, the maximum output current is 15A, and the maximum output voltage is 24V.
  B: GTDC-2420, that is, the maximum output current is 20A, and the maximum output voltage is 24V.

Notice:
We offer a one-year warranty

We are not responsible for any custom duty or import tax, it is buyer’s responsibility.
