Description
- Brand Name: HKNA
- Origin: CN(Origin)
- DIY Supplies: ELECTRICAL
- Certification: CE
- Place of Origin: Shandong, China
- Brand Name: china coal
- Model Number: WG60G
- Power: Electronic
- Projection Angle: 60°
- Measurement Range: 0-2000Gu
- Language: Chinese/English
- Measuring Spot: 14*61mm
- National Standard 60°: GB 9754,GB 9966,GB 880
- Keyword: Gloss meter
- Model: WG60G
- Data Storage: 500 groups
- Output: Software to PC
- Working Temperature: 10℃ – 40℃
Applicstion Of High Quality WG60G Marble Paint Gloss Meter Price
1) Big apertures like WG60, WG60T, WG60A & WG68 are normally used on flat or wide arc surface samples.
2) While if your sample is cambered or small parts, please don’t worry, WG60G with small aperture (1*3mm) can easily solve your problem.
Technical Parameters Of WG60A Gloss Meter Gloss Meter Price
|
WG60G |
WG60T |
WG60A |
WG68 |
||
|
Measurement Range |
0-2000Gu |
0-200Gu |
0-1000Gu |
20°: 0-2000 60°: 0-1000 85°: 0-160 |
|
|
Application |
Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, printing, paper; Other metallic material. |
||||
|
Projection Angle |
20°60°85° |
||||
|
Measuring Spot |
12*40mm |
1*3 mm |
14*61mm |
||
|
Measuring Mode |
average and combination angle |
Automatic/ manual /single /average and combination angle Show maximum/minimum value |
|||
|
Standard Sample Setting |
Manually setting/bring out stored data for setting/manually setting tolerance |
||||
|
Data Storage |
100 groups |
500 groups |
50000 groups |
||
|
set standard sample in any stored data, user-define the tolerance range |
|||||
|
Language |
Chinese/English |
||||
|
Mini printer |
Software to PC |
||||
|
Division Value |
0.1Gu |
0-1000:0.1Gu/1000-2000:1Gu |
|||
|
Repeatability |
0.2Gu |
0-100:0.2>100:0.2% |
|||
|
Reproducibility |
0.4Gu |
0.2Gu |
|||
|
Indication Error |
1.5Gu |
1.0Gu |
|||
|
International Standard 60° |
ISO-2813/ASTM-C584/ASTM-D523/DIN-67530/ASTM-D2457/JND-A60/JND-P60/ISO7668 |
||||
|
National Standard 60° |
GB 9754/GB 9966/GB 8807 – GB/T 9754,GB/T 13891,GB/T 7706,GB/T 8807 |
||||
|
Working Temperature |
10℃ – 40℃ |
||||
|
Storage Temperature |
-10℃ – 70℃ |
||||
|
Humidity Range |
Relative humidity less than 85%, without condensation |
||||
|
Volume |
122*34*60mm |
159x49x72mm |
|||
|
Weight |
310g |
500g |
|||
|
Standard Accessories |
Power adapter/User manual Warranty card standard board |
Add usb cable GlossW software |
Add standard + 5V battery |
||

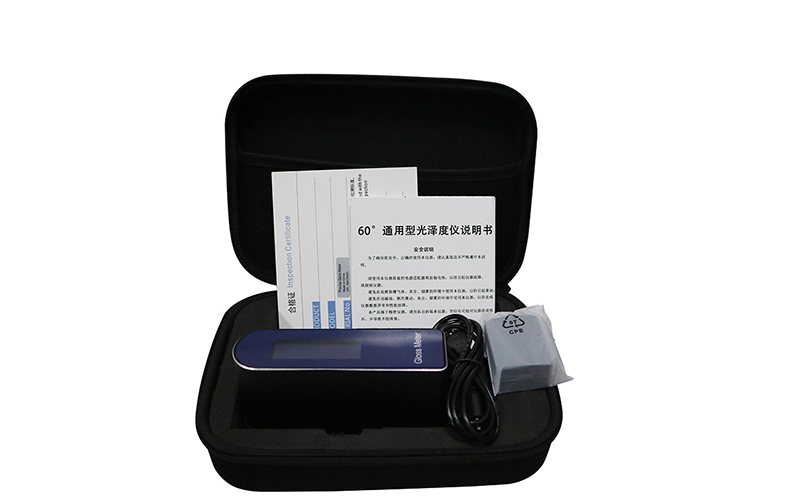

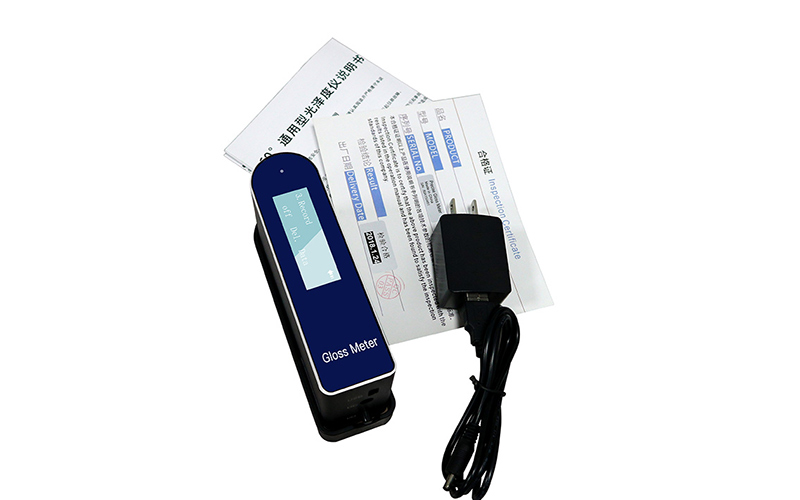

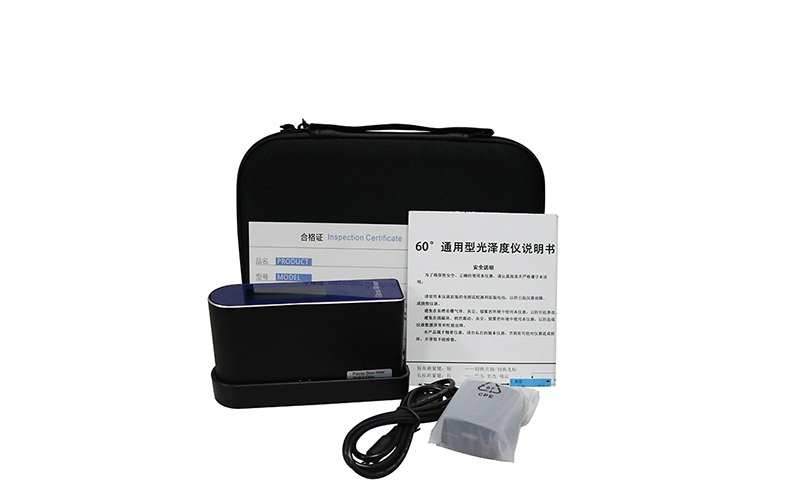

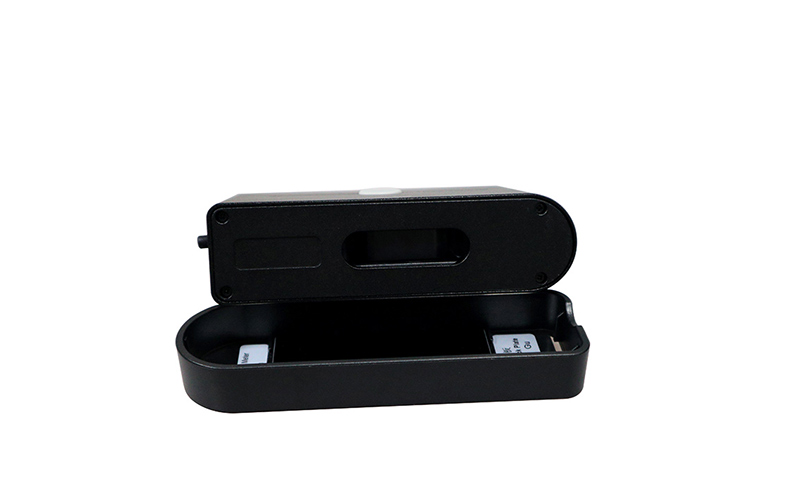

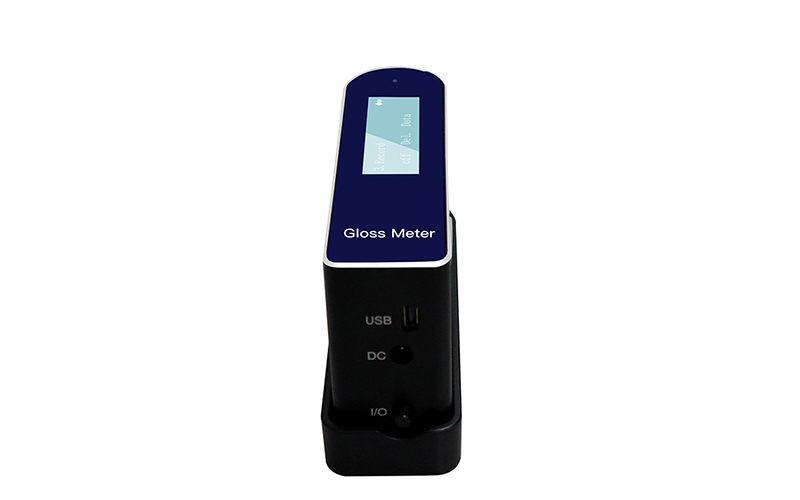

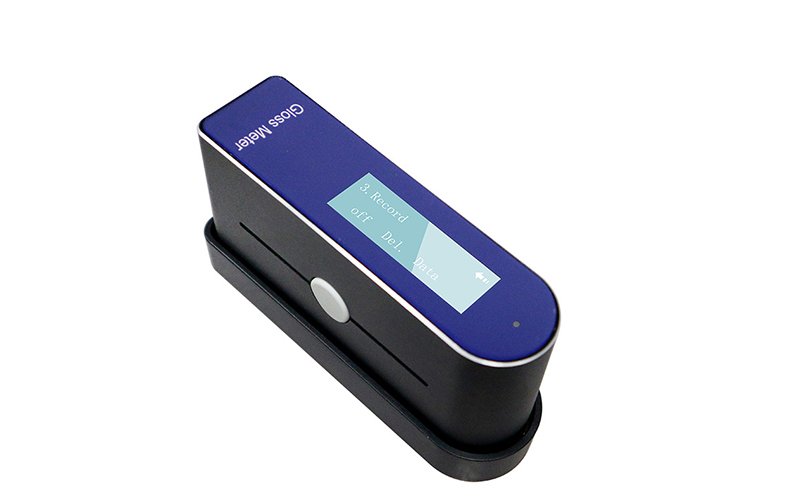

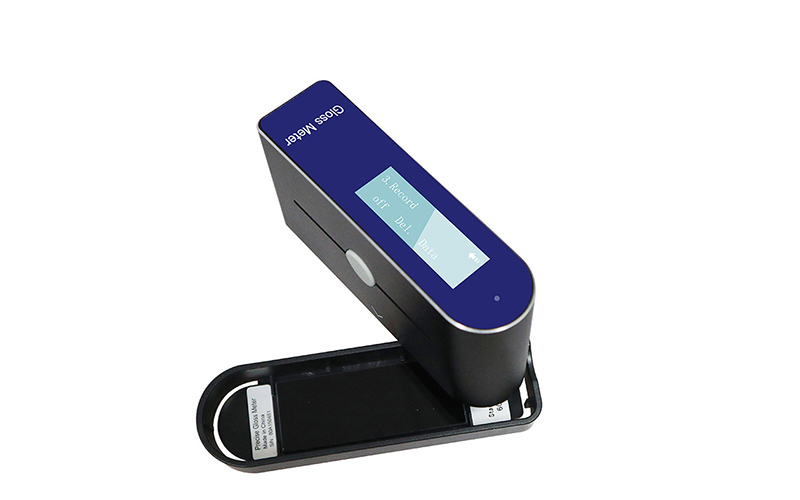

The Picture Of WG60A Gloss Meter Gloss Meter Price
