Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Warranty: 1 Year
- Type: gas analyzers
- Customized support: OEM, ODM, OBM
- Place of Origin: Guangdong, China
- Brand Name: Gaspanda

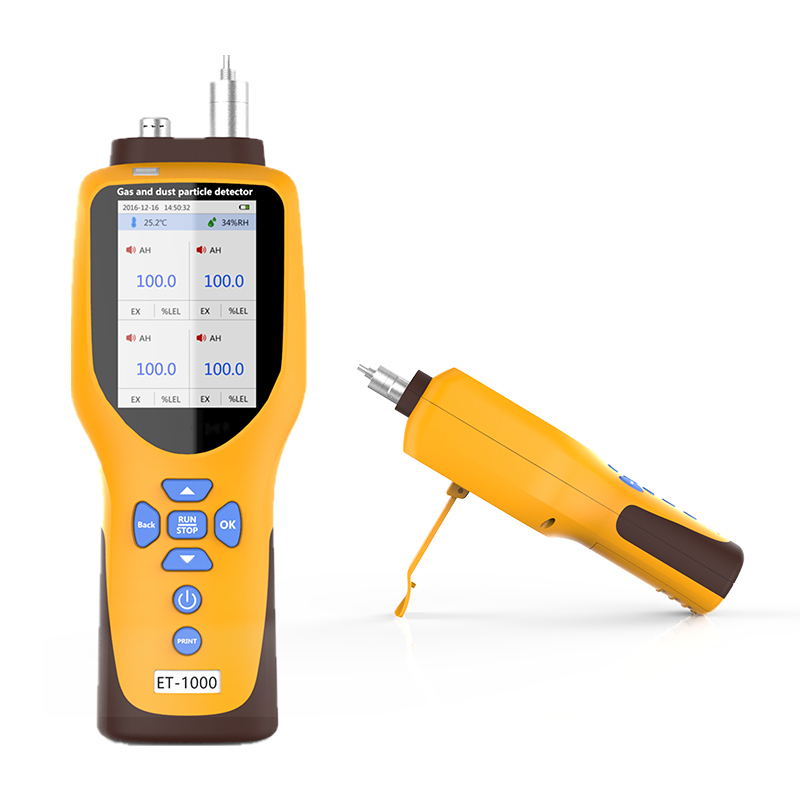

- Model Number: ET-1000
- Product type: Portable Multi-gas detector
- Detection Range: 0-100,500,1000,2000,5000,10000ppm,50%VOL,100%VOL
- Temperature: -40 ~ 120℃
- humidity: 0-100%RH
- Detection accuracy: ≤±3%F.S,≤±2%F.S,≤±1%F.S for option
- Linearity error: ≤±1%F.S
- Dust sensor: Laser dust sensor is optional
- Printing pattern: Micro printer is optional,user can set
- Explosion proof sign: Exdll CT4
- Working pressure: -30Kpa ~ 100Kpa
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-3{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-4{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-5{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-6{width:750px}#detail_decorate_root .magic-7{overflow:hidden;width:750px;height:475.98214285714283px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-8{margin-top:-36px;margin-left:-145px;width:999px;height:631px}#detail_decorate_root .magic-9{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:0;margin-top:-4px}#detail_decorate_root .magic-10{width:375px;height:NaN;overflow:hidden}#detail_decorate_root .magic-11{position:relative;left:0;top:-10px;width:375px;height:375px}#detail_decorate_root .magic-12{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:0;margin-top:-4px;margin-left:-3px}#detail_decorate_root .magic-13{width:364px;border-collapse:collapse}#detail_decorate_root .magic-14{min-height:28px;padding:5px 10px;width:343px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-15{display:none}#detail_decorate_root .magic-16{min-height:28px;padding:5px 10px;width:254px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:28px;padding:5px 10px;width:342px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:28px;padding:5px 10px;width:162.2px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-19{overflow:hidden;width:247.33333333333334px;height:164.88888888888889px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-20{margin-top:-11.01484480431849px;margin-left:-14.018893387314442px;width:283px;height:188px}#detail_decorate_root .magic-21{overflow:hidden;width:247.33333333333334px;height:164.22132253711203px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-22{margin-top:-11.01484480431849px;margin-left:-26.03508771929825px;width:312px;height:207px}#detail_decorate_root .magic-23{margin-top:-68.09176788124158px;margin-left:-116.1565452091768px;width:456px;height:301px}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:-19px;margin-left:22px;width:779px;height:415px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:500px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:500px}#detail_decorate_root .magic-28{width:750px;border-collapse:collapse}#detail_decorate_root .magic-29{min-height:28px;padding:5px 10px;width:143px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-30{min-height:28px;padding:5px 10px;width:563px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-31{min-height:28px;padding:5px 10px;width:94px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-32{min-height:28px;padding:5px 10px;width:86px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-33{min-height:28px;padding:5px 10px;width:47px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-34{min-height:28px;padding:5px 10px;width:326px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-35{min-height:28px;padding:5px 10px;width:215px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-36{min-height:28px;padding:5px 10px;width:85.2px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-37{min-height:28px;padding:5px 10px;width:47.8px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-38{min-height:28px;padding:5px 10px;width:159px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-39{min-height:28px;padding:5px 10px;width:145px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-40{display:table-cell}#detail_decorate_root .magic-41{min-height:28px;padding:5px 10px;width:216px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-42{min-height:28px;padding:5px 10px;width:110px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-43{min-height:28px;padding:5px 10px;width:146px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-44{min-height:28px;padding:5px 10px;width:118.8px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-45{min-height:28px;padding:5px 10px;width:77px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-46{min-height:28px;padding:5px 10px;width:117px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-47{min-height:28px;padding:5px 10px;width:562px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-48{min-height:28px;padding:5px 10px;width:76px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-49{min-height:28px;padding:5px 10px;width:118px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-50{min-height:28px;padding:5px 10px;width:146.198px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-51{min-height:28px;padding:5px 10px;width:77.6875px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-52{min-height:28px;padding:5px 10px;width:118.313px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-53{min-height:28px;padding:5px 10px;width:146.2px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-54{min-height:28px;padding:5px 10px;width:77.4px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-55{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-56{overflow:hidden;width:750px;height:200px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-57{margin-top:0;margin-left:0;width:750px;height:200px}#detail_decorate_root .magic-58{width:446px}#detail_decorate_root .magic-59{overflow:hidden;width:446px;height:297.3705px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-60{margin-top:-58.27733333333333px;margin-left:-1.1893333333333334px;width:446px;height:356px}#detail_decorate_root .magic-61{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-62{font-size:13px}#detail_decorate_root .magic-63{overflow:hidden;width:247.33333333333334px;height:197.86666666666667px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-64{margin-top:0;margin-left:0;width:247px;height:197px}#detail_decorate_root .magic-65{overflow:hidden;width:247.33333333333334px;height:197.2658569500675px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-66{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-67{overflow:hidden;width:750px;height:300px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-68{margin-top:0;margin-left:0;width:750px;height:300px}

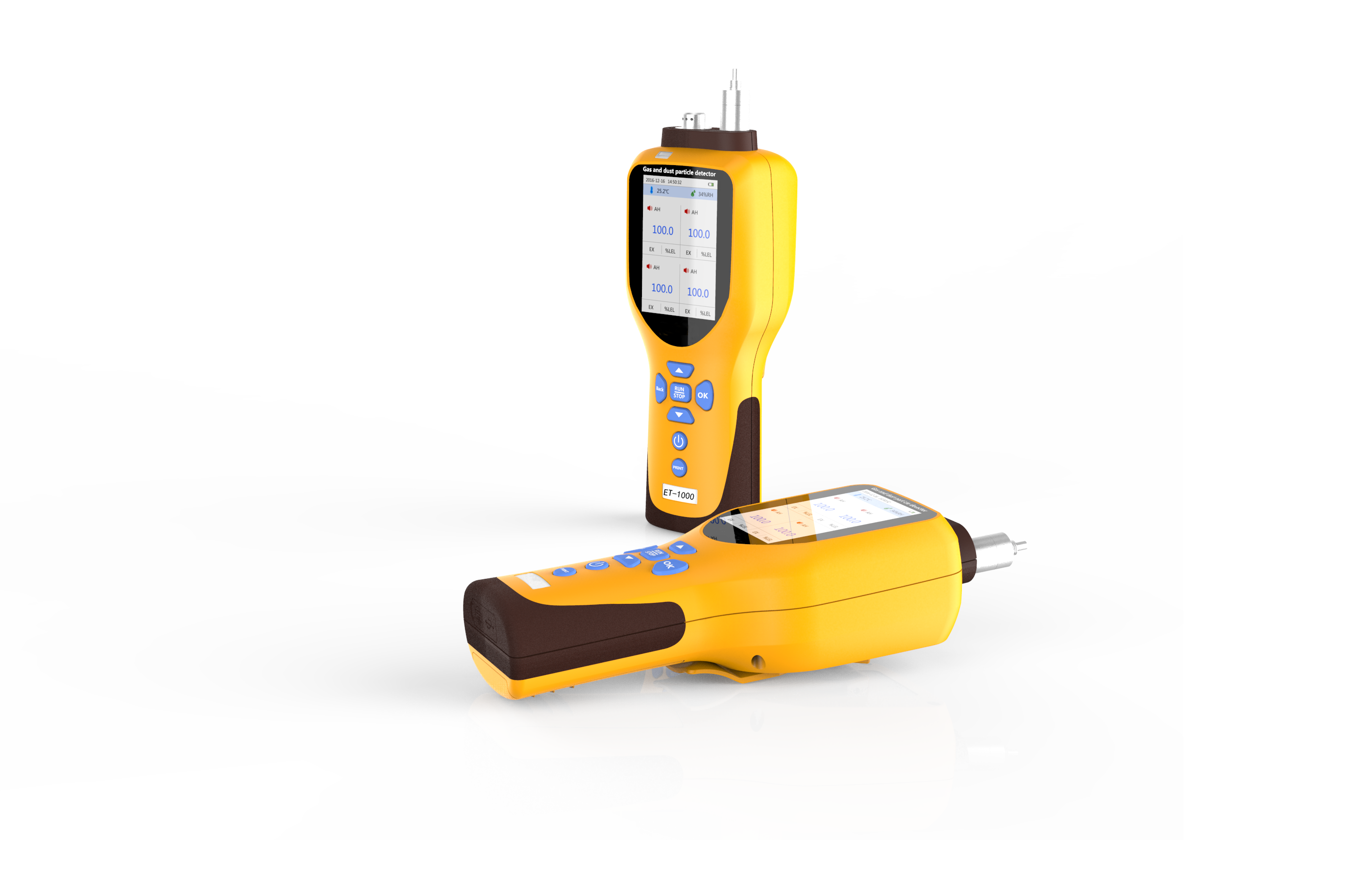

Product Description
The Dust, formaldehyde, ozone gas analyzer is suitable for testing the purification efficiency of dust particles, and can be used for dust particle concentration monitoring in various dust-free workshops, clean rooms, public environments and other places.
The gas analyzer is adopted with imported high-quality Electrochemistry gas sensor. It has excellent sensitivity
and excellent repeatability, and is easy to use and maintain, which greatly meets the requirements of industrial site safety
monitoring forequipment reliability. It can also simultaneously detect particles of 4-6 particle sizes: PM0.3, PM0.5, PM1.0, PM2.5, PM5.0, PM10
and excellent repeatability, and is easy to use and maintain, which greatly meets the requirements of industrial site safety
monitoring forequipment reliability. It can also simultaneously detect particles of 4-6 particle sizes: PM0.3, PM0.5, PM1.0, PM2.5, PM5.0, PM10
Product Features
|

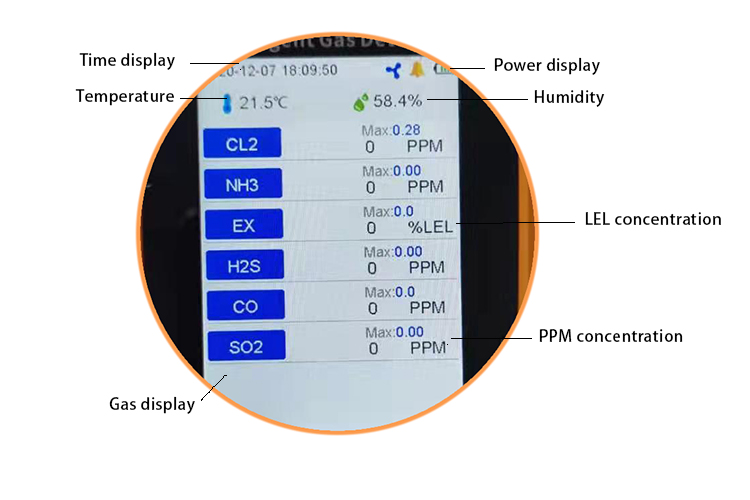

3.5-inch IPS Technical grade color screen,the gas type, unit, concentration, time can be showed on the screen.
|
2.4 inches color screen display,the gas type, unit, concentration, local time can be showed on the screen
|
|
|
The gas concentration unit PPM,mg/m3,g%VOL can be shifted quickly.
|
|
|
|
One press to restore factory setting, free from the bother of mis-operation.
|
|
|
|
4000mAh battery capacity,can continuous work more than 20 hours.
|
|
|
|
Can combine and display 6 gases at the same time.
|
|
|
|

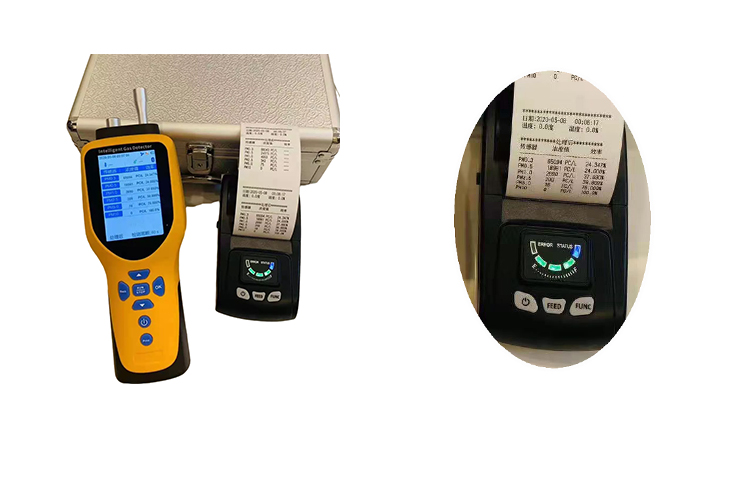

Can be connected to a micro printer to print data in real time
|
|
|
|
Explosion-proof certification, and explosion-proof grade: Ex ia IIC T4 Ga IP66.
|
|
|
|
With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.
|
|
|

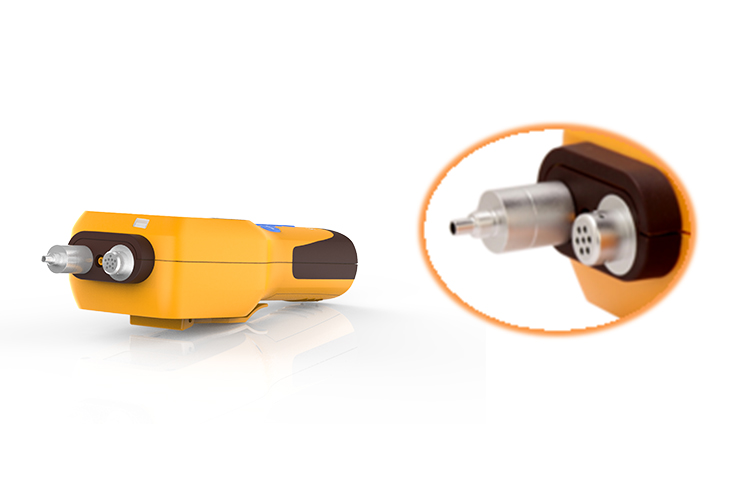

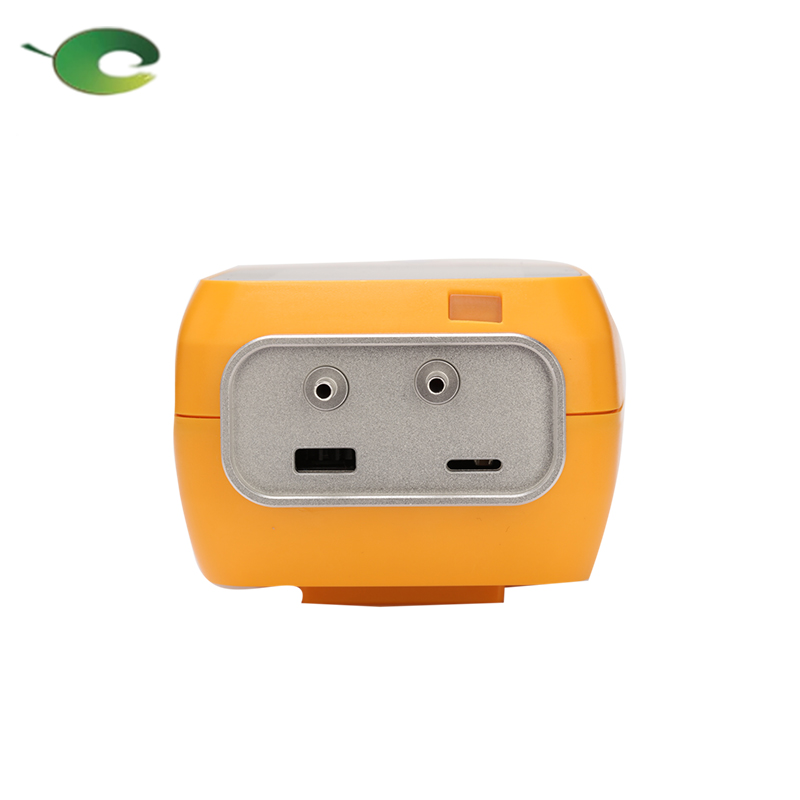

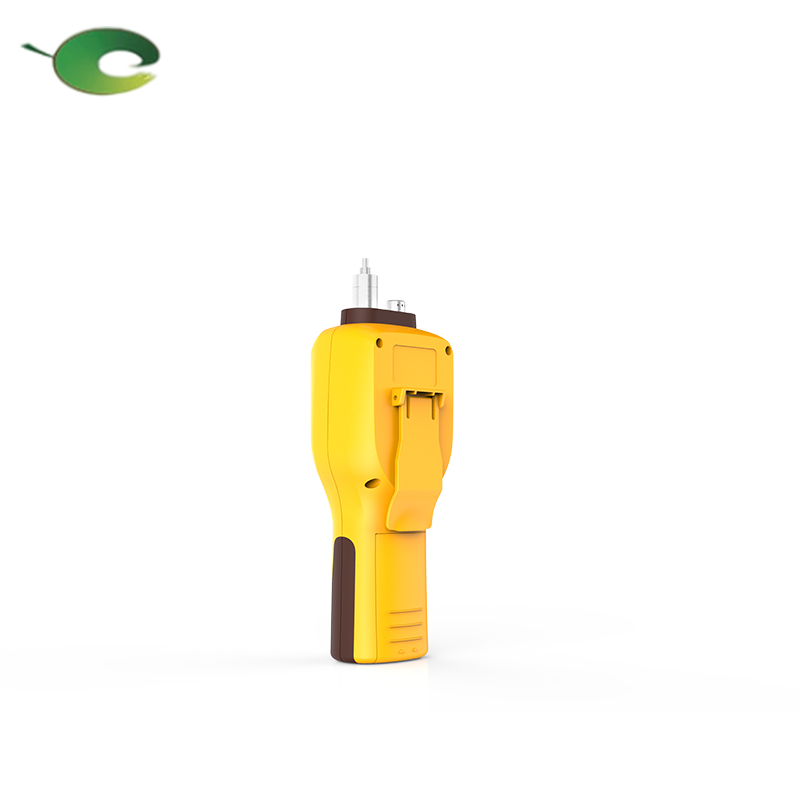

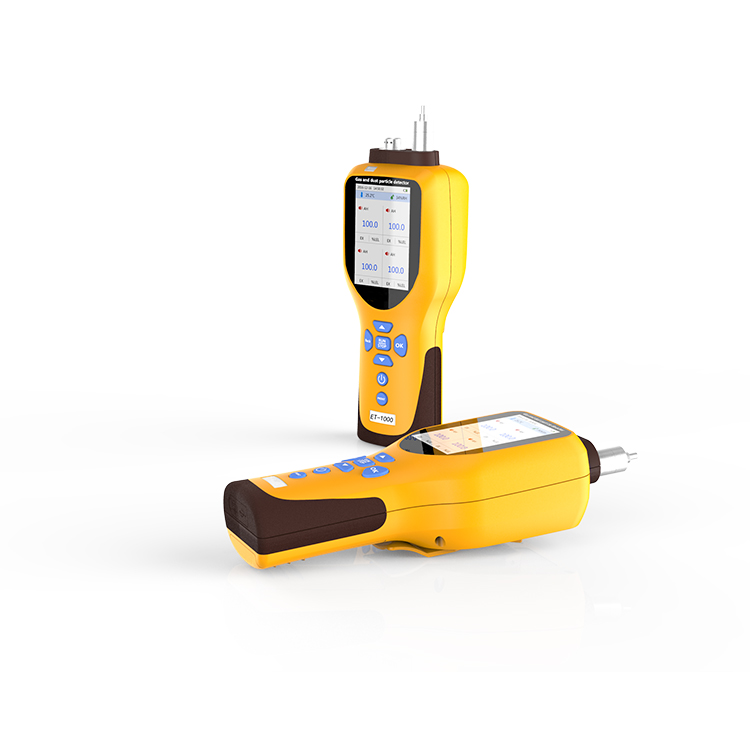

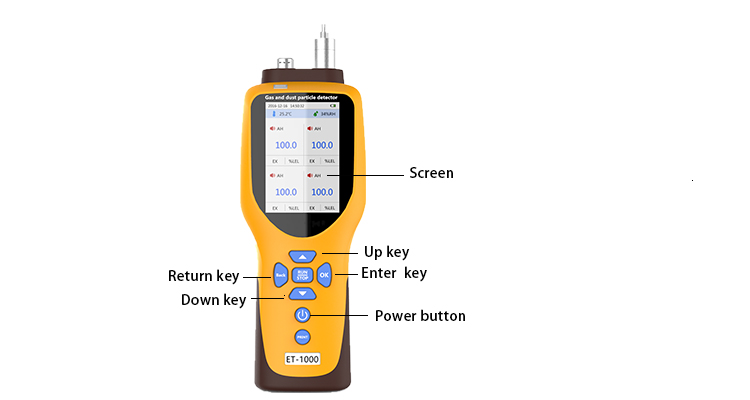

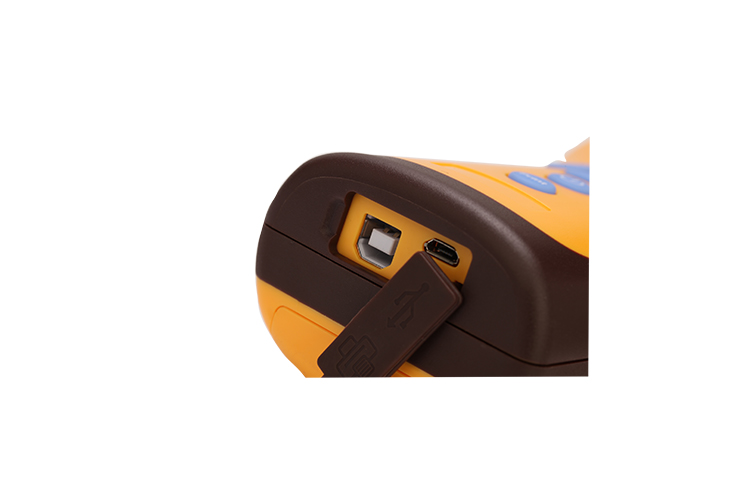

Detail Display
Product Paramenters
|
Product type
|
Portable Multi-gas detector (Customize according to user need,please contact us)
|
|
|
|
|||
|
Detection Range
|
0-100,1000,10000 ppm,0-5%,50%,100%VOL,0-100%LEL
|
|
|
|
|||
|
Resolution
|
0.001ppm,0.01ppm(0-100ppm)0.01%VOL(0-100%VOL)
|
|
|
|
|||
|
Scalable gas sensor
|
Electrochemistry/Infrared/Catalytic
|
|
|
|
|||
|
Dust sensor
|
PM0.3, PM0.5, PM1.0, PM2.5, PM5.0, PM10
|
|
|
|
|||
|
Detection accuracy
|
≤±3%F.S,≤±2%F.S,≤±1%F.S for option
|
|
|
|
|||
|
Detection pattern
|
Pumping,with built-in high-power pump allow device working under tiny negative pressure condition,the flow rate is adjustable.
|
|
|
|
|||
|
Temperature&Humidity
|
Temperature:-40 ～ 120℃
|
|
Humidity:0-100%RH
|
|
|||
|
Sampling method
|
Internal pump
|
|
|
|
|||
|
Detection mode
|
Pump suction,With high-power pump allow device can work under tiny negative pressure condition
|
|
|
|
|||
|
Linearity error
|
≤±1%F.S
|
Reaction time
|
≤20 S(T90)
|
≤20seconds(T90)
|
|||
|
Zero drift:
|
≤±1%(F.S/Year)
|
Recovery time
|
≤20 seconds
|
|
|||
|
Repeatability
|
≤±1%F.S
|
|
|
|
|||
|
Detection pattern
|
Real-time detection mode and timing detection mode can be switch freely
|
|
|
|
|||
|
Storage pattern
|
Automatically saving and manually saving is available,Up to 100,000 group data ,user can view history data on the display.
|
|
|
|
|||
|
Printing pattern
|
Micro printer is optional,user can set
|
|
|
|
|||
|
Explosion proof sign
|
Exdll CT4
|
Shell material
|
ABS+PC
|
|
|||
|
IP rating
|
IP66
|
Working Temperature
|
-30 ～ 60℃
|
|
|||
|
Power
|
4000mA high capacity polymer rechargeable battery
|
Humidity
|
≤95%RH,Non-condensing
|
|
|||
|
Dimensions
|
220*88*55 m(L×W×H)0.5 Kg(net weight)
|
Working pressure
|
-30Kpa ～ 100Kpa
|
|
|||
|

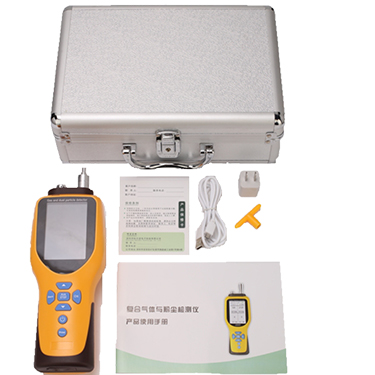

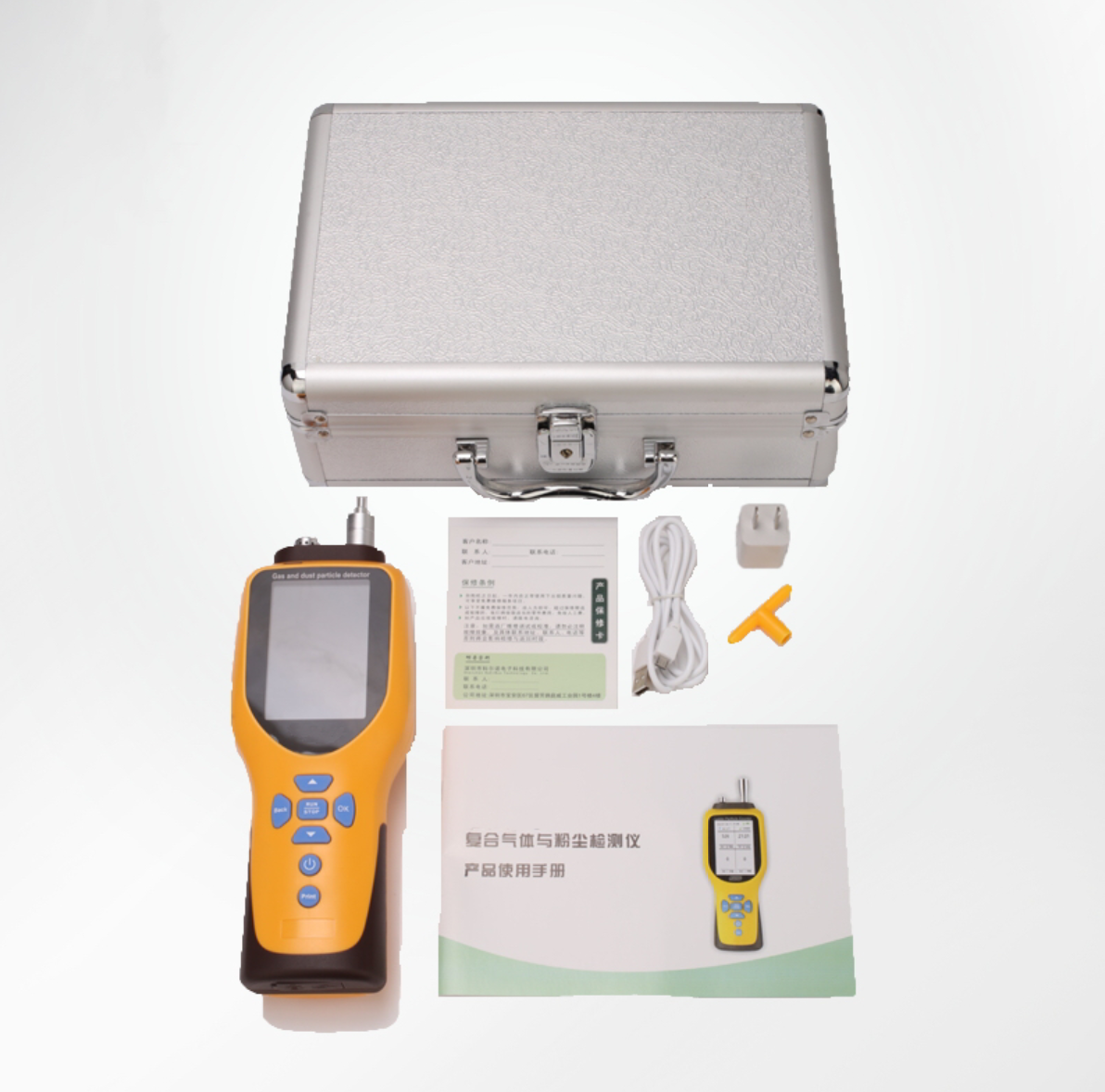

Accessories
|
Dust filter,Case,User manual,Certification,USB charger+Data cable,Calibration cover
|
|
|
|
|||

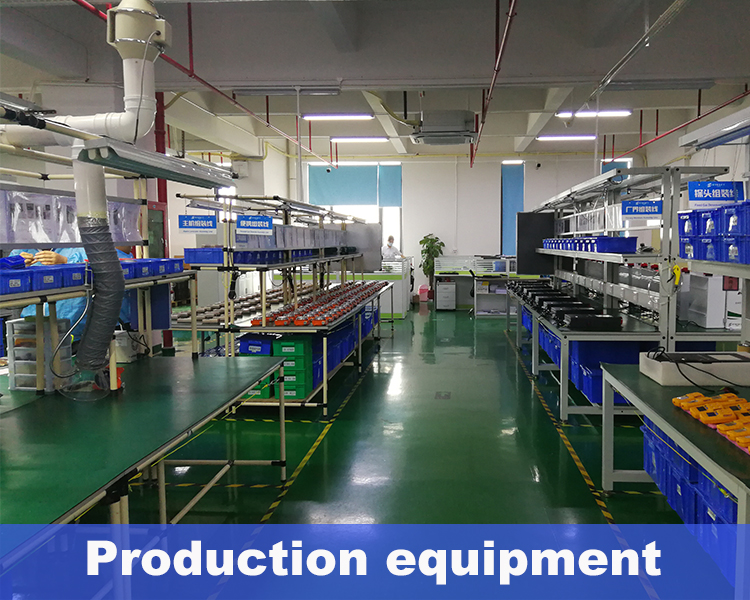

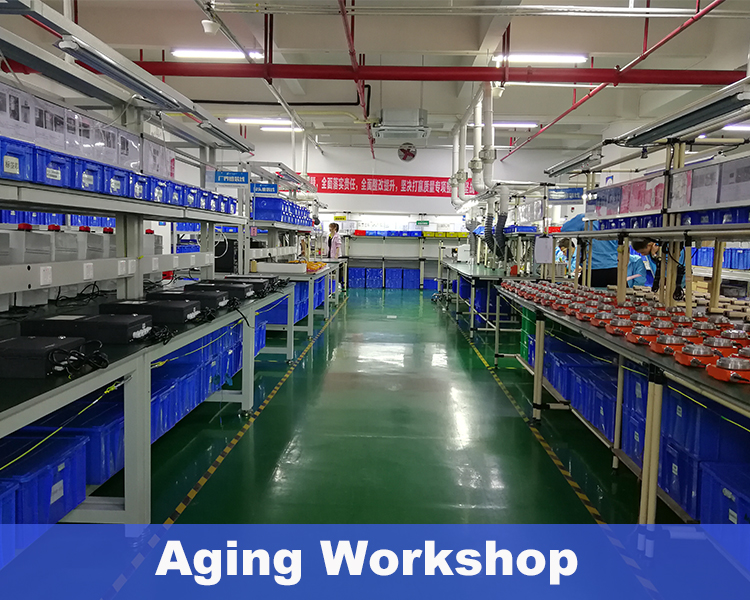

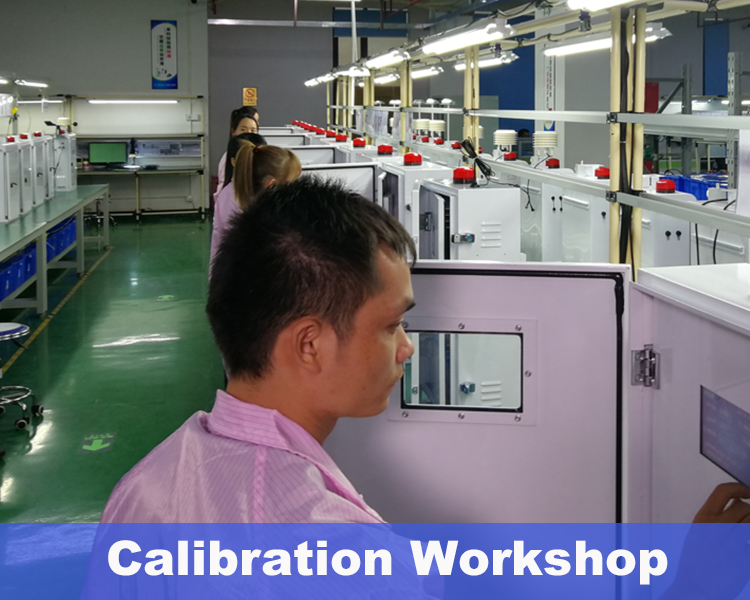

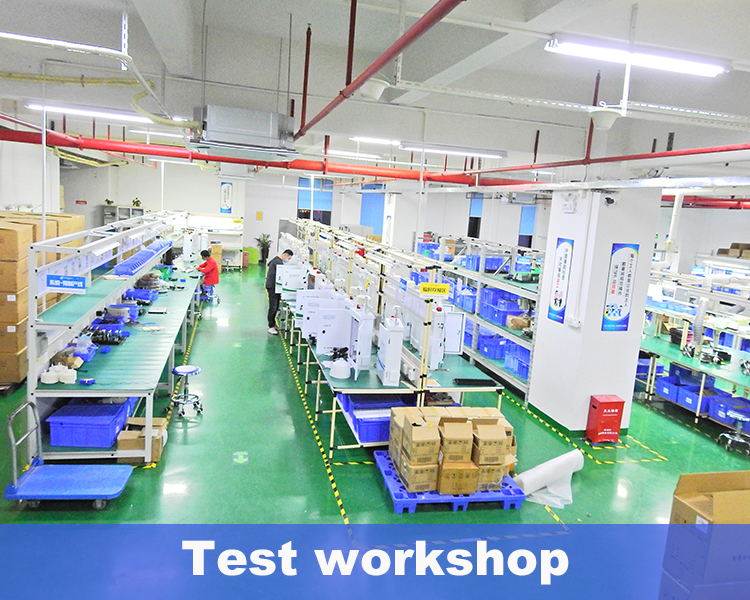

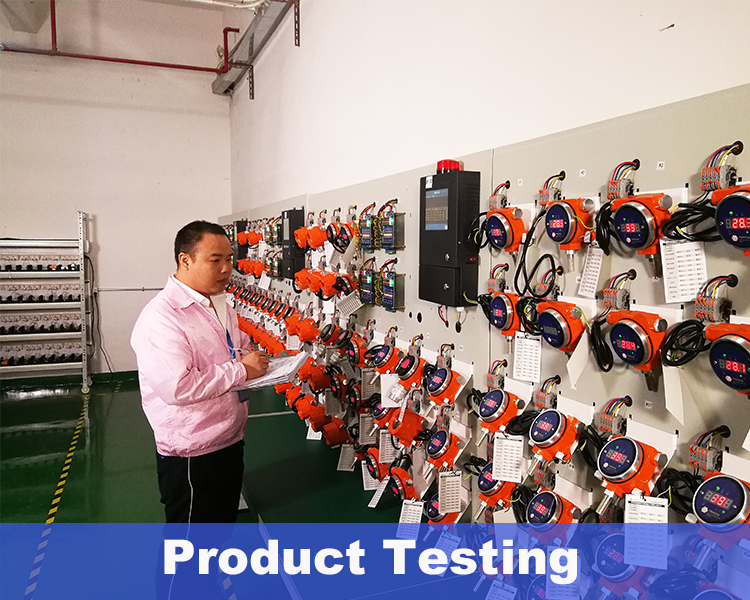

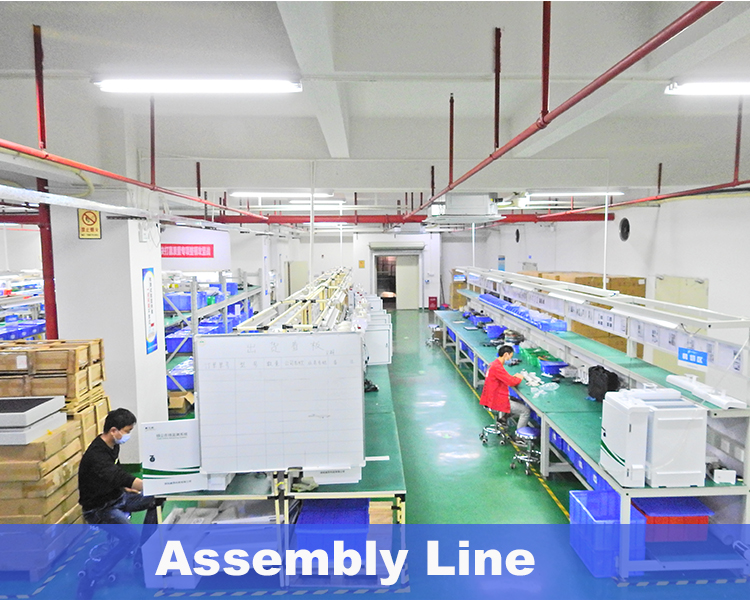

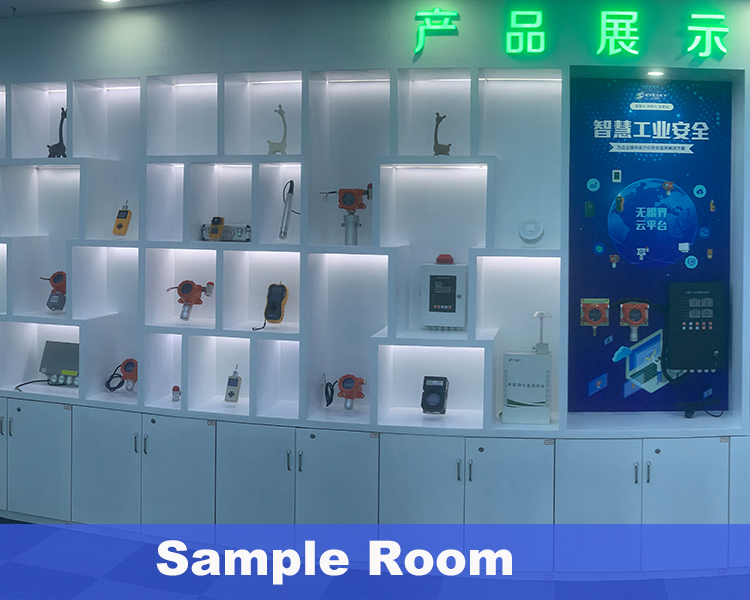

Company Profile
About Us
Gaspanda is a brand of All-in-one gas detectors introduced by Shenzhen Tyd Technology Co.,Ltd.is a manufacturer which was established in 2014 with 200 employees,and occupies an area of 4000 square meters . We are specializing in manufacturing gas detectors, gas alarms, gas analyzers, flue gas pretreatment systems. As a high-tech company integrating design, manufacturing ,sales and service.

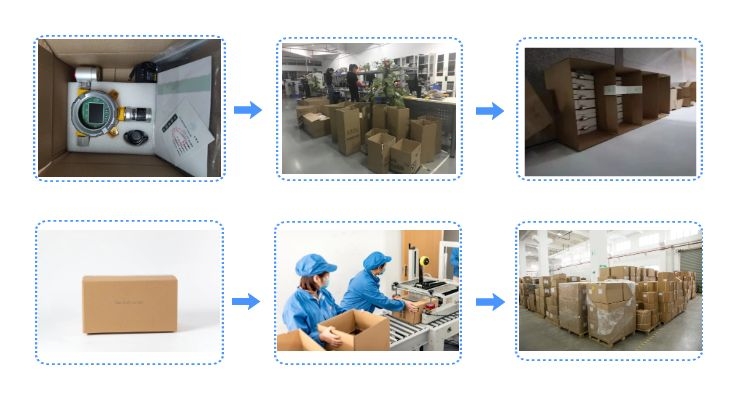

Packing & Delivery
Certifications
FAQ
1. Can I have a sample order to test quality?
Yes, we re commend and welcome sample order to test and check before order.
Yes, we re commend and welcome sample order to test and check before order.
2. What is the lead time?
Sample needs 1-3 days, mass production time needs 7-15 days for order<=5000pcs.
3.Do you have any MOQ limit?
We don’t have a MOQ limit, 1 pc are also welcome.
4. Do you offer guarantee for the products?
Yes, we offer 1 year guarantee for the products.
5. If I order big quantity, Can I have a cheaper price?
We will reduce the price according to the specific quantity and your requirements for the product.
6.Are you manufacturer?
Yes, We are Tranmitter manufacturer and exporter in china over 10 years experience with CE, ROHS, FCC, ISO and 11patents.
